Tire Pressure Monitoring (TPM) Module - Removal






REMOVAL





1. Remove wheelhouse splash shield. Splash Shield - Removal.

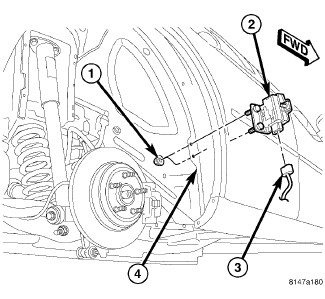

2. Disconnect wiring harness connector (3) at the Tire Pressure Module (2).
3. Remove mounting nuts (1), then remove the Tire Pressure Module (2) from body seam flange (4).
