Front

REAR-WHEEL-DRIVE

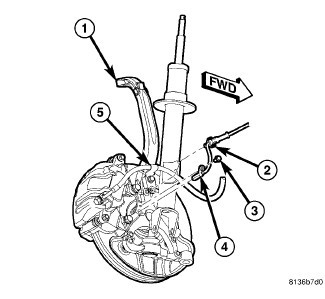

1. Install wheel speed sensor head (4) into knuckle and install mounting screw (3). Tighten screw to 11 Nm (97 in. lbs.).

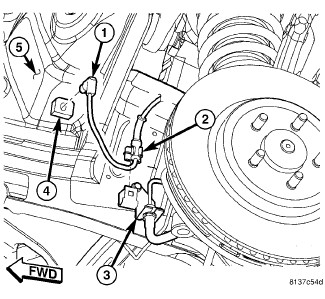

2. Attach wheel speed sensor cable and routing clip (2) to brake hose routing bracket (5).





3. Attach sensor cable routing clip (2) to brake hose bracket (3).
4. Connect sensor connector (1) to body wiring harness connector (4). When installing connector, make sure retaining clip on body connector is properly in place and sensor connect cannot be pulled out.
5. Lower vehicle.
6. Perform Verification Test and clear any faults Verification Tests.
