P0207-Fuel Injector 7 Circuit/Open: Notes

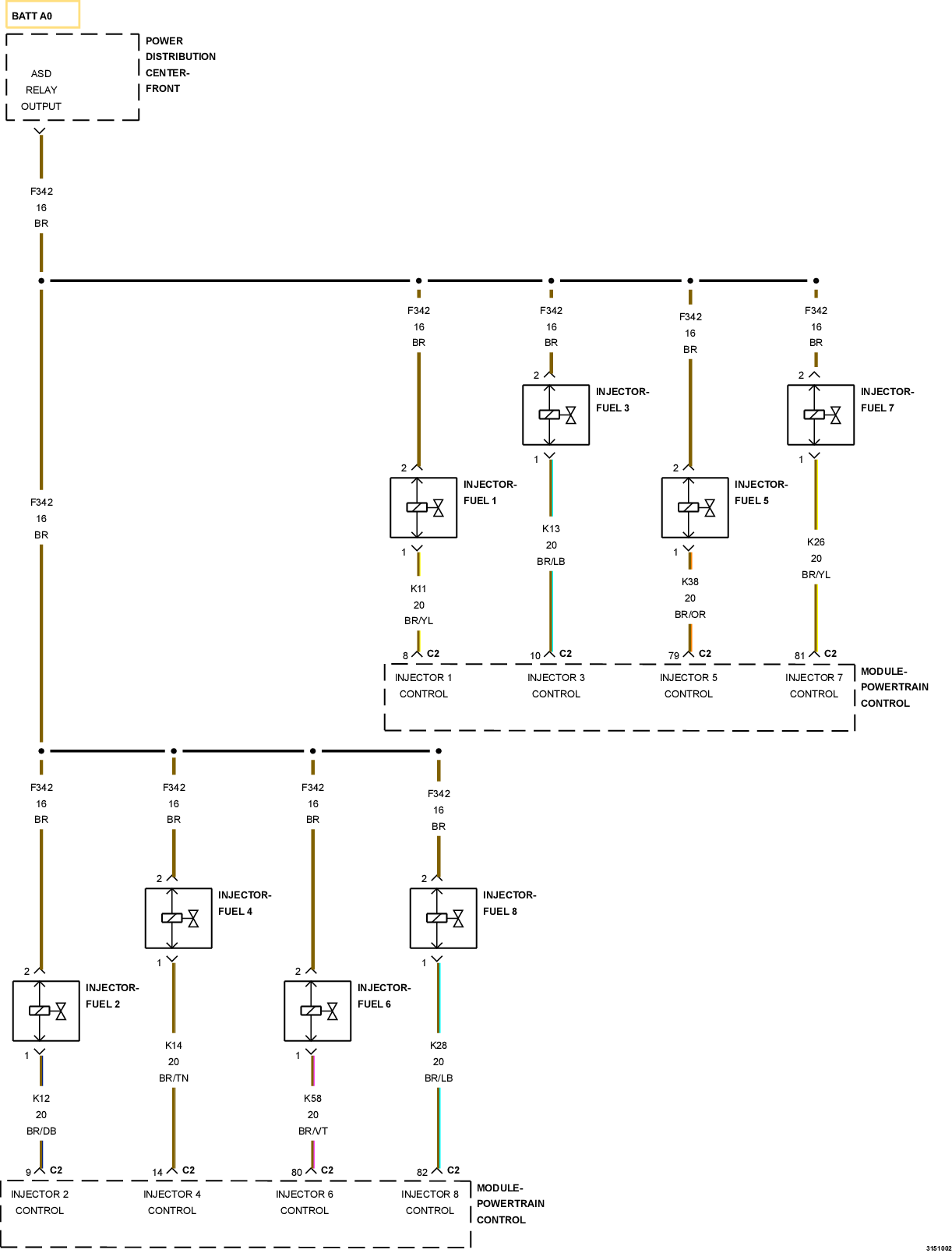

Fig 1: Fuel Injector Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
