Radiator, Engine Cooling: Installation: 5.7L/6.4L

NOTE:

Assistance may be required for radiator placement into vehicle till the lower radiator core support has been installed.

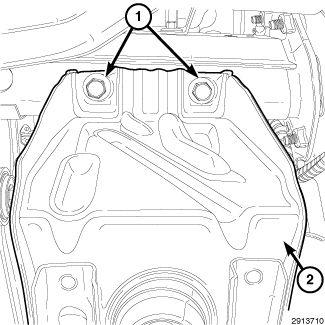

Fig 1: Lower Radiator Core Support Bolts & Core Support
GC0144487Courtesy of CHRYSLER GROUP, LLC
  1. Position the radiator onto engine compartment.
  2. Position the lower radiator core support in vehicle.
  3. Loosely  install the lower radiator core support (2) Bolts (1).
  4. Seat the radiator assembly lower rubber isolators into the mounting holes in radiator lower support.

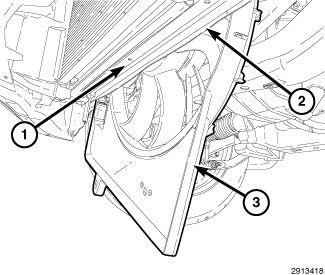

    Fig 2: Radiator Fan Assembly
    GC0144486Courtesy of CHRYSLER GROUP, LLC
  5. Install the radiator fan. Refer to FAN, COOLING, INSTALLATION .
    Fig 3: Lower Radiator Hose
    GC0095212Courtesy of CHRYSLER GROUP, LLC
    1 - LOWER RADIATOR HOSE
    2 - RADIATOR FAN ASSEMBLY
  6. Install the lower radiator hose (1) and clamp.
    Fig 4: Lower Engine Cover & Front Air Shield
    GC0144481Courtesy of CHRYSLER GROUP, LLC
  7. Install the lower engine cover.
  8. Lower vehicle.
    Fig 5: Upper Radiator Mounting Brackets Bolts
    GC0144643Courtesy of CHRYSLER GROUP, LLC
  9. Install the upper shroud cover by applying pressure downwards till the snap into place.
  10. Install the radiator mounting bracket (1) and bolts (2). Tighten to 12 N.m (106 in. lbs.).
    Fig 6: Support Bolt
    GC0144644Courtesy of CHRYSLER GROUP, LLC
  11. Position the condenser on radiator and loosely install the support bolt (3).
  12. Install the condensors upper and lower mounting bolts. Tighten bolts to 10 N.m (88 in. lbs.).
  13. Tighten the support bolt (3) to 10 N.m (88 in. lbs.).
    Fig 7: Air Deflectors
    GC0144642Courtesy of CHRYSLER GROUP, LLC
  14. Install the air deflectors (1).
  15. Position the hood latch release cable (2) through the notch in deflector.
    Fig 8: Front Bumper Fascia
    GC0144594Courtesy of CHRYSLER GROUP, LLC
  16. Install the front bumper fascia. Refer to FASCIA, FRONT, INSTALLATION .
  17. Install the upper radiator upper hose (2). Align hose so it does not interfere with the accessory drive belt or engine.
  18. Connect the negative cable.

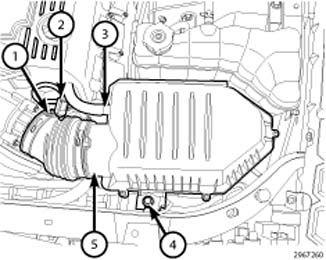

    Fig 9: Air Duct Retaining Clamp, Intake Air Temperature Sensor Electrical Connector, Makeup Air Hose, Bolt & Air Cleaner Housing
    GC0148444Courtesy of CHRYSLER GROUP, LLC
  19. Install the air intake assembly. Refer to BODY, AIR CLEANER, INSTALLATION or BODY, AIR CLEANER, INSTALLATION, 5.7L or BODY, AIR CLEANER, INSTALLATION .
  20. Fill the cooling system with coolant. Refer to STANDARD PROCEDURE .
  21. Operate the engine until it reaches normal operating temperature. Check the cooling system and automatic transmission for the correct fluid levels.
