No Response From Abs (Anti-Lock Brake System) Module: Notes

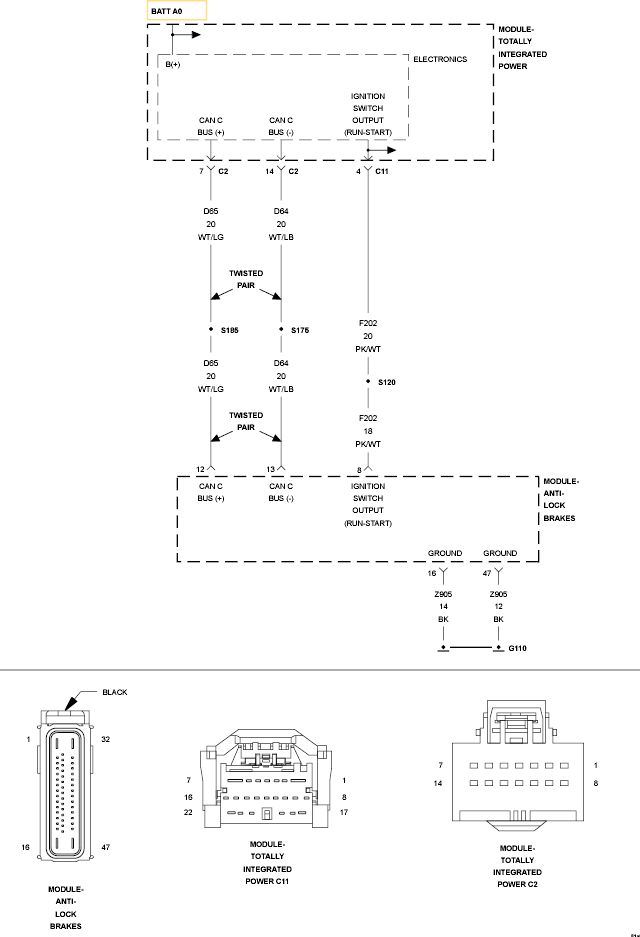

Fig 1: Antilock Brake Module Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
