P0716-Input Speed Sensor 1 Circuit Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

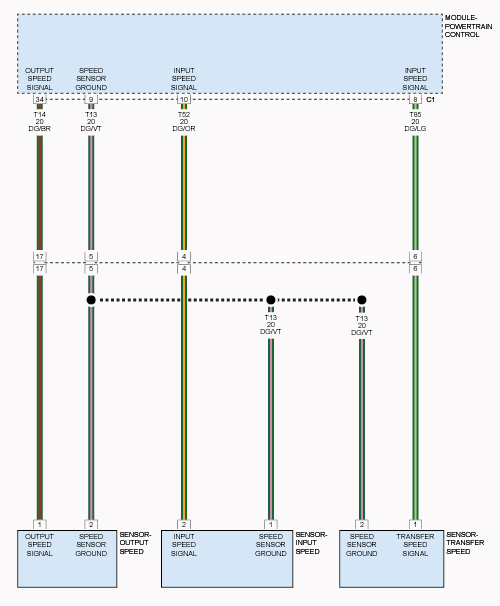

Fig 1: Speed Sensor - Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
