3.6L Engine

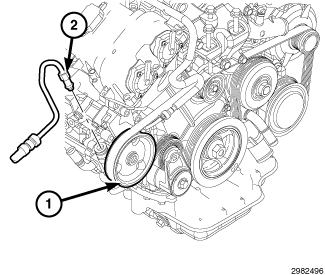

Fig 1: Hose Fitting & Pump
GC0147043Courtesy of CHRYSLER GROUP, LLC
NOTE:

Before installing power steering pressure hose on power steering pump, replace O-ring on end of power steering pressure hose. Lubricate O-ring using clean power steering fluid.

  1. Install power steering pump (1) onto its mounting bracket.
  2. Install three power steering pump mounting bolts through pulley (not shown in figure). Tighten pump mounting bolts to 30 N.m (22 ft. lbs.).
  3. Install power steering pump pressure fitting (2) and tighten to 32 N.m (24 ft. lbs.).

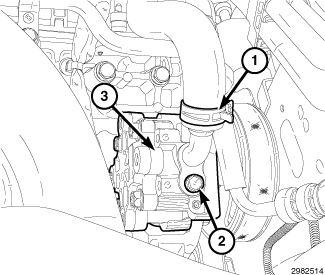

    Fig 2: Supply Hose Clamp
    GC0147044Courtesy of CHRYSLER GROUP, LLC
  4. Slide fluid supply hose onto pump (3) fitting and install clamp (1) securing it in place.

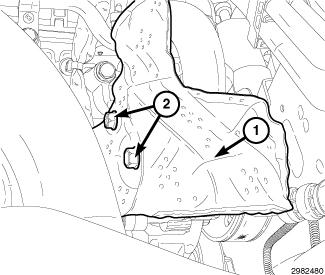

    Fig 3: Shield Mounting Bolts & Heat Shield
    GC0147042Courtesy of CHRYSLER GROUP, LLC
  5. Install heat shield (1) and secure with 3 mounting bolts (2). Tighten bolts to 25 N.m (18 ft. lbs.)
  6. Install exhaust pipe. Refer to PIPE, EXHAUST CROSSUNDER, INSTALLATION .

    .

  7. Lower vehicle.
  8. Install accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
  9. Connect negative (-) battery cable on negative battery post.
  10. Fill and bleed power steering system. Refer to STANDARD PROCEDURE .
  11. Inspect for leaks.
