Sensor, Knock: Installation: 5.7L/6.4L
CAUTION:
Over or under tightening the knock sensor mounting bolts will affect knock sensor performance, possibly causing improper spark control.
NOTE:
The foam strip used on bolt threads is used only to retain the bolts to the sensors for plant assembly. It is not used as a sealant. Do not apply any adhesive, sealant or thread locking compound to these bolts.
- Install the knock sensor (1) onto cylinder block. Tighten bolt (2) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
- Connect the knock sensor wire harness connector (5).
- Snap the heat shield (1) onto the knock sensor.

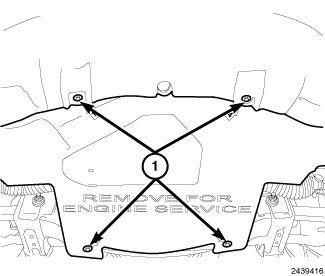

- Install the belly pan and securely tighten bolts (1).
- Connect the negative battery cable.
