Module-Advanced Front Lighting System (Standard) Connector End View (D2686A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 4-1897168-2

Part Description: Not Available

Connector No: D2686A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: null

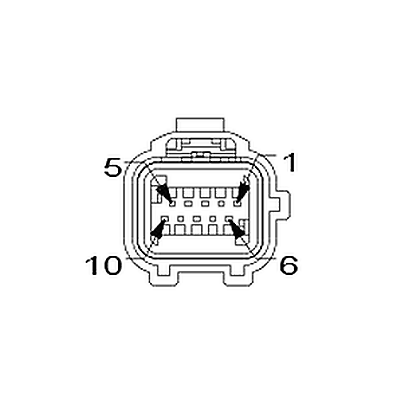

Fig 1: Module-Advanced Front Lighting System Connector End View (Standard)
GCWD1144765Courtesy of CHRYSLER

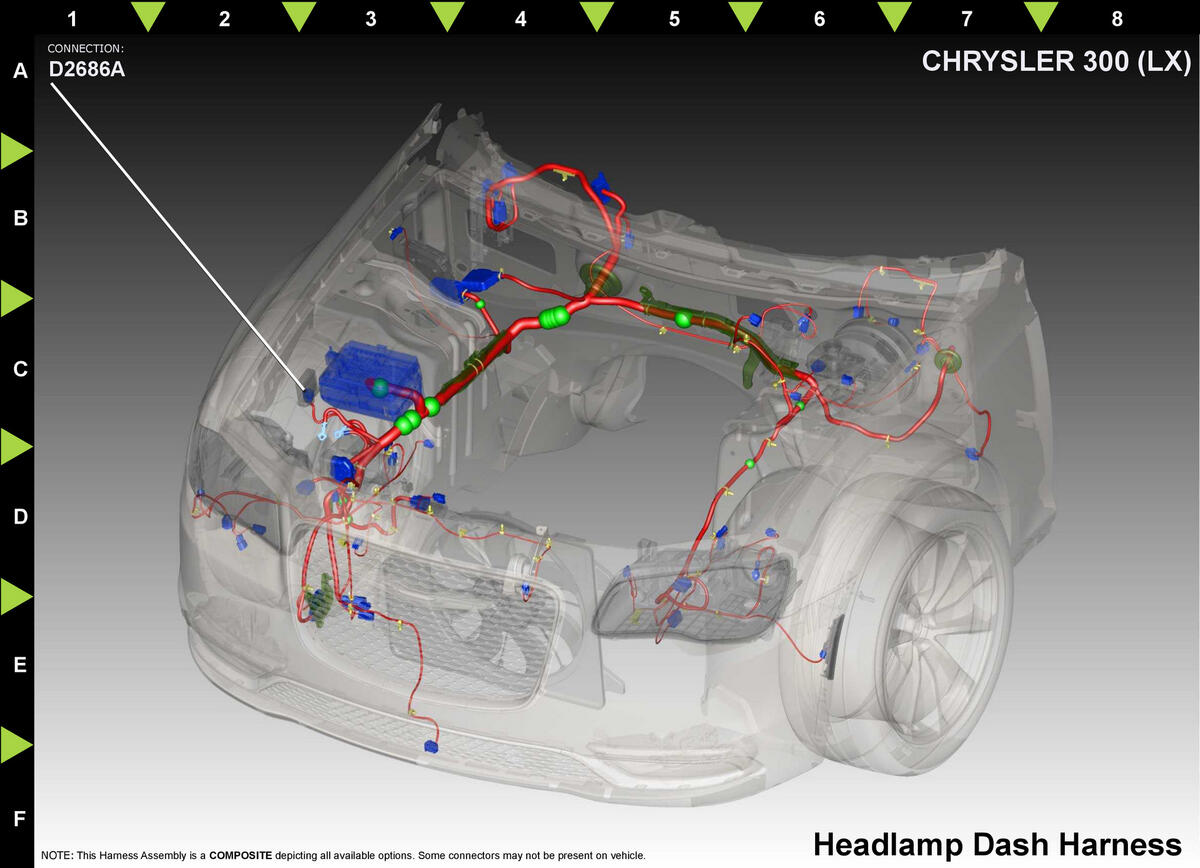

Fig 2: Module-Advanced Front Lighting System Component Location (Standard)
GCWD1287618Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 Z902 BK 0.50 GROUND N/A
2 L964 WH/YE 0.50 HEADLAMP LEVELING SENSOR 5 VOLT SUPPLY-RR N/A
3 L966 WH/BK 0.50 HEADLAMP LEVELING SENSOR RETURN N/A
5 F927 PK/YE 0.50 FUSED IGNITION SWITCH OUTPUT (RUN) N/A
6 D256 YE 0.50 CAN C (-) N/A
7 D257 YE/VT 0.50 CAN C (+) N/A
8 L963 WH/DB 0.50 HEADLAMP LEVELING SENSOR REAR SIGNAL N/A
9 D412 OG/GN 0.50 LIN AFLS N/A
(1) Pins not listed are not used for this connector
