Motor, Window Regulator: Installation

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The power window motor may need to actuated momentarily to line up the gear in the drive assembly with the regulator.

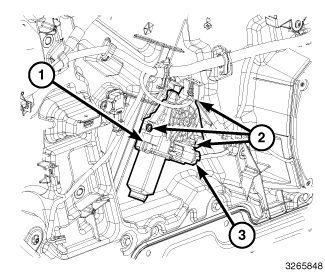

Connect the power window motor electrical connector (3) to the motor electrical connector receptacle.
Position the power window motor and gear assembly (1) on the carrier plate, aligning the drive gear with the regulator.
If necessary, temporarily connect the window switch assembly and battery to actuate the motor.
Install and tighten the three fasteners (2) that secure the power window motor and gear assembly to the carrier plate.
Reinstall the door interior trim panel or Refer to PANEL, DOOR TRIM, INSTALLATION . for the appropriate procedure. Refer to PANEL, REAR DOOR TRIM, INSTALLATION .
Connect the negative battery cable.
Perform the Clear/Relearn procedure Refer to DOOR MODULE LEARN PROCEDURES .
