Removal And Installation: Installation

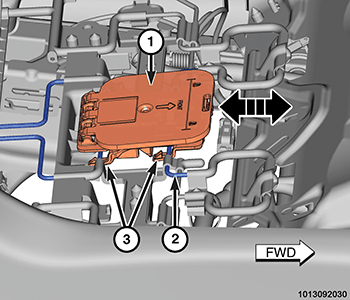

- Position the ODS (1), aligning the integral mounting latches (3) to the seat wire frame (2).
- Carefully push the ODS (1) toward the rear of the seat to engage the integral mounting latches (3) with the seat wire frame (2). Be certain all integral mounting latches are attached to the seat wire frame.

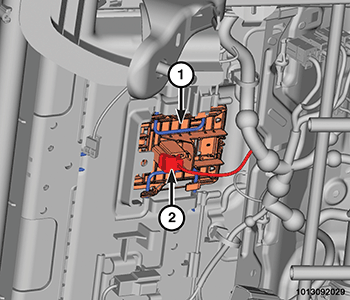

- Reach under the back of the front seat cushion frame to access and connect the seat wire harness connector (2) to the ODS (1).
- Install the seat cushion and cover. Refer to COVER, SEAT CUSHION, FRONT, REMOVAL AND INSTALLATION .
- Install the side shields to the front seat. Refer to SIDE SHIELDS, SEAT CUSHION, FRONT, REMOVAL AND INSTALLATION .
- Install the passenger side front seat into the vehicle. Refer to SEAT, FRONT, REMOVAL AND INSTALLATION .
