Description And Operation: Description

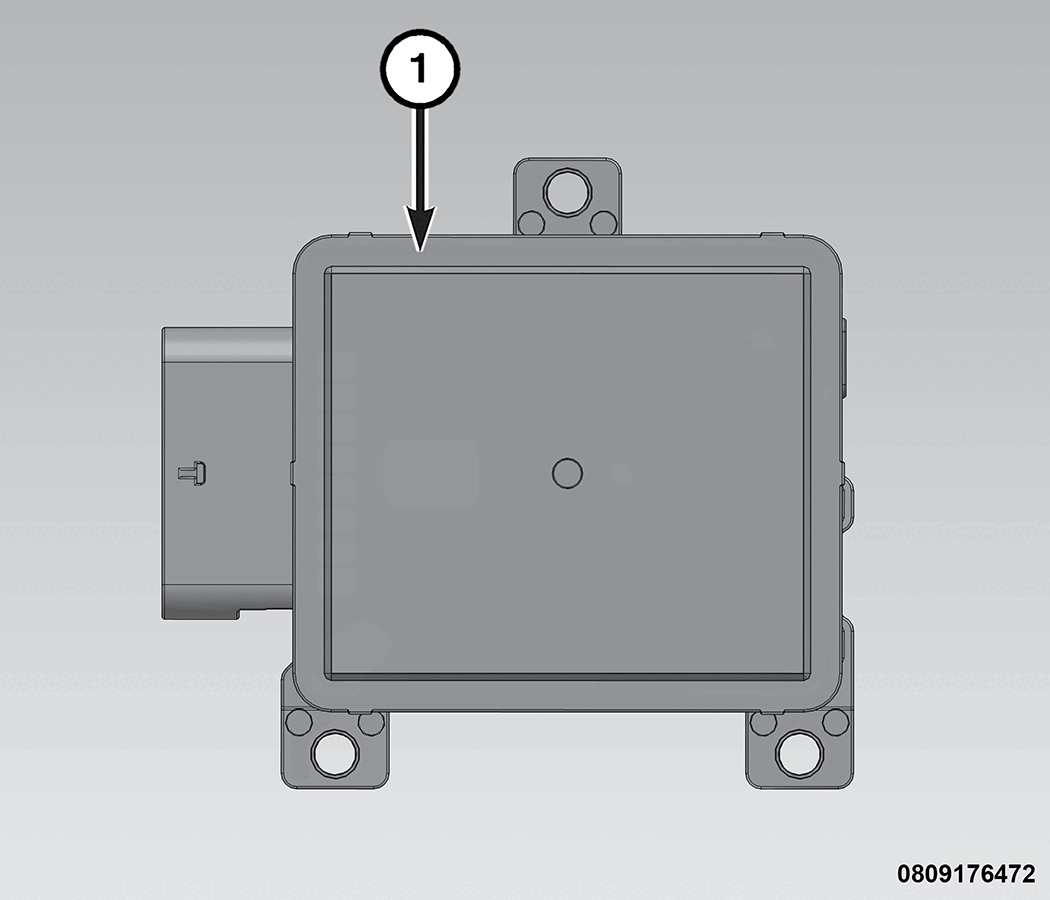

| 1 - ACC Radar |
The Adaptive Cruise Control (ACC) Radar communicates with other vehicle modules via both public and private bus networks to provide the following features sets (when equipped):
- Adaptive Cruise Control with Stop and Go (ACC+)
- Full Speed Range Forward Collision Mitigation (FSRFCW+)
- Advanced Brake Assist (ABA)
The ACC Radar:
- Is mounted to a bracket located on the front bumper beam at the behind the lower grille.
- Is snap fit to the mounting bracket using three tabs.
