General System Architecture

NOTE:

KL vehicles have the option of a 1-Speed or 2-Speed PTU system. RU vehicles only come with a 1-Speed PTU system.

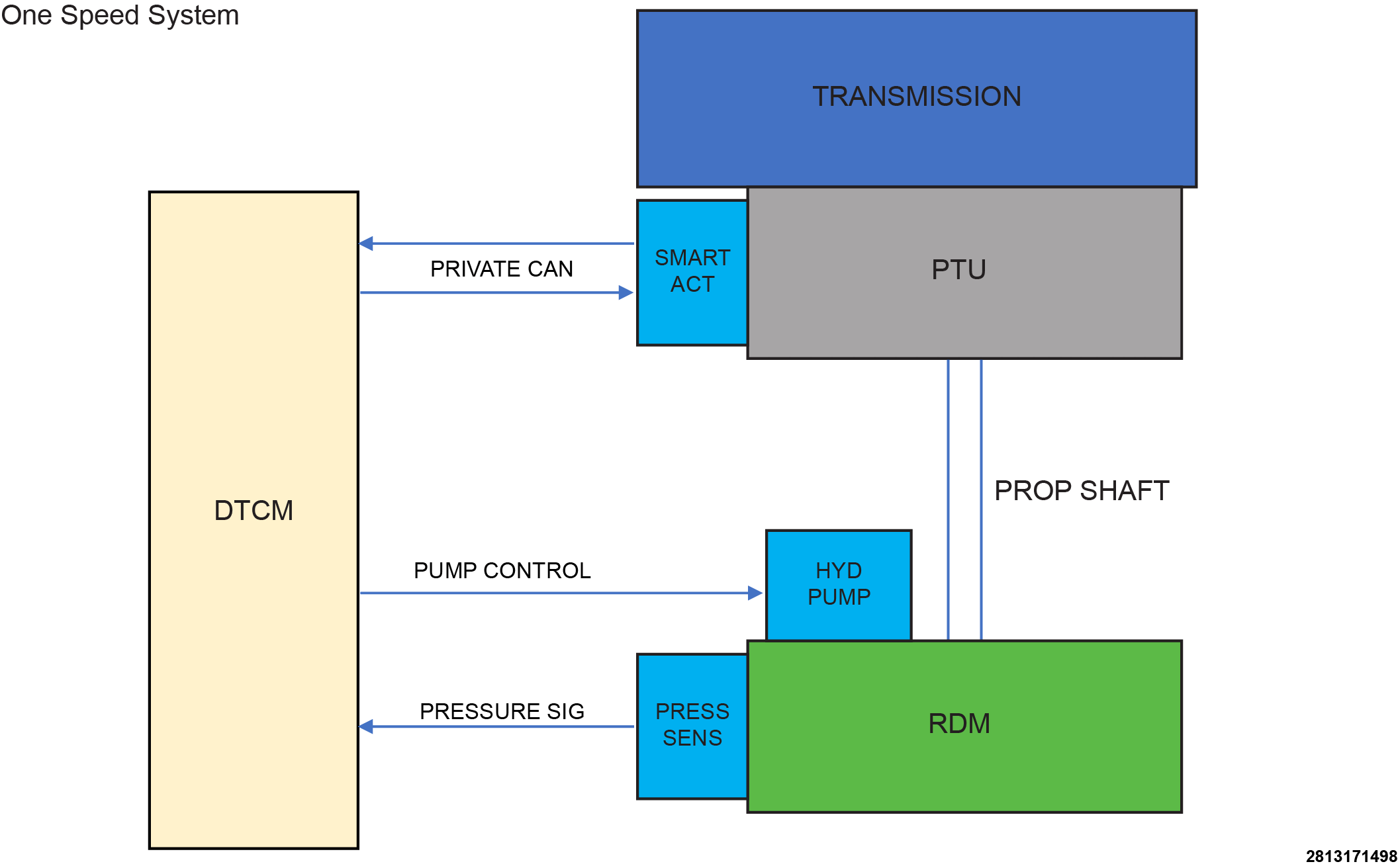

GC0200046Courtesy of CHRYSLER GROUP, LLC

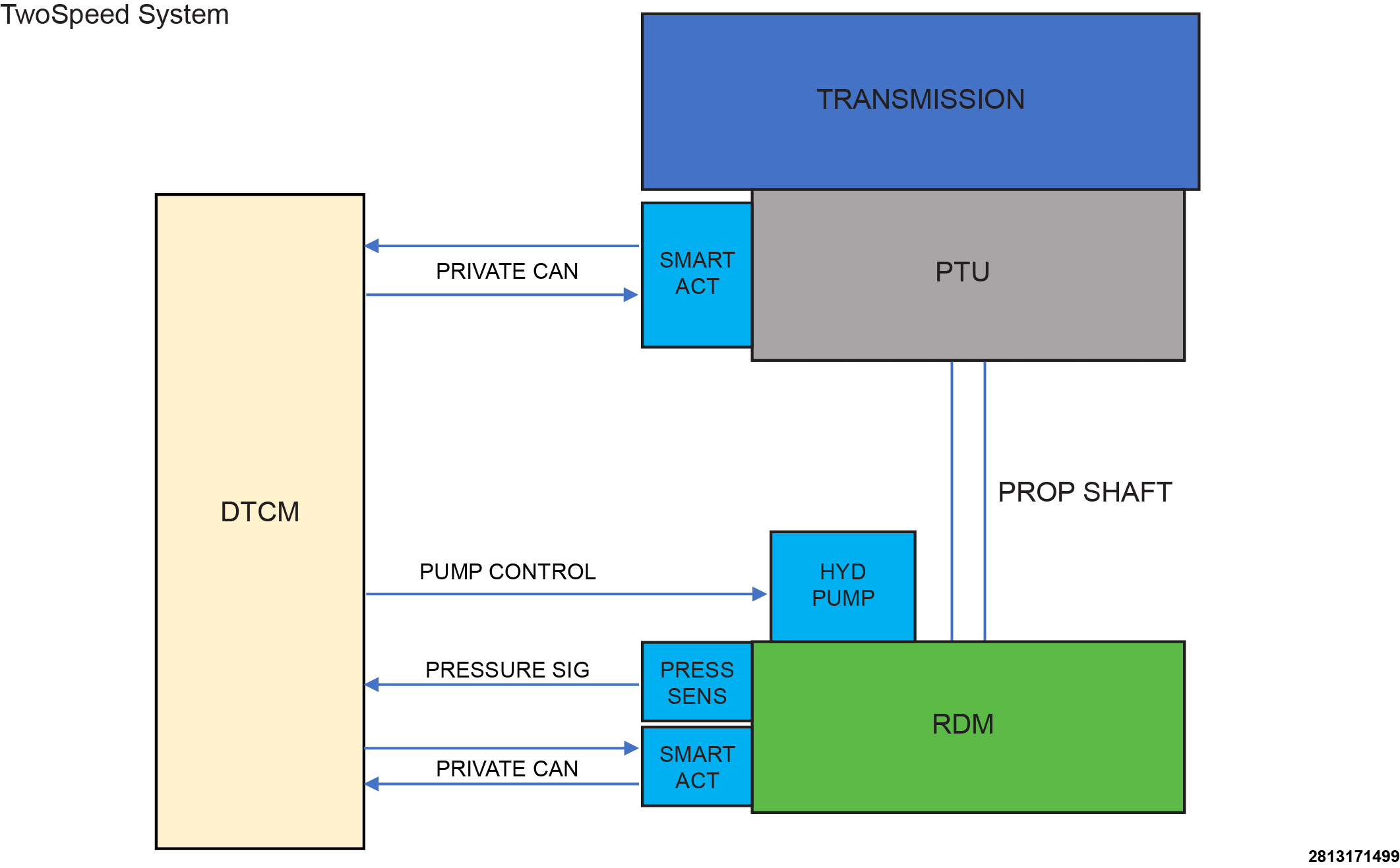

GC0200039Courtesy of CHRYSLER GROUP, LLC
