Description And Operation: Description

Courtesy of CHRYSLER GROUP, LLC

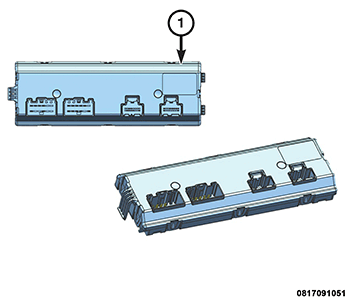

1 - FSM

The Folding Seat Module (FSM) controls the position of the third row seats. When commanded, it moved the seats from the seated position to the stowed position, or, from the stowed position to the seated position. With the seat in the seated position, the FSM can also move the angle of the seat back forward or rearward.

Courtesy of CHRYSLER GROUP, LLC

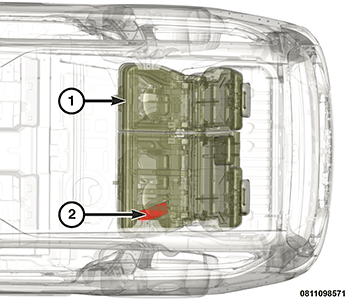

1 - Third Row Seat

2 - FSM

The FSM is attached with a bracket by slide and snap fit design on the bottom of the third row seat.
