Speed Control Switch

REMOVAL

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

Remove the driver air bag. Refer to AIR BAG, REMOVAL AND INSTALLATION .

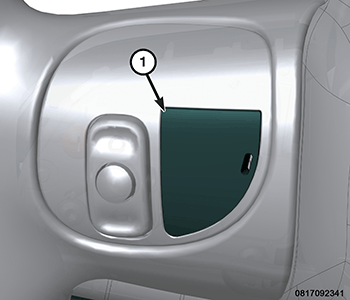

From the back of the steering wheel, remove the left and right remote radio switch with paddle shift unit cover from the switch by inserting a small flat screwdriver or equivalent into the slot and prying outward.

Courtesy of CHRYSLER GROUP, LLC

1 - Shift Unit Cover

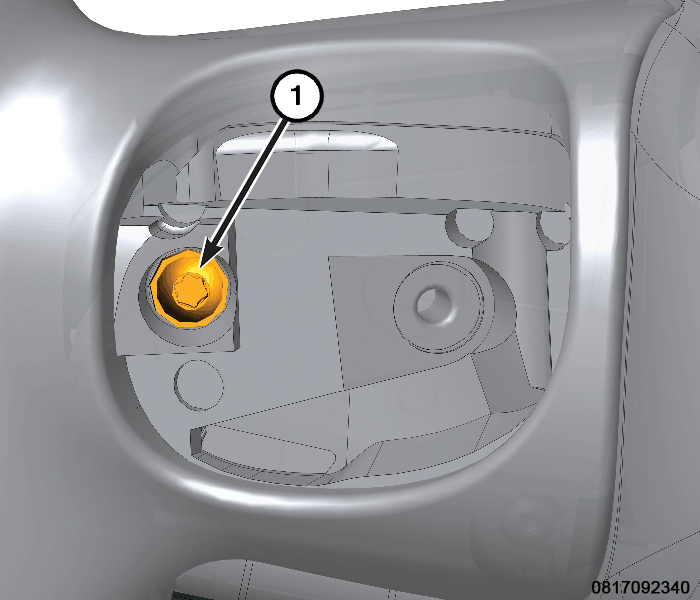

Remove the switch retaining screw.

Courtesy of CHRYSLER GROUP, LLC

1 - Switch Retaining Screw

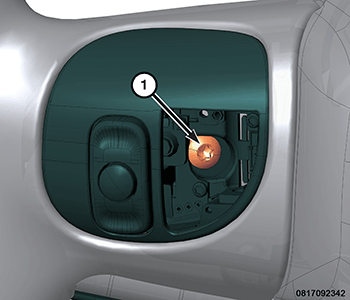

Remove the switch from the steering wheel to gain access to and remove the steering wheel bezel retaining screw.

Courtesy of CHRYSLER GROUP, LLC

1 - Steering Wheel Bezel Retaining Screw

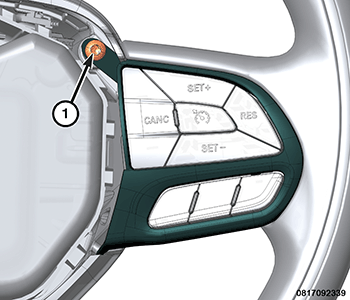

Remove the upper switch retaining screw.

Courtesy of CHRYSLER GROUP, LLC

1 - Upper Switch Retaining Screw

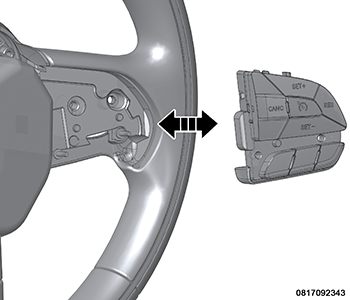

Disconnect the electrical connector from the switch and remove the switch from the steering wheel.

Courtesy of CHRYSLER GROUP, LLC

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

WARNING:

Install and tighten the forward screw.
Install and tighten the back speed control switch screw.
Install the remote radio switch bezel and securely tighten the retaining screw.
