Description And Operation: Description

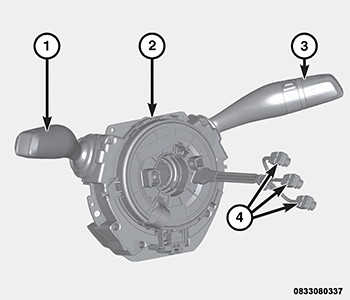

| 1 - Left (Light Control) Multifunction Switch |
| 2 - Steering Column Control Module (SCCM) |
| 3 - Right (Wiper) Multifunction Switch |
| 4 - Airbag Squib Connectors |
The right (wiper) multifunction switch is located on the right side of the Steering Column Control Module (SCCM), just below the steering wheel. This switch is the primary control for the front and the optional rear wiper and washer systems. The only visible components of the switch are the control stalk with a control knob and control sleeve that extend through the steering column shrouds on the right side of the column. The switch, including its mounting provisions and its electrical connection, are contained within the SCCM.
The right multifunction switch cannot be adjusted or repaired. If any function or feature of the switch is ineffective or if the switch is damaged, the entire SCCM must be replaced. Refer to MODULE, STEERING COLUMN CONTROL (SCCM), REMOVAL AND INSTALLATION .
