DTC P0351: Ignition Control Circuit A Fault
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
DTC P0351: Ignition Control Circuit A Fault

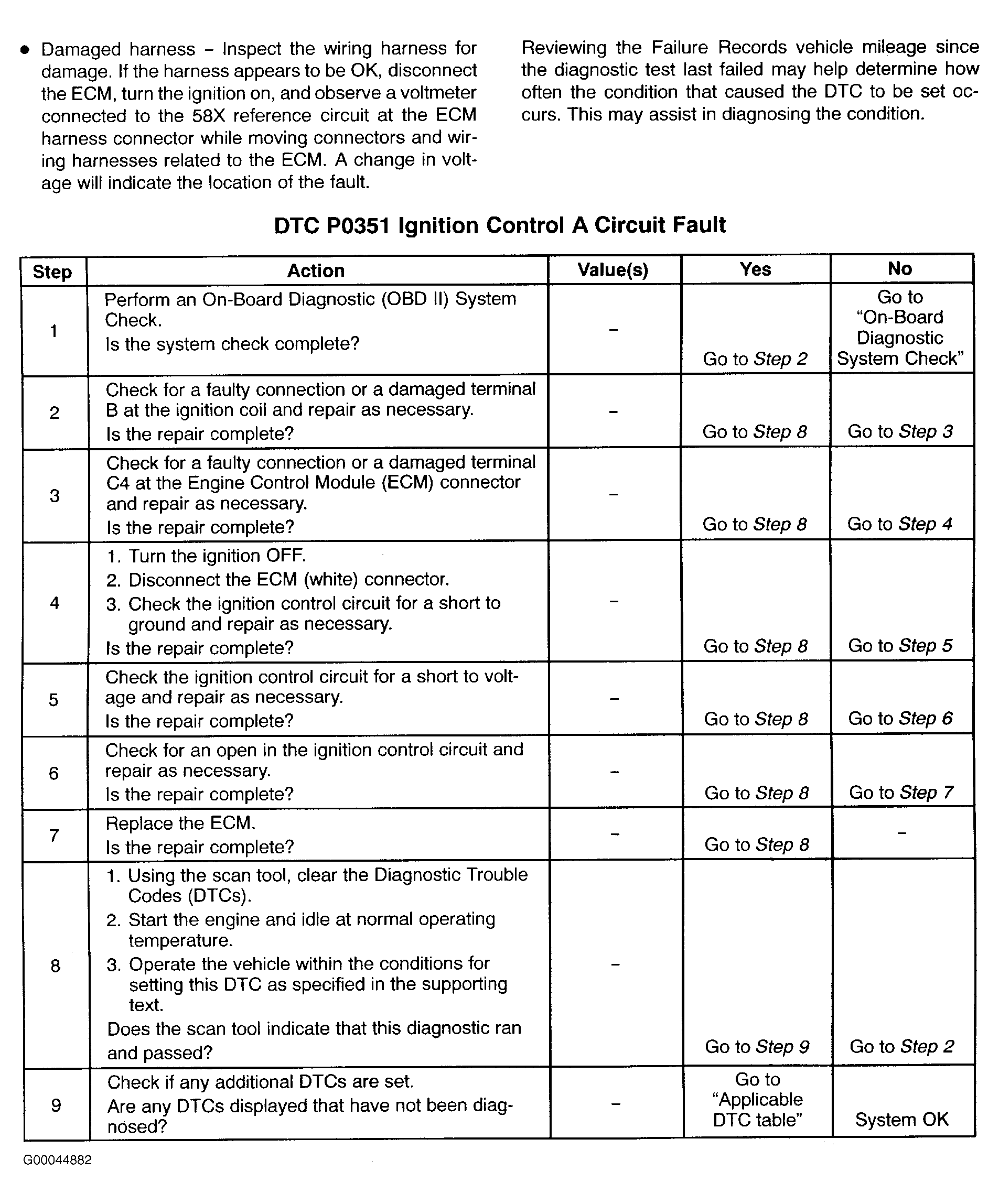

Fig 1: DTC P0351: Ignition Control Circuit A Fault (1 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.

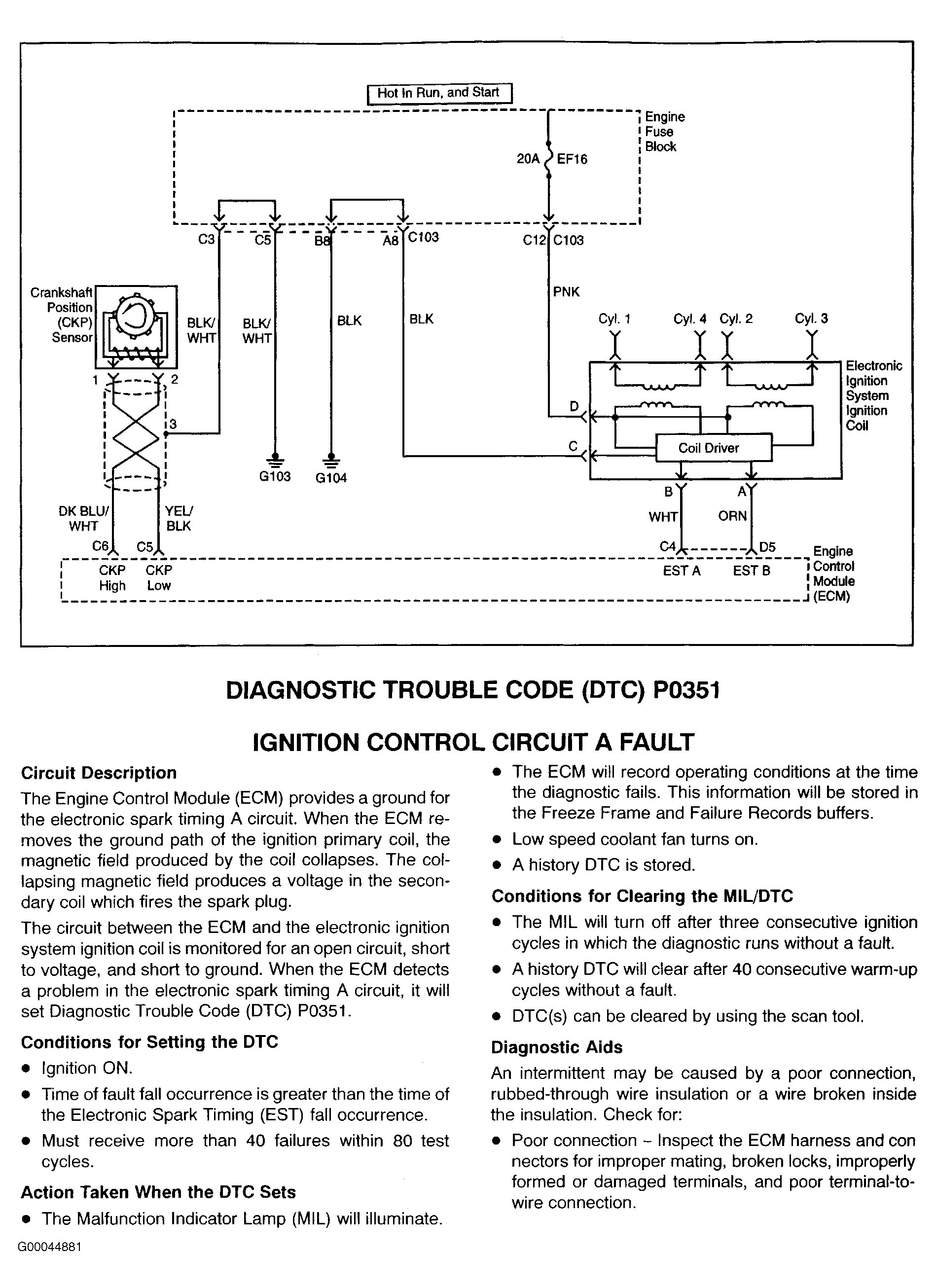

Fig 2: DTC P0351: Ignition Control Circuit A Fault (2 Of 2)
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
Courtesy of DAEWOO MOTOR AMERICA, INC.
