Diagnostic Codes For 1.0L

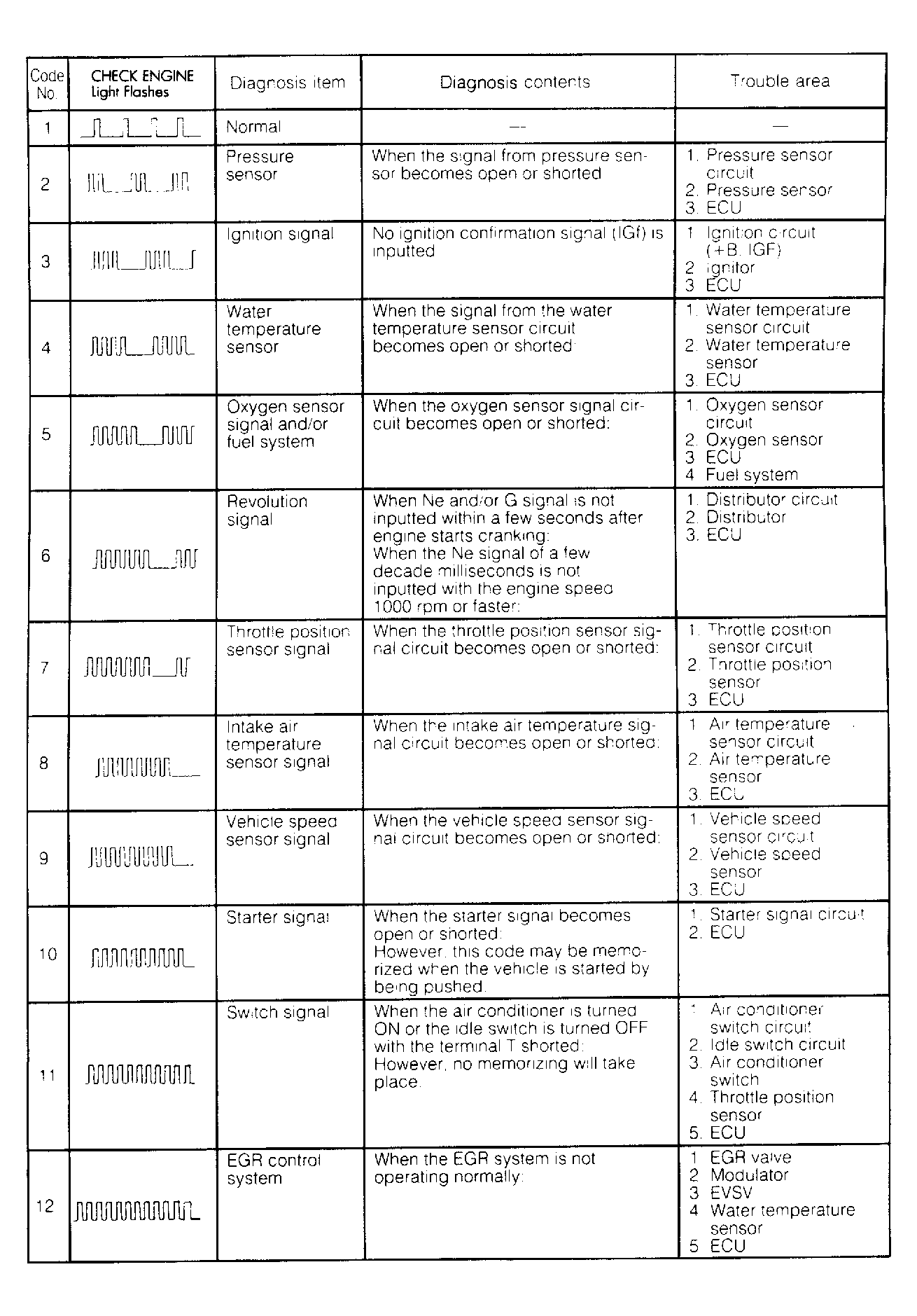

Fig 1: Diagnostic Code ID Charade 1.0L
Courtesy of DAIHATSU MOTOR CO., LTD.
Courtesy of DAIHATSU MOTOR CO., LTD.
