Ch1 - Checking Charging System For Fault Messages

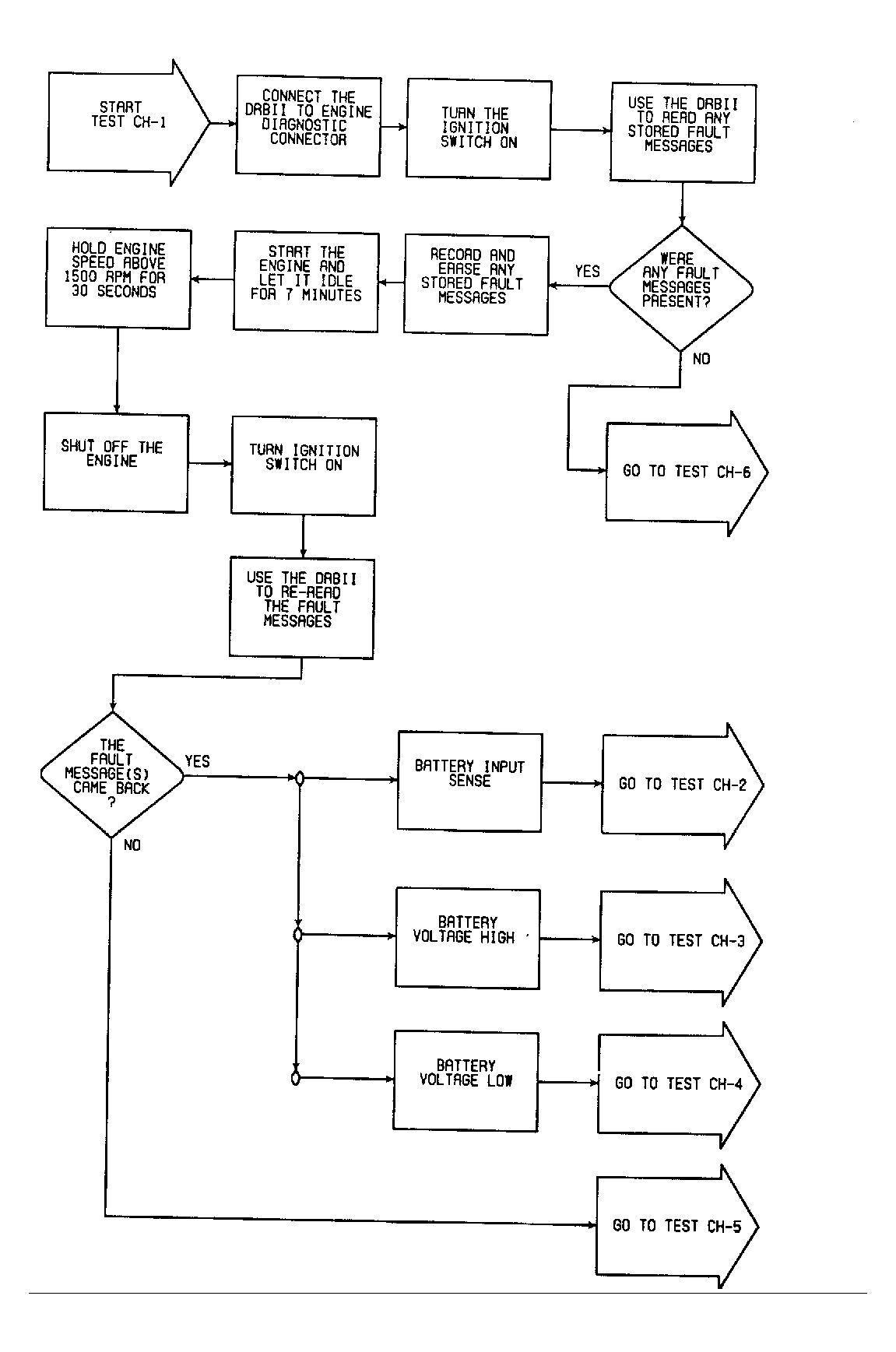

Fig 1: CH1 - Checking Charging System For Fault Messages

G120455
