VER-1 - DRIVEABILITY Verification

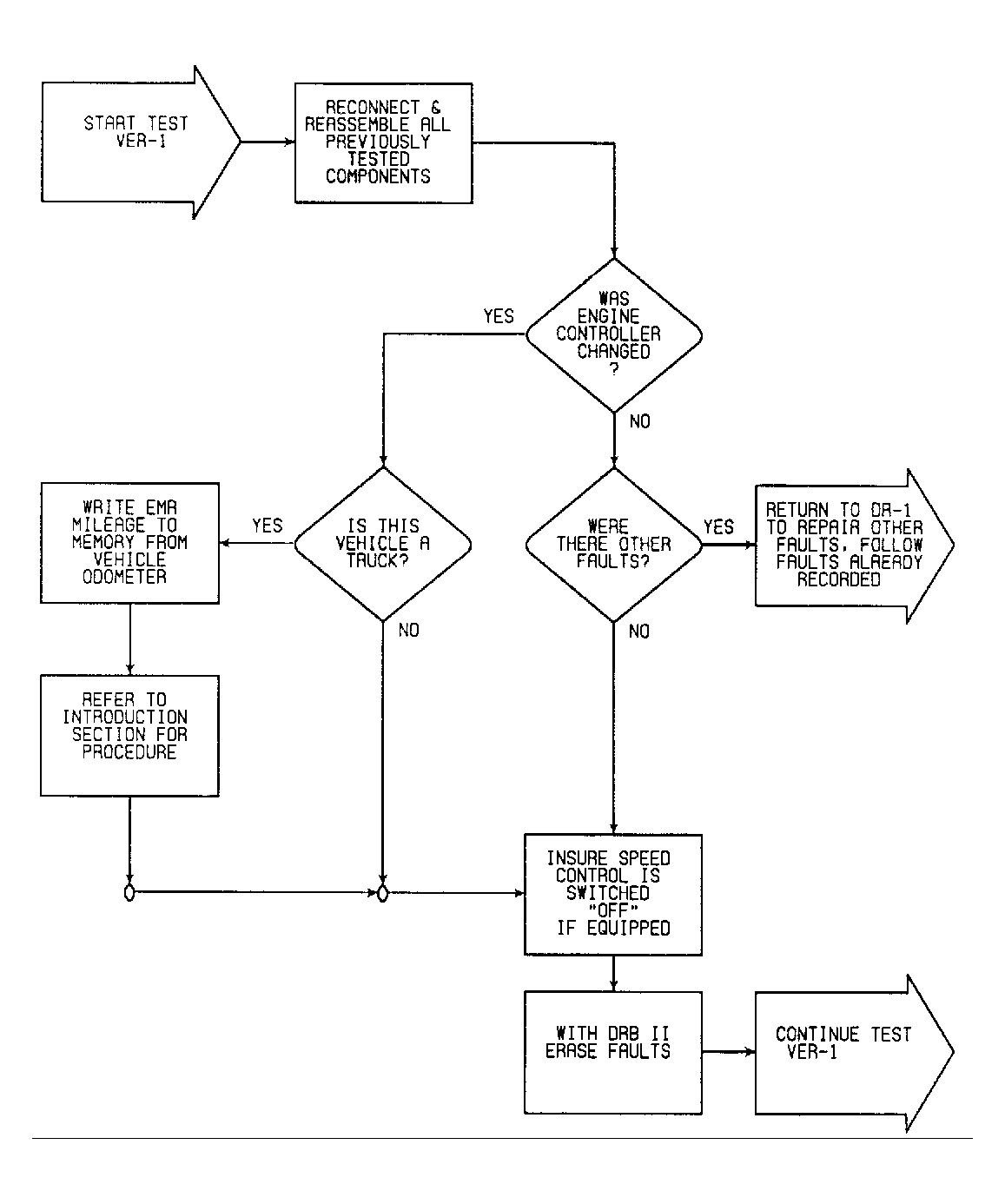

Fig 1: VER-1 Flow Chart (1 of 2), Driveability Verification
G90J01834

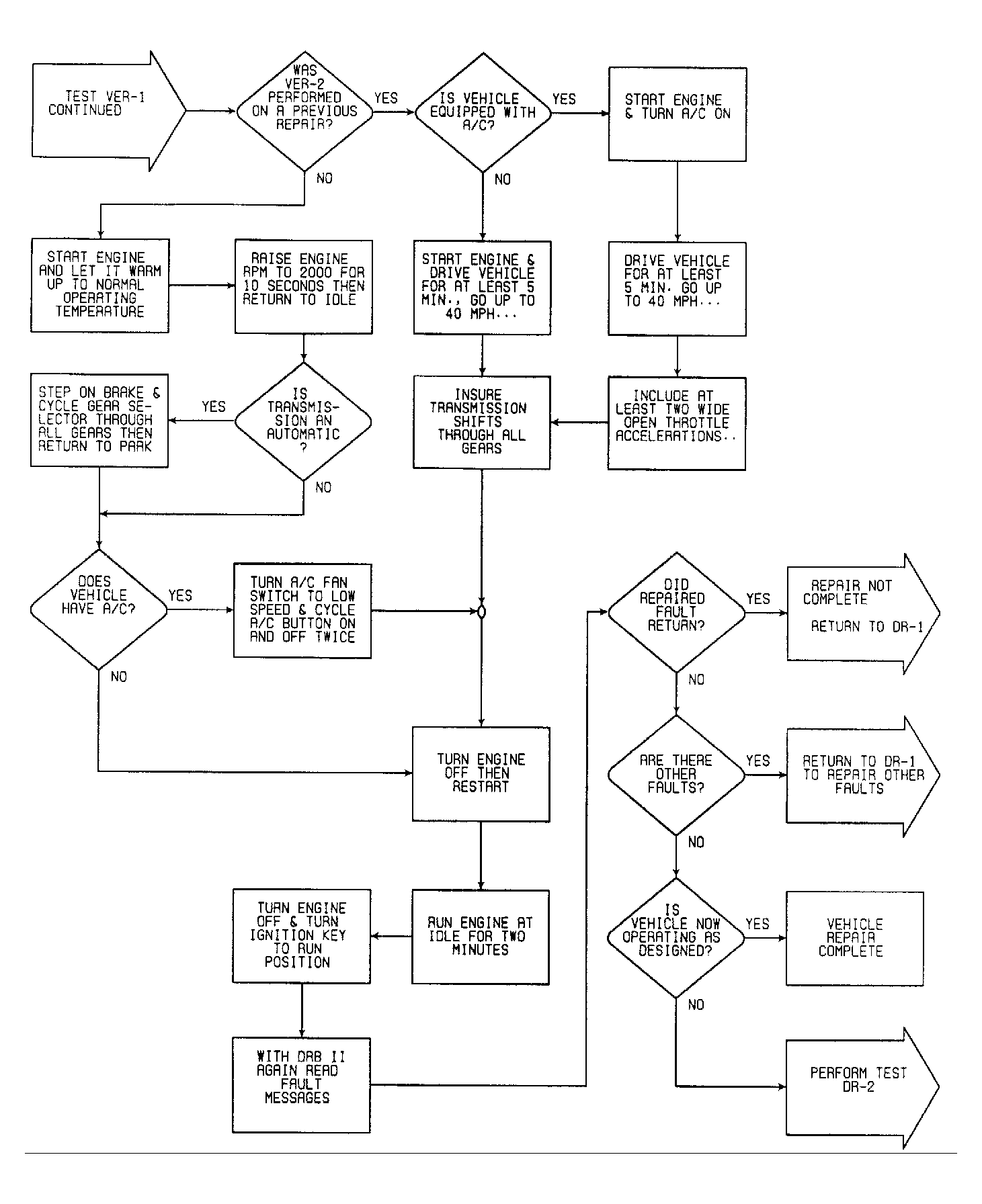

Fig 2: VER-1 Flow Chart (2 of 2), Driveability Verification
G90C01835
