Dr-19, For Fault Message "AIS Motor Circuits" Check

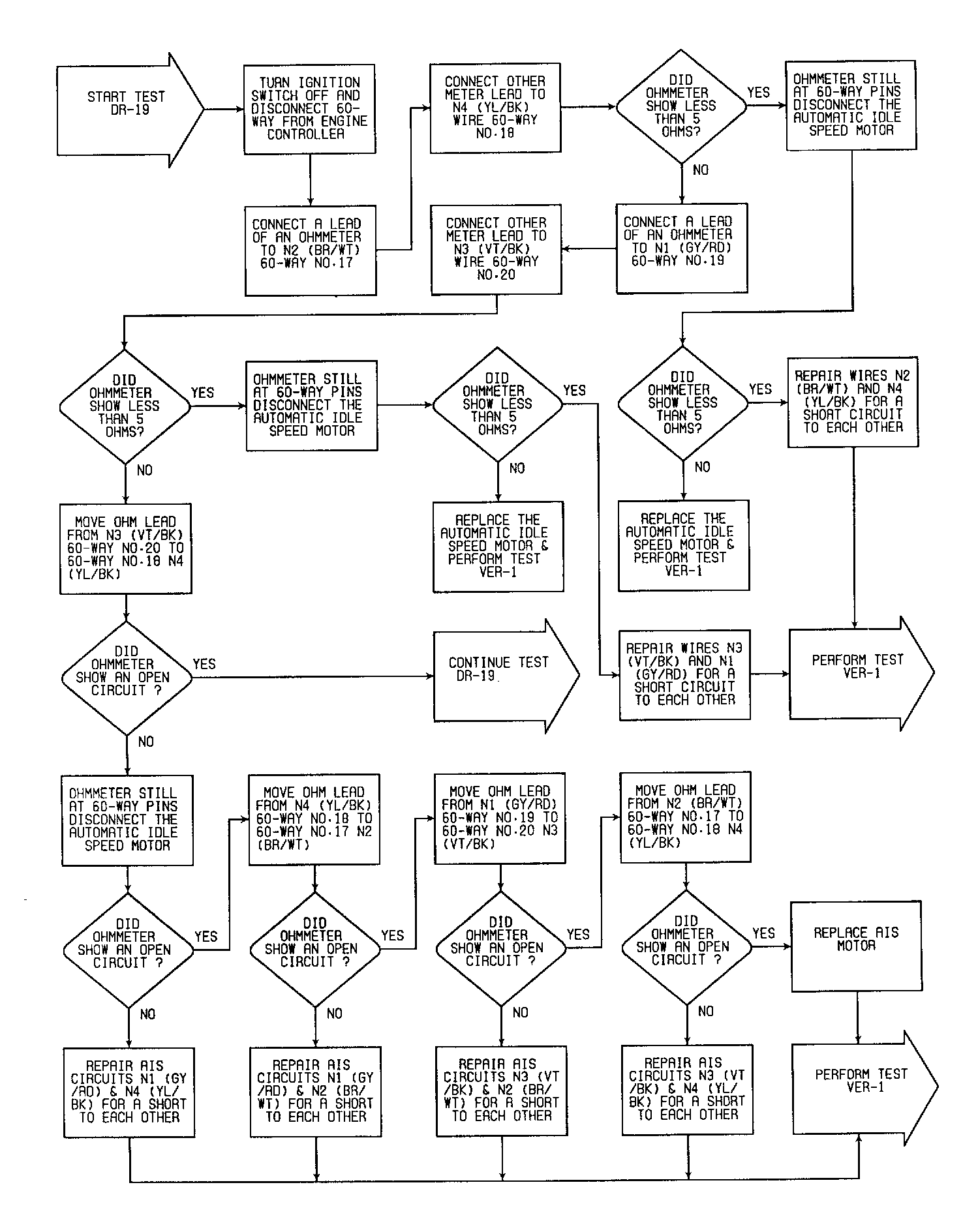

Fig 1: DR-19, For Fault Message "AIS Motor Circuits" Check (1 of 2)
G108088

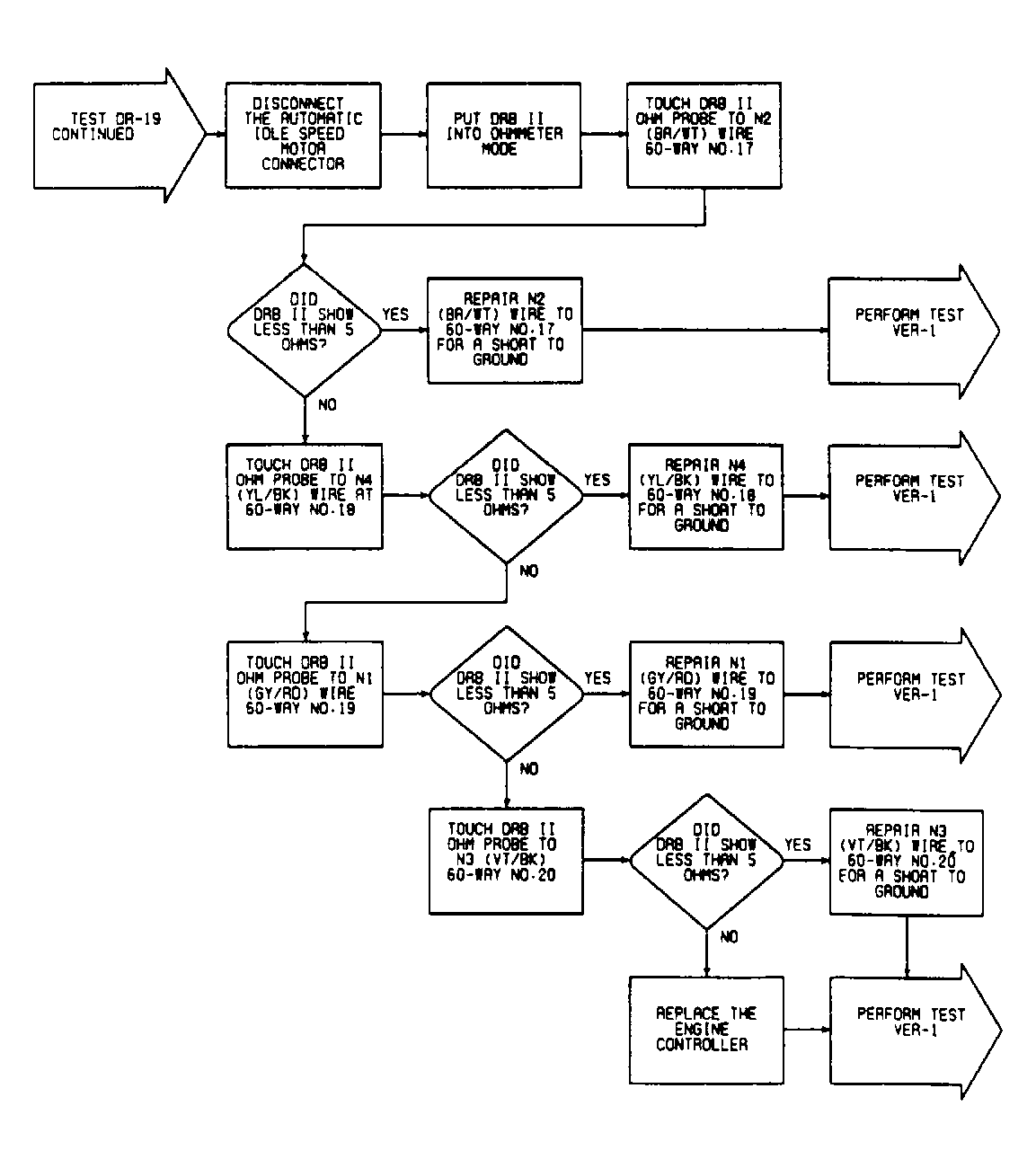

Fig 2: DR-19,For Fault Message "AIS Motor Circuits" Check (2 of 2)
G108089
