Test 11A - Electro/Mechanical Cluster Odometer Failure

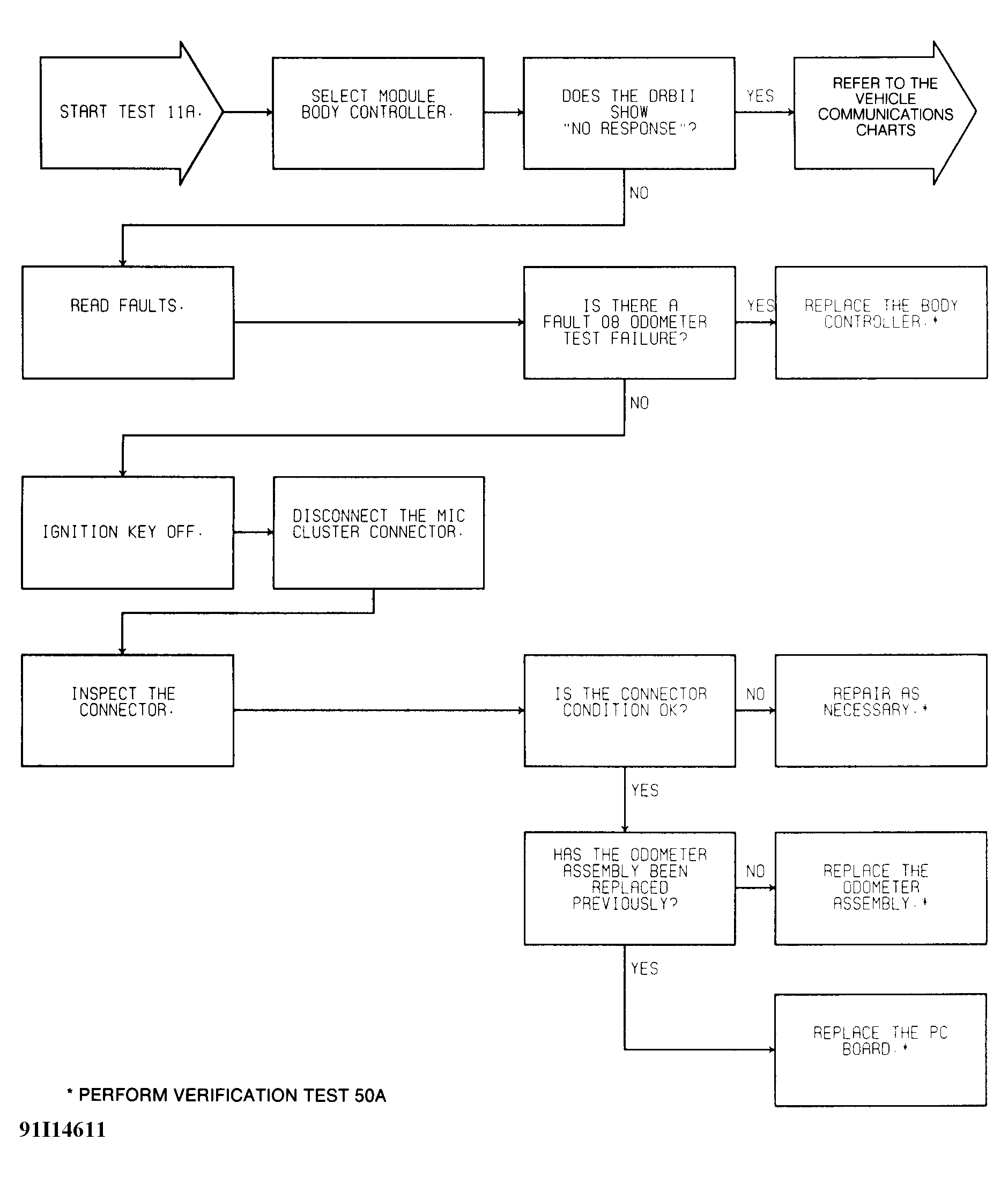

Fig 1: Test 11A - Electro/Mechanical Cluster Odometer Failure

G91I14611
