4 Speed A/T

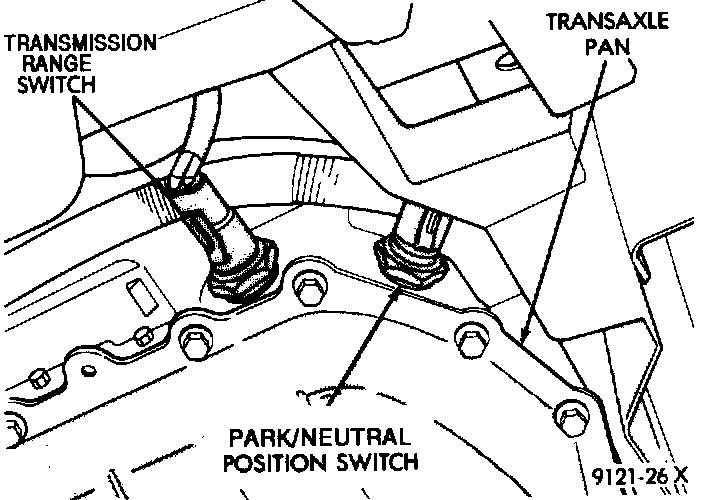

Transmission Range Switch:

This applies to the 4 speed electronic automatic transaxle.

The torque for the white Transmission Range Switch (formerly called PRNDL) is 34 Nm (25 ft. lbs.).

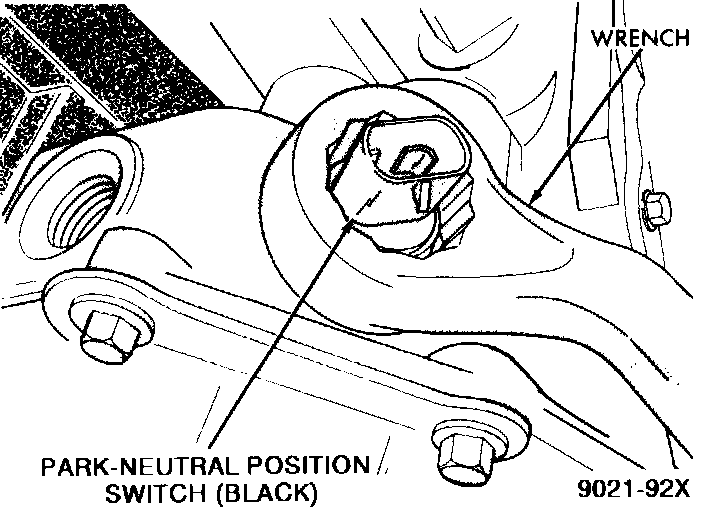

Park/Neutral Position Switch:

The torque for the black Park/Neutral Position Switch (formerly called Neutral Safety Switch) is 34 Nm (25 ft. lbs.).

Caution: Switch Seal washer must be seated properly before tightening switch. Failure to do so may result in leakage of transmission fluid.
