Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
A/C Clutch Relay	Fig 1
Auto Shutdown (ASD) Relay	Fig 2
Camshaft Position Sensor	Fig 3
Crankshaft Position Sensor	Fig 4
Distributor Connector (Harness Side)	Fig 5
Engine Coolant Temperature (ECT) Sensor	Fig 6
Evaporative Purge Solenoid	Fig 7
Fuel Pump	Fig 8
Fuel Pump Relay	Fig 9
Idle Air Control (IAC) Motor	Fig 10
Intake Air Temperature (IAT) Sensor	Fig 11
Manifold Absolute Pressure (MAP) Sensor	Fig 12
Oxygen Sensor	Fig 13
Powertrain Control Module (PCM)	Fig 14
Radiator Fan Relay	Fig 15
Torque Converter Clutch Solenoid	Fig 16
Throttle Position Sensor (TPS)	Fig 17

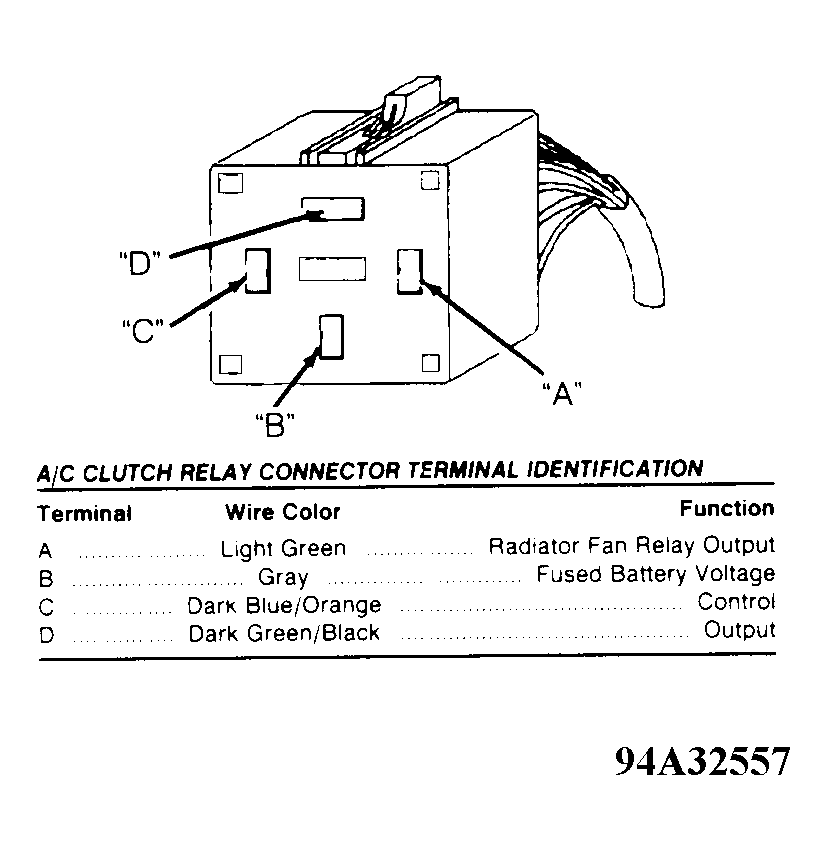

A/C CLUTCH RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Light Green	Radiator Fan Relay Output
B	Red	Fused Battery Voltage
C	Dark Blue/Orange	Control
D	Dark Green/Black	Output

Fig 1: A/C Clutch Relay Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

ASD RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue	Fused Ignition
**	**	Switch Output
B	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	Control
D	Dark Green/Orange	Output

Fig 2: Auto Shutdown (ASD) Relay Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

NOTE: Connector shape may vary with vehicle application.

CAMSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Tan/Yellow	Signal

Fig 3: Camshaft Position Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Gray/Black	Signal

Fig 4: Crankshaft Position Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

DISTRIBUTOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Black	Crankshaft Signal
2	Tan/Yellow	Camshaft Signal
3	Orange	8-Volt Supply
4	Black/Light Blue	Ground

Fig 5: Distributor Connector Terminal ID

Courtesy of CHRYSLER CORP.

ENGINE TEMP COOLANT (ECT) SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

Fig 6: ECT Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Dark Blue	Ignition 12-Volt Feed
2	Pink/Black	Control

Fig 7: Evaporative Purge Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

FUEL PUMP CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Dark Green/Black	Fuel Pump Relay Output
2	Black	Ground

Fig 8: Fuel Pump Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

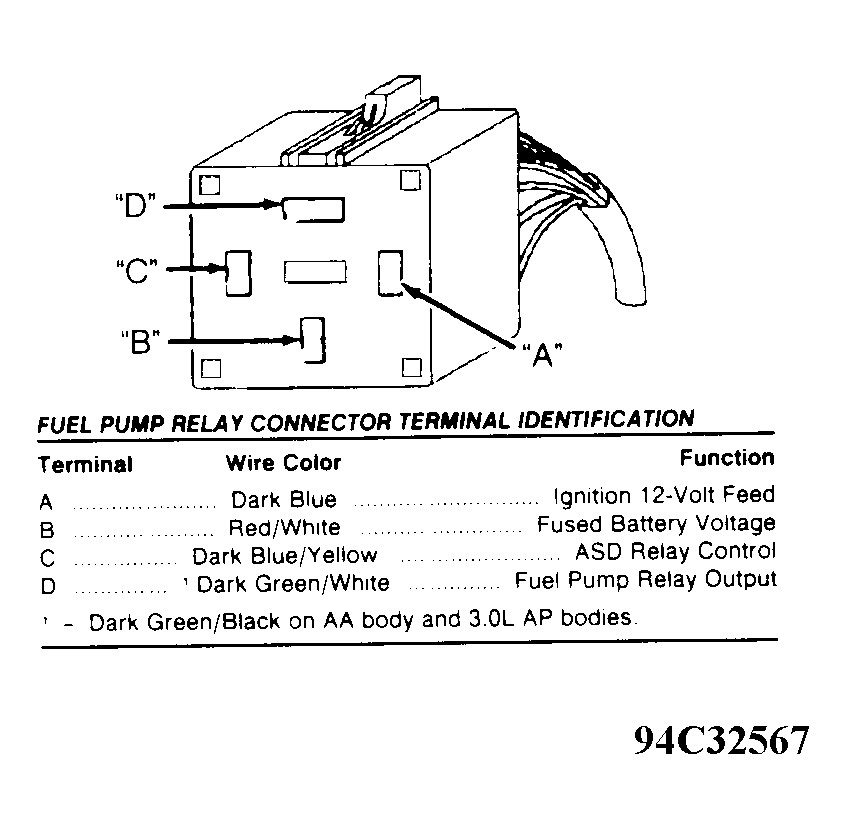

FUEL PUMP RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Dark Green/White	Fuel Pump Relay Output

Fig 9: Fuel Pump Relay Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

IDLE AIR CONTROL (IAC) MOTOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Red	IAC Driver No. 3
2	Yellow/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Violet/Black	IAC Driver No. 4

Fig 10: Idle Air Control (IAC) Motor Connector Terminal ID

Courtesy of CHRYSLER CORP.

INTAKE AIR TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Red	Signal
2	Black/Light Blue	Ground

Fig 11: Intake Air Temperature (IAT) Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

MAP SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Dark Green/Red	Signal
3	Violet/White	5-Volt Supply

Fig 12: MAP Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

OXYGEN SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Sensor Ground
2	Black/Dark Green	Signal
3	Black/Tan	Heater Ground
4	Dark Green/Black	Heater Feed

Fig 13: Oxygen Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

Fig 14: Powertrain Control Module (PCM) Connector Terminal ID

Courtesy of CHRYSLER CORP.

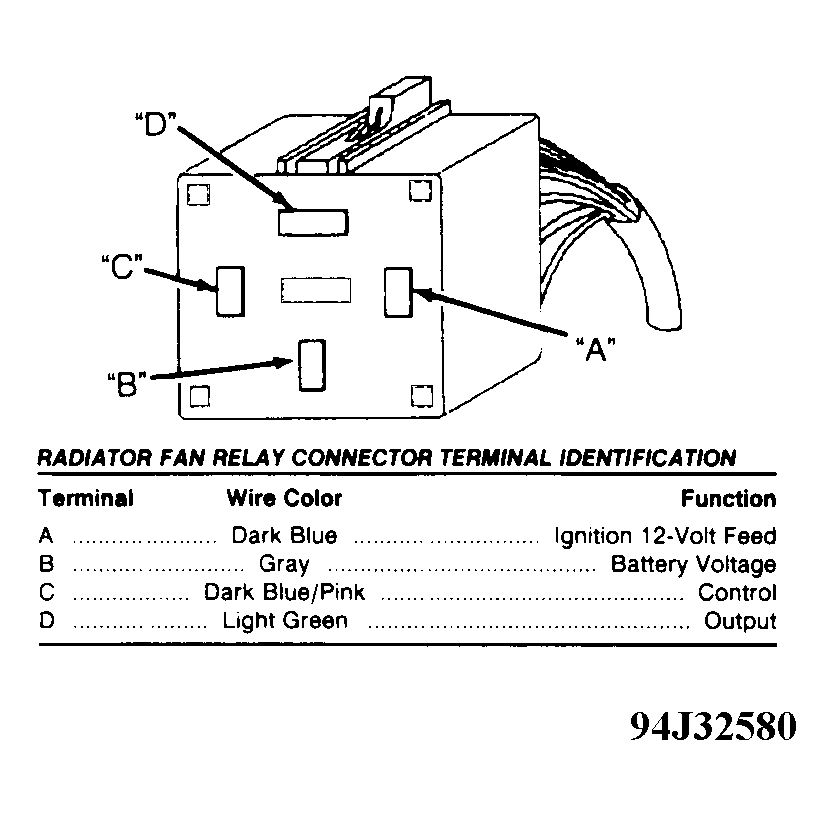

RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Gray	Battery Voltage
C	Dark Blue/Pink	Control
D	Light Green	Output

Fig 15: Radiator Fan Relay Connector Terminal ID (All Models)

Courtesy of CHRYSLER CORP.

TORQUE CONVERTER CLUTCH SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	**	Not Used
2	Dark Blue	Ignition 12-Volt Feed
3	Orange/Light Green	Control

Fig 16: Torque Converter Clutch Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

THROTTLE POSITION SENSOR (TPS) CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Orange/Dark Blue	Signal
3	Violet/White	5-Volt Supply

Fig 17: TPS Connector Terminal ID

Courtesy of CHRYSLER CORP.

CAUTION: When battery is disconnected, vehicle computer and energy systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION section before disconnecting battery.
