Throttle Position Sensor: Service and Repair

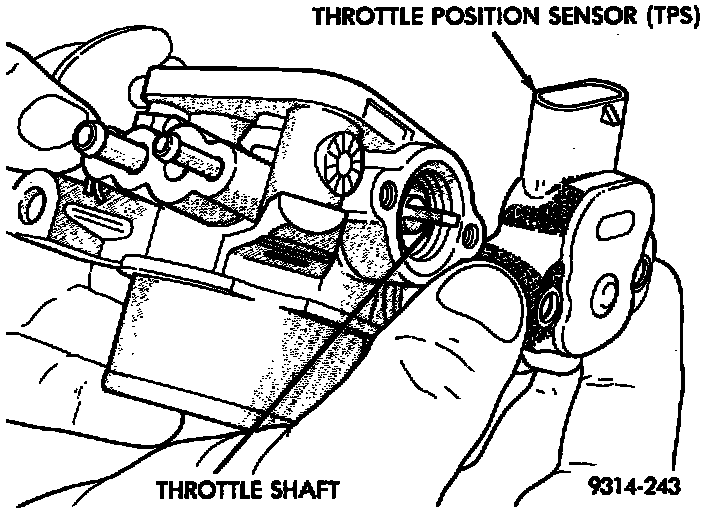

Fig 108 Servicing Throttle Position Sensor:

REMOVAL
1. Disconnect negative cable from battery.
2. Remove electrical connector from throttle position sensor.
3. Remove throttle position sensor mounting screws.
4. Lift throttle position sensor off throttle shaft (Fig. 108).

INSTALLATION
1. Install throttle position sensor on throttle shaft. Install mounting screws. Tighten screw to 2 Nm (17 in lb) torque.
2. Connect electrical connector to throttle position sensor.
3. Connect negative cable to battery.
