Body Control Module: Service and Repair

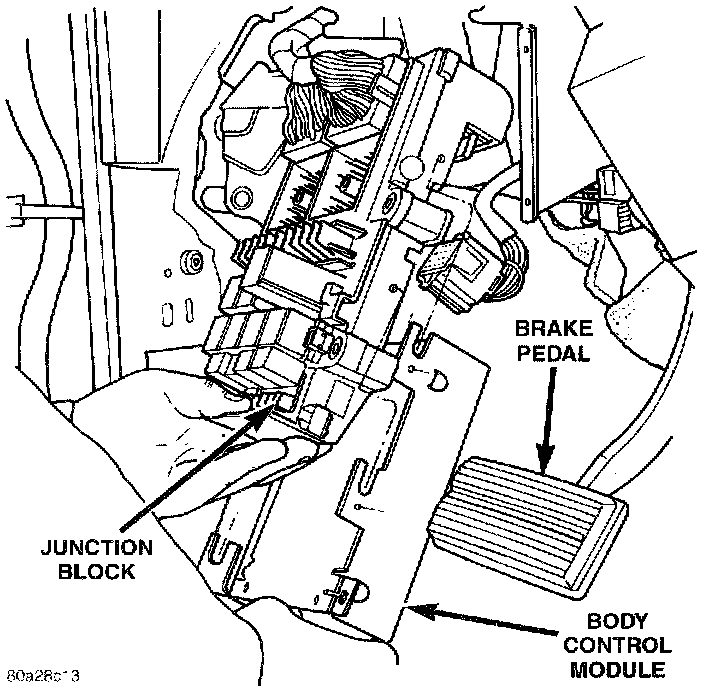

Body Control Module Location:

REMOVAL
1. Disconnect battery negative cable.
2. Remove lower steering column cover and knee blocker reinforcement.
3. Disconnect two wire connectors from bottom of Body Control Module (BCM)
4. Remove bolts holding junction to dash panel mounting.
5. Remove Junction Block from mounting bracket.
6. Remove screws holding Body Control Module to Junction Block.
7. Slide Body Control Module downward to disengage guide studs on Junction Block from channels on BCM mounting bracket.
8. Remove Body Control Module from Junction Block.

INSTALLATION
1. Install Body Control Module from Junction Block.
2. Slide Body Control Module upward to engage guide studs on Junction Block from channels on BCM mounting bracket.
3. Install screws holding Body Control Module to Junction Block.
4. Install Junction Block from mounting bracket.
5. Install bolts holding junction to dash panel mounting.
6. Connect two wire connectors from bottom of Body Control Module (BCM)
7. Install lower steering column cover and knee blocker reinforcement.
8. Connect battery negative cable.
