Ch-1A: Charging System No Code Test

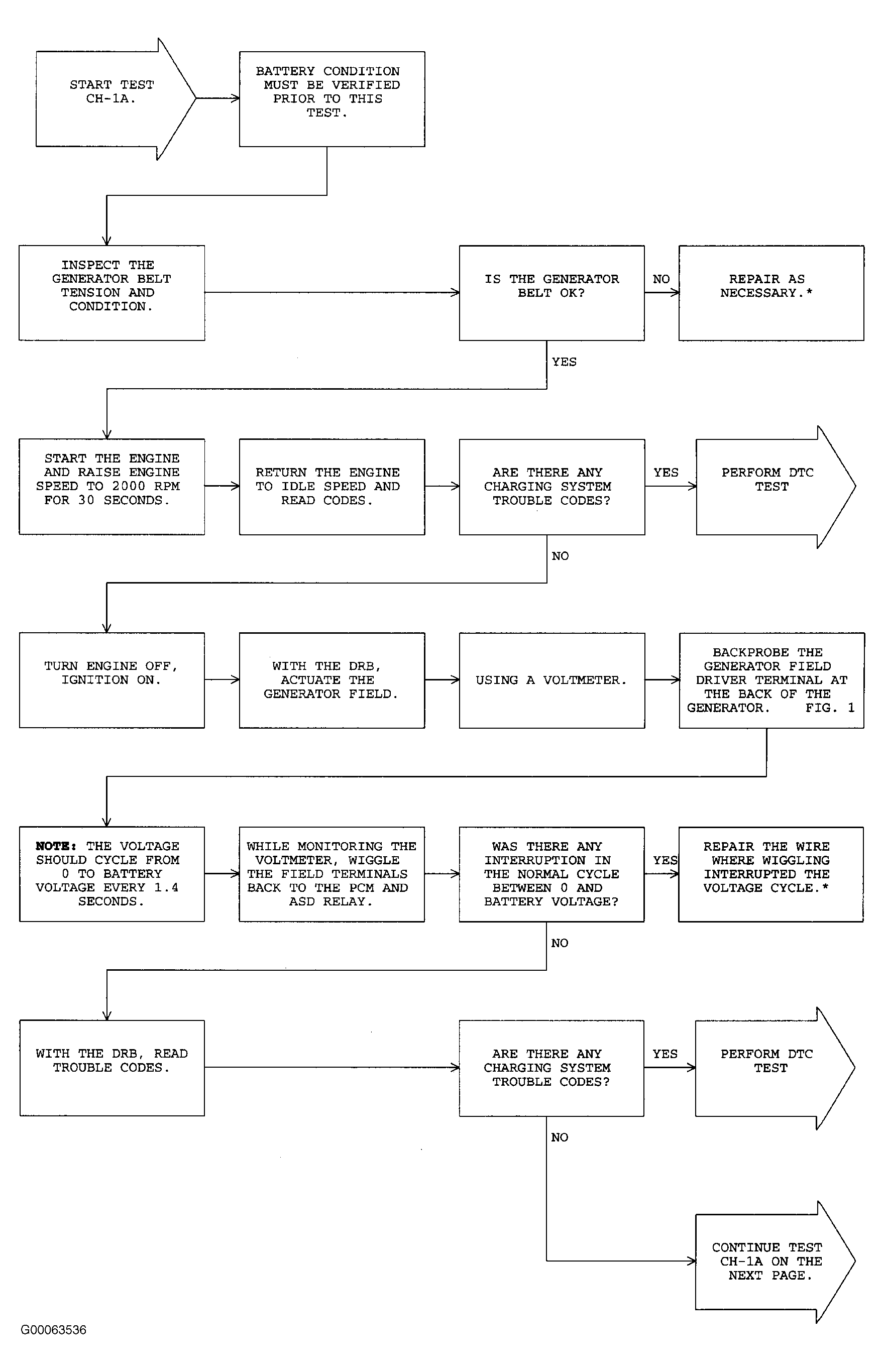

Fig 1: CH-1A: Charging System No Code Test (1 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

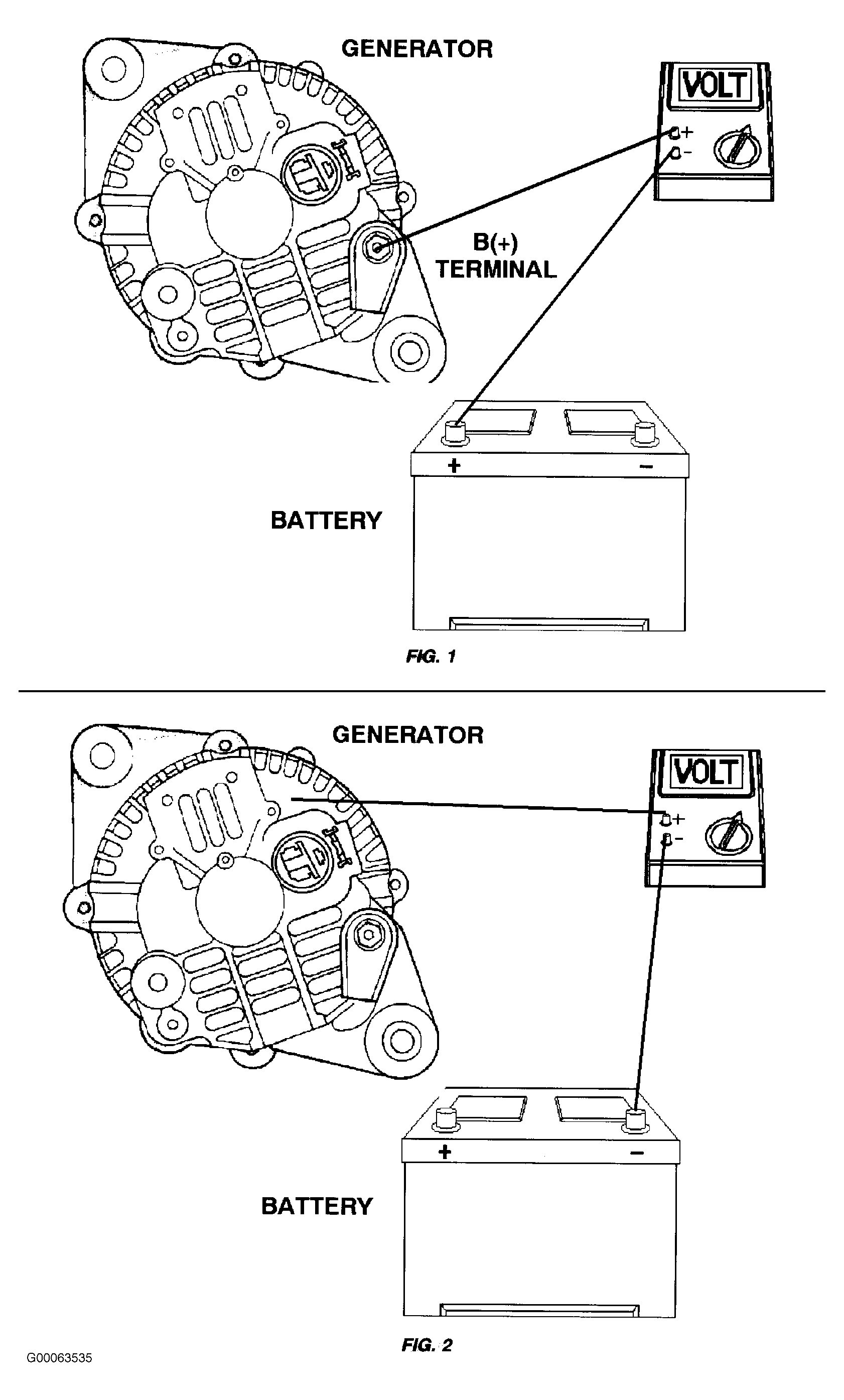

Fig 2: CH-1A: Charging System No Code Test (2 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

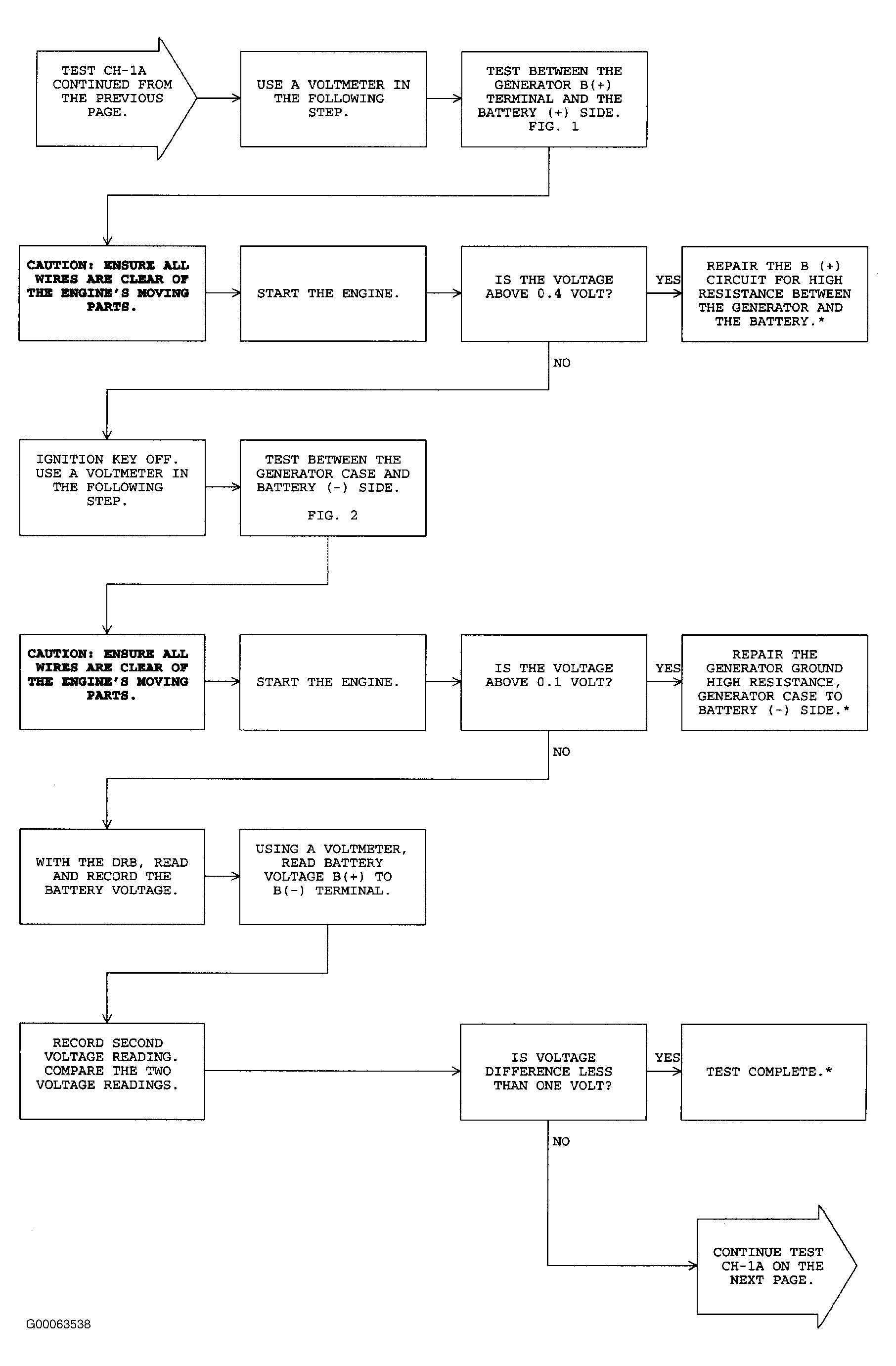

Fig 3: CH-1A: Charging System No Code Test (3 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

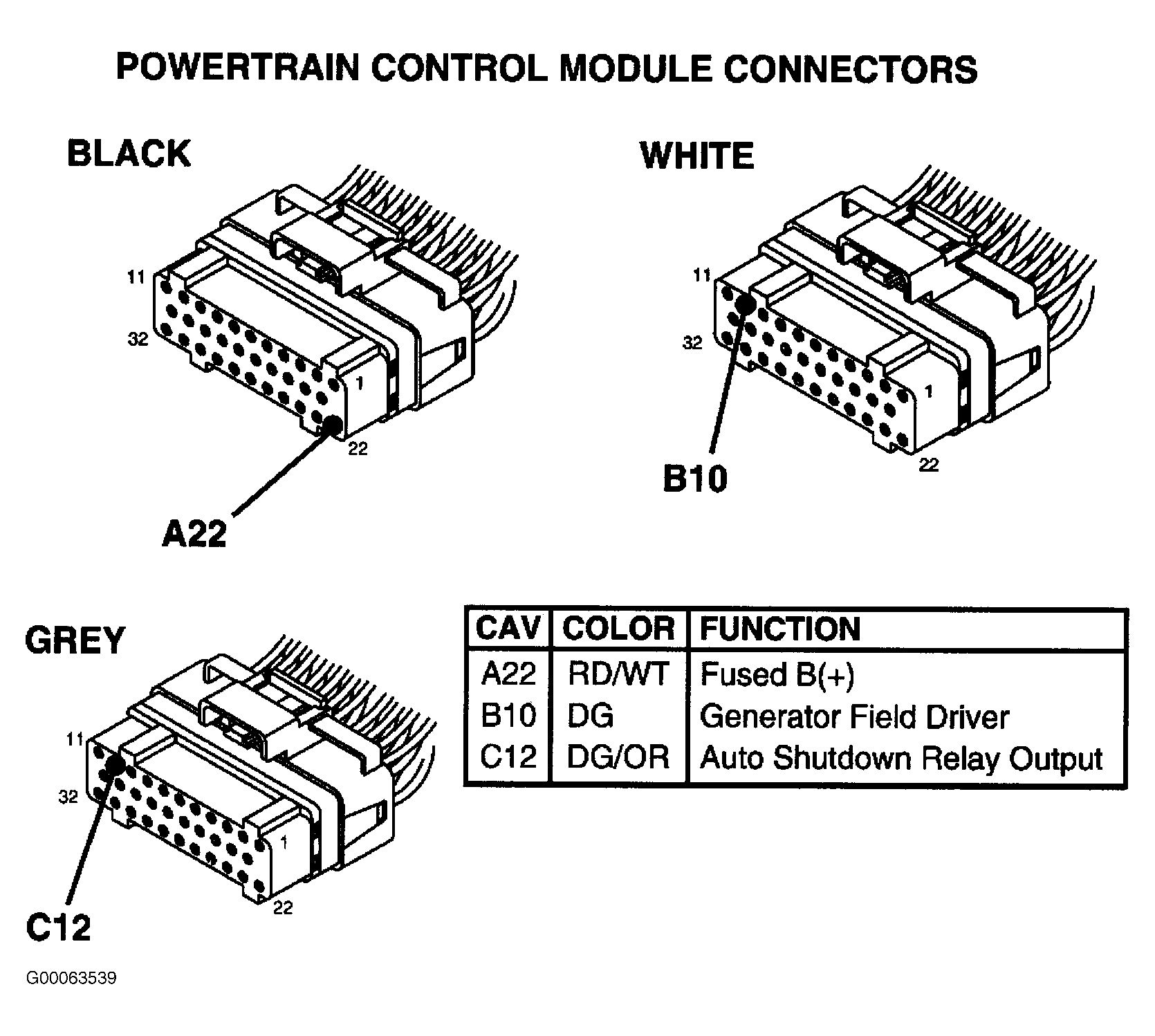

Fig 4: CH-1A: Charging System No Code Test (4 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

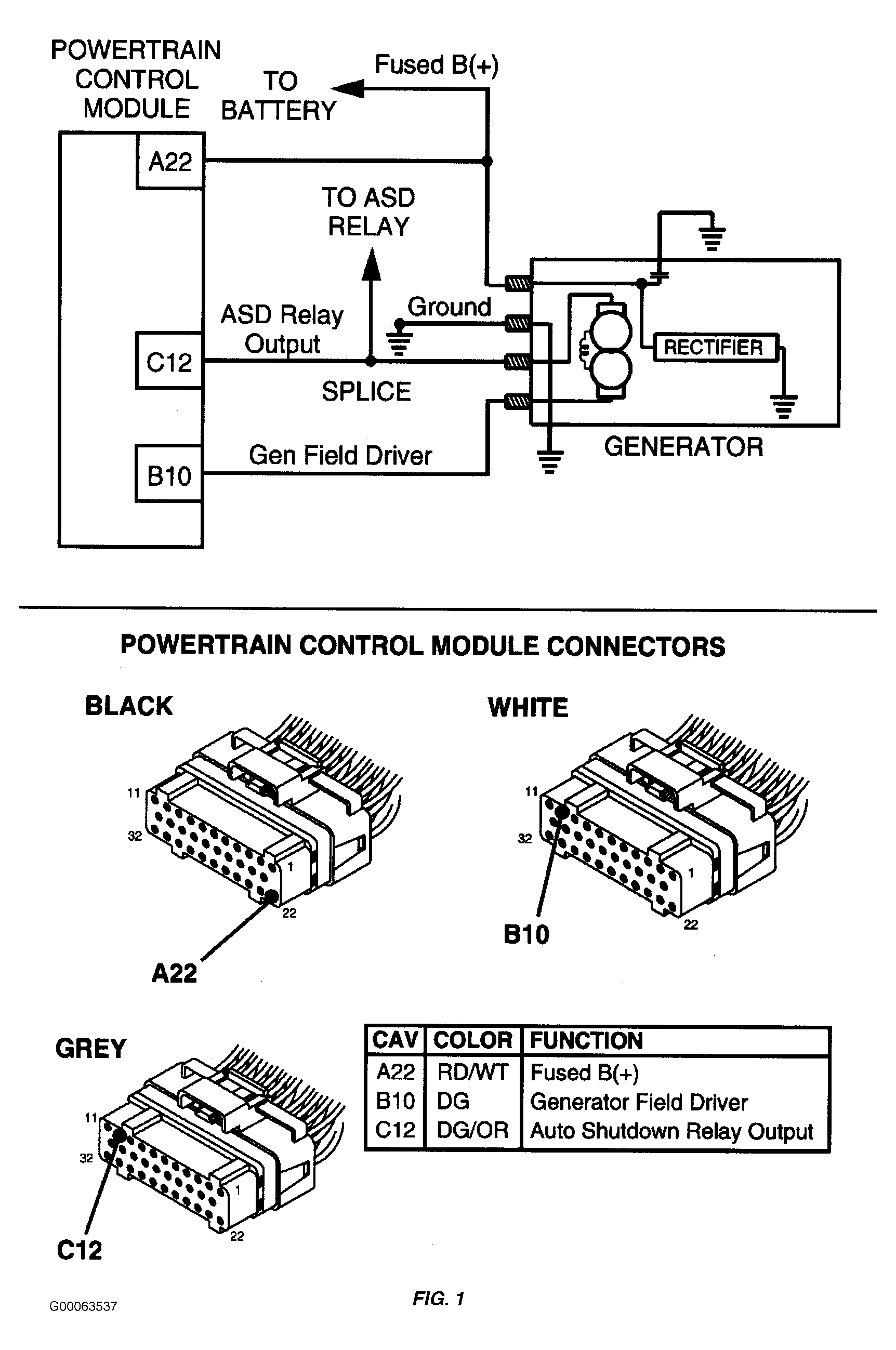

Fig 5: CH-1A: Charging System No Code Test (5 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

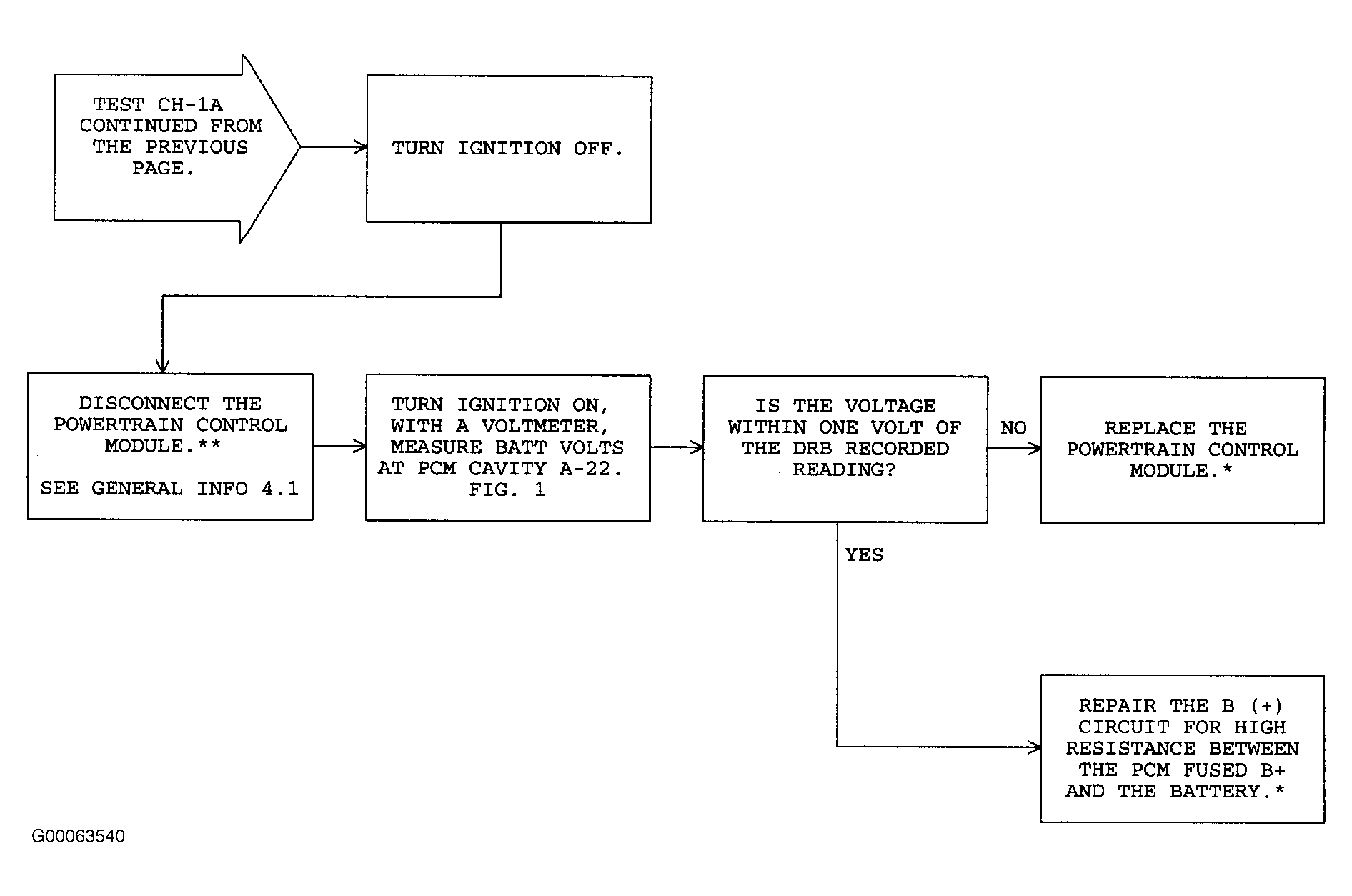

Fig 6: CH-1A: Charging System No Code Test (6 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION
