TC-118B: Fuel System 1/1 Rich

NOTE: Perform Test TC-118A Before Proceeding

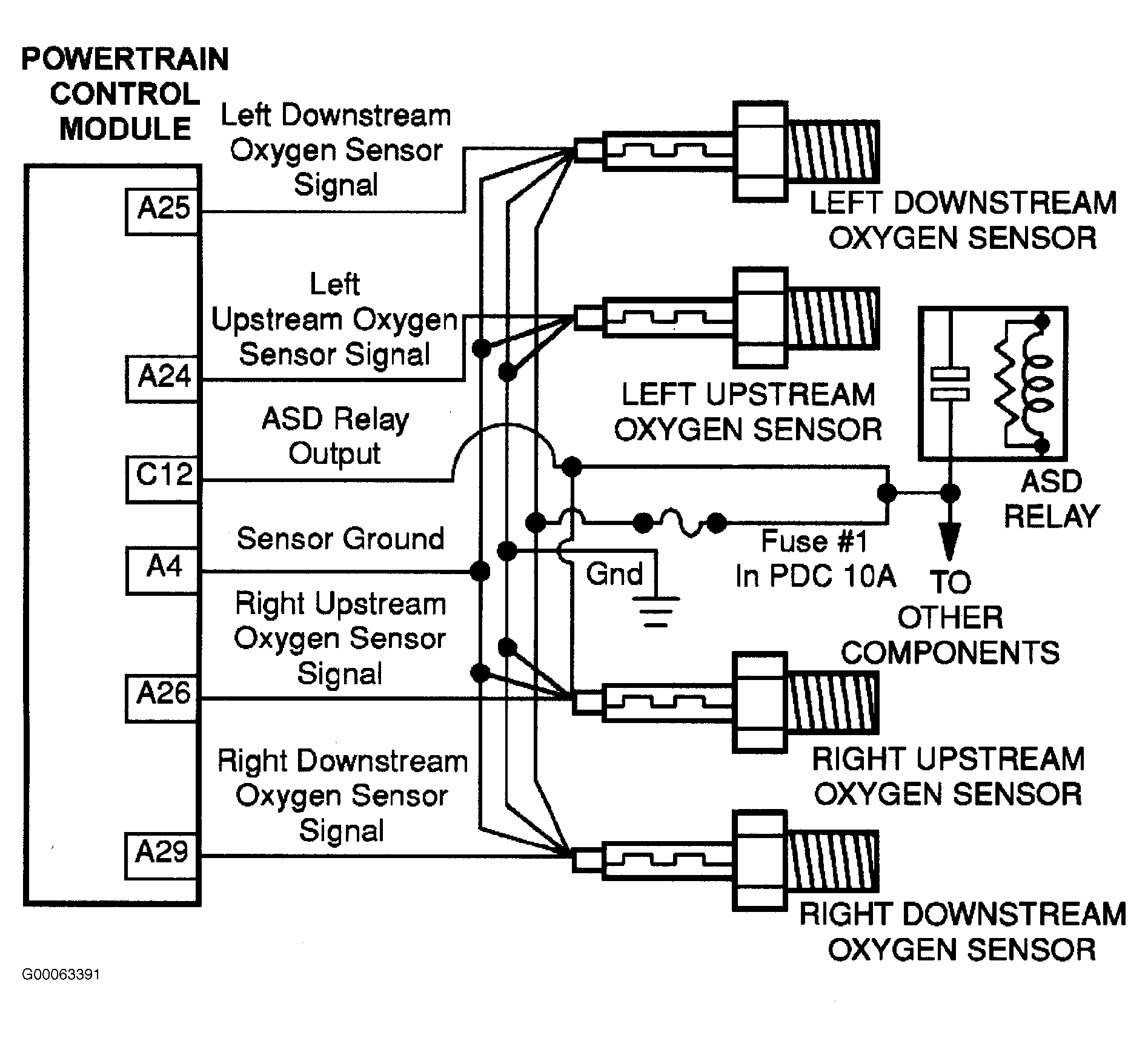

Fig 1: TC-118B: Fuel System 1/1 Rich (1 Of 2)
G00063391Courtesy of DAIMLERCHRYSLER CORPORATION

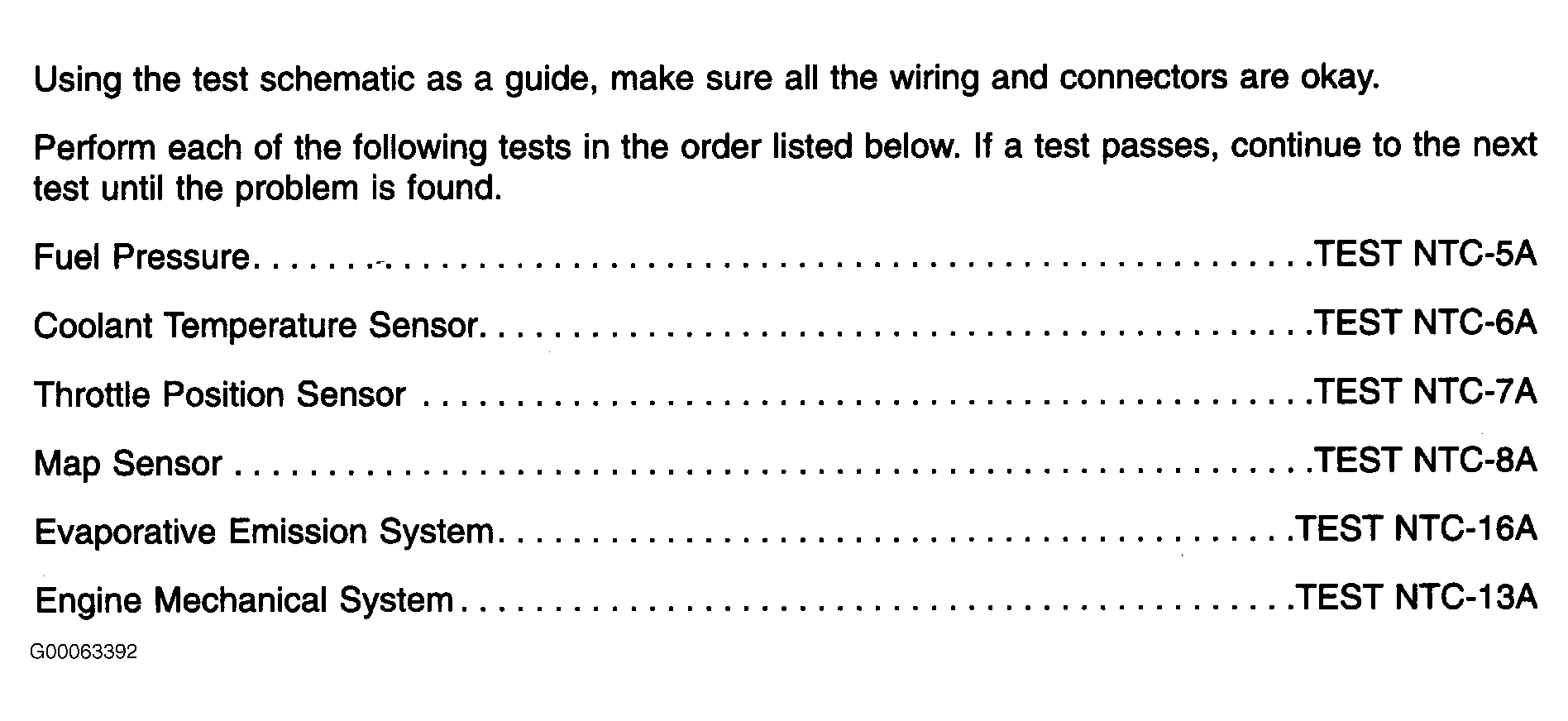

Fig 2: TC-118B: Fuel System 1/1 Rich (2 Of 2)
G00063392Courtesy of DAIMLERCHRYSLER CORPORATION
