TC-120A: Fuel System 2/1 Rich

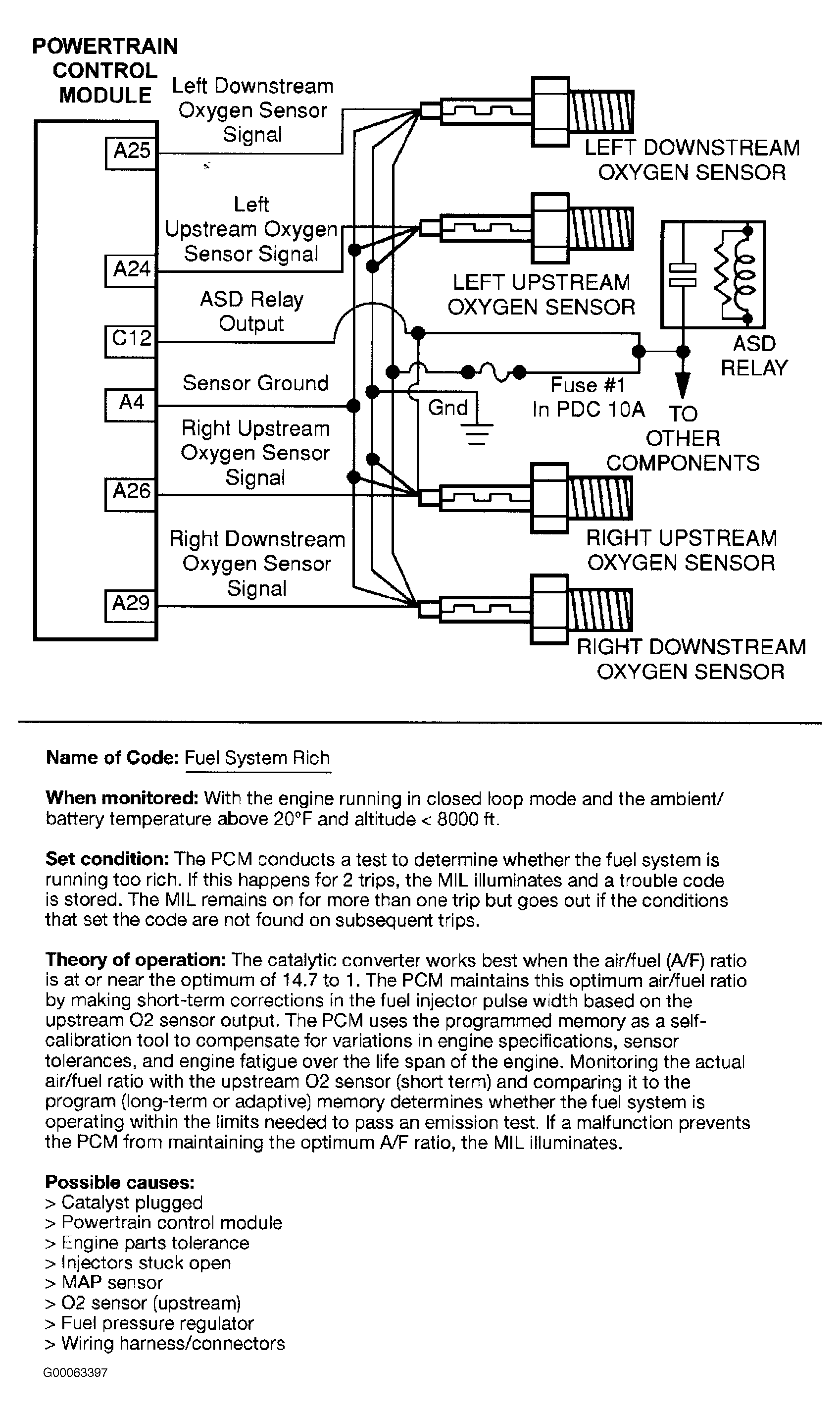

Fig 1: TC-120A: Fuel System 2/1 Rich (1 Of 2)
G00063397Courtesy of DAIMLERCHRYSLER CORPORATION

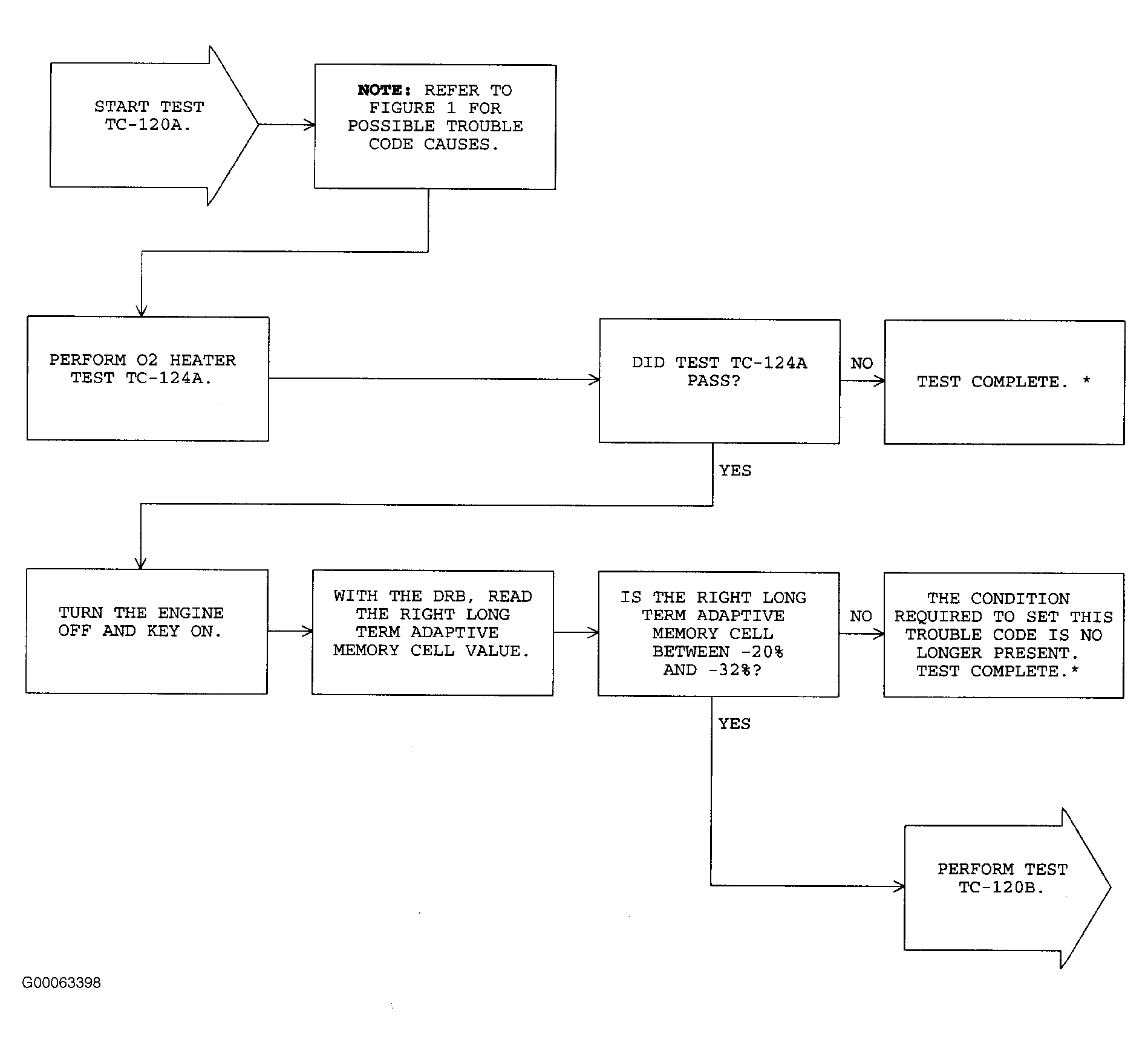

Fig 2: TC-120A: Fuel System 2/1 Rich (2 Of 2)
G00063398Courtesy of DAIMLERCHRYSLER CORPORATION
