TC-135A: No 5 Volts To Map Sensor

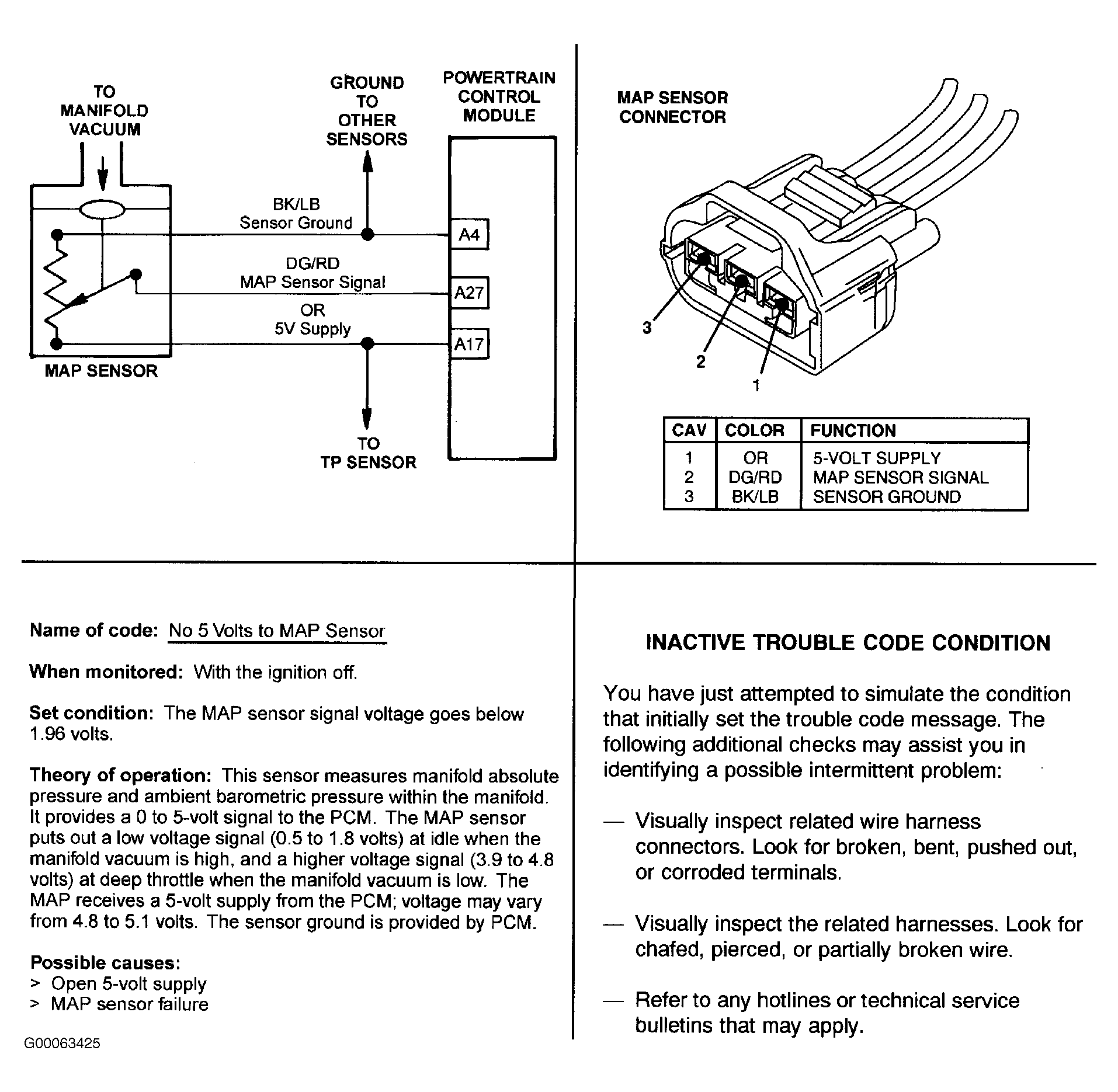

Fig 1: TC-135A: No 5 Volts To MAP Sensor (1 Of 4)

G00063425

Courtesy of DAIMLERCHRYSLER CORPORATION

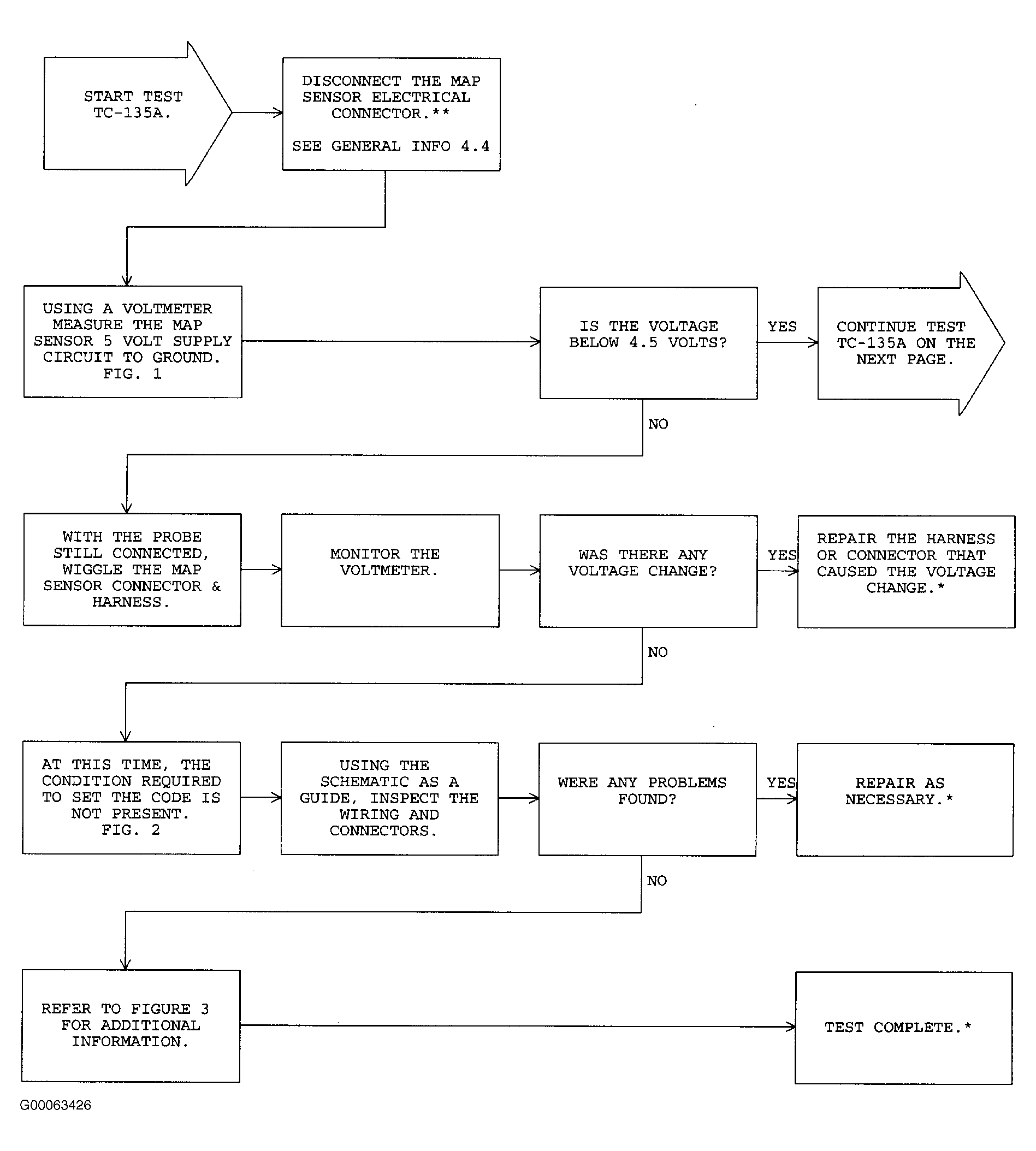

Fig 2: TC-135A: No 5 Volts To MAP Sensor (2 Of 4)

G00063426

Courtesy of DAIMLERCHRYSLER CORPORATION

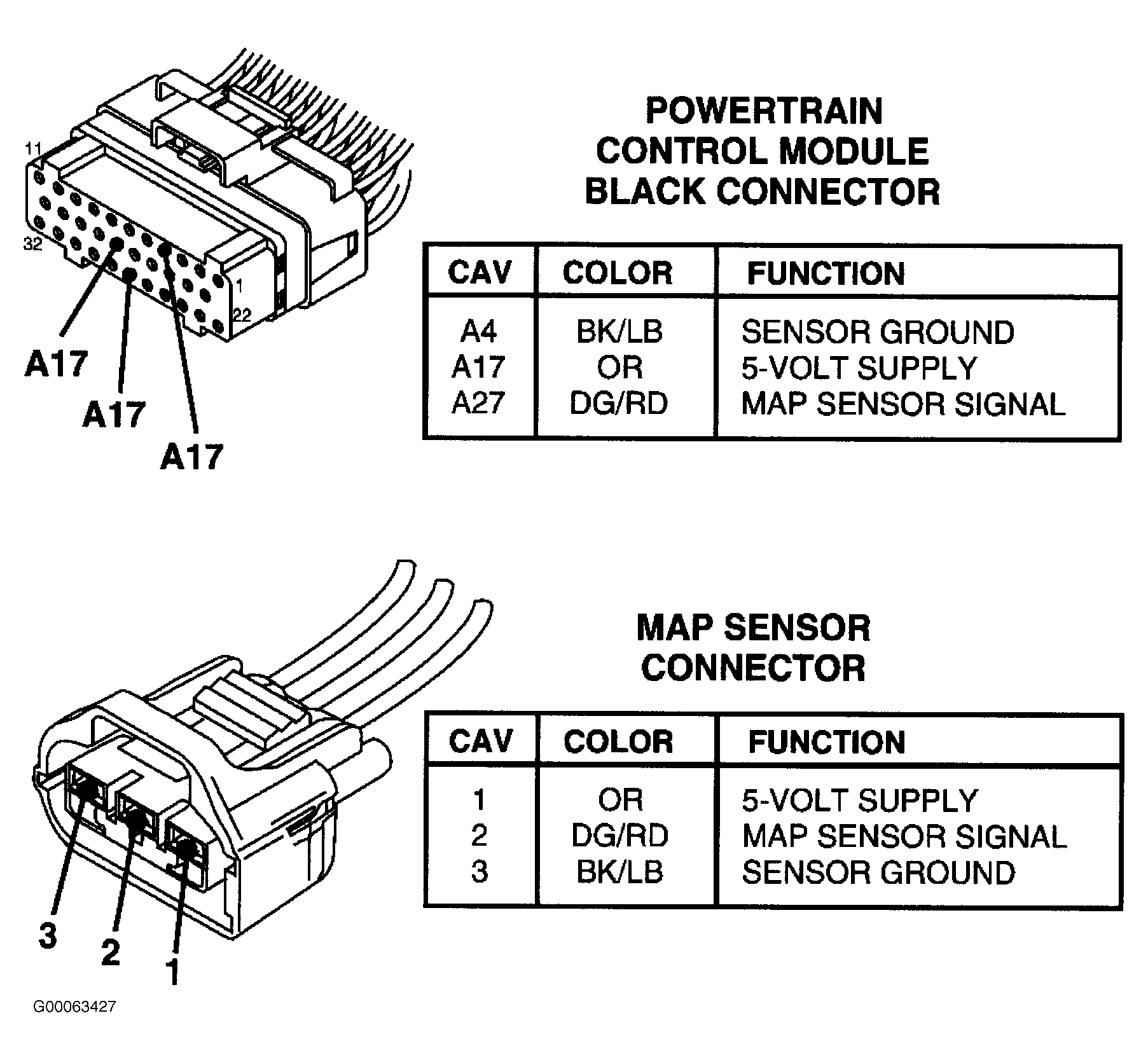

Fig 3: TC-135A: No 5 Volts To MAP Sensor (3 Of 4)

G00063427

Courtesy of DAIMLERCHRYSLER CORPORATION

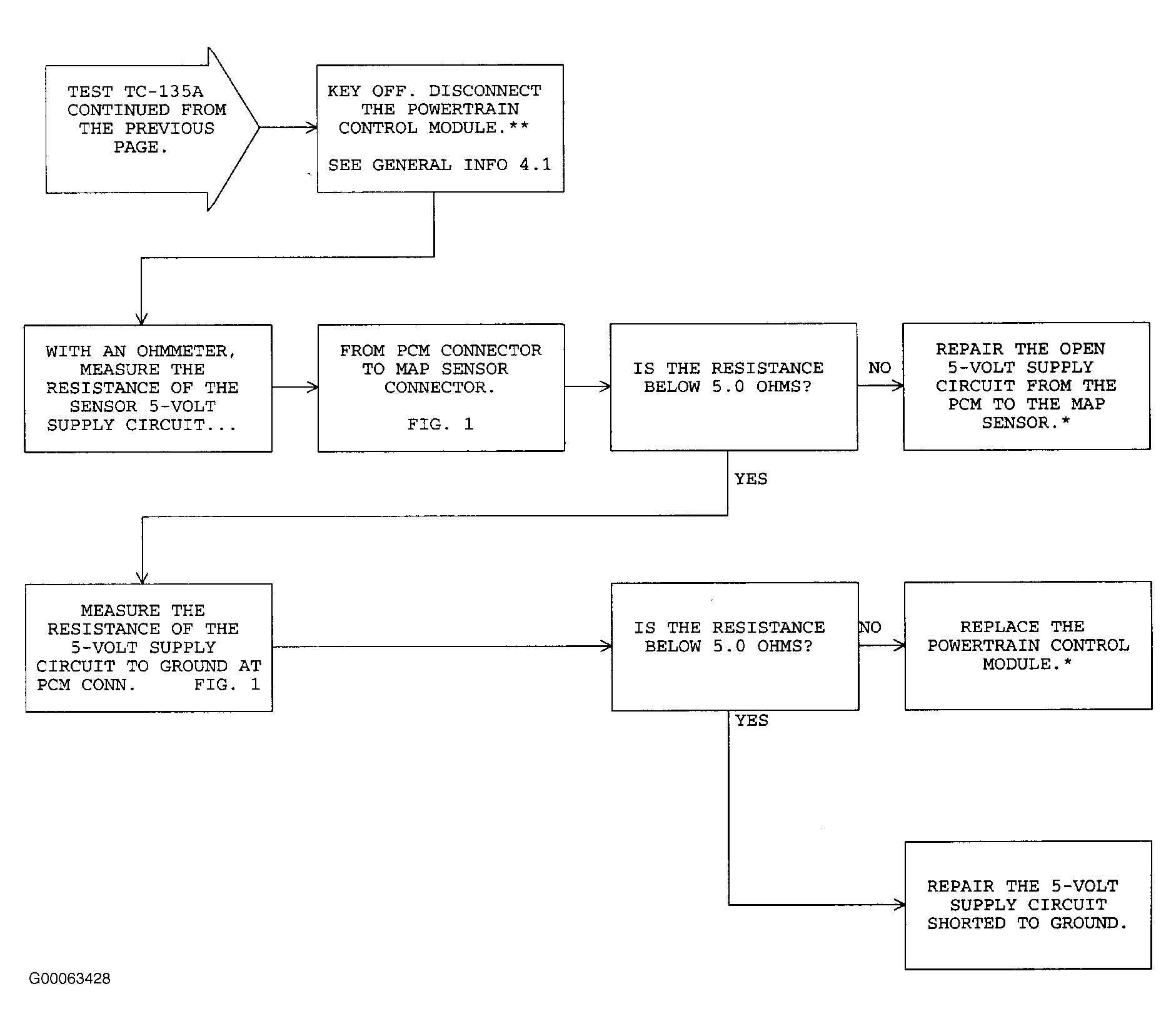

Fig 4: TC-135A: No 5 Volts To MAP Sensor (4 Of 4)

G00063428

Courtesy of DAIMLERCHRYSLER CORPORATION
