TC-138A: Target Idle Not Reached

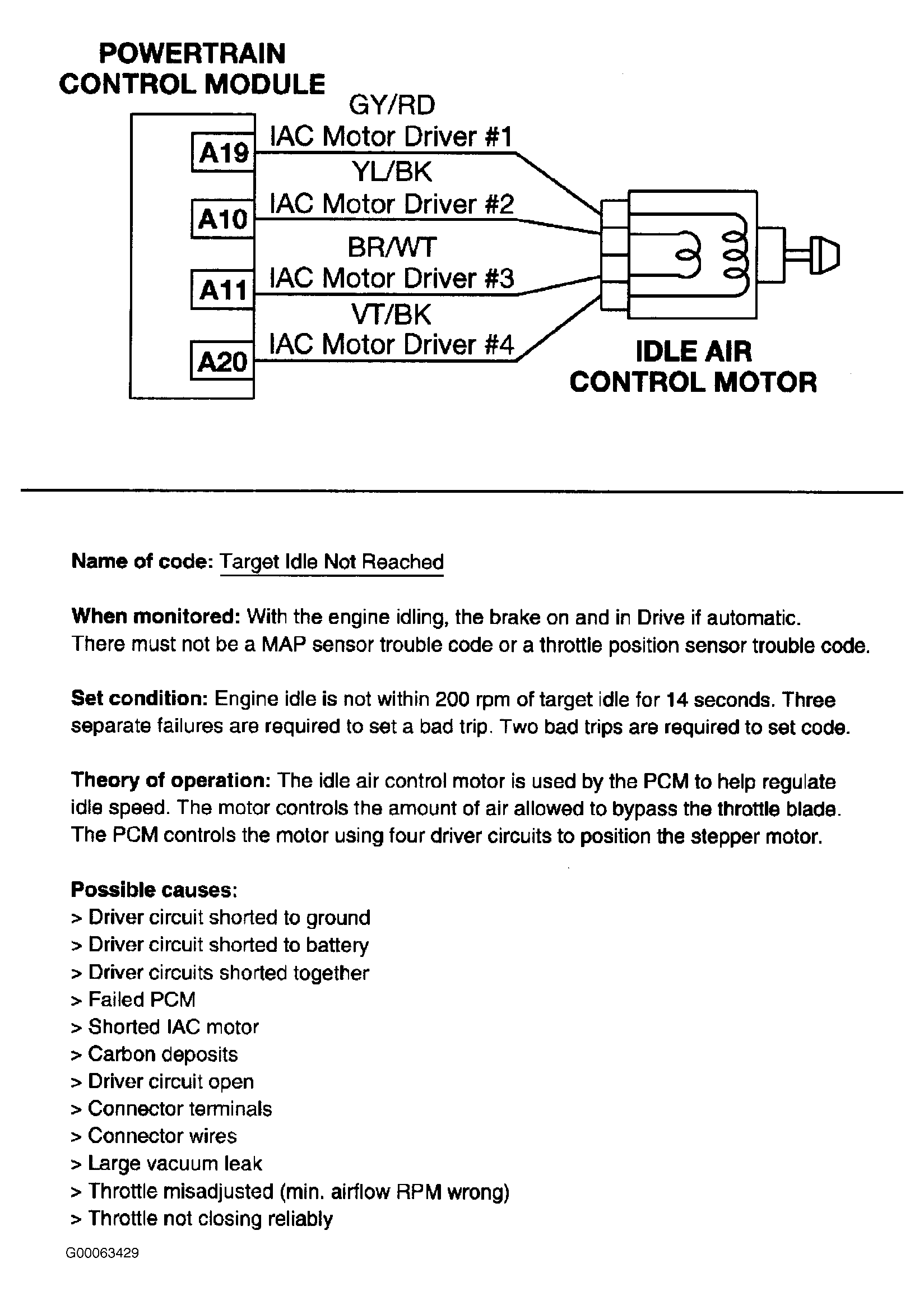

Fig 1: TC-138A: Target Idle Not Reached (1 Of 4)
G00063429Courtesy of DAIMLERCHRYSLER CORPORATION

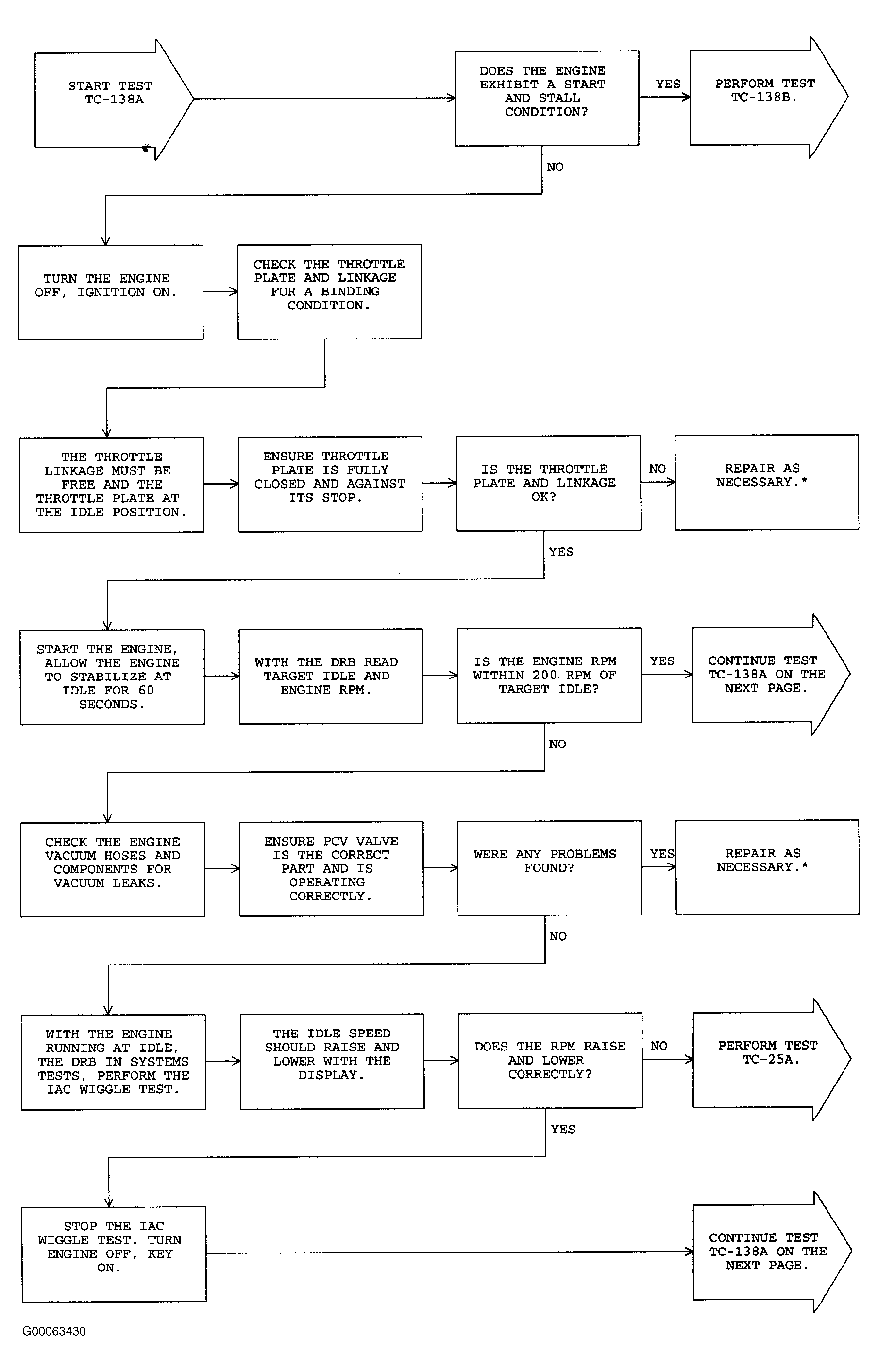

Fig 2: TC-138A: Target Idle Not Reached (2 Of 4)
G00063430Courtesy of DAIMLERCHRYSLER CORPORATION

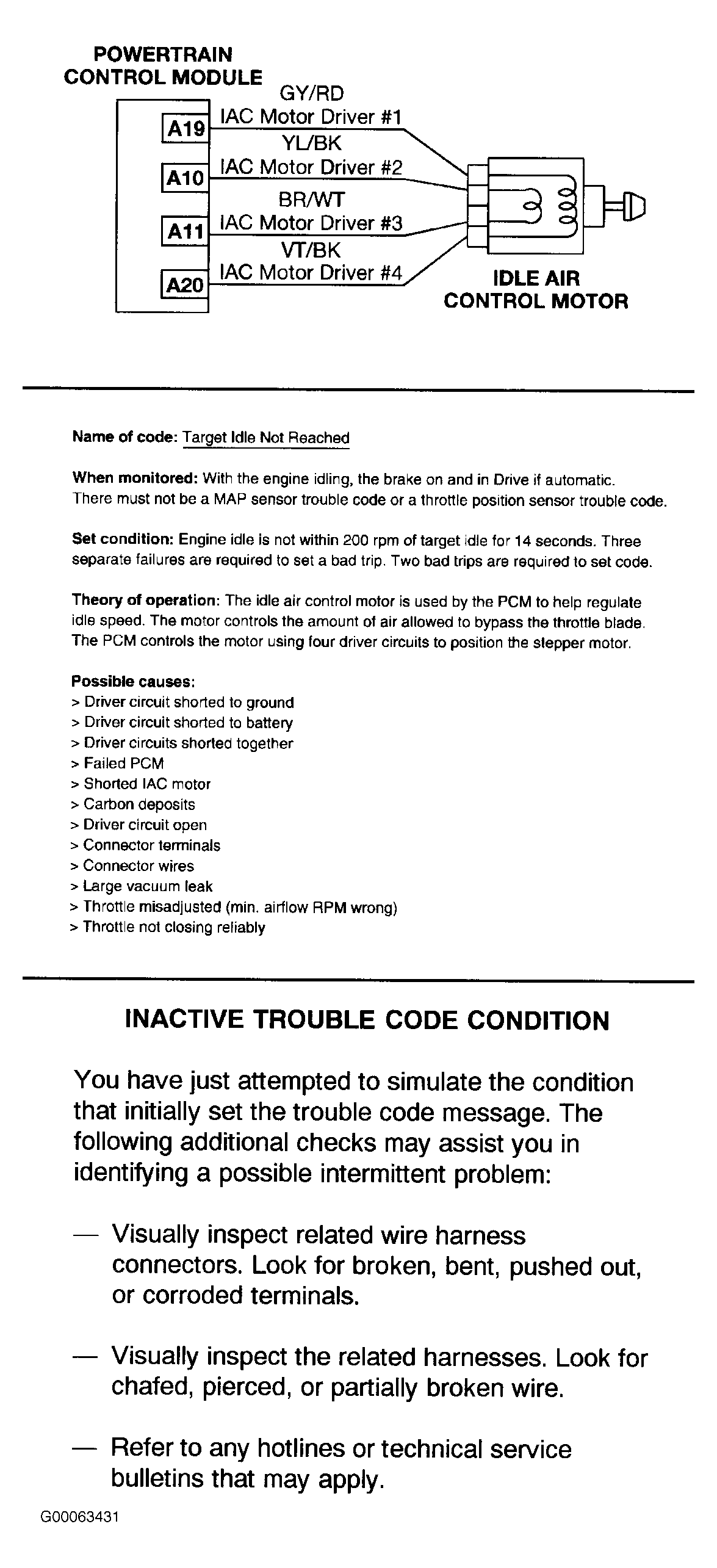

Fig 3: TC-138A: Target Idle Not Reached (3 Of 4)
G00063431Courtesy of DAIMLERCHRYSLER CORPORATION

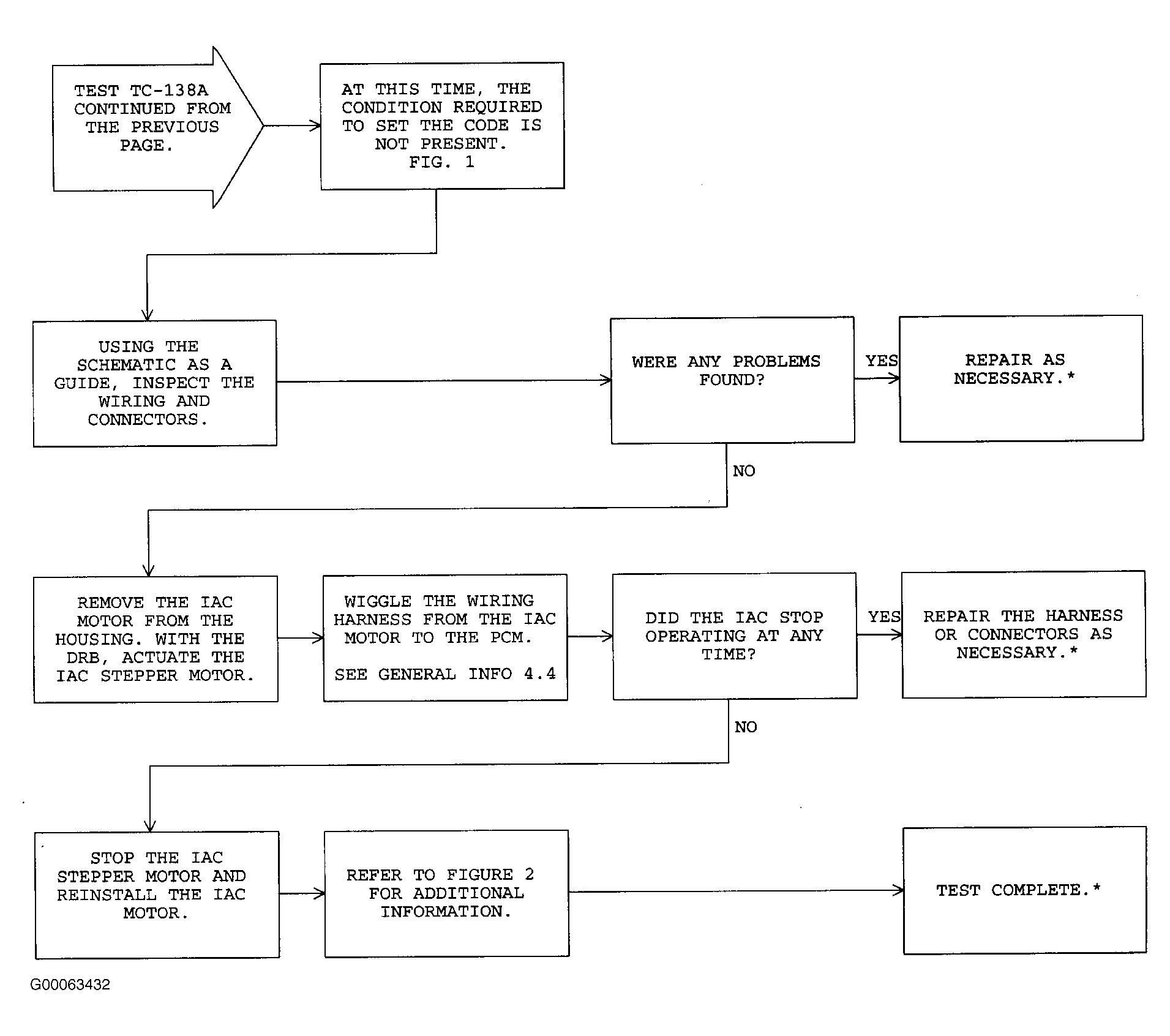

Fig 4: TC-138A: Target Idle Not Reached (4 Of 4)
G00063432Courtesy of DAIMLERCHRYSLER CORPORATION
