TC-16A: A/C Clutch Relay Circuit

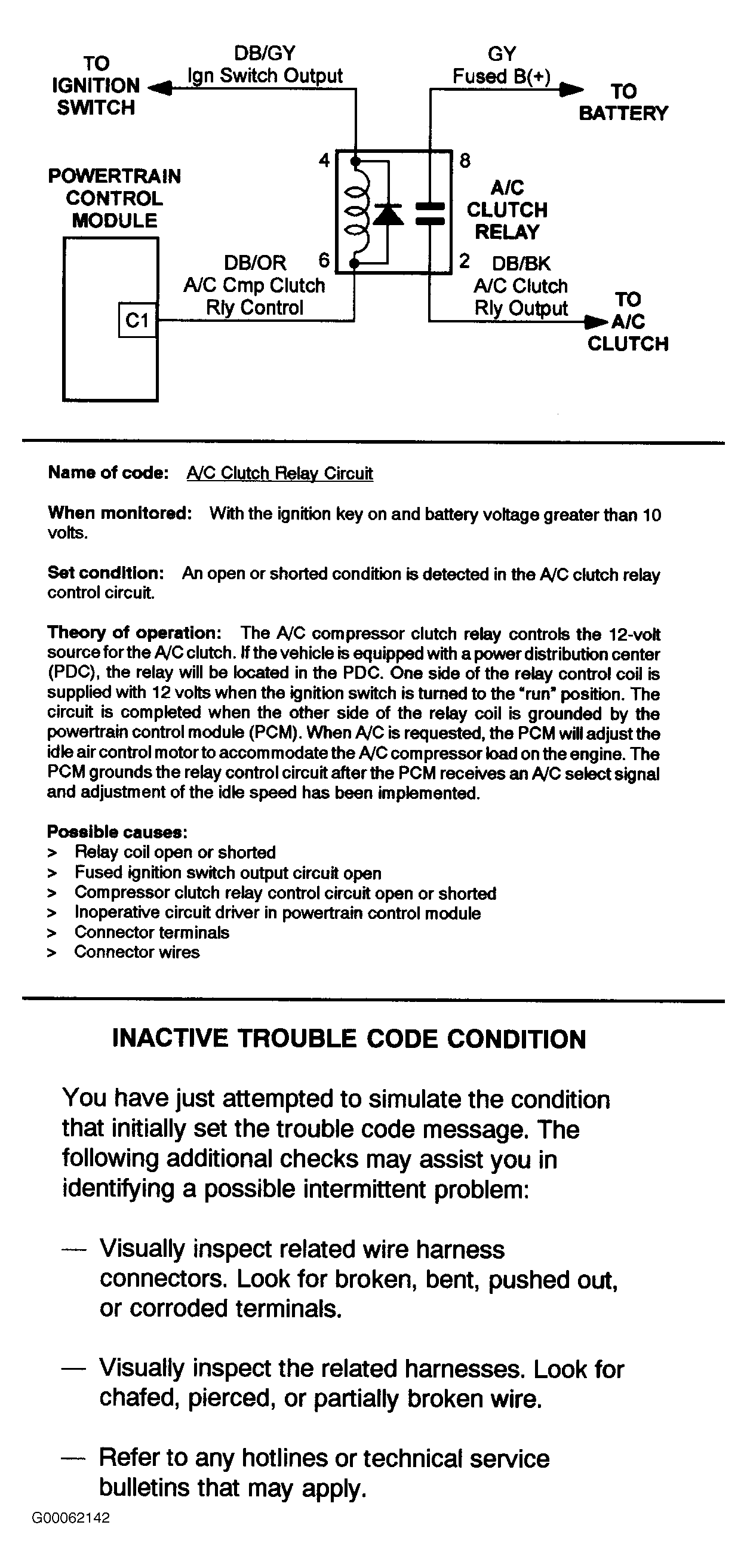

Fig 1: TC-16A: A/C Clutch Relay Circuit (1 Of 4)

G00062142

Courtesy of DAIMLERCHRYSLER CORPORATION

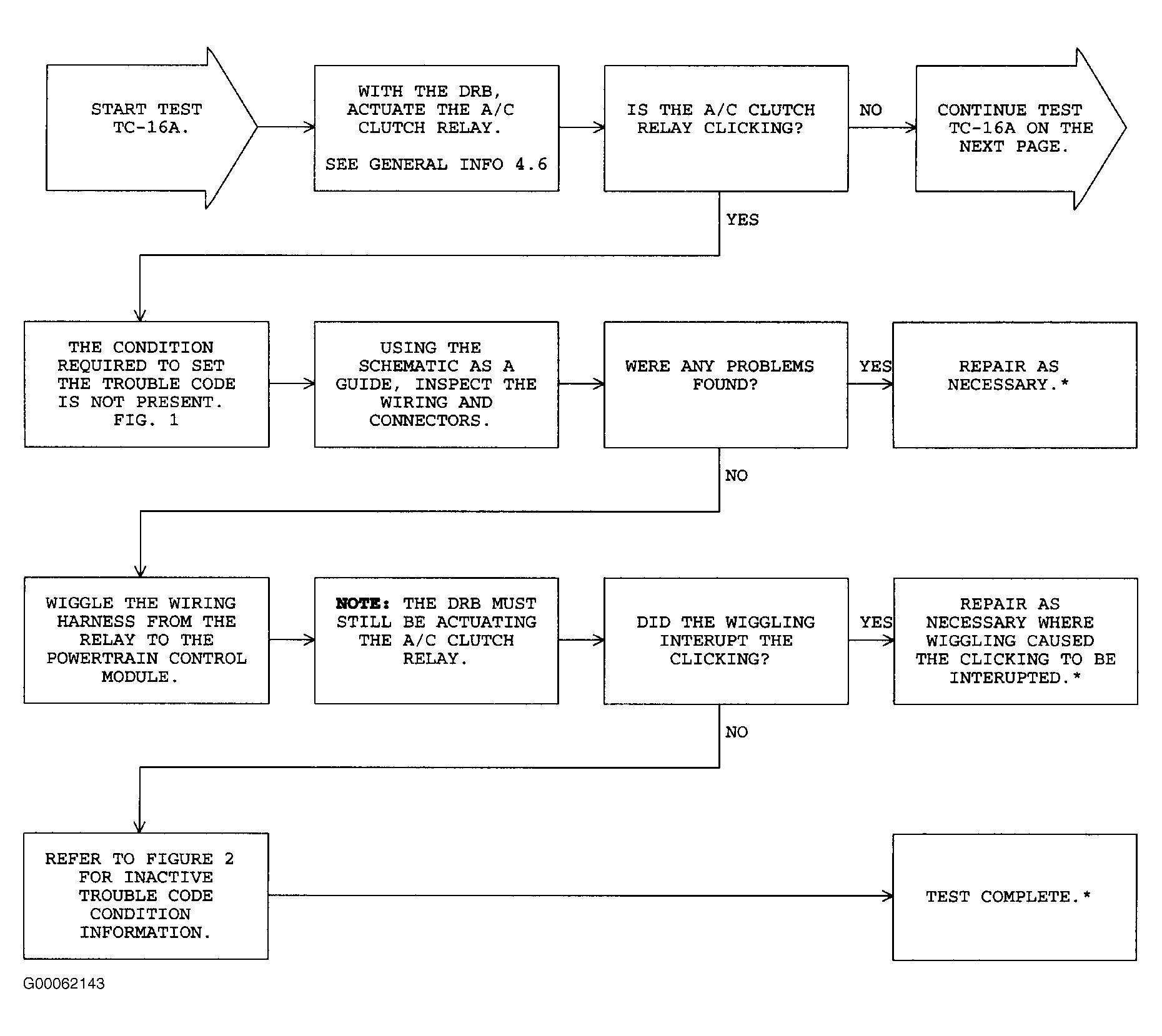

Fig 2: TC-16A: A/C Clutch Relay Circuit (2 Of 4)

G00062143

Courtesy of DAIMLERCHRYSLER CORPORATION

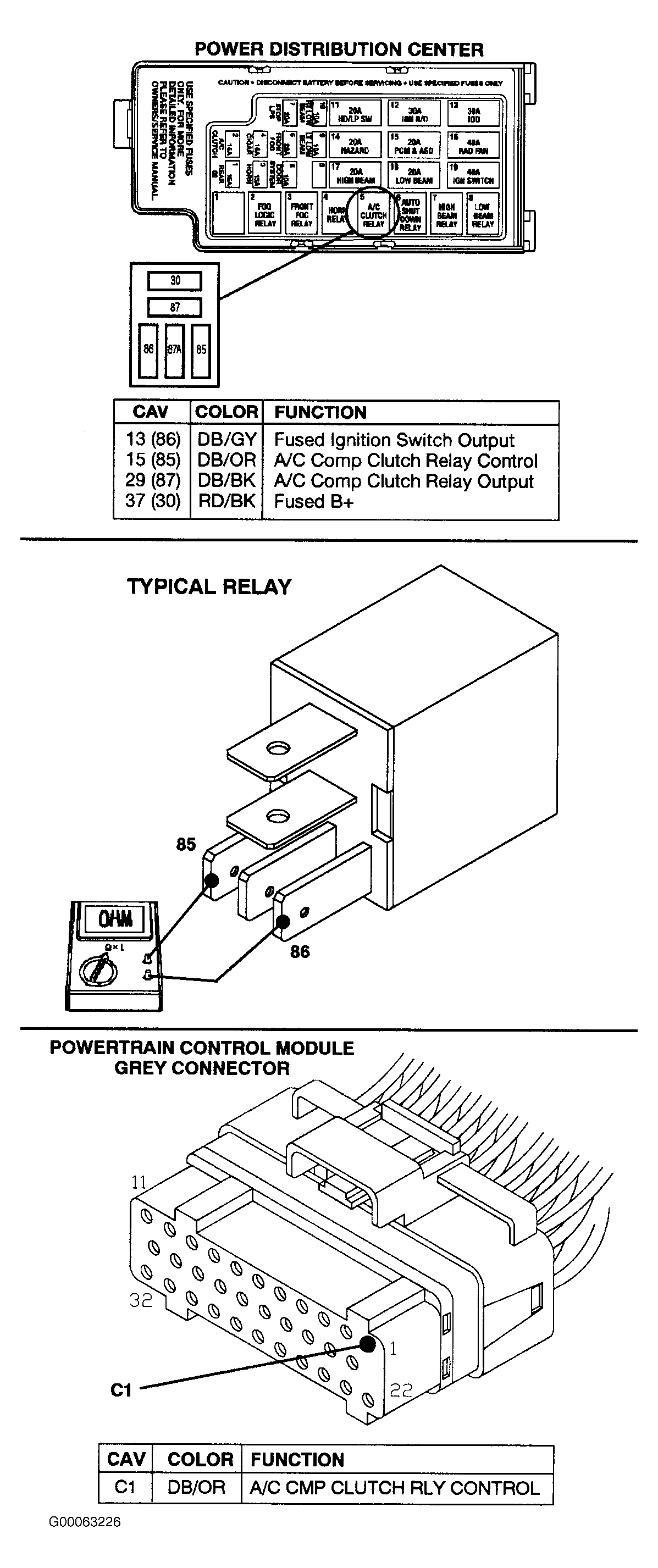

Fig 3: TC-16A: A/C Clutch Relay Circuit (3 Of 4)

G00063226

Courtesy of DAIMLERCHRYSLER CORPORATION

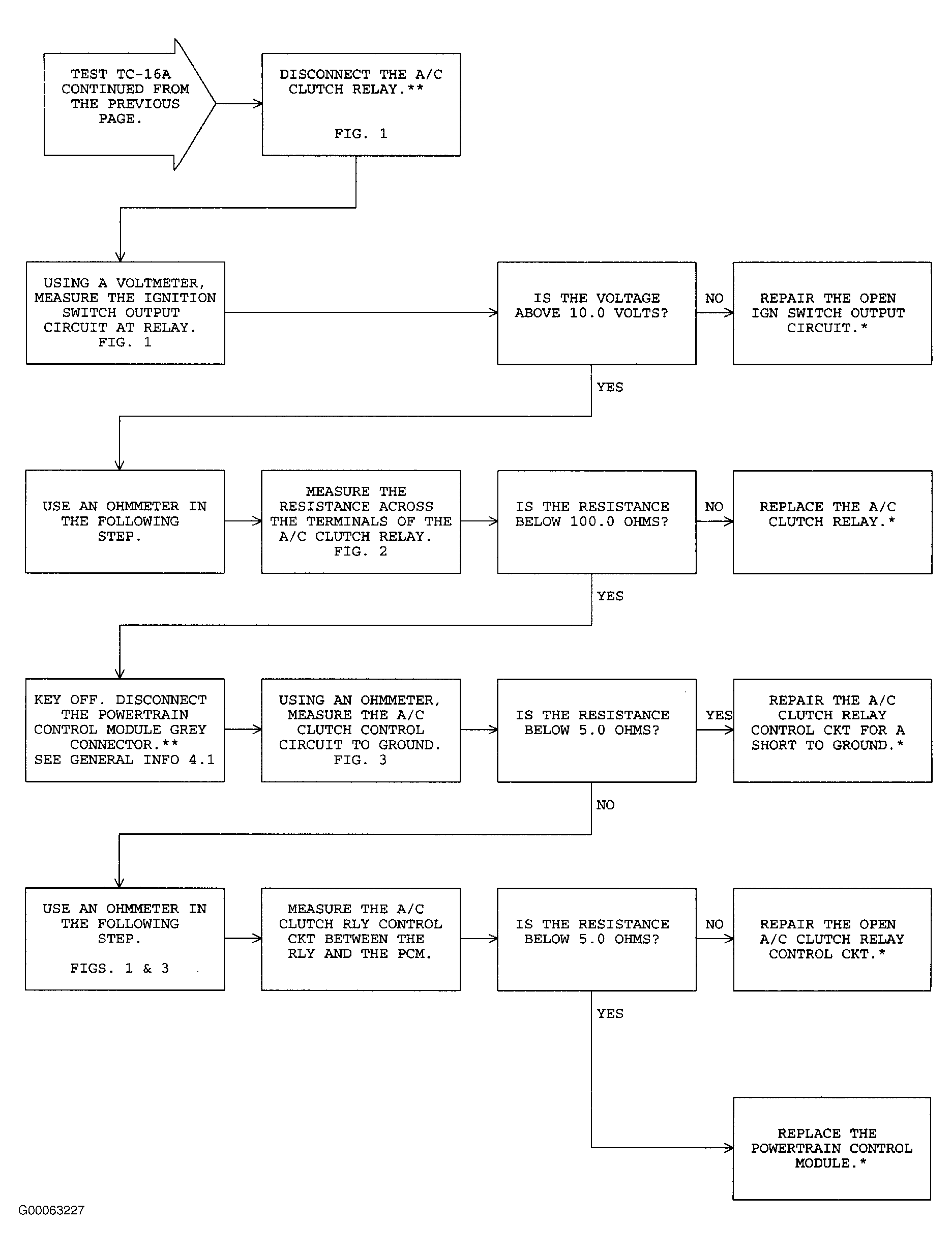

Fig 4: TC-16A: A/C Clutch Relay Circuit (4 Of 4)

G00063227

Courtesy of DAIMLERCHRYSLER CORPORATION
