TC-25A: Idle Air Control Motor Circuits

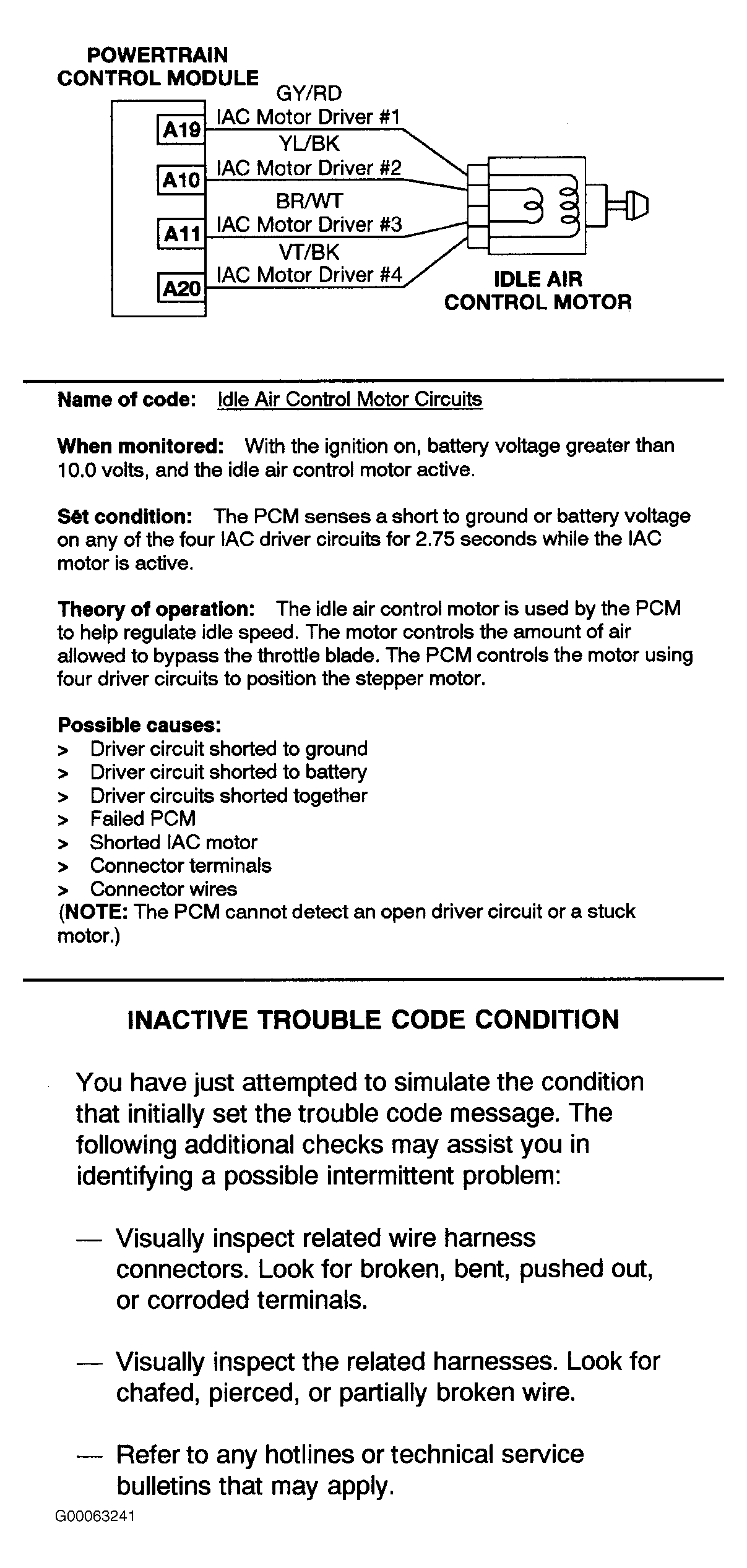

Fig 1: TC-25A: Idle Air Control Motor Circuits (1 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

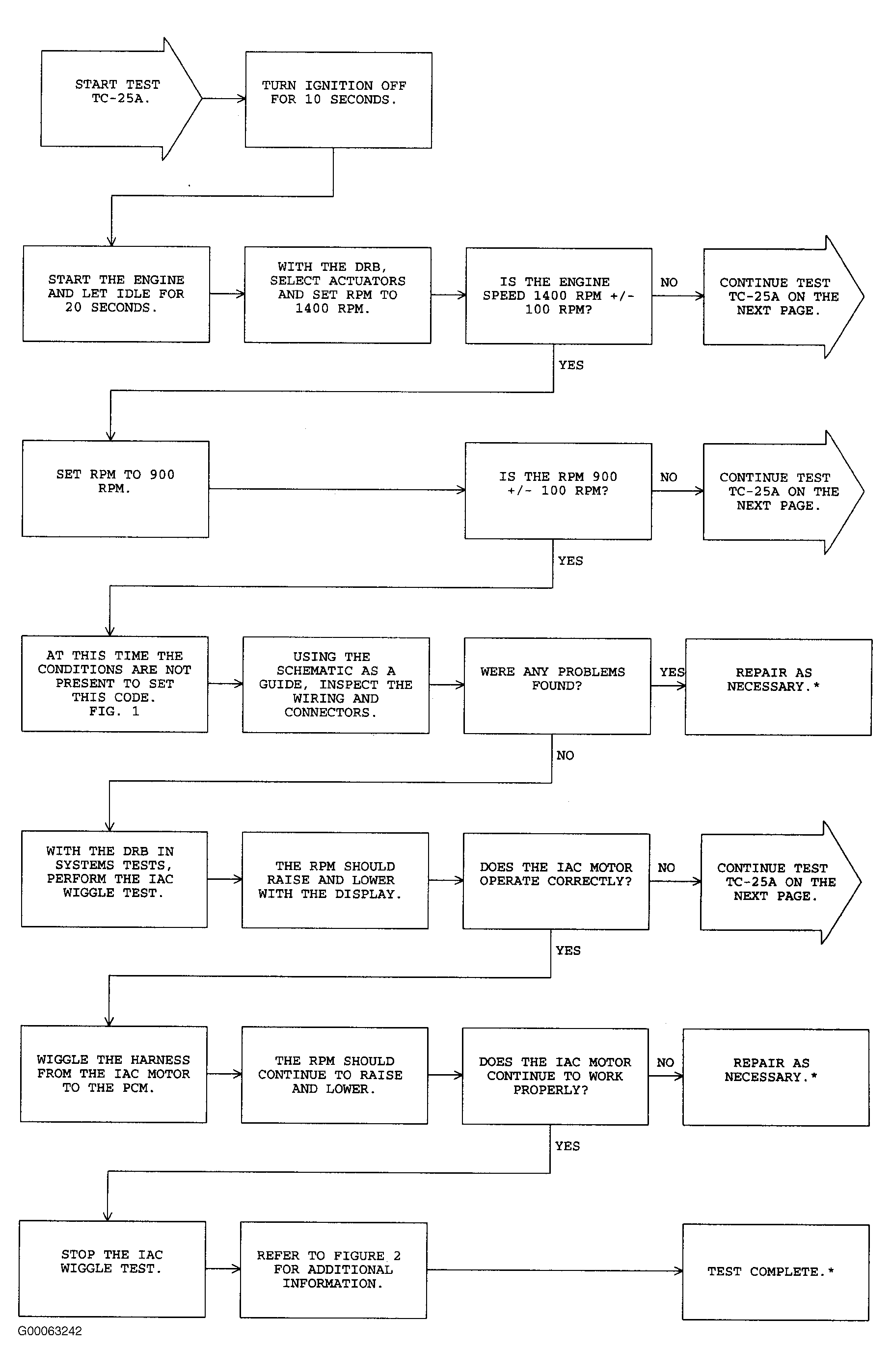

Fig 2: TC-25A: Idle Air Control Motor Circuits (2 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

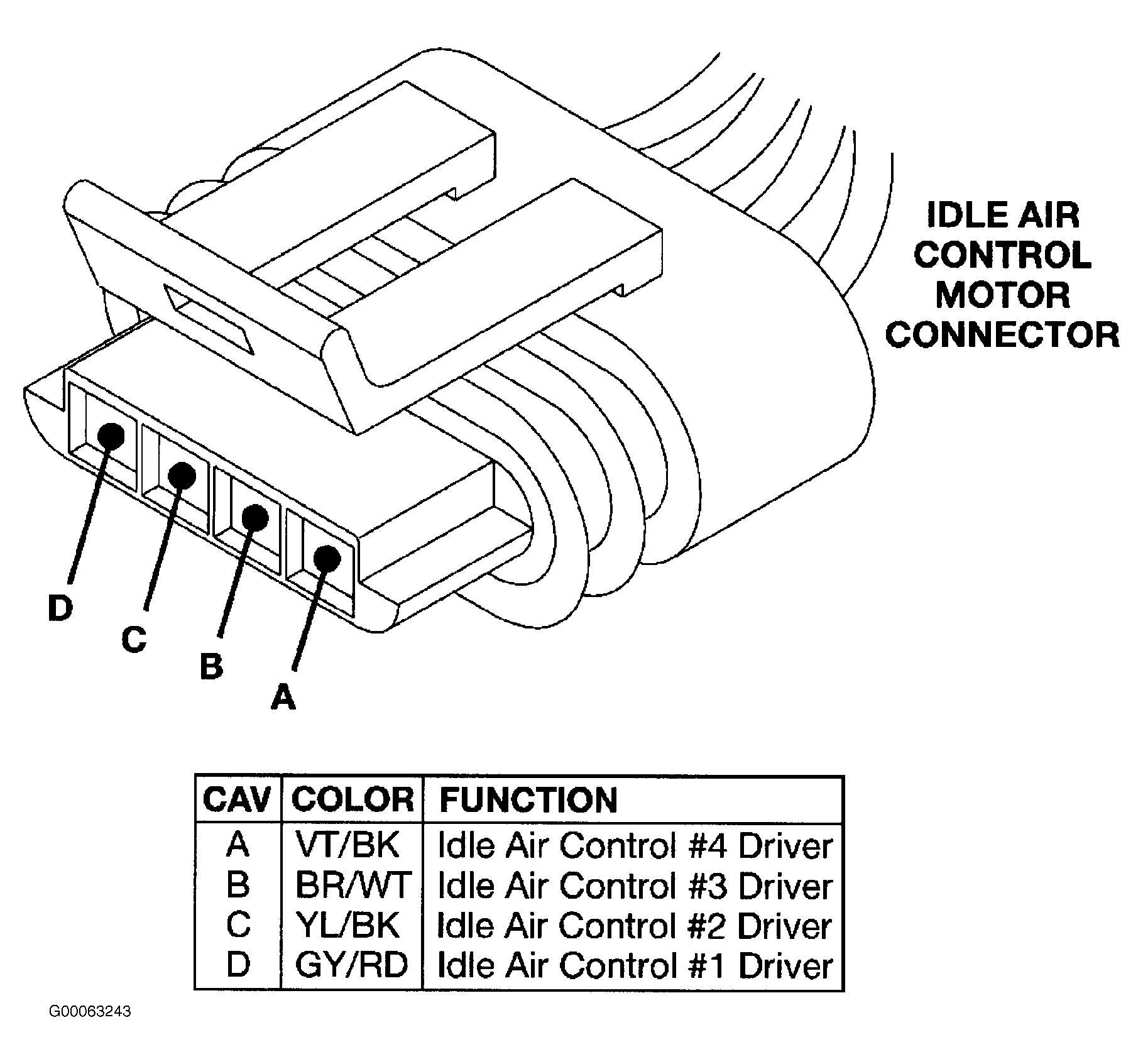

Fig 3: TC-25A: Idle Air Control Motor Circuits (3 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

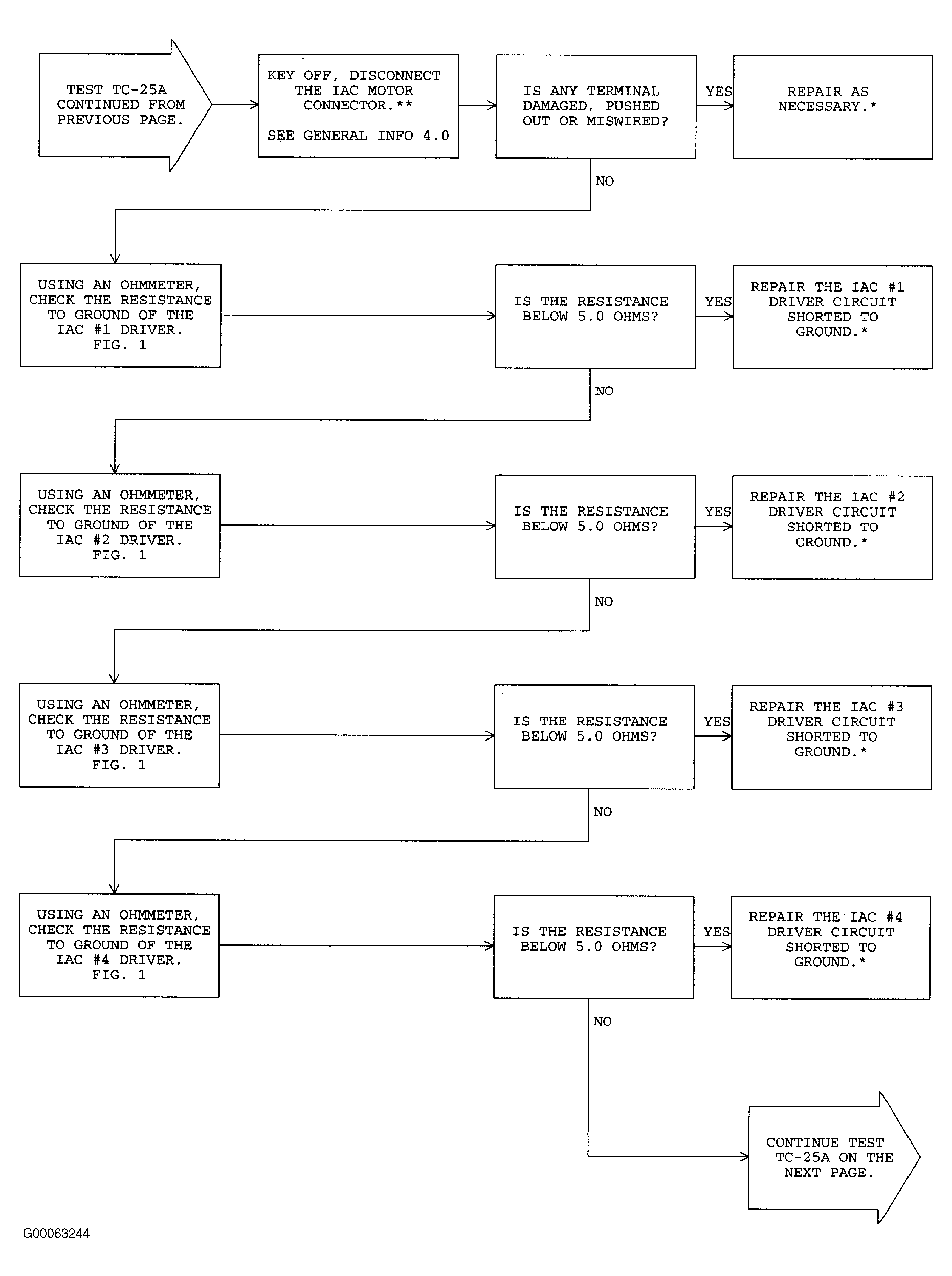

Fig 4: TC-25A: Idle Air Control Motor Circuits (4 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

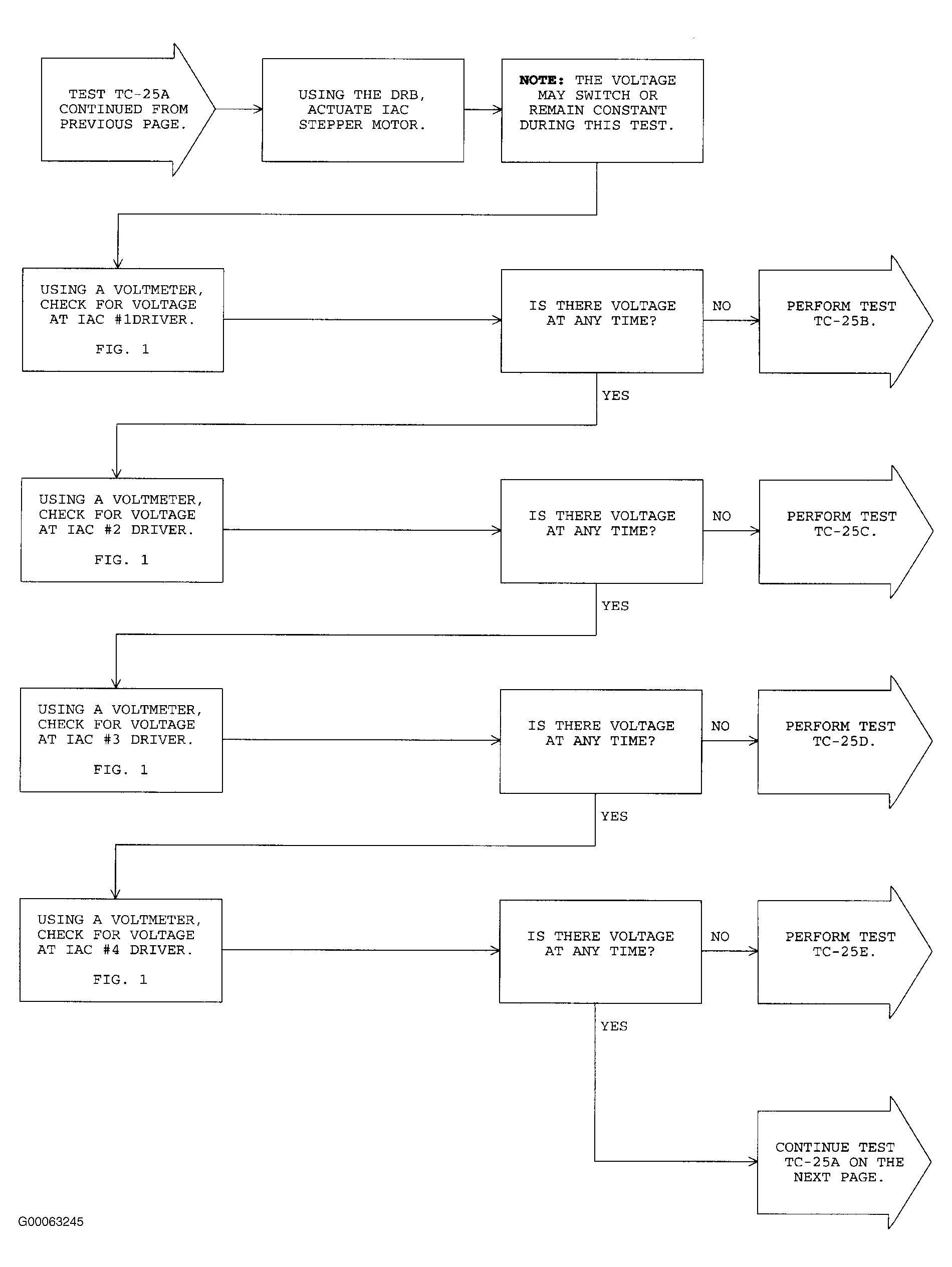

Fig 5: TC-25A: Idle Air Control Motor Circuits (5 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

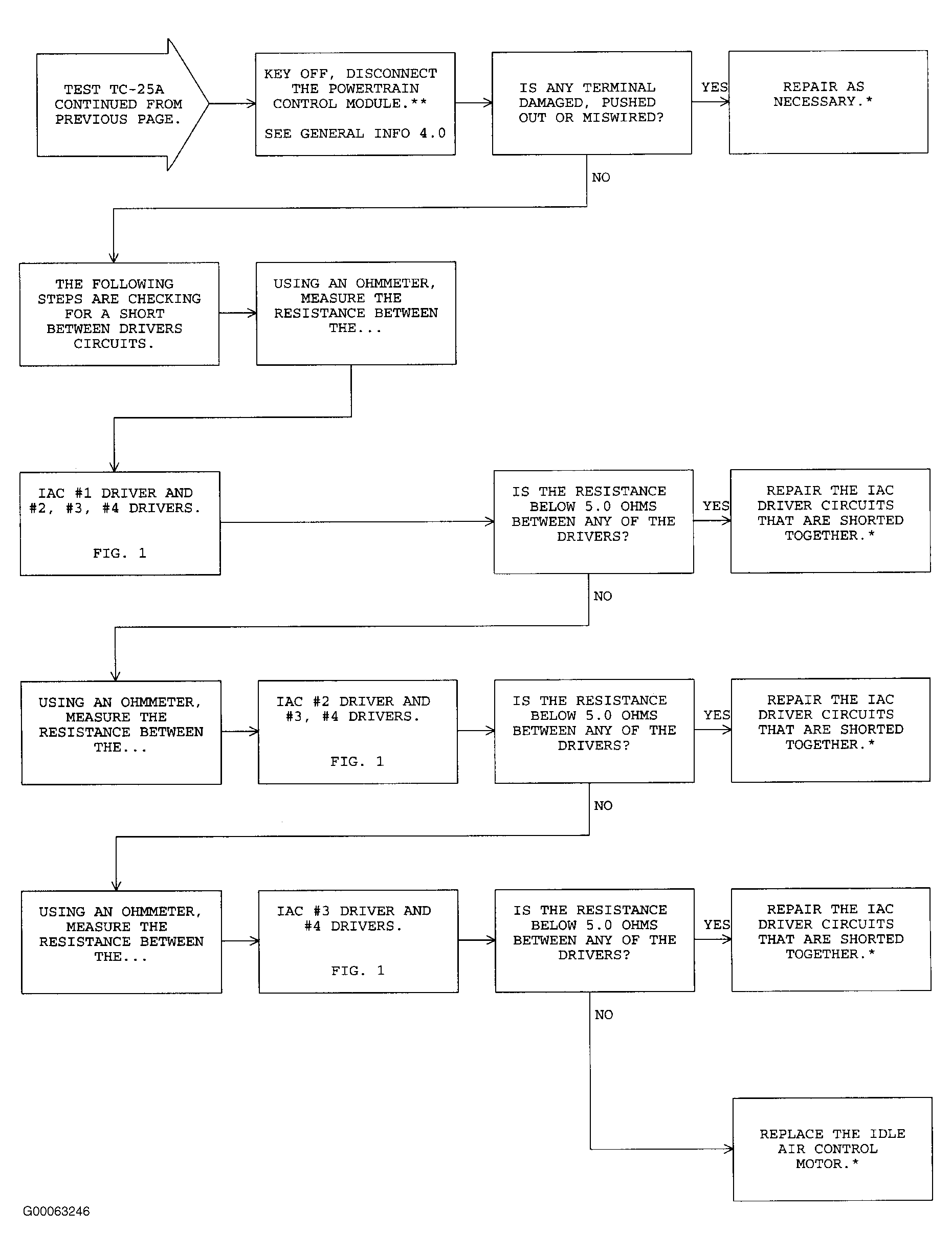

Fig 6: TC-25A: Idle Air Control Motor Circuits (1 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION
