TC-35A: No Vehicle Speed Sensor Signal

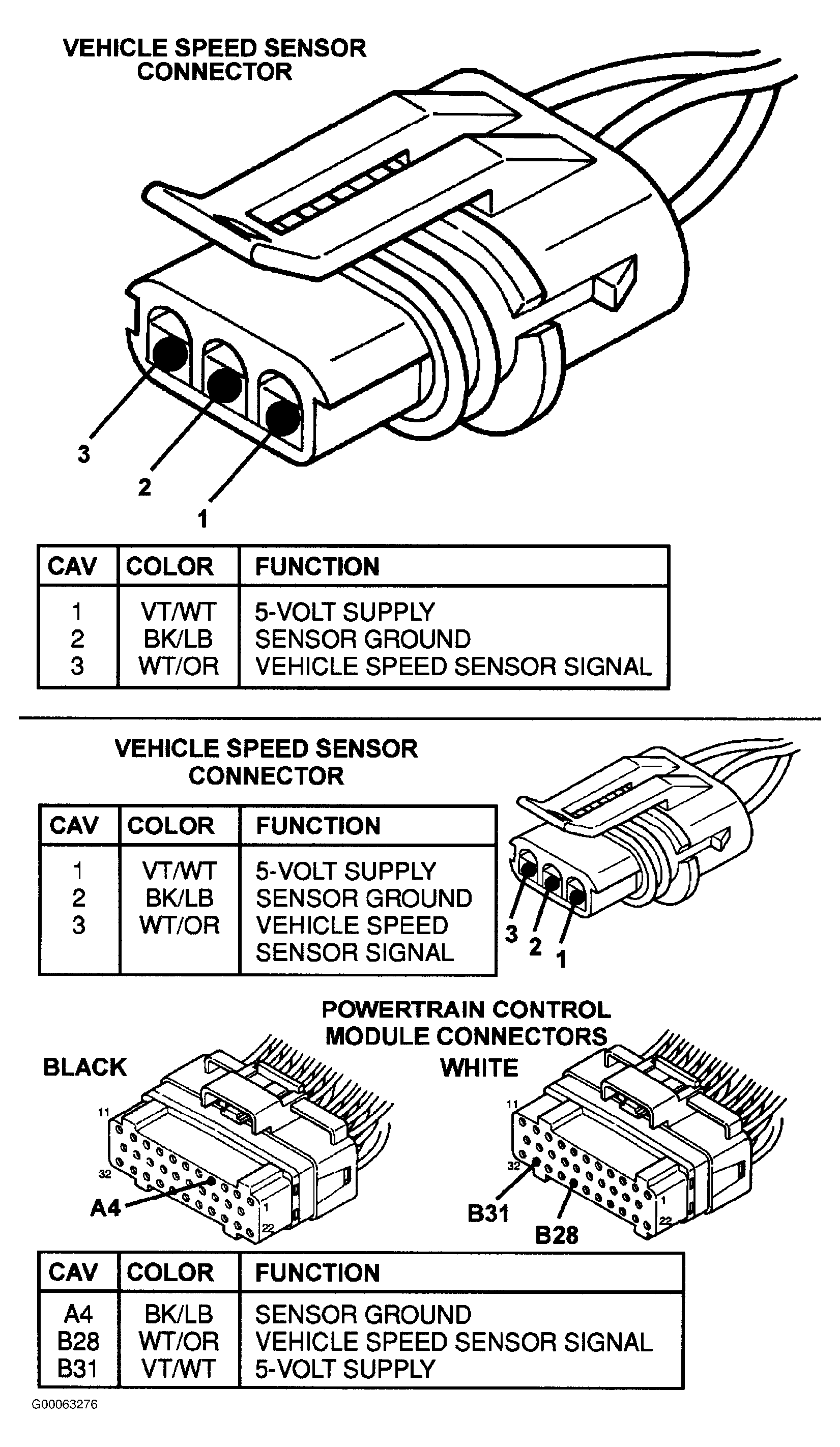

Fig 1: TC-35A: No Vehicle Speed Sensor Signal (1 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

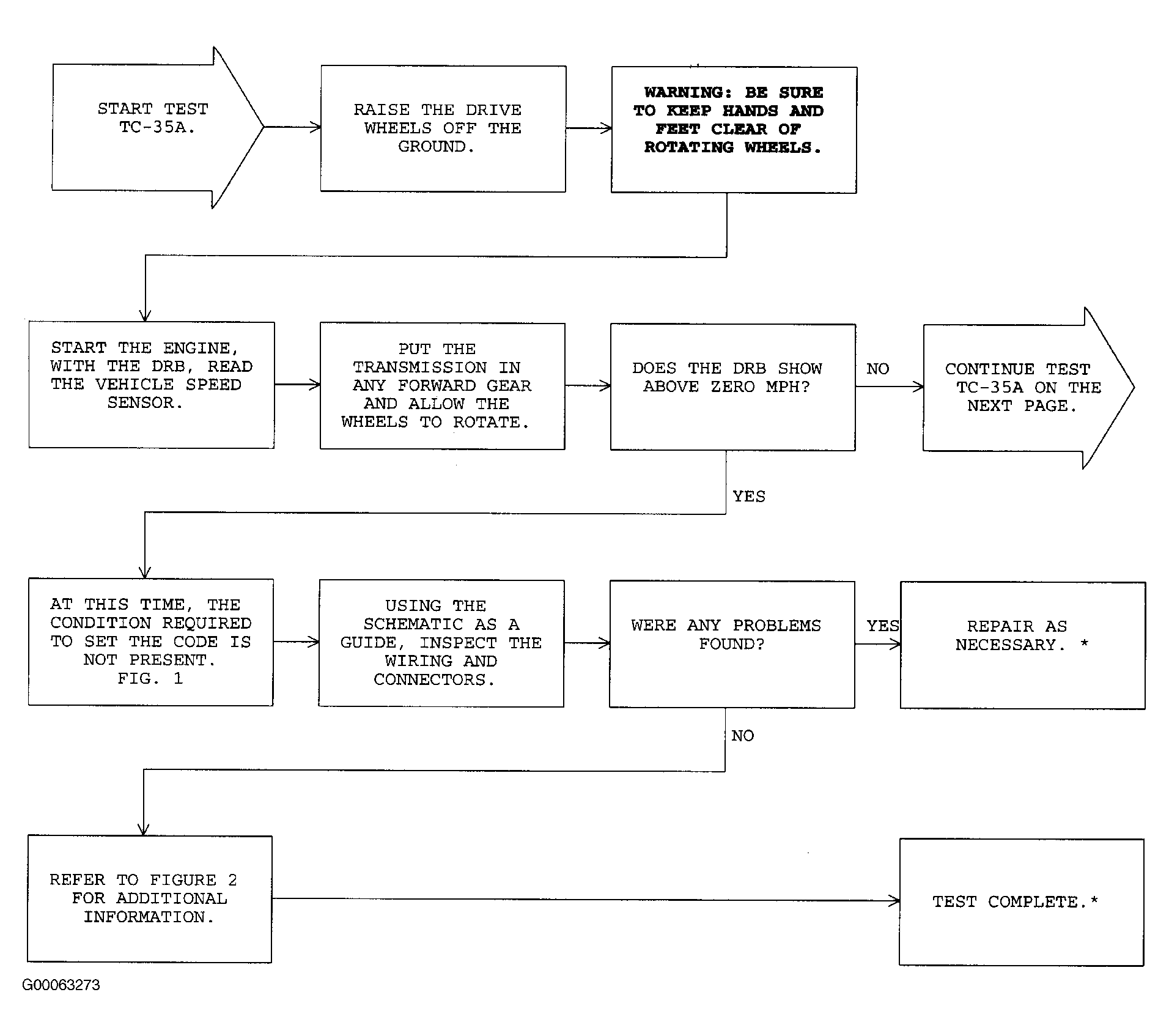

Fig 2: TC-35A: No Vehicle Speed Sensor Signal (2 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

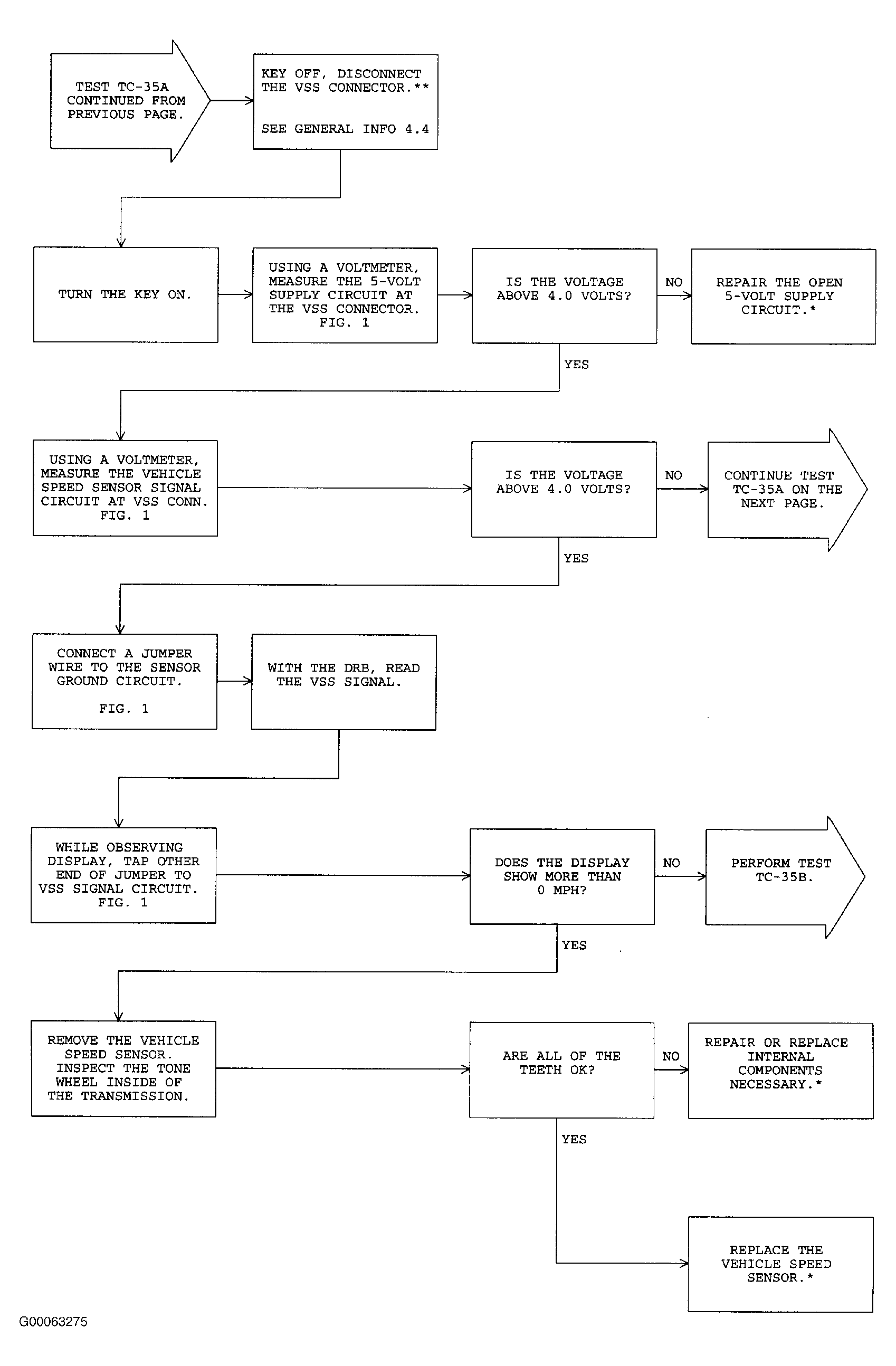

Fig 3: TC-35A: No Vehicle Speed Sensor Signal (3 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

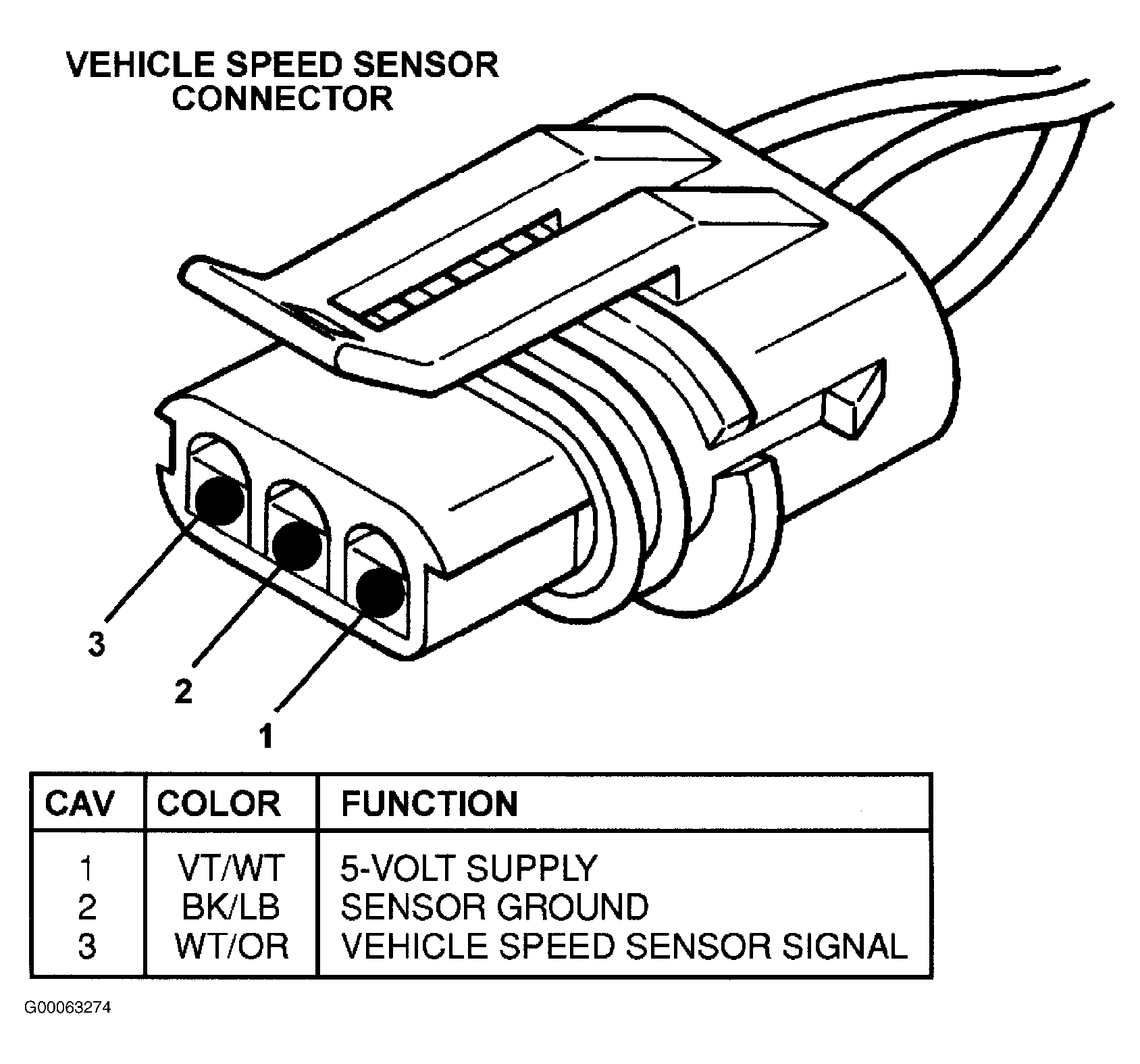

Fig 4: TC-35A: No Vehicle Speed Sensor Signal (4 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

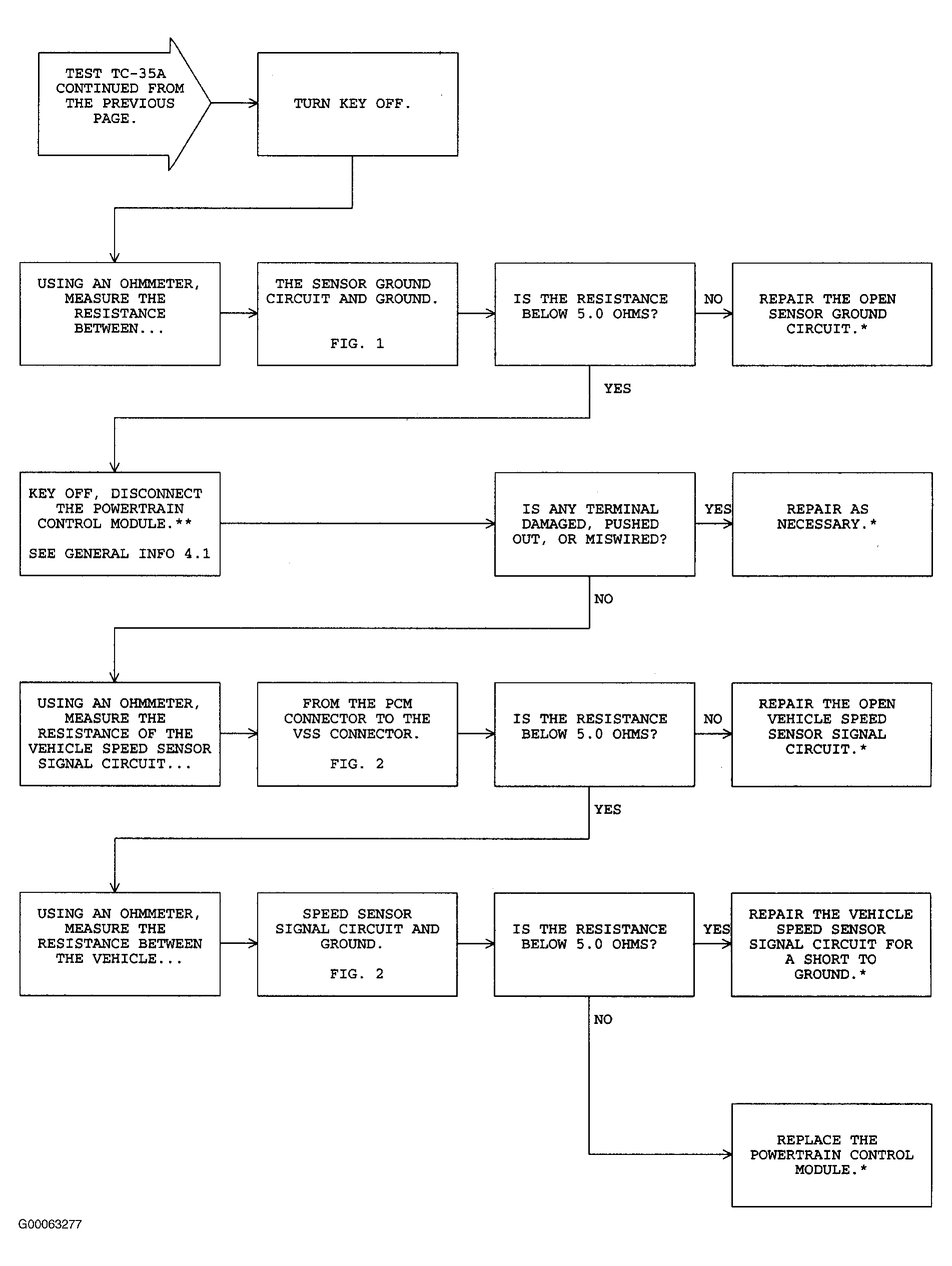

Fig 5: TC-35A: No Vehicle Speed Sensor Signal (5 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION

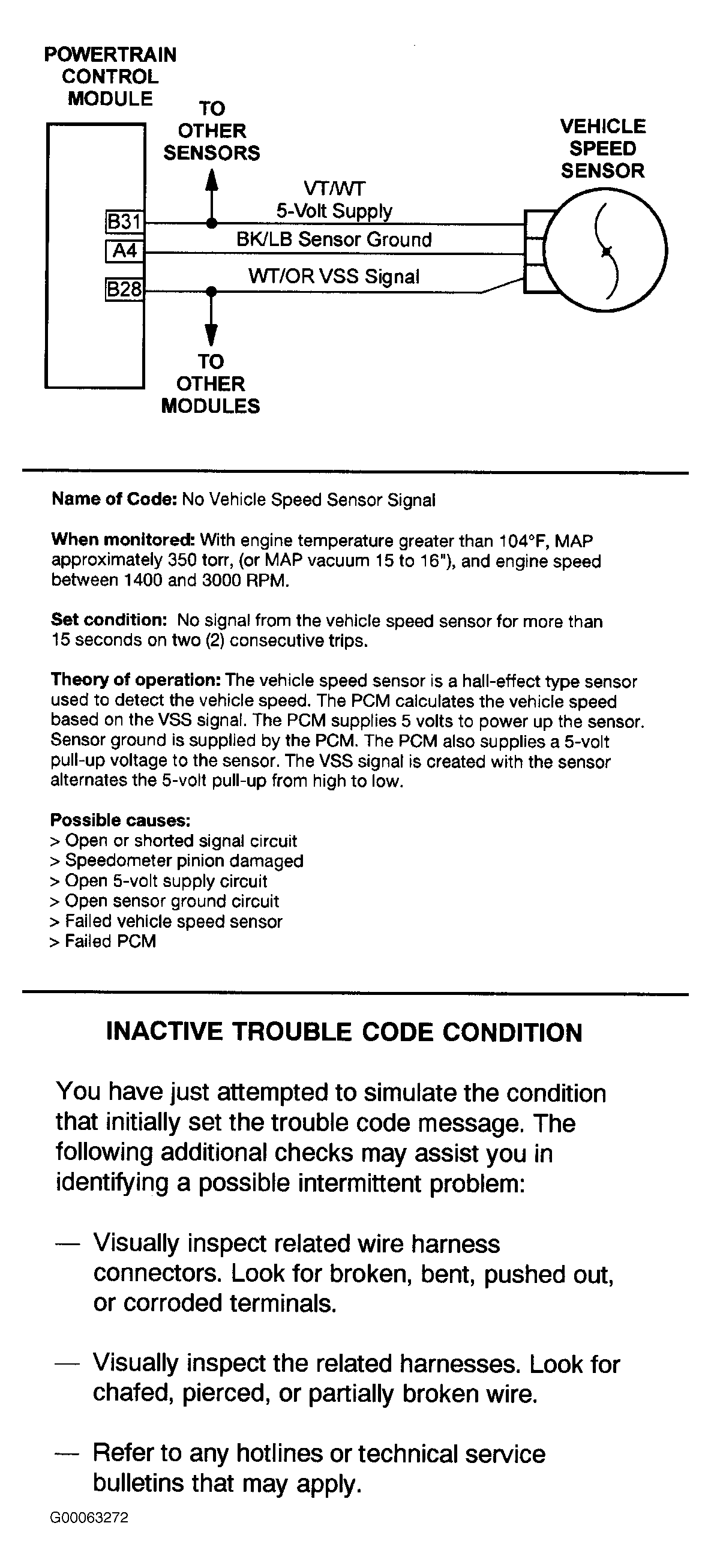

Fig 6: TC-35A: No Vehicle Speed Sensor Signal (6 Of 6)

Courtesy of DAIMLERCHRYSLER CORPORATION
