Transmission Assembly: Disassembly

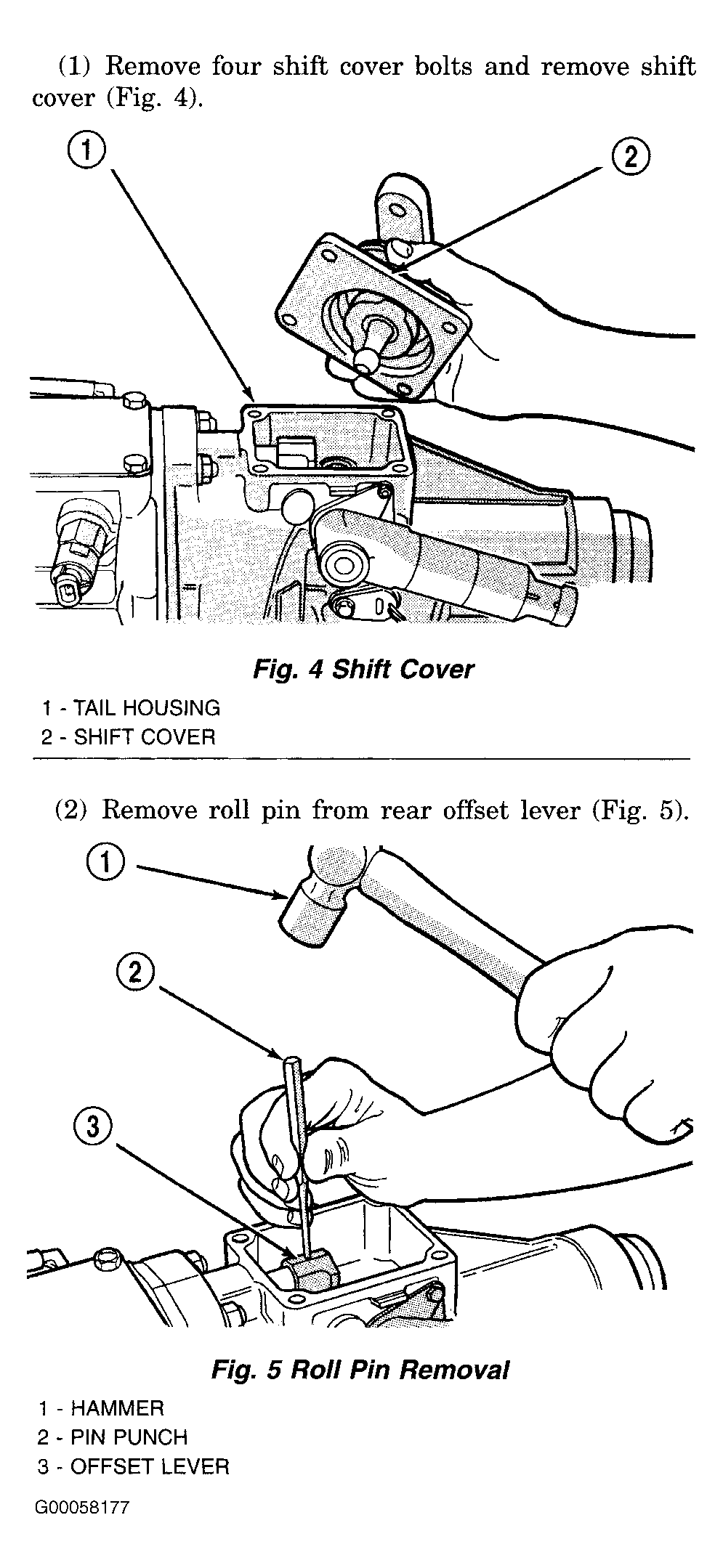

Fig 1: Transmission Disassembly - Steps 1-2

G00058177

Courtesy of DAIMLERCHRYSLER CORPORATION

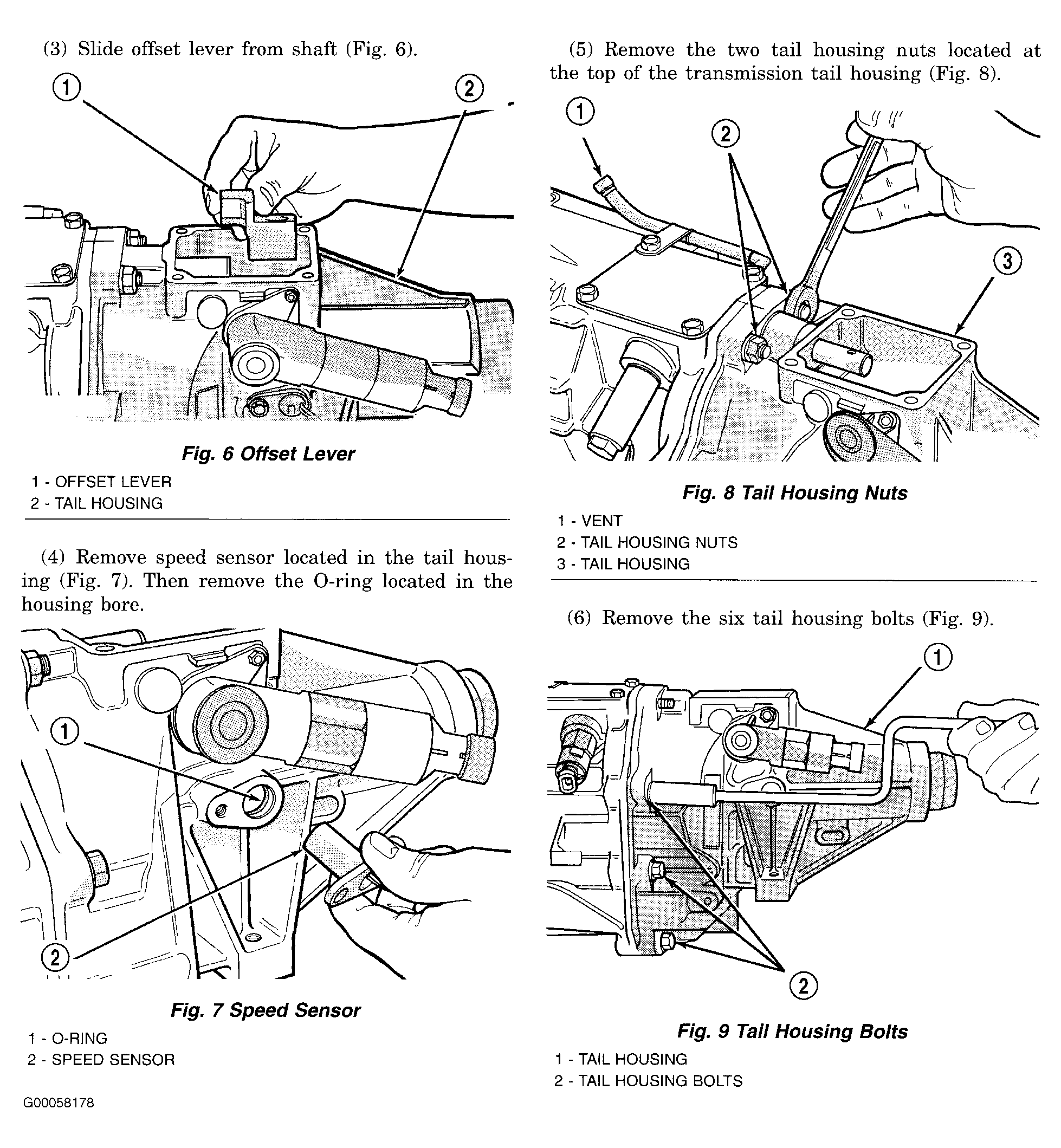

Fig 2: Transmission Disassembly - Steps 3-6

G00058178

Courtesy of DAIMLERCHRYSLER CORPORATION

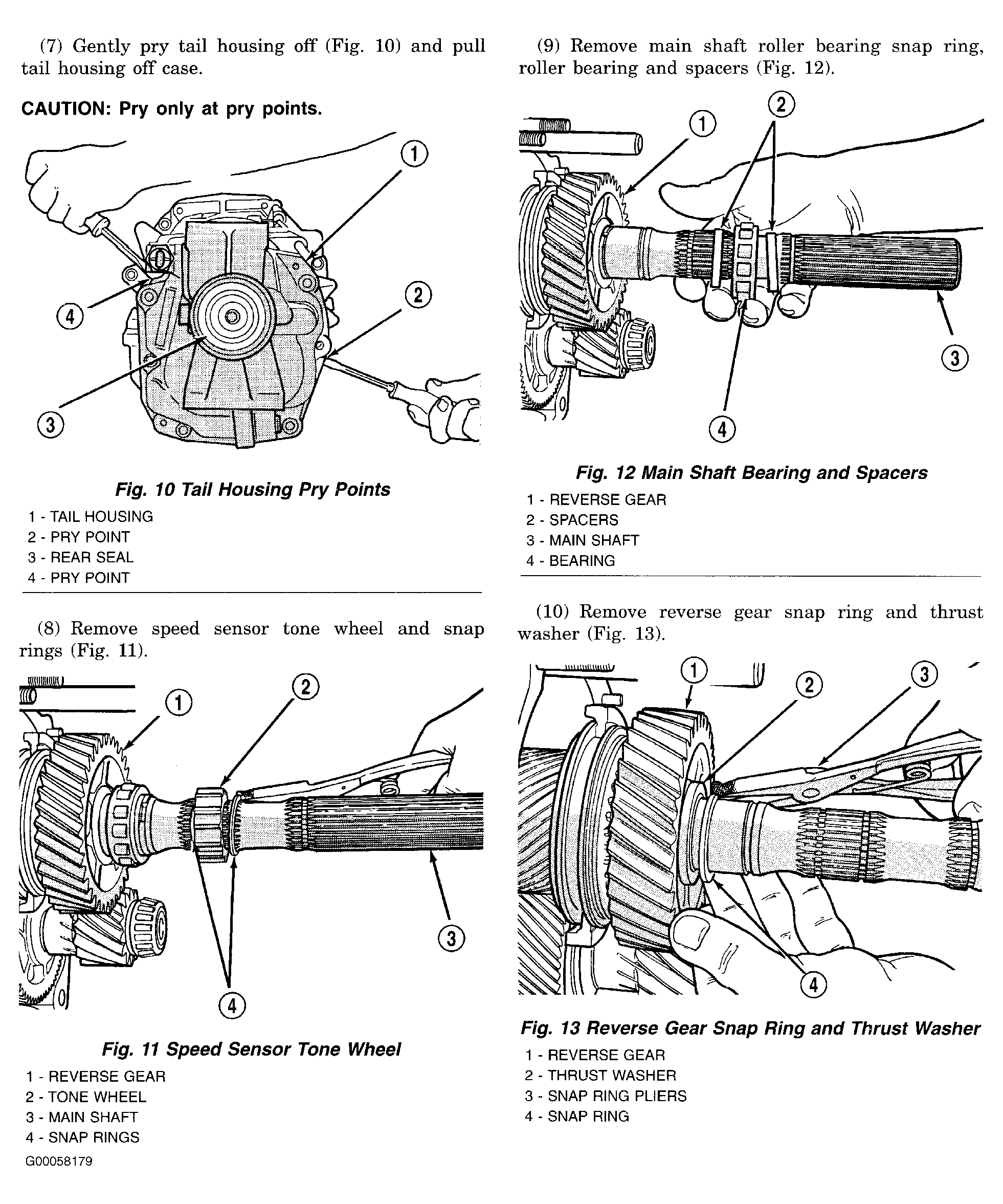

Fig 3: Transmission Disassembly - Steps 7-10

G00058179

Courtesy of DAIMLERCHRYSLER CORPORATION

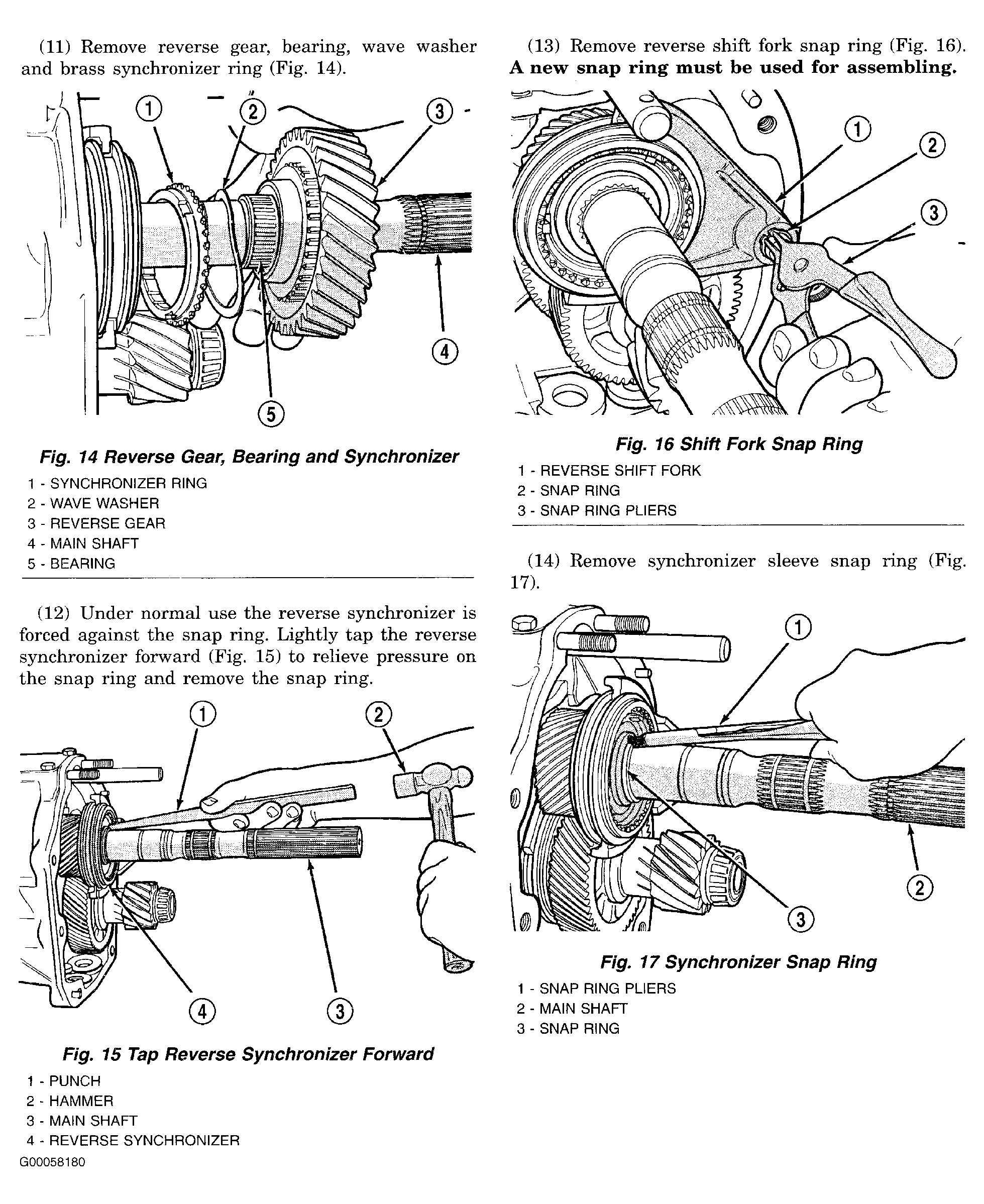

Fig 4: Transmission Disassembly - Steps 11-14

G00058180

Courtesy of DAIMLERCHRYSLER CORPORATION

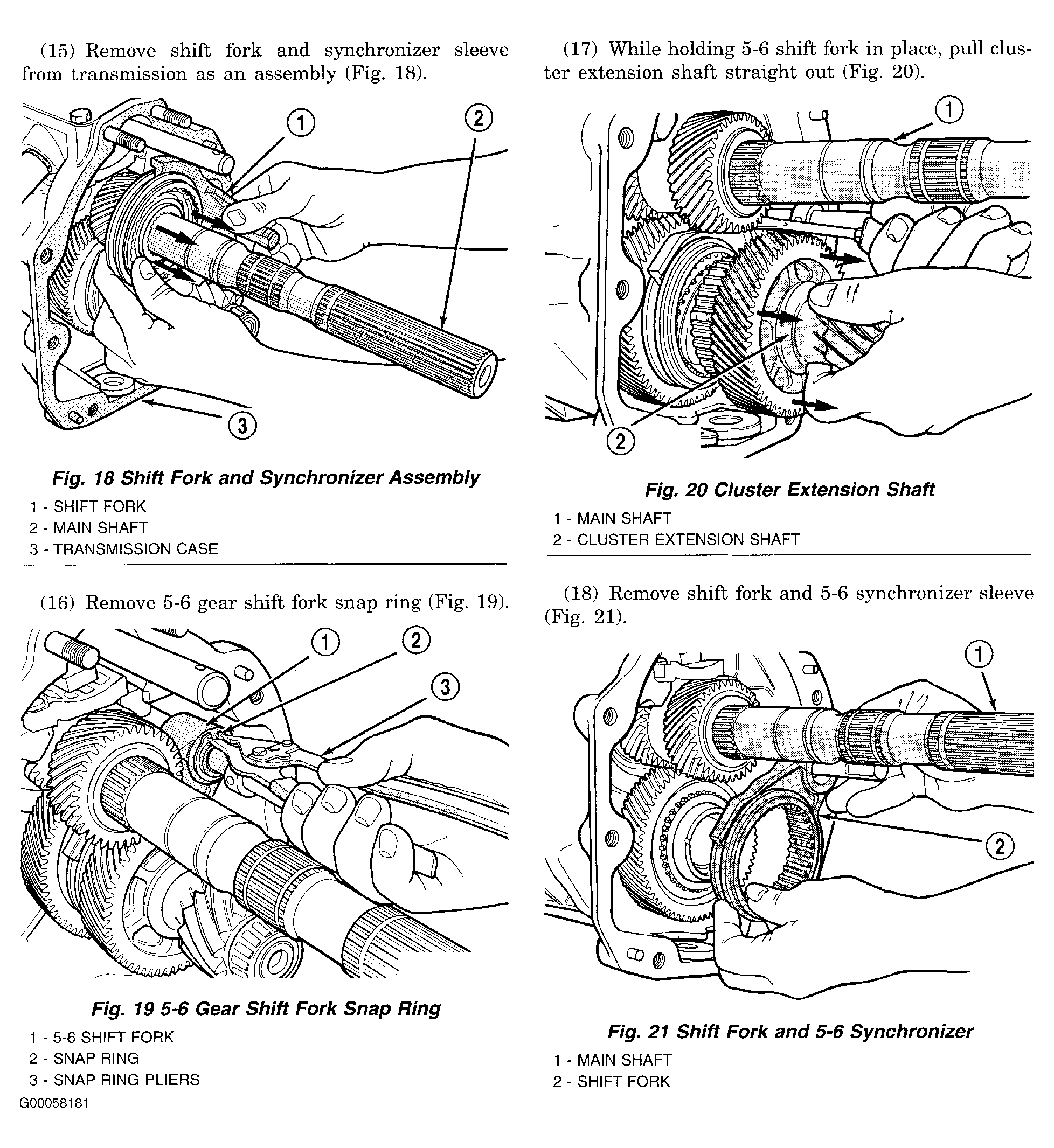

Fig 5: Transmission Disassembly - Steps 15-18

G00058181

Courtesy of DAIMLERCHRYSLER CORPORATION

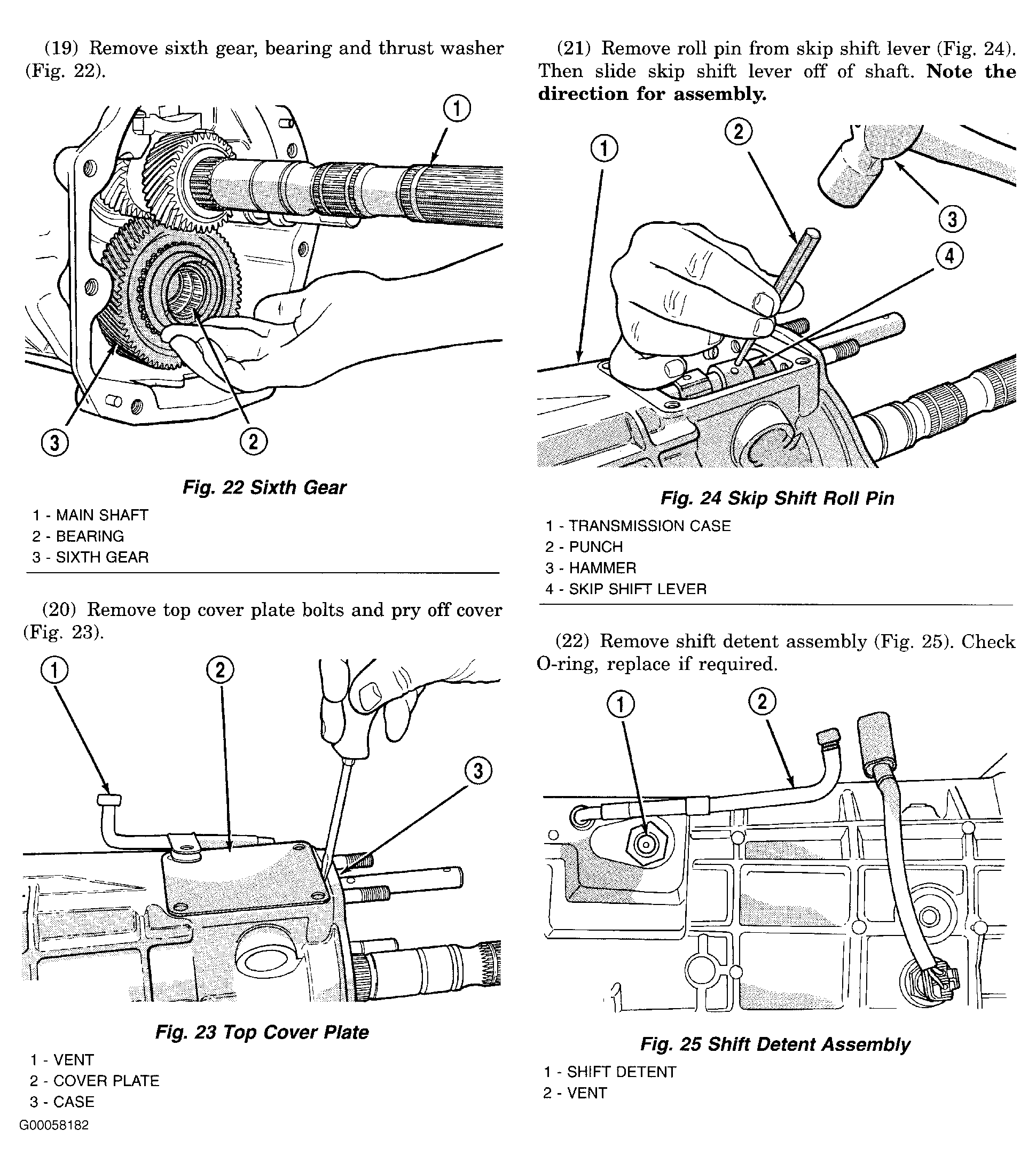

Fig 6: Transmission Disassembly - Steps 19-22

G00058182

Courtesy of DAIMLERCHRYSLER CORPORATION

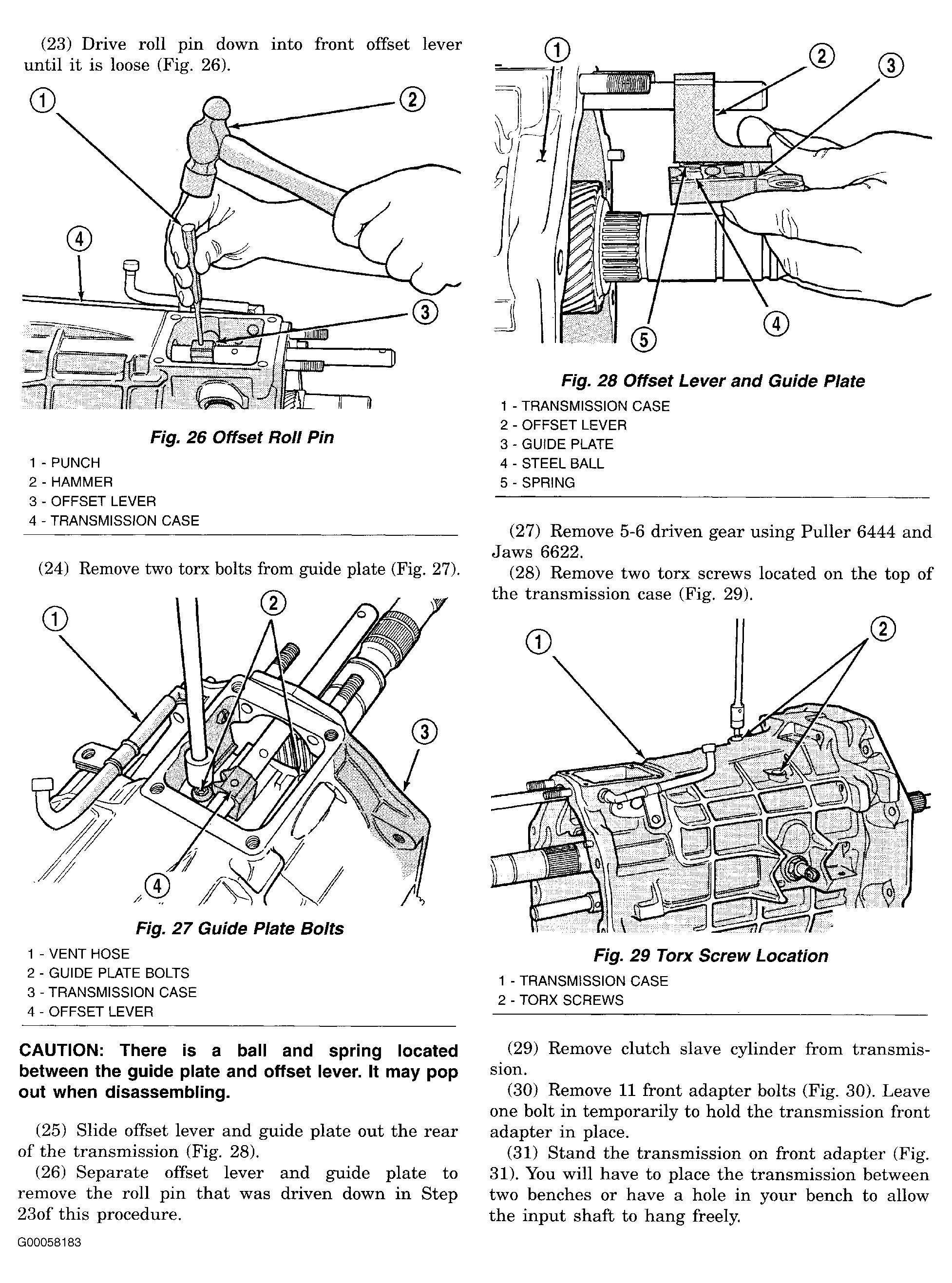

Fig 7: Transmission Disassembly - Steps 23-31

G00058183

Courtesy of DAIMLERCHRYSLER CORPORATION

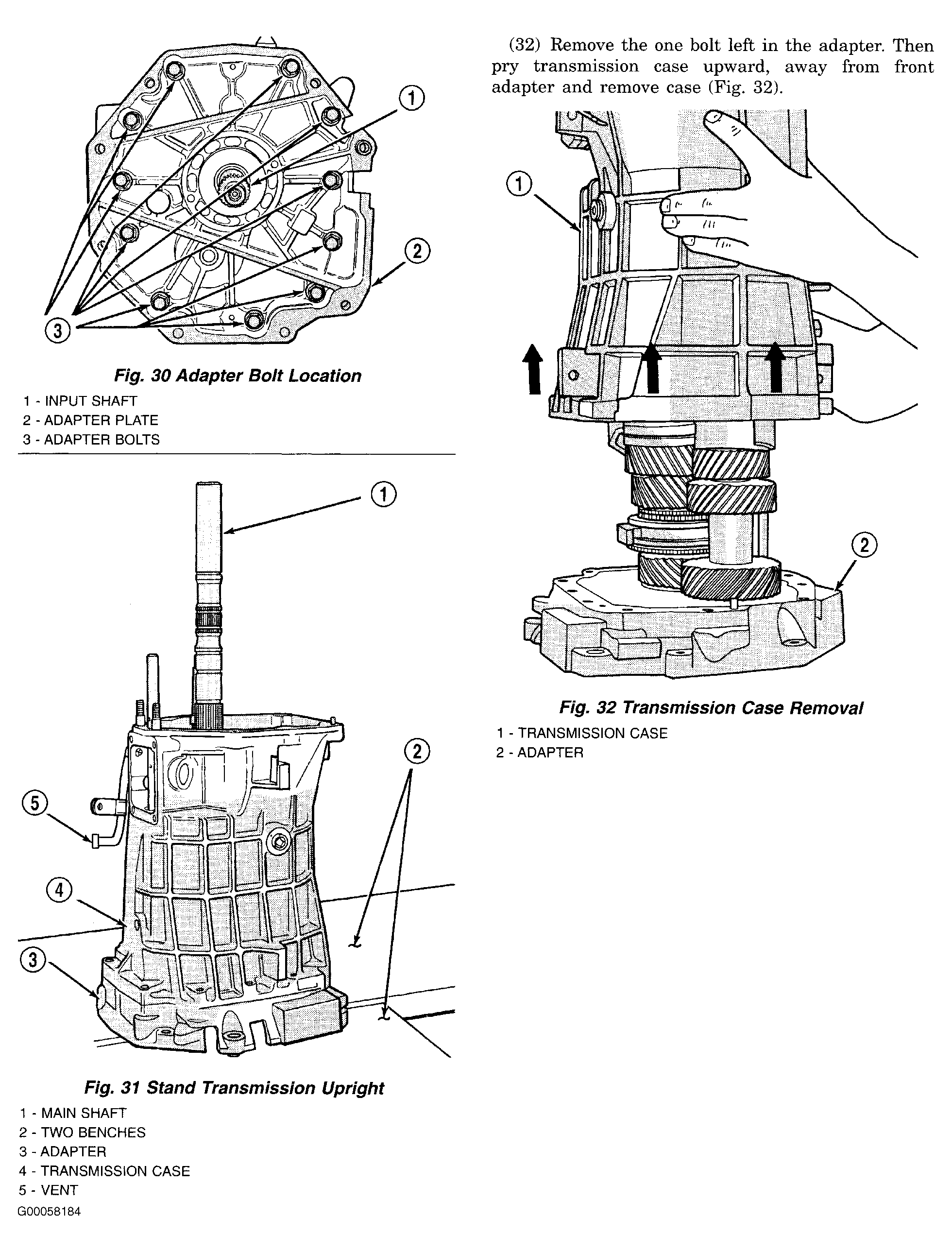

Fig 8: Transmission Disassembly - Step 32

G00058184

Courtesy of DAIMLERCHRYSLER CORPORATION

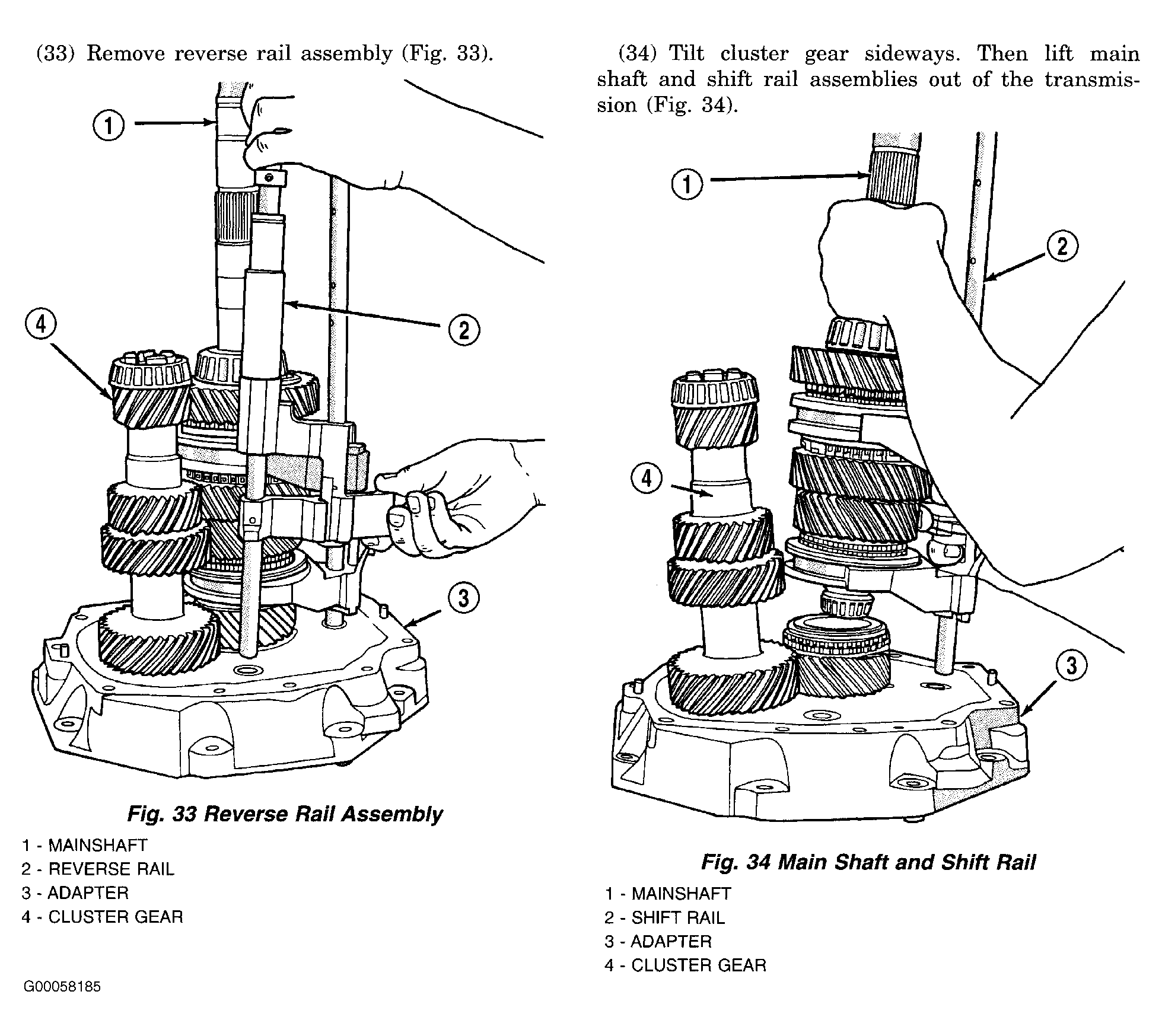

Fig 9: Transmission Disassembly - Steps 33-34

G00058185

Courtesy of DAIMLERCHRYSLER CORPORATION

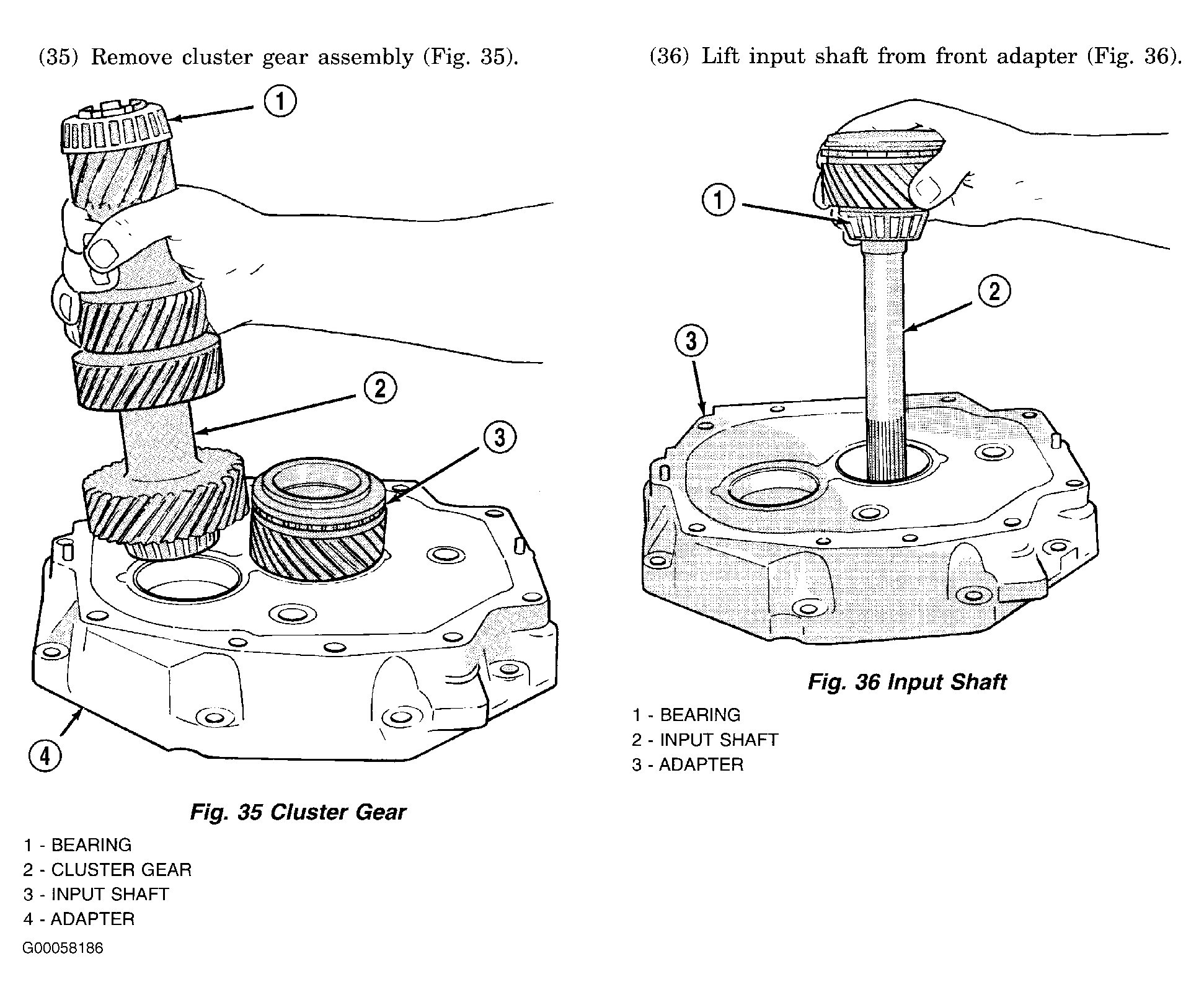

Fig 10: Transmission Disassembly - Steps 35-36

G00058186

Courtesy of DAIMLERCHRYSLER CORPORATION
