Removal & Installation

  1. Disconnect negative battery cable. Body Control Module (BCM) is located with junction block under driver's side instrument panel. Remove left underdash cover and knee bolster reinforcement. Disconnect harness connectors from bottom of Body Control Module (BCM). See Fig 1 .
  2. Remove bolts holding junction block to dash panel mounting bracket. Remove junction block from mounting bracket. Remove screws holding BCM to junction block. Slide BCM downward to disengage guide studs. Remove BCM from junction block. To install, reverse removal procedure.

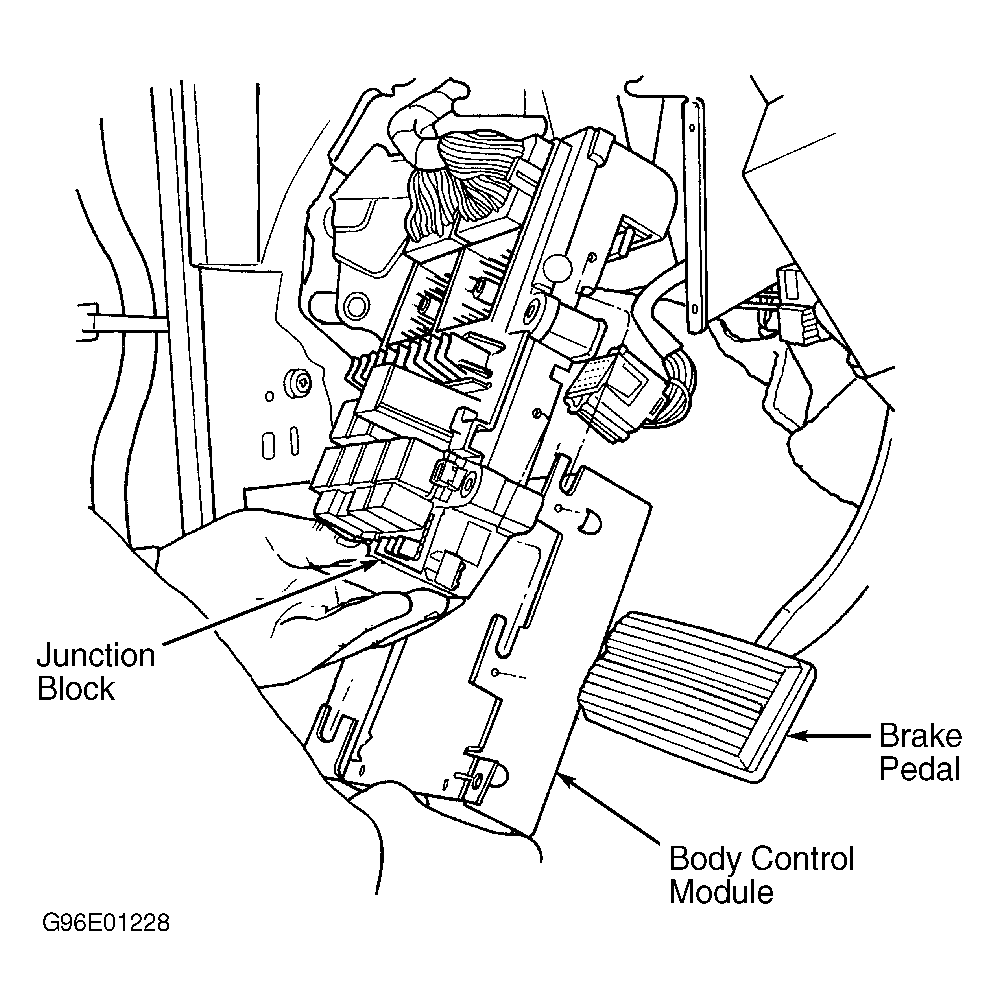

Fig 1: Locating Body Control Module
G96E01228Courtesy of CHRYSLER CORP.
