Emissions - PCV System Graphics Revisions

NUMBER: 26-10-99

GROUP: Miscellaneous

DATE: October, 1999

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
2000 Concorde, Intrepid, LHS, 300M Service Manual - Publication Number 81-270-0040

DESCRIPTION OF CHANGES

Revision to the PCV system graphics

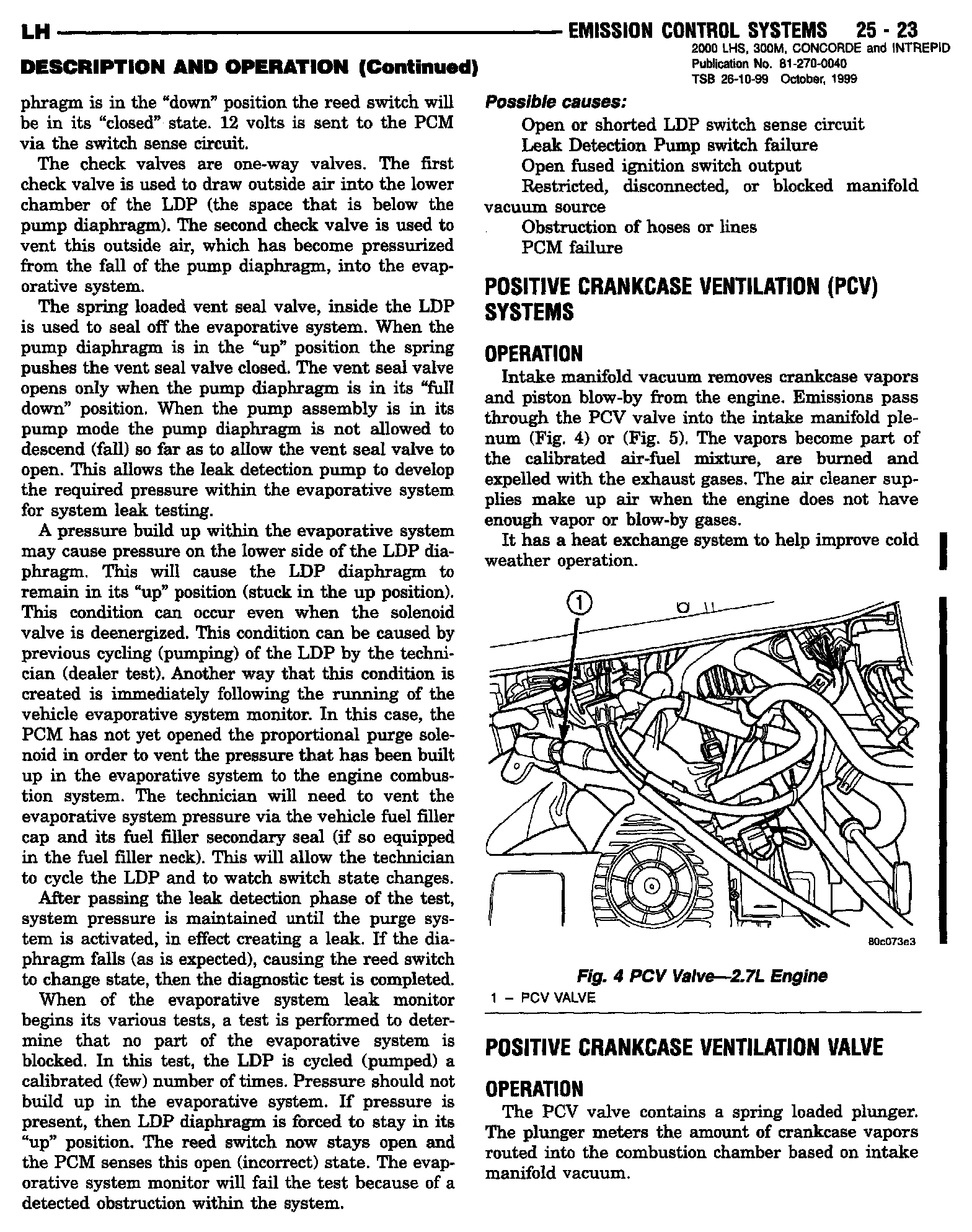

25-23

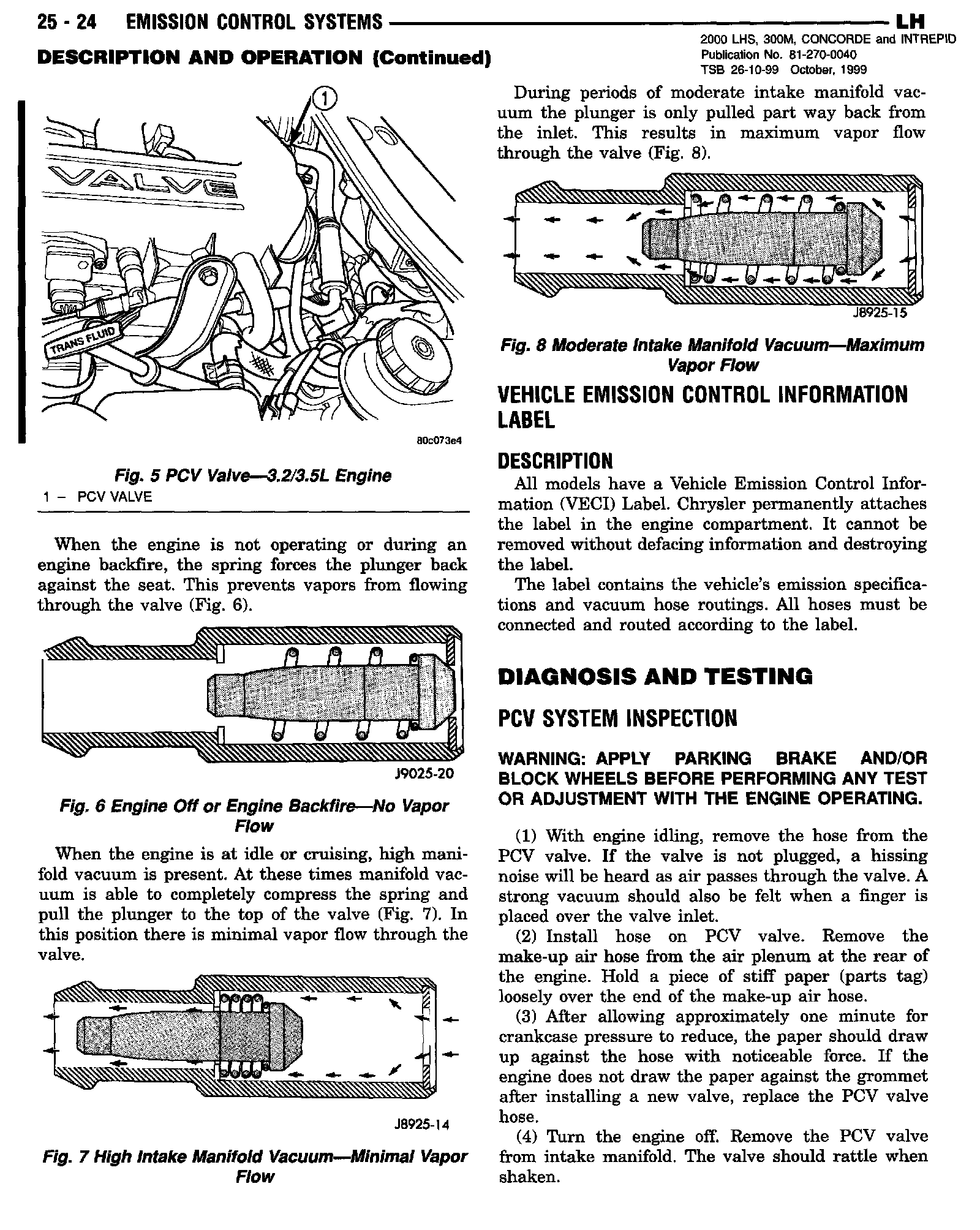

25-24
