Fuse/Relay Block

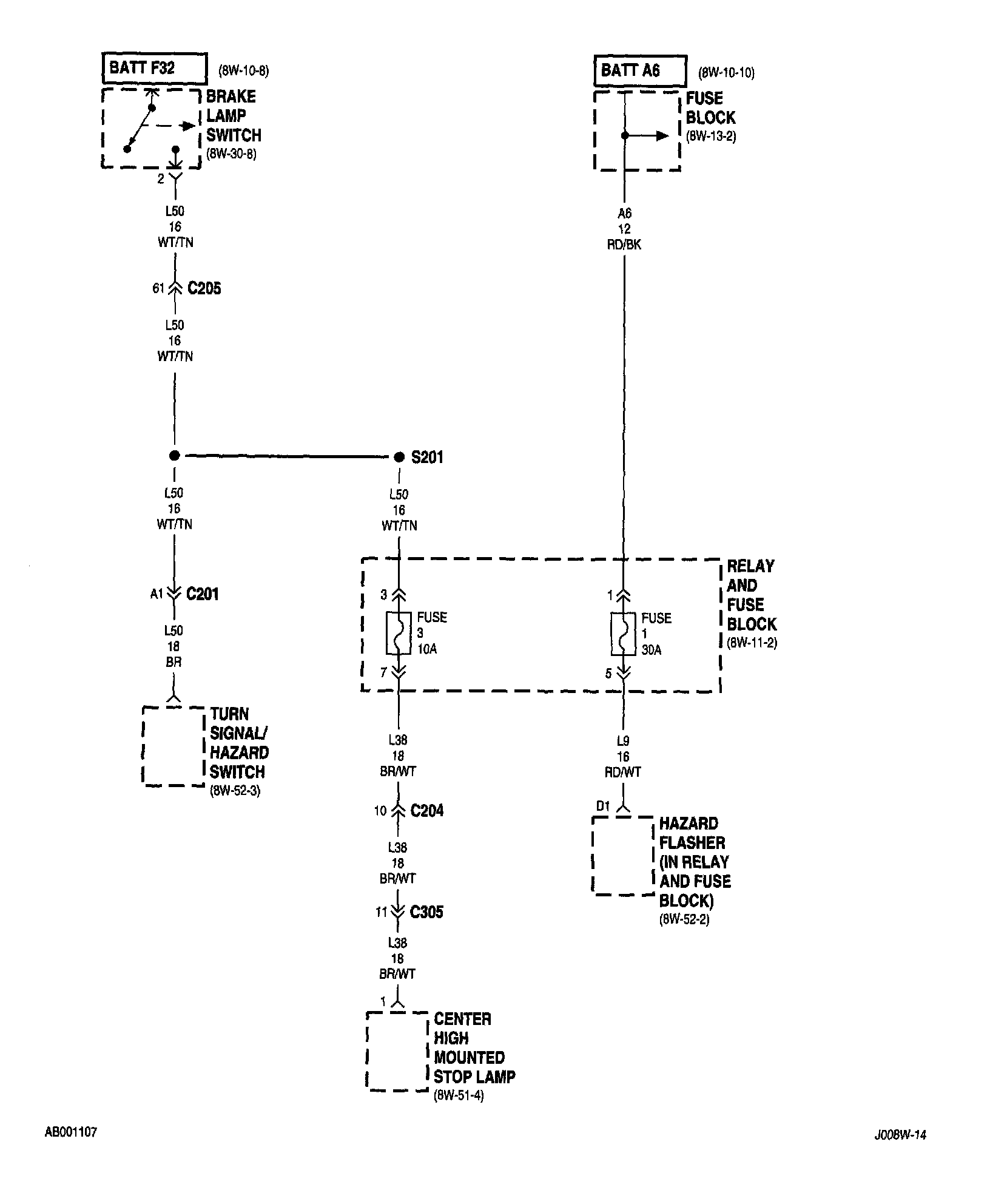

8w-11-4:

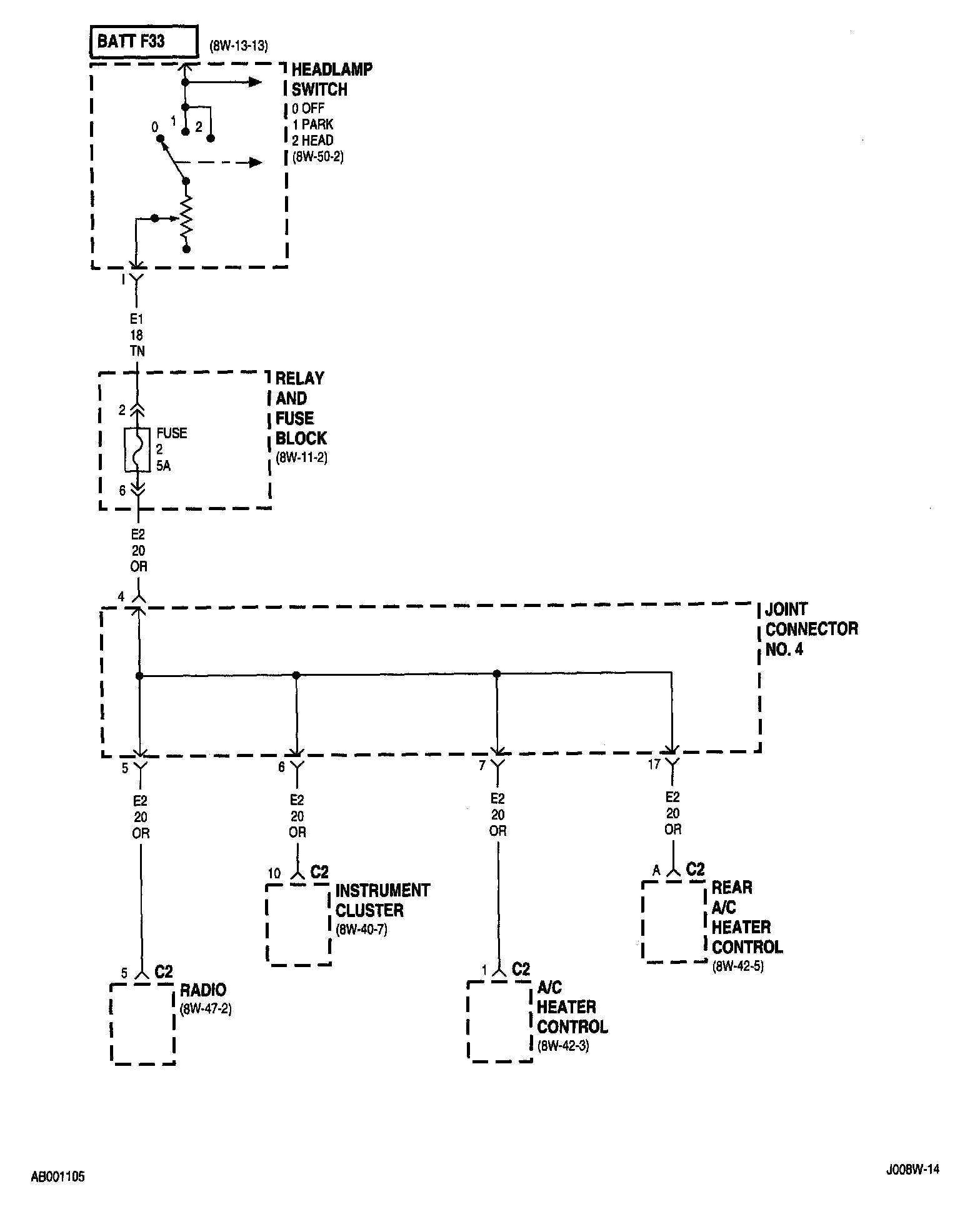

8w-11-5 (Highline):

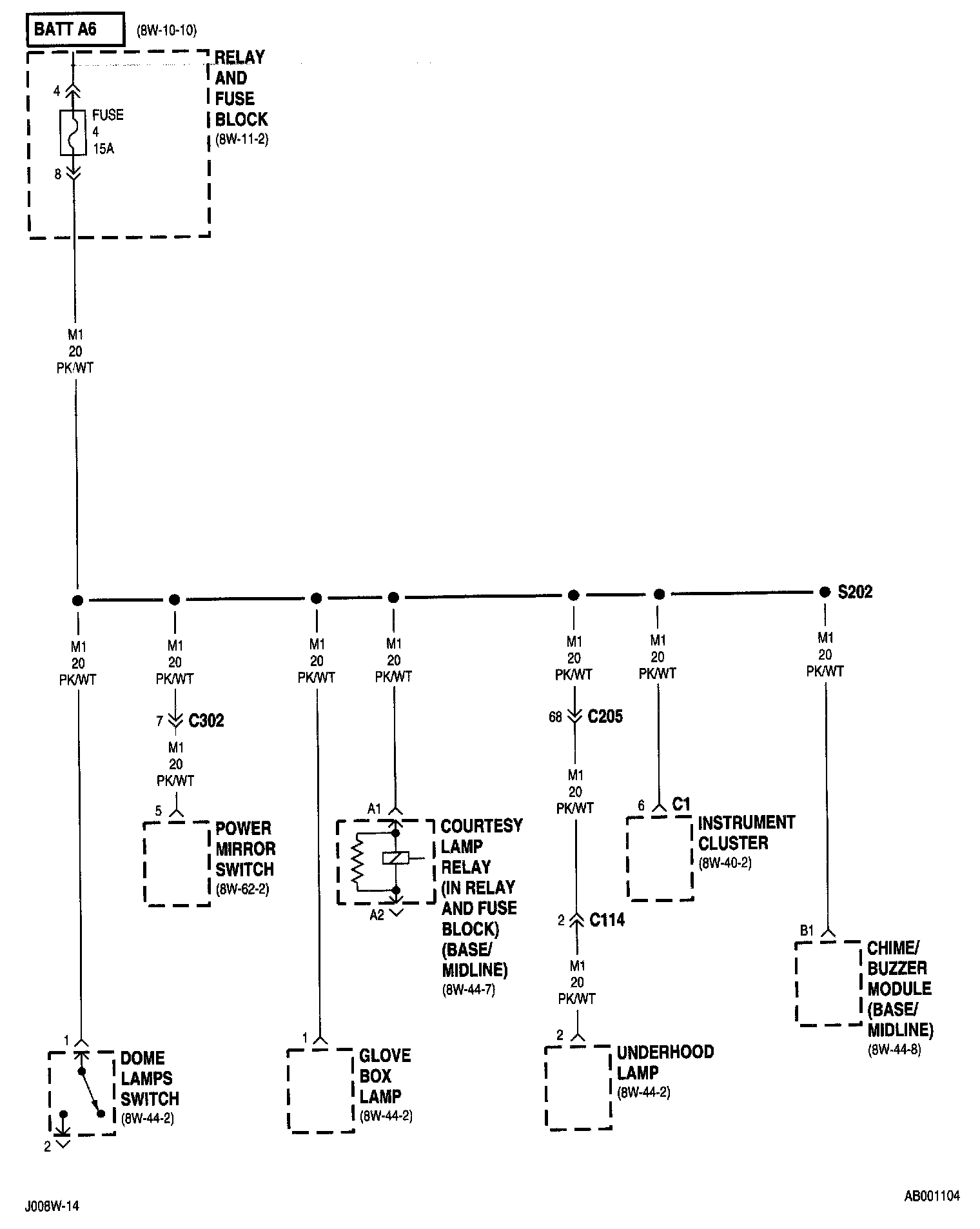

8w-11-6 (Base/Midline):

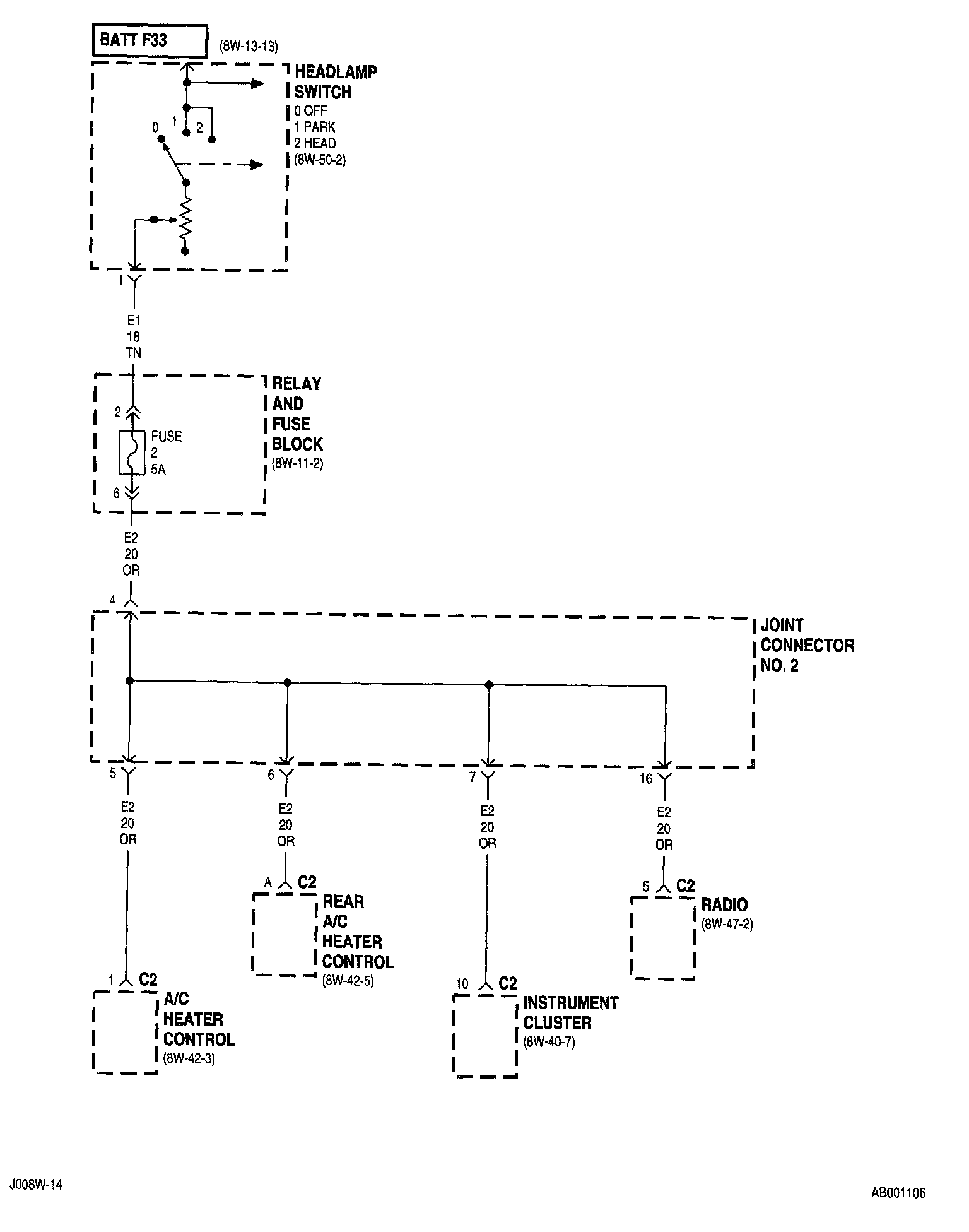

8w-11-7:






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
