Bus Failure Message - Short-To-5 Volts: Testing

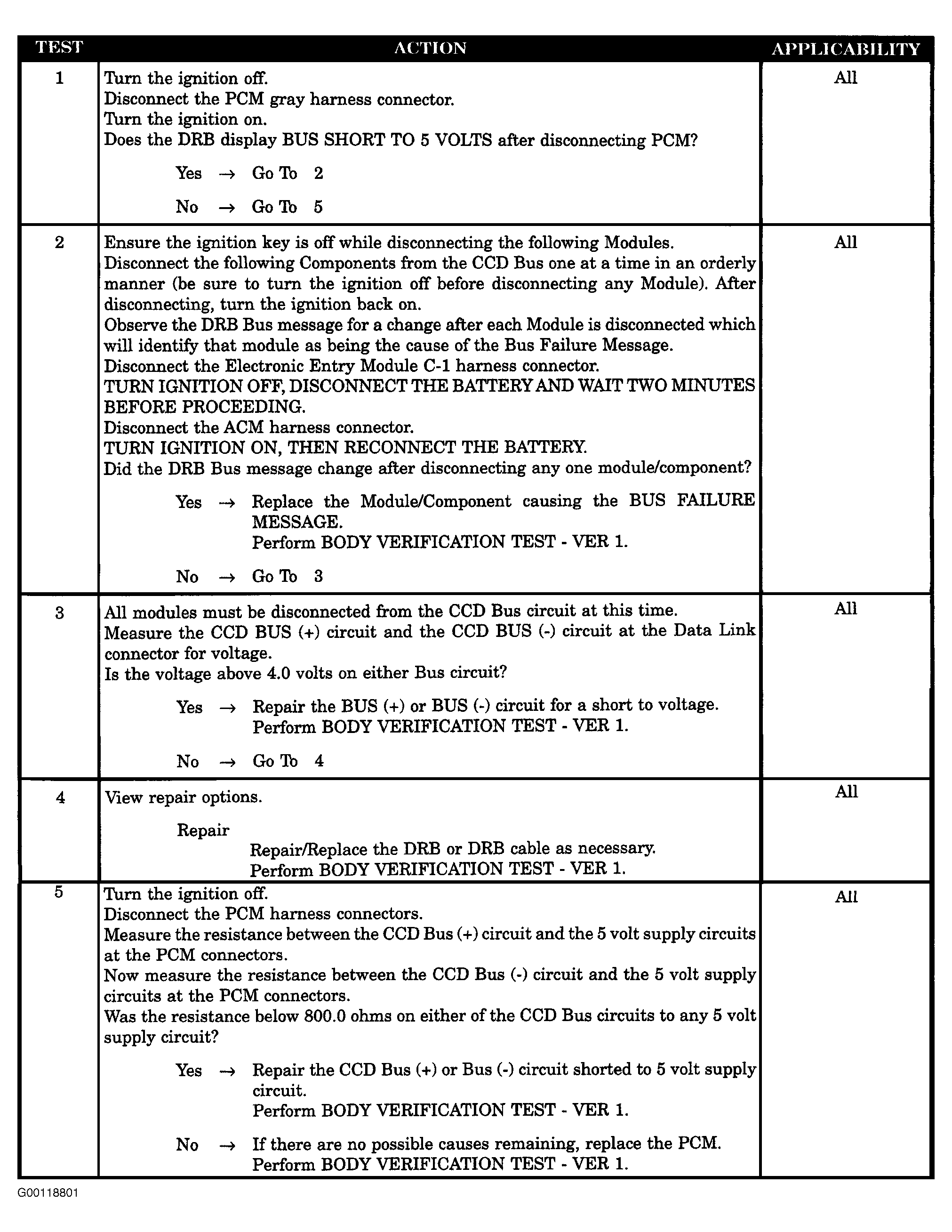

Fig 1: BUS Failure Message - Short-To-5 Volts Test
G00118801Courtesy of DAIMLERCHRYSLER CORP.
