DTC P1195-P1197: O2 Sensor Slow During Catalyst Monitor

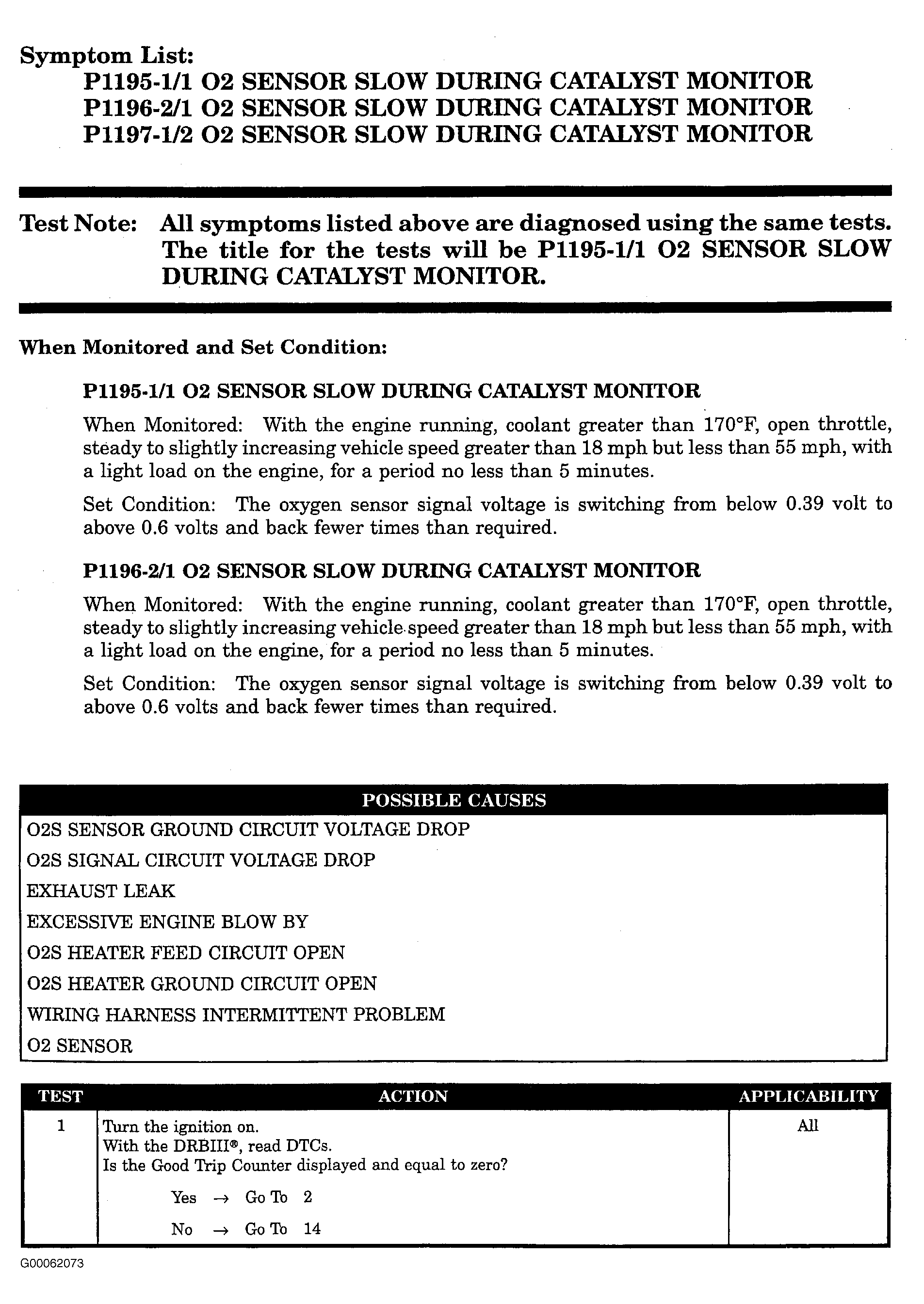

Fig 1: DTC P1195: O2 Sensor Slow During Catalyst Monitor (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

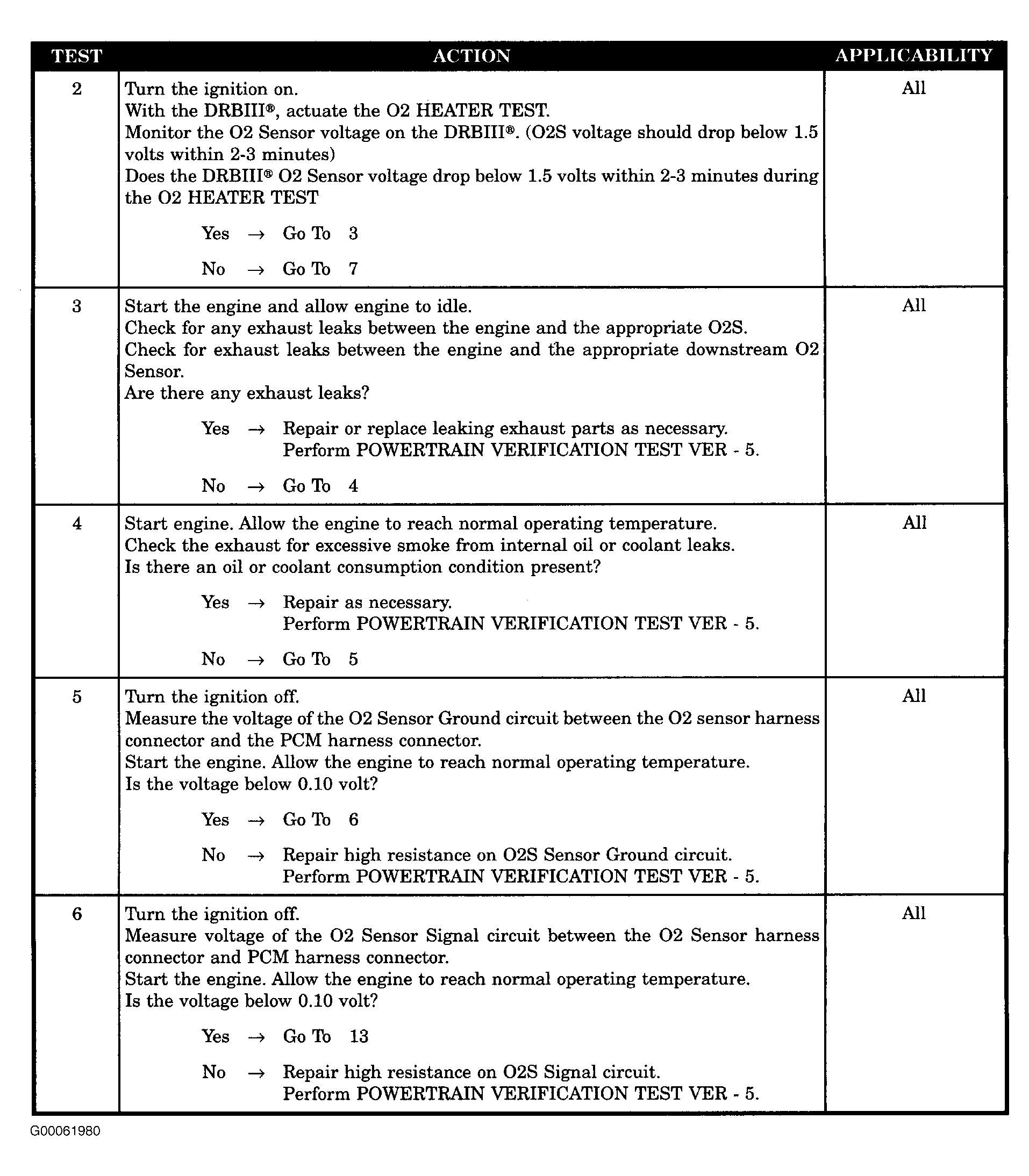

Fig 2: DTC P1195: O2 Sensor Slow During Catalyst Monitor (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

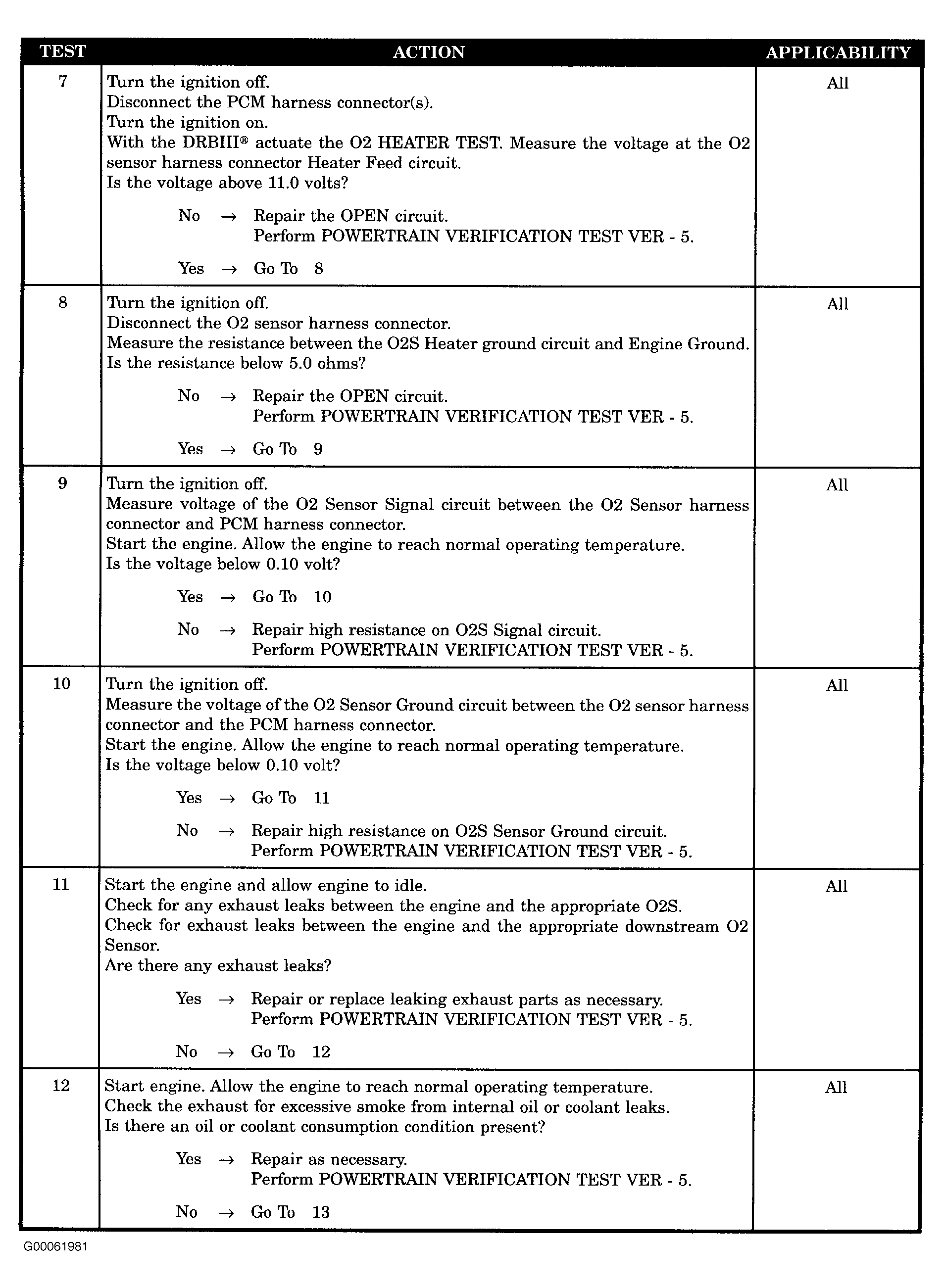

Fig 3: DTC P1195: O2 Sensor Slow During Catalyst Monitor (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

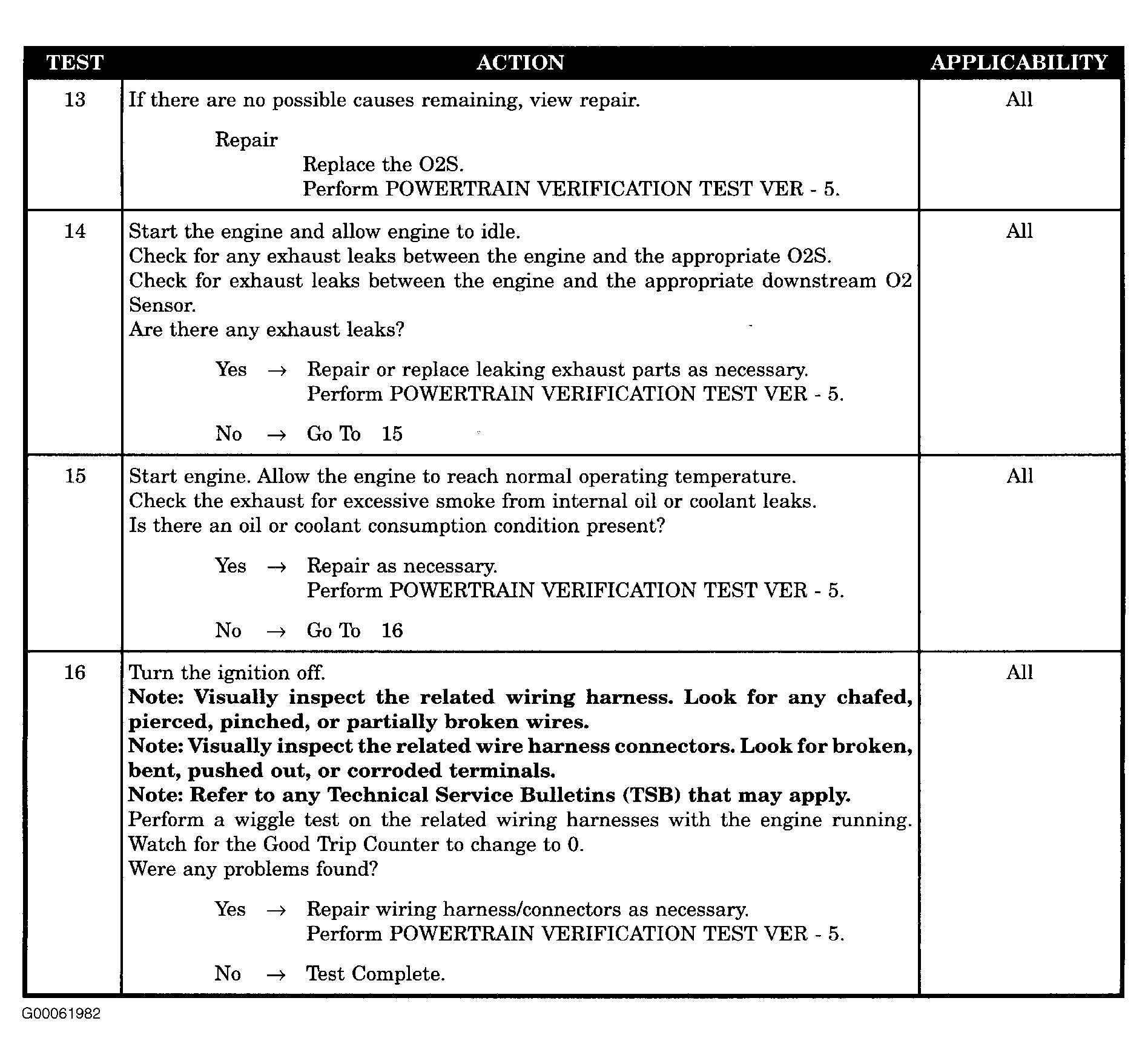

Fig 4: DTC P1195: O2 Sensor Slow During Catalyst Monitor (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
