Checking Map Sensor Operation With No DTC'S

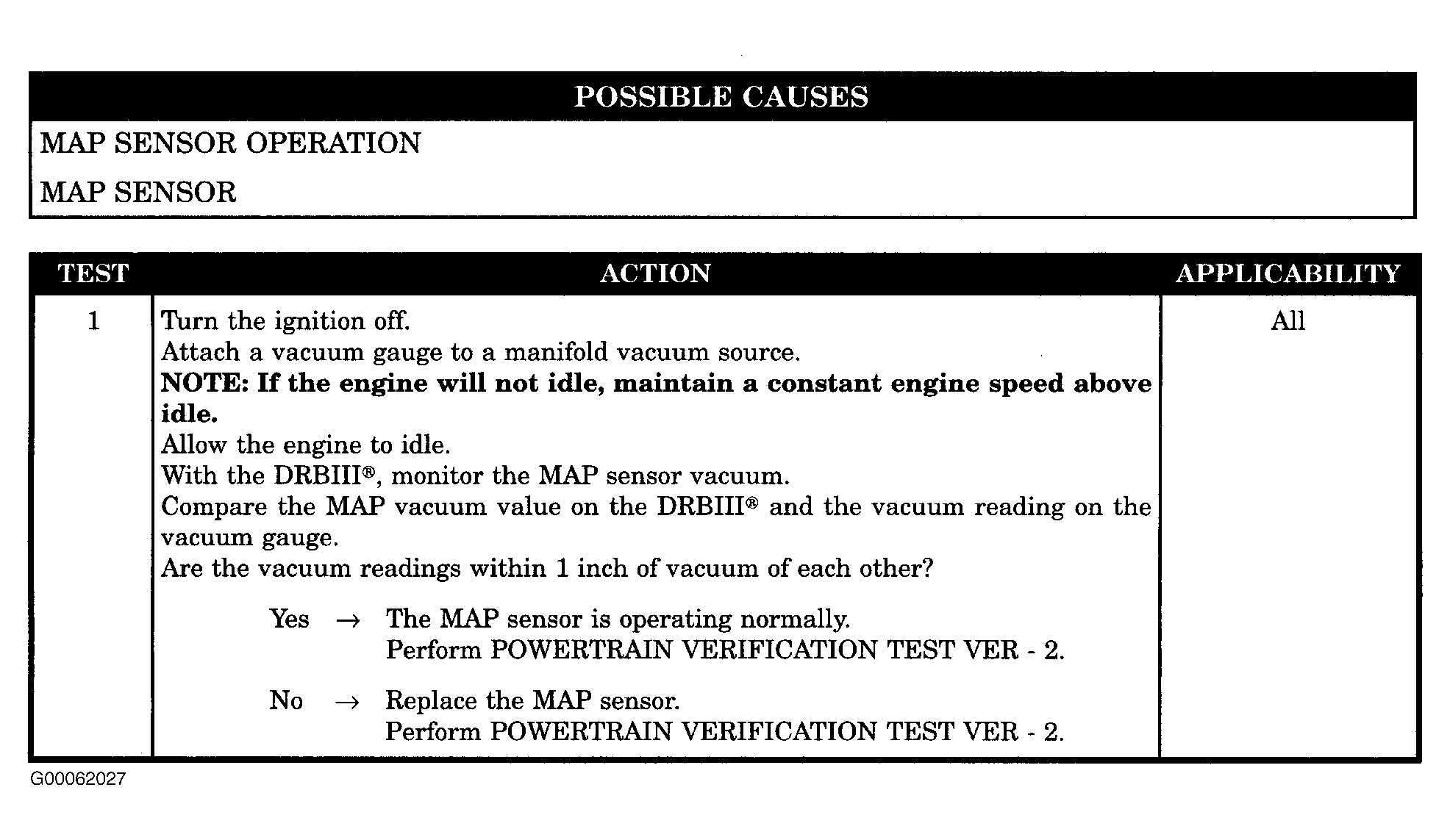

Fig 1: Checking MAP Sensor - No DTC's
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
