Checking Radiator Fan Operation With No DTC'S

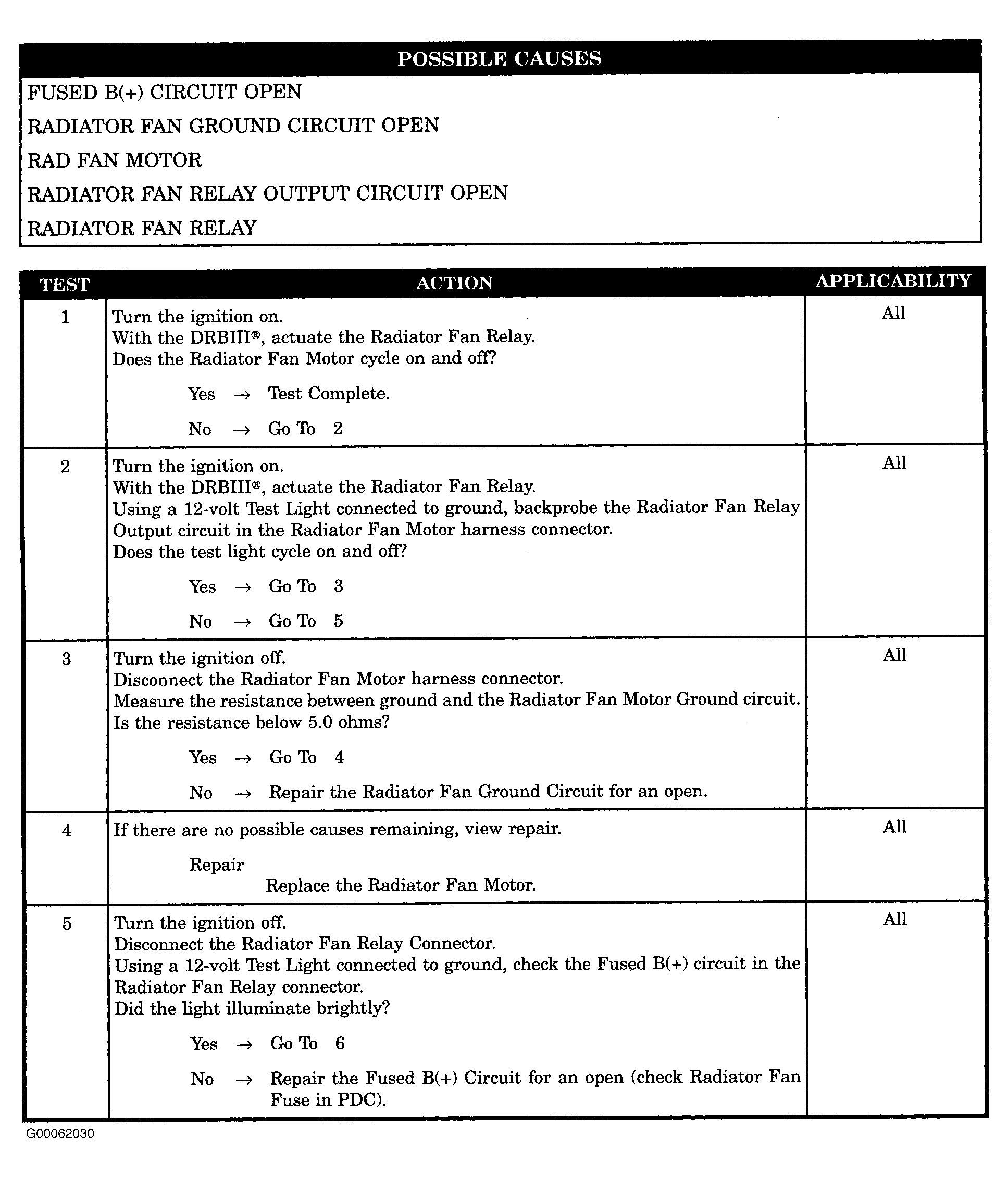

Fig 1: Checking Radiator Fan - No DTC's (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

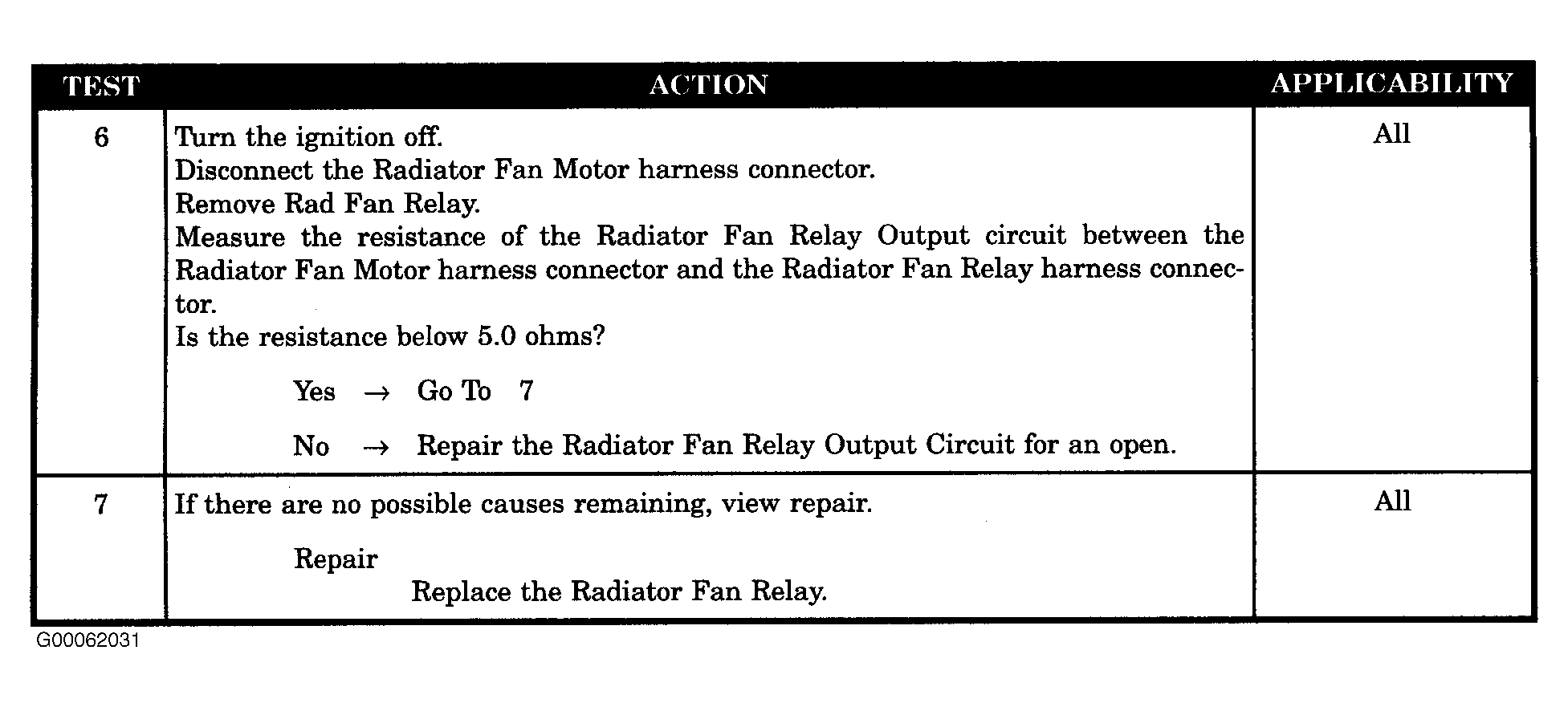

Fig 2: Checking Radiator Fan - No DTC's (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
