Engine Cranks Does Not Start

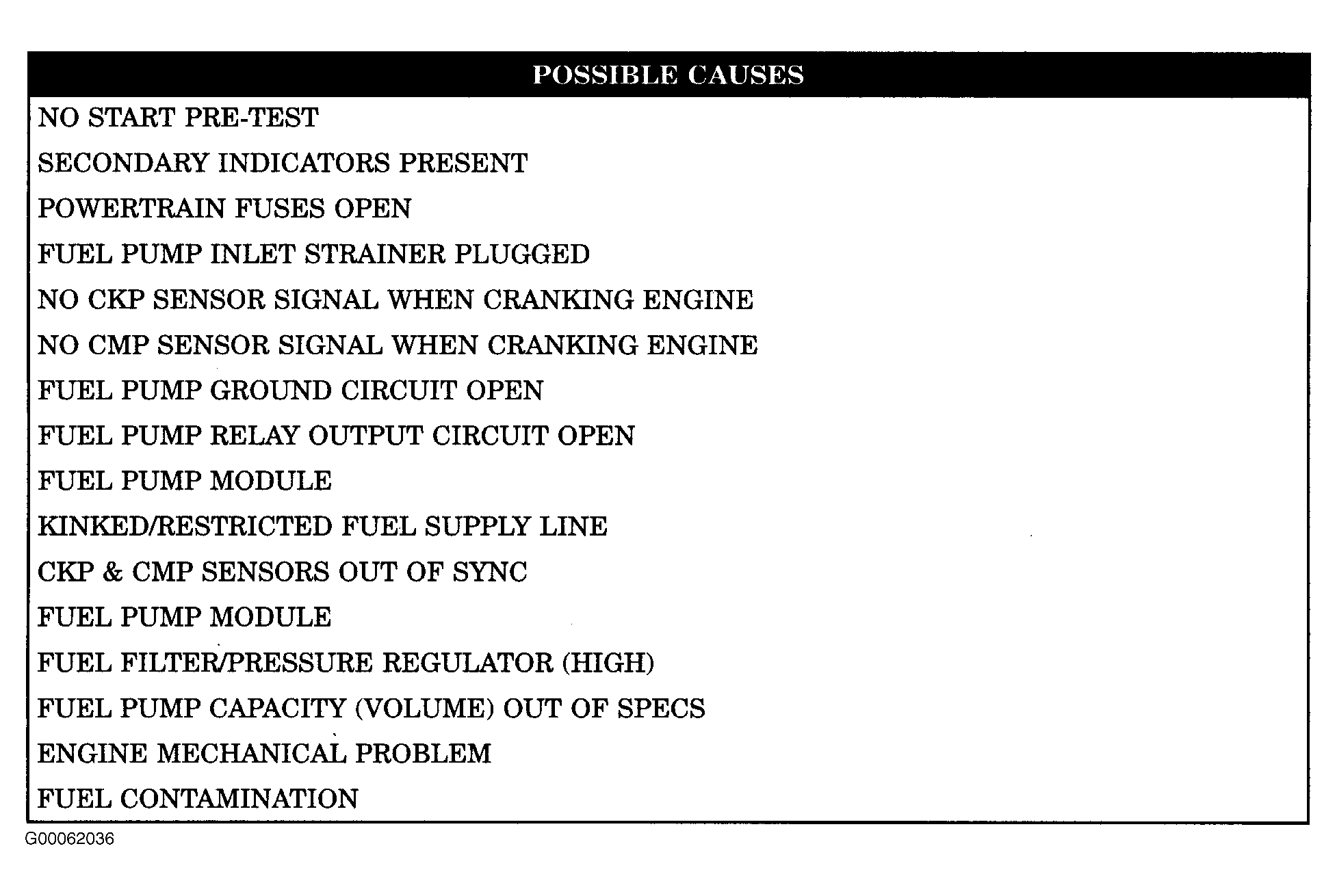

Fig 1: Engine Cranks Does Not Start (1 Of 5)

Courtesy of DAIMLERCHRYSLER CORPORATION

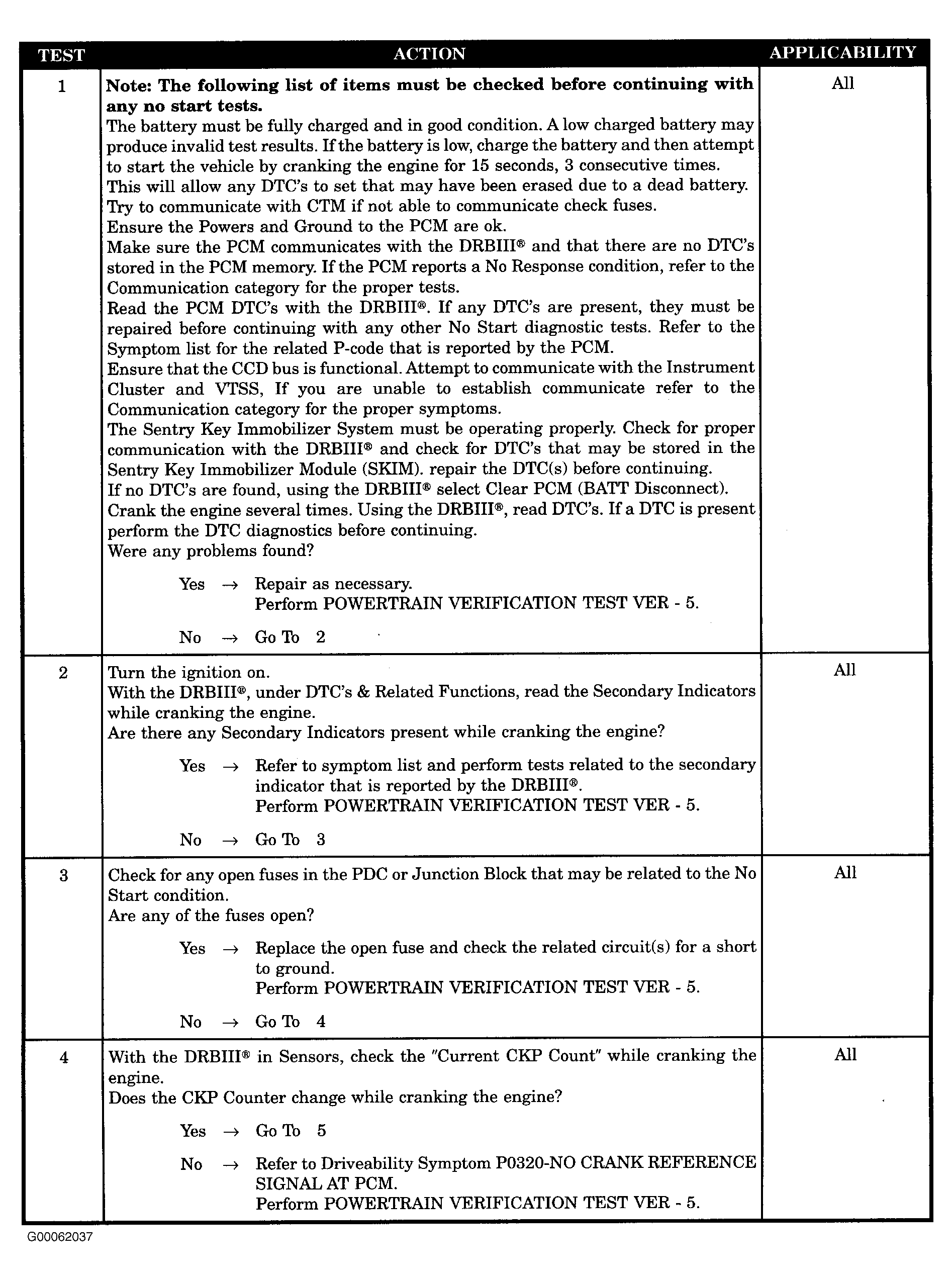

Fig 2: Engine Cranks Does Not Start (2 Of 5)

Courtesy of DAIMLERCHRYSLER CORPORATION

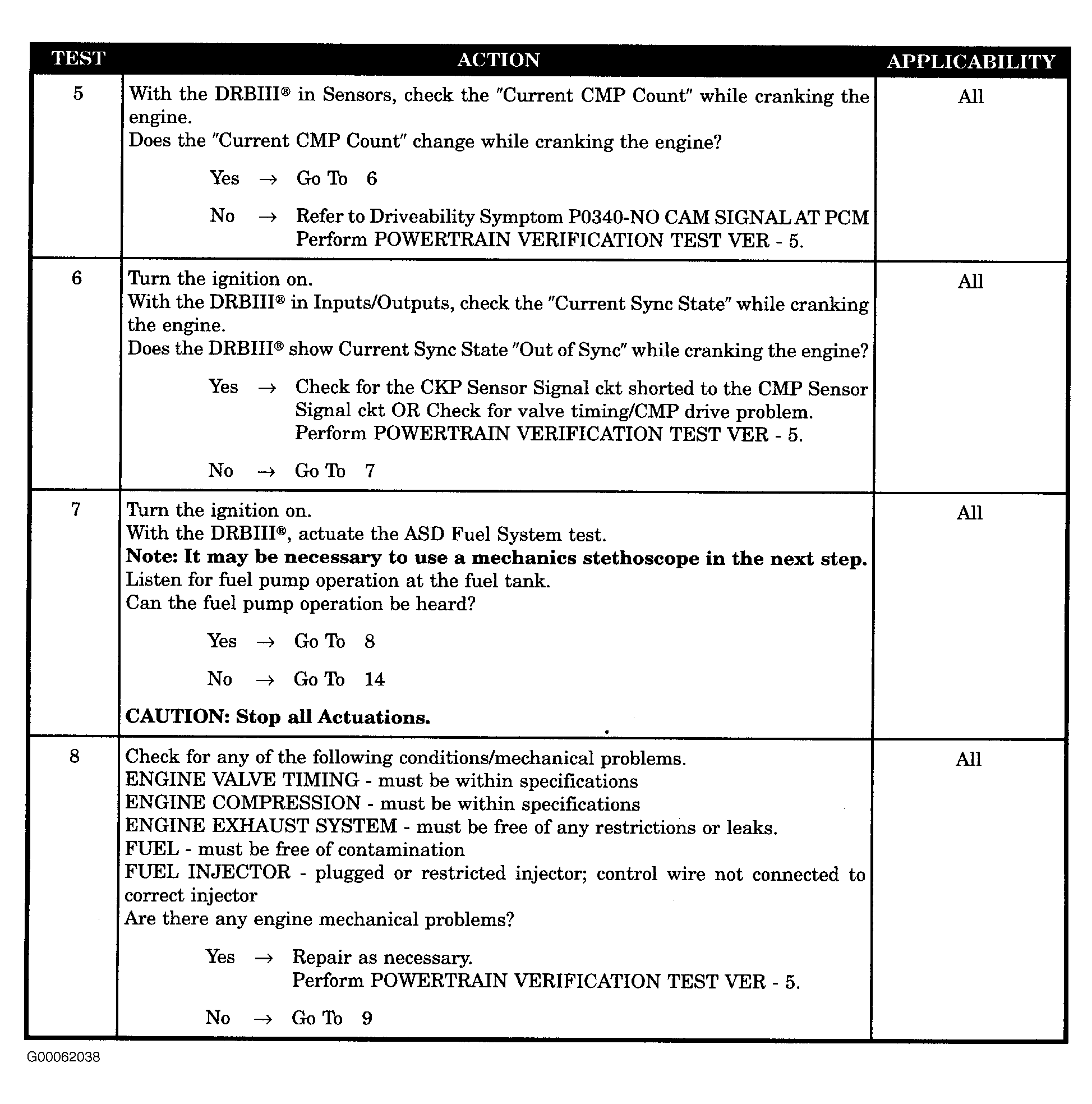

Fig 3: Engine Cranks Does Not Start (3 Of 5)

Courtesy of DAIMLERCHRYSLER CORPORATION

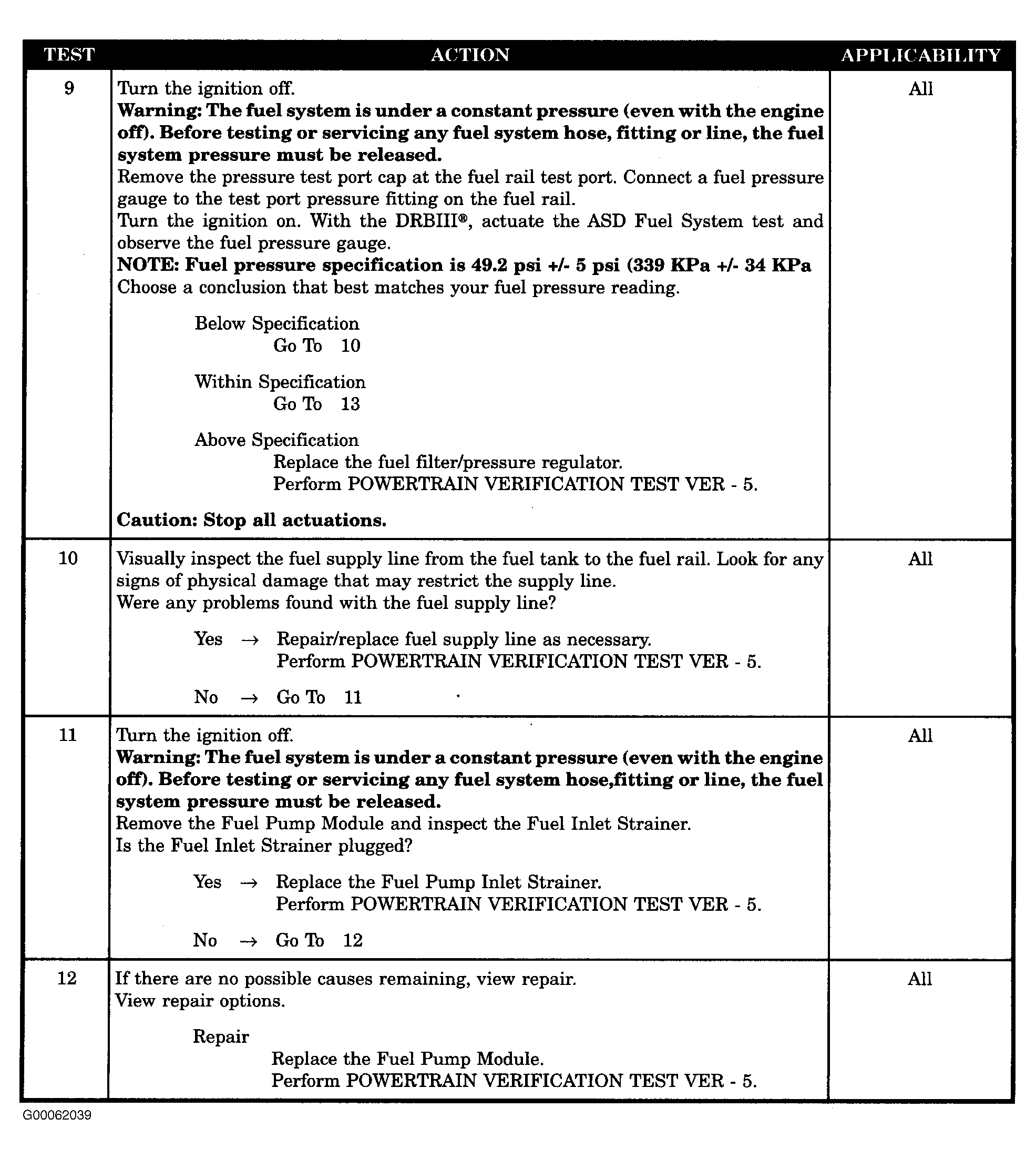

Fig 4: Engine Cranks Does Not Start (4 Of 5)

Courtesy of DAIMLERCHRYSLER CORPORATION

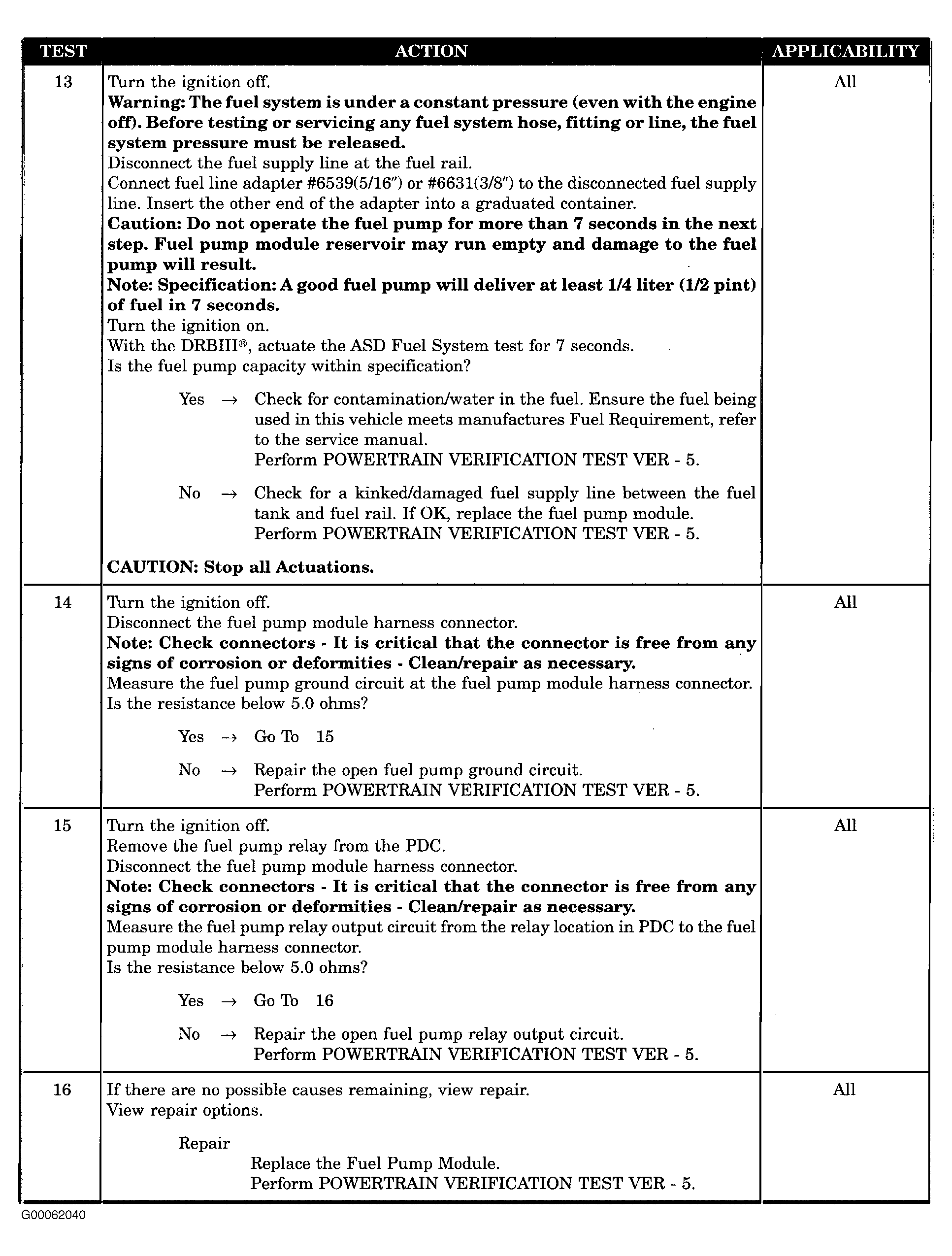

Fig 5: Engine Cranks Does Not Start (5 Of 5)

Courtesy of DAIMLERCHRYSLER CORPORATION
