No Crank Condition

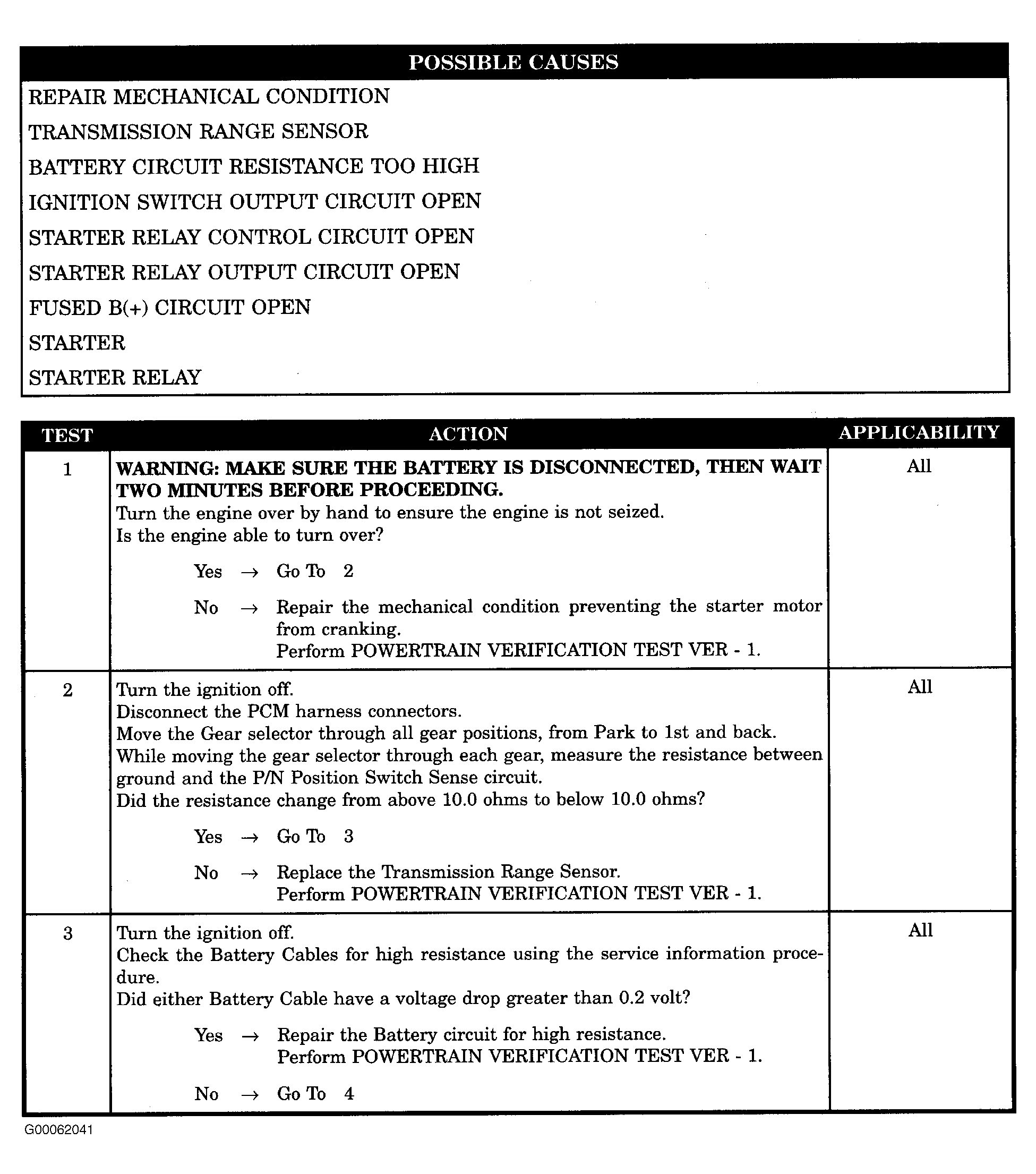

Fig 1: No Crank Condition (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

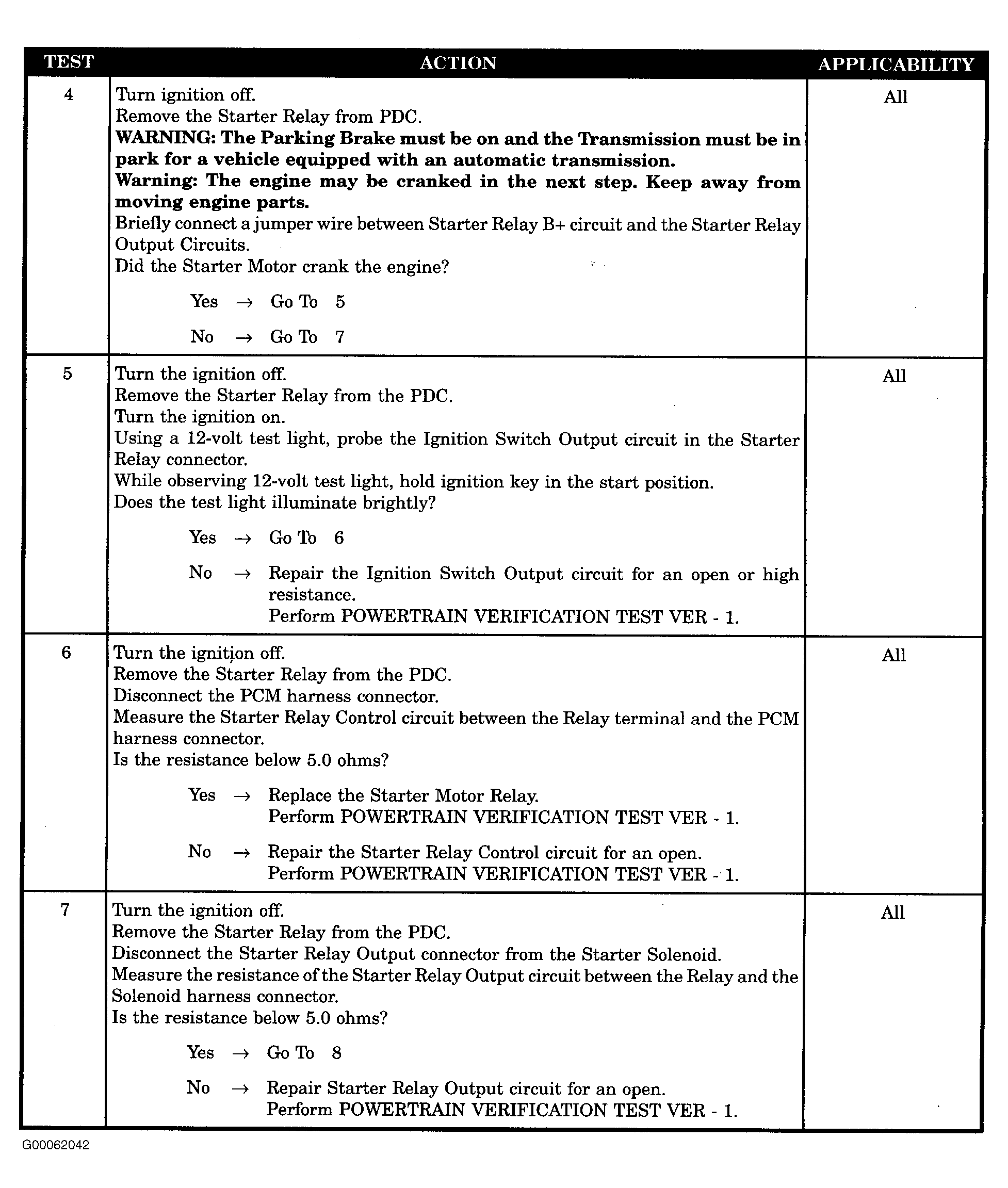

Fig 2: No Crank Condition (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

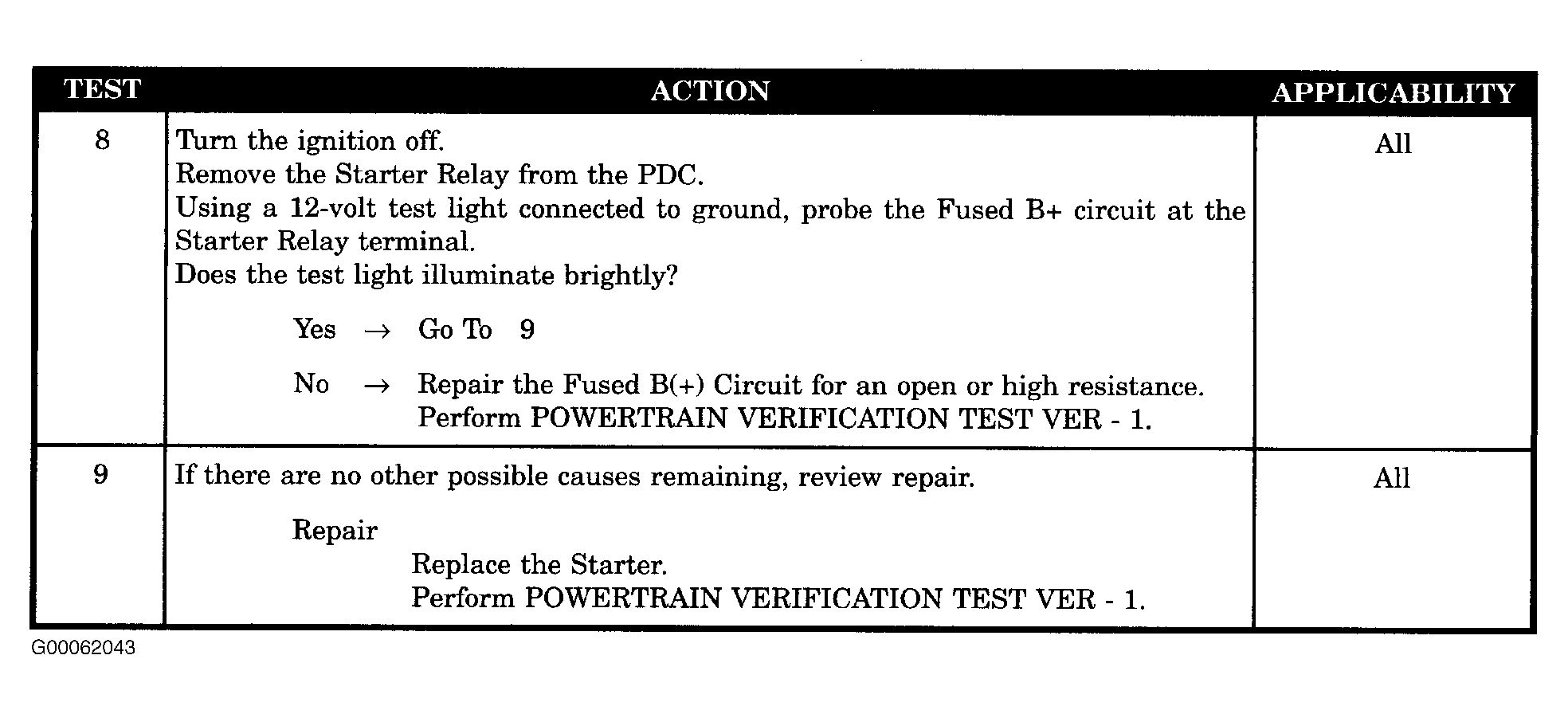

Fig 3: No Crank Condition (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
