Component Locations

NOTE: For location of components not listed in COMPONENT LOCATIONS table, see Fig 1 -Fig 20 .

COMPONENT LOCATIONS

Component	Location
A/C Pressure Sensor	In Fitting On Liquid Line, Between Condenser And High-Side Refrigerant Service Port
Ambient Temperature Sensor	Mounted To Bracket On Right Side Of Radiator Yoke, Behind Right Side Of Radiator Grille
Intake Air Temperature Sensor	In Intake Manifold Plenum, Near Left Side Of Throttle Body
Sentry Key Immobilizer Module	Under Steering Column Shrouds, SKIM Antenna Ring Surrounds Ignition Lock Cylinder Housing

Fig 1: Locating Battery Temp Sensor

G00088594

Courtesy of DAIMLERCHRYSLER CORP.

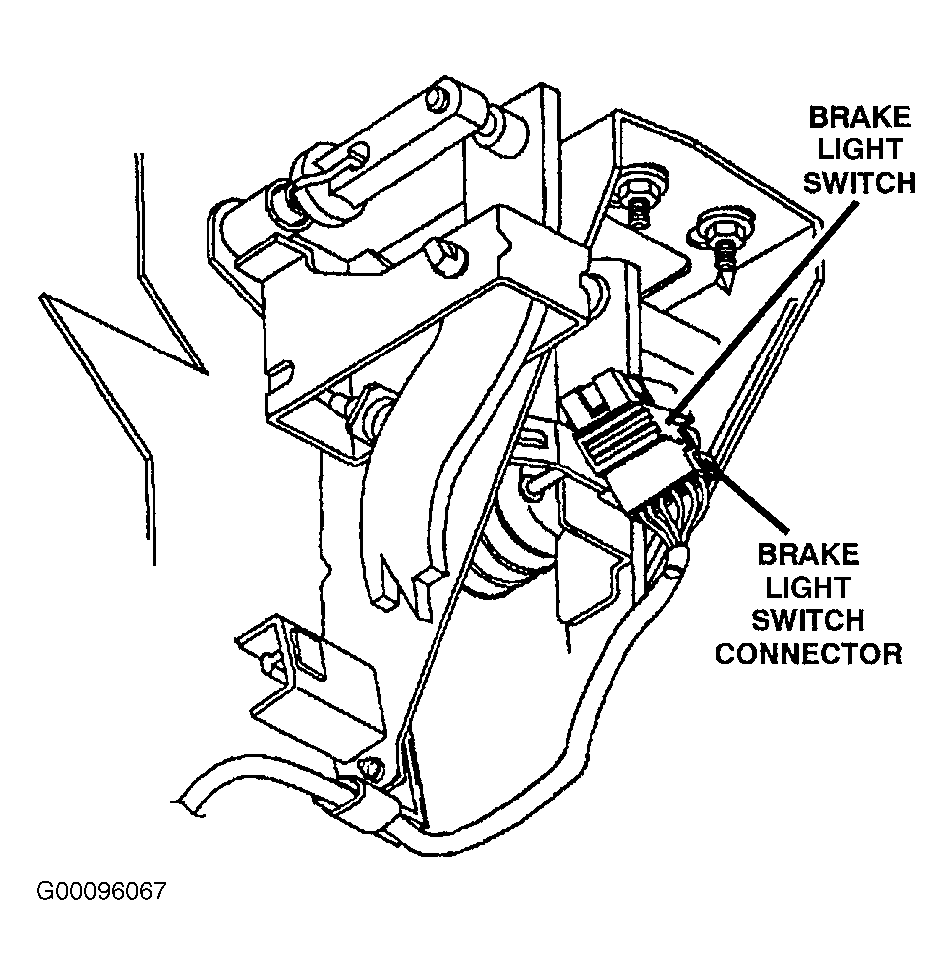

Fig 2: Locating Brakelight/Lamp Switch

G00096067

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Locating Camshaft Position Sensor

G00015603

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Locating Controller Anti-Lock Brake

G00015591

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Locating Crankshaft Position Sensor

G00015607

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 6: Locating Data Link Connector

G00015598

Courtesy of DAIMLERCHRYSLER CORPORATION

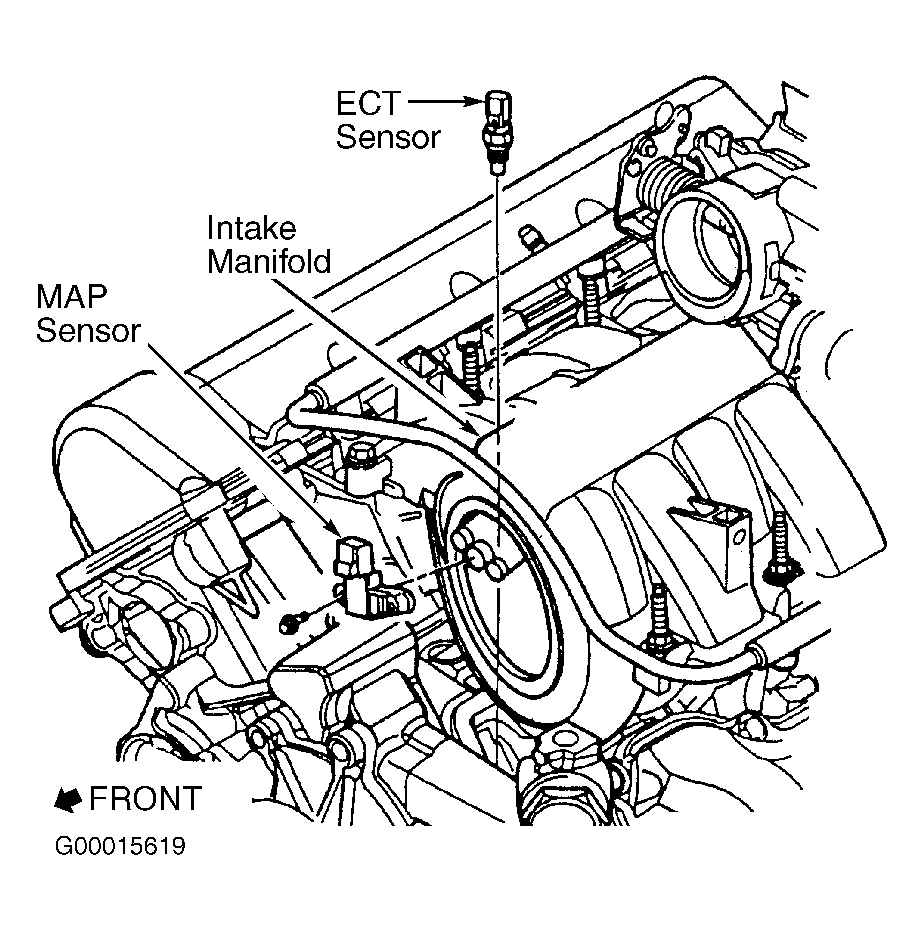

Fig 7: Locating ECT Sensor

G00015619

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 8: Locating EVAP Canister

G00088608

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Locating EVAP/Proportional Purge Solenoid

G00015599

Courtesy of DAIMLERCHRYSLER CORPORATION

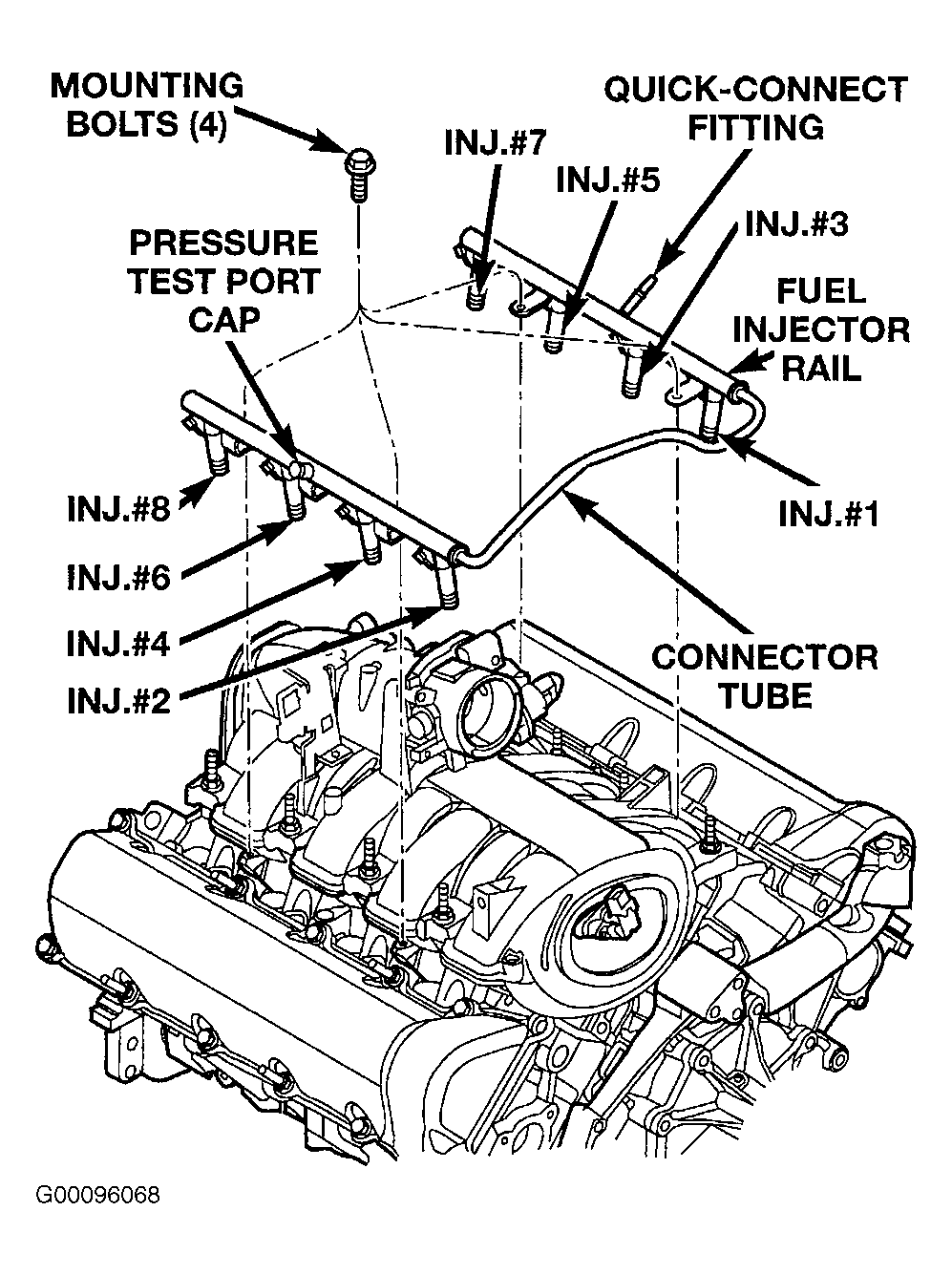

Fig 10: Locating Fuel Injectors

G00096068

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Locating Fuel Pump Module Components

G00088607

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Locating Fuel Tank Components

G00088606

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Locating NVLD Pump

G00096069

Courtesy of DAIMLERCHRYSLER CORP.

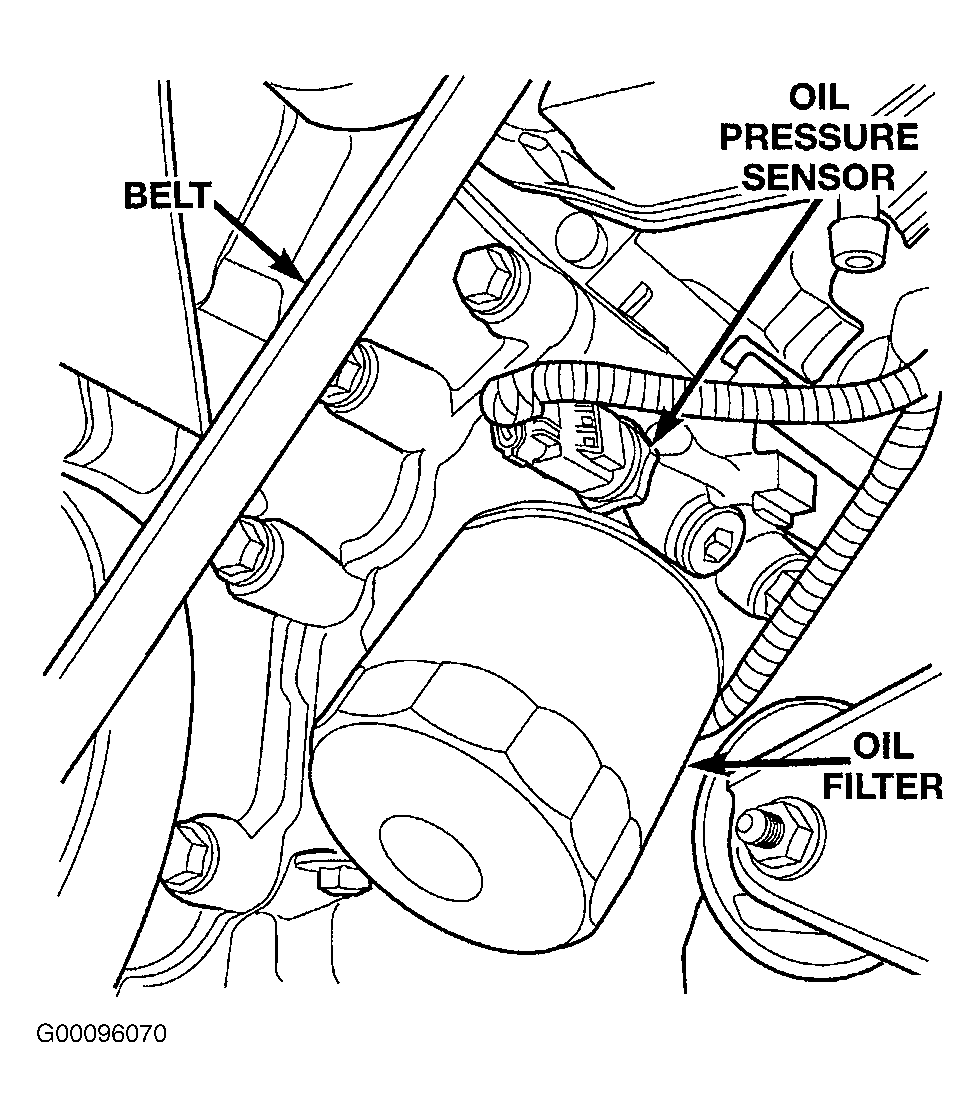

Fig 14: Locating Oil Pressure Sensor

G00096070

Courtesy of DAIMLERCHRYSLER CORP.

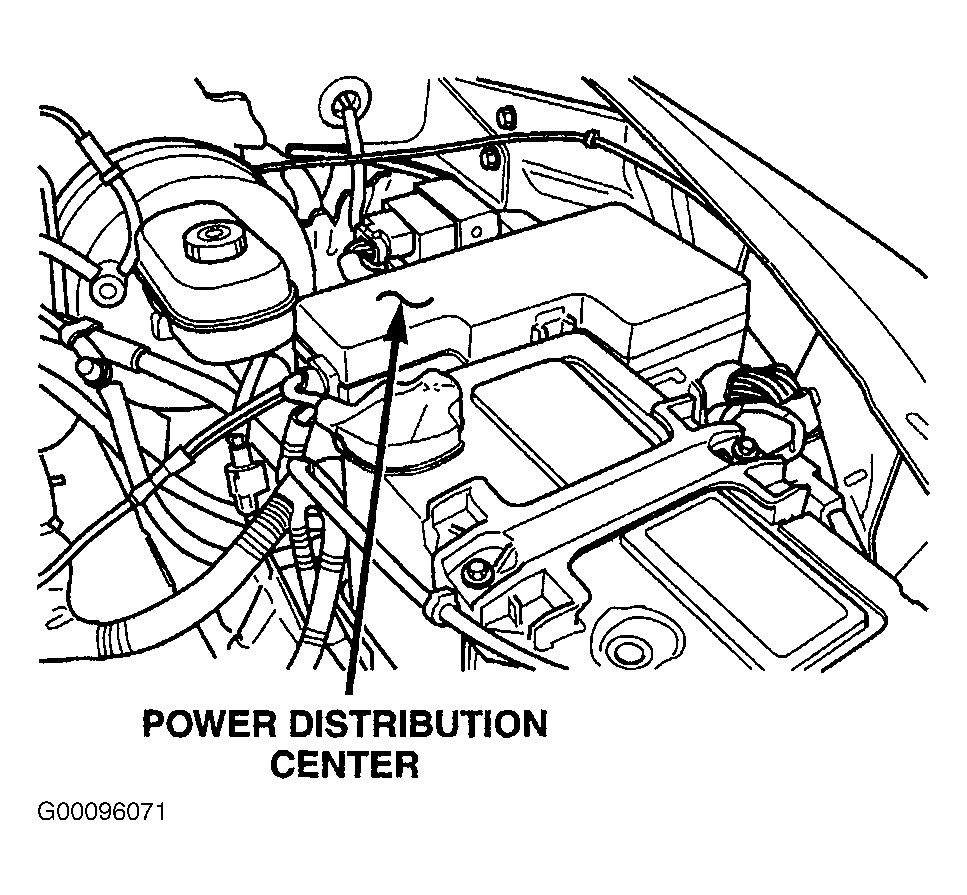

Fig 15: Locating Power Distribution Center

G00096071

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Locating Power Steering Pressure Switch

G00023112

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 17: Locating Powertrain Control Module

G00096073

Courtesy of DAIMLERCHRYSLER CORP.

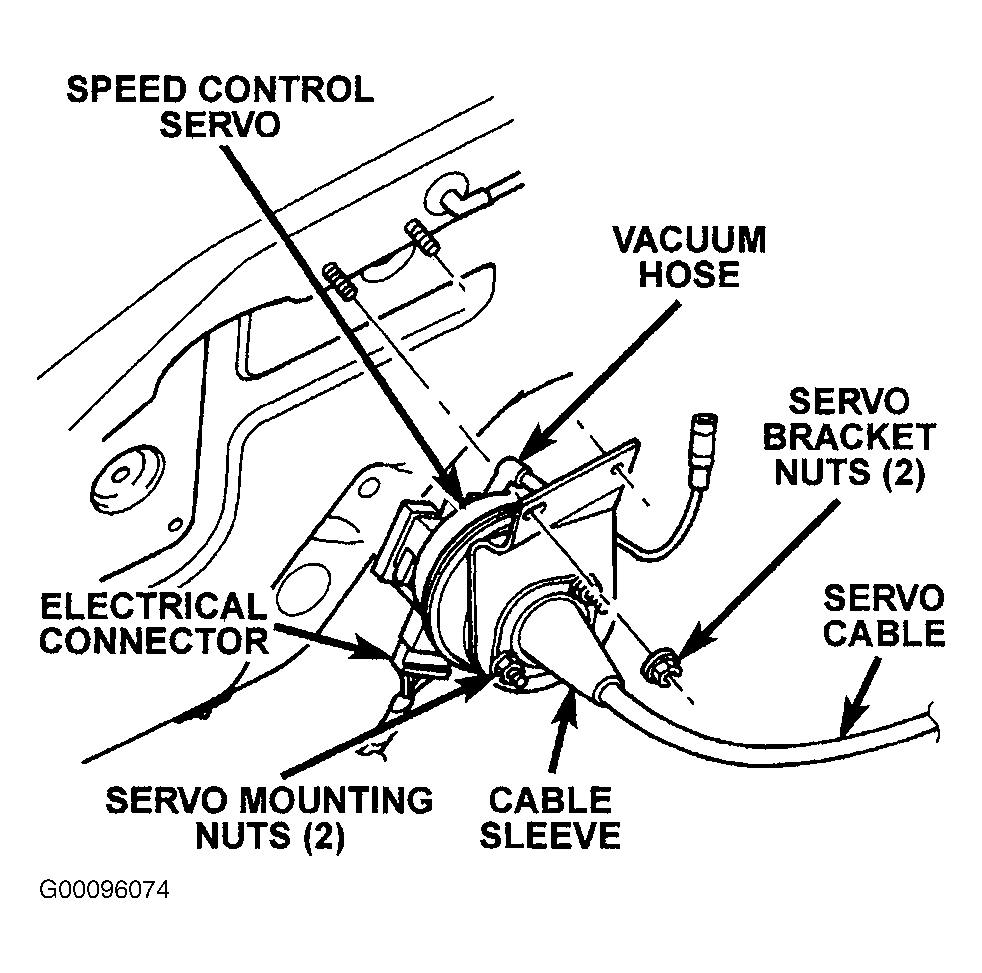

Fig 18: Locating Speed Control Servo

G00096074

Courtesy of DAIMLERCHRYSLER CORP.

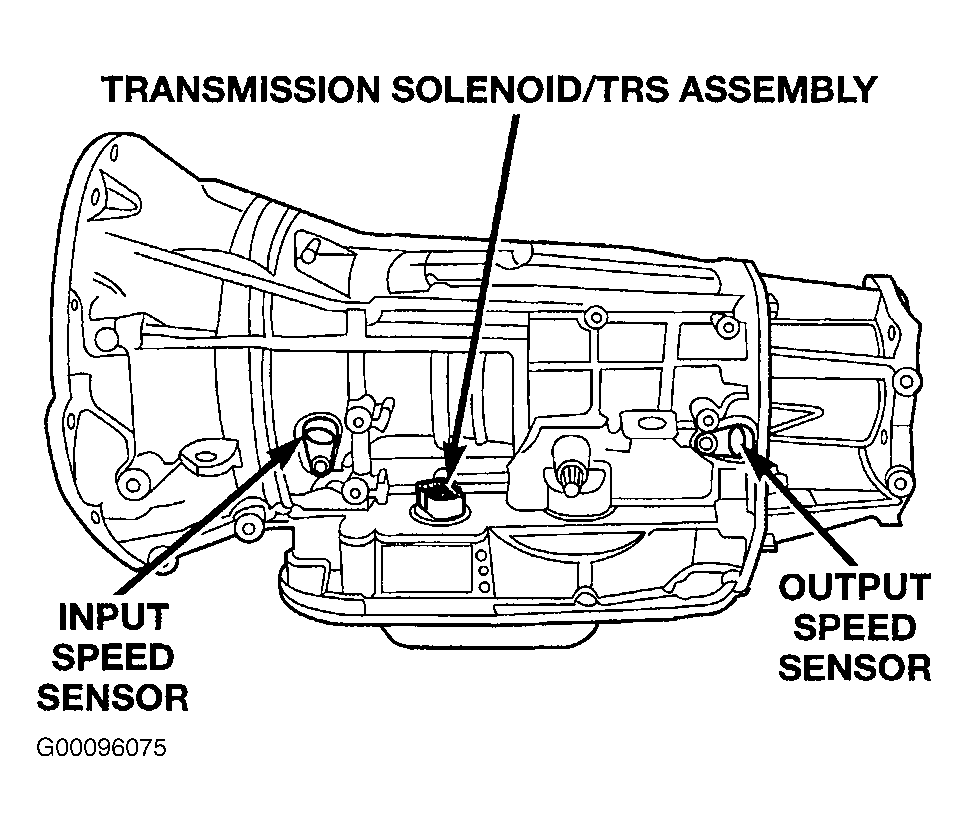

Fig 19: Locating Transmission Range Sensor/Solenoid

G00096075

Courtesy of DAIMLERCHRYSLER CORP.

Fig 20: Locating 1/1 & 2/1 (Upstream), & 1/2 & 2/2 (Downstream) Oxygen Sensors

G00088605

Courtesy of DAIMLERCHRYSLER CORP.
