Connector Identification

NOTE: For component locations, see COMPONENT LOCATIONS .

Fig 1: Identifying A/C Compressor Clutch Harness Connector Terminals

G00096076

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying A/C Pressure Sensor Harness Connector Terminals

G00096077

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Ambient Temperature Sensor Harness Connector Terminals

G00096079

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Battery Temperature Sensor Harness Connector Terminals

G00096078

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Identifying Brakelight/Lamp Harness Connector Terminals

G00096080

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Identifying Camshaft Position Sensor Harness Connector Terminals

G00096081

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Identifying Capacitor Harness Connector Terminals

G00096082

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Identifying Clockspring Harness Connector C1 Terminals

G00096083

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Identifying Clockspring Harness Connector C3 Terminals

G00096084

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Identifying Coil On Plug No. 1 Harness Connector Terminals

G00096085

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Identifying Coil On Plug No. 2 Harness Connector Terminals

G00096086

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Identifying Coil On Plug No. 3 Harness Connector Terminals

G00096087

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Identifying Coil On Plug No. 4 Harness Connector Terminals

G00096088

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Identifying Coil On Plug No. 5 Harness Connector Terminals

G00096089

Courtesy of DAIMLERCHRYSLER CORP.

Fig 15: Identifying Coil On Plug No. 6 Harness Connector Terminals

G00096090

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Identifying Coil On Plug No. 7 Harness Connector Terminals

G00096091

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Identifying Coil On Plug No. 8 Harness Connector Terminals

G00096092

Courtesy of DAIMLERCHRYSLER CORP.

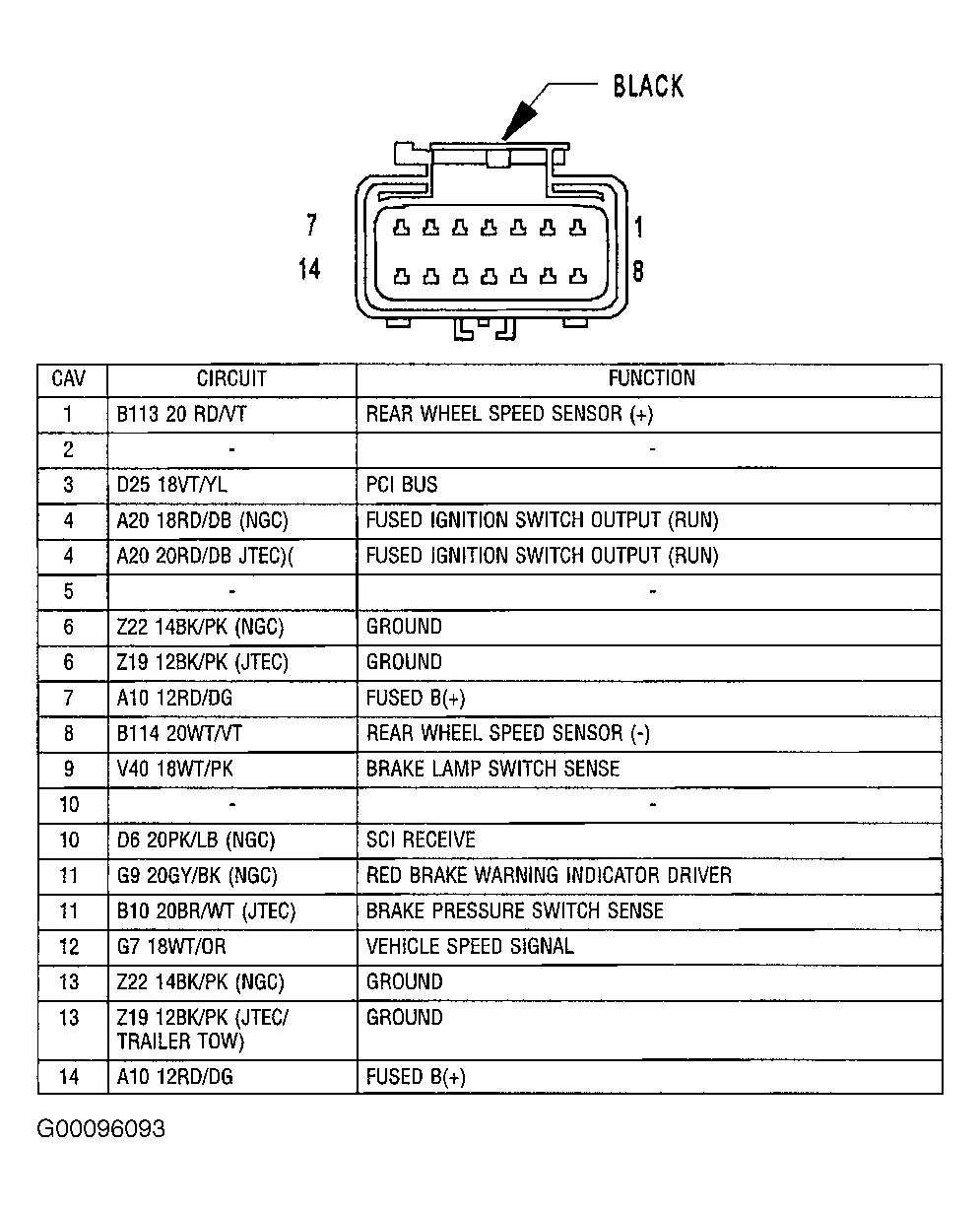

Fig 18: Identifying Controller Anti-Lock Brake Harness Connector C1 Terminals

G00096093

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Identifying Controller Anti-Lock Brake Harness Connector C2 Terminals

G00096094

Courtesy of DAIMLERCHRYSLER CORP.

Fig 20: Identifying Crankshaft Position Sensor Harness Connector Terminals

G00096095

Courtesy of DAIMLERCHRYSLER CORP.

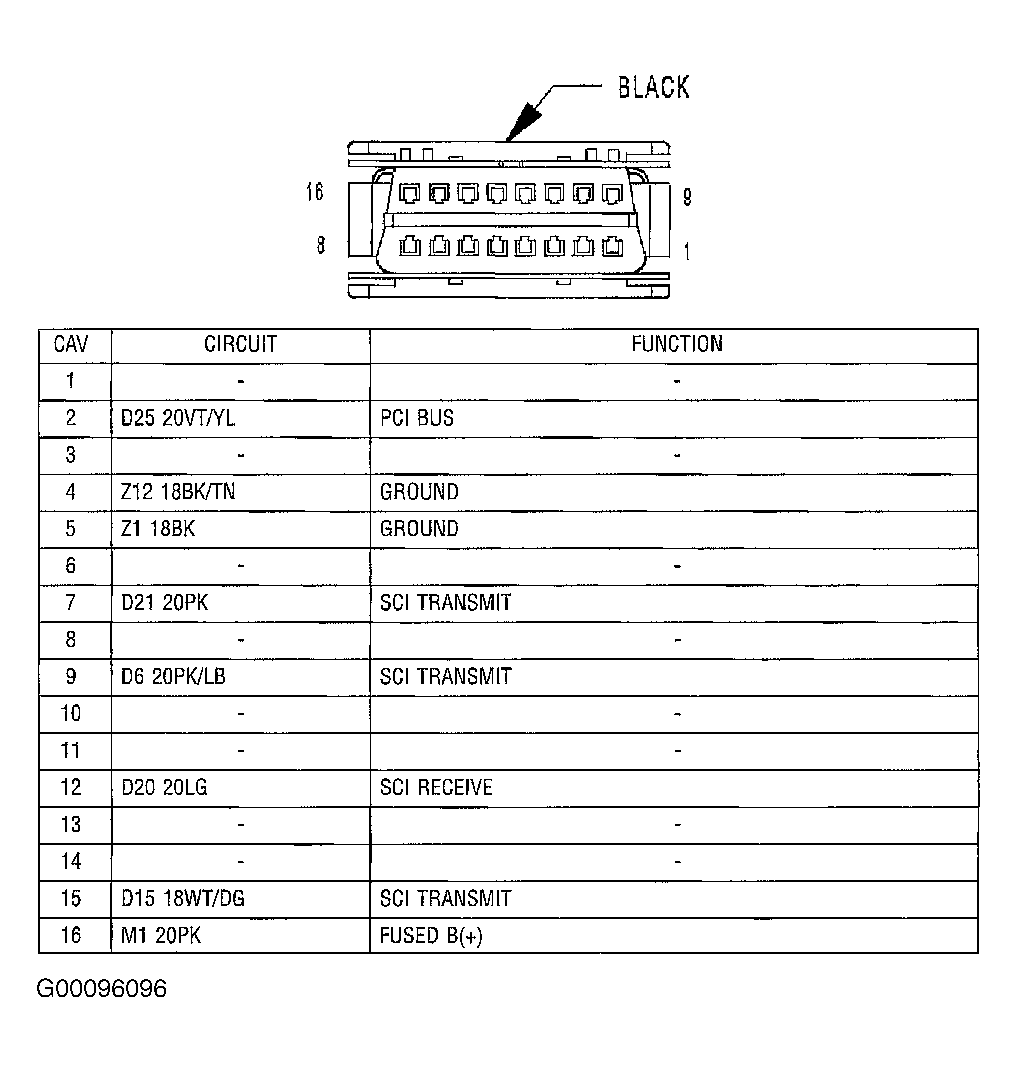

Fig 21: Identifying Data Link Connector Terminals

G00096096

Courtesy of DAIMLERCHRYSLER CORP.

Fig 22: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals

G00096097

Courtesy of DAIMLERCHRYSLER CORP.

Fig 23: Identifying Engine Oil Pressure Sensor Harness Connector Terminals

G00096098

Courtesy of DAIMLERCHRYSLER CORP.

Fig 24: Identifying Fuel Injector No. 1 Harness Connector Terminals

G00096099

Courtesy of DAIMLERCHRYSLER CORP.

Fig 25: Identifying Fuel Injector No. 2 Harness Connector Terminals

G00096100

Courtesy of DAIMLERCHRYSLER CORP.

Fig 26: Identifying Fuel Injector No. 3 Harness Connector Terminals

G00096101

Courtesy of DAIMLERCHRYSLER CORP.

Fig 27: Identifying Fuel Injector No. 4 Harness Connector Terminals

G00096102

Courtesy of DAIMLERCHRYSLER CORP.

Fig 28: Identifying Fuel Injector No. 5 Harness Connector Terminals

G00096103

Courtesy of DAIMLERCHRYSLER CORP.

Fig 29: Identifying Fuel Injector No. 6 Harness Connector Terminals

G00096104

Courtesy of DAIMLERCHRYSLER CORP.

Fig 30: Identifying Fuel Injector No. 7 Harness Connector Terminals

G00096105

Courtesy of DAIMLERCHRYSLER CORP.

Fig 31: Identifying Fuel Injector No. 8 Harness Connector Terminals

G00096106

Courtesy of DAIMLERCHRYSLER CORP.

Fig 32: Identifying Fuel Pump Module Harness Connector Terminals

G00096107

Courtesy of DAIMLERCHRYSLER CORP.

Fig 33: Identifying Generator Field Harness Connector Terminals

G00117178

Courtesy of DAIMLERCHRYSLER CORP.

Fig 34: Identifying Idle Air Control Motor Harness Connector Terminals

G00117179

Courtesy of DAIMLERCHRYSLER CORP.

Fig 35: Identifying Intake Air Temperature Sensor Harness Connector Terminals

G00117180

Courtesy of DAIMLERCHRYSLER CORP.

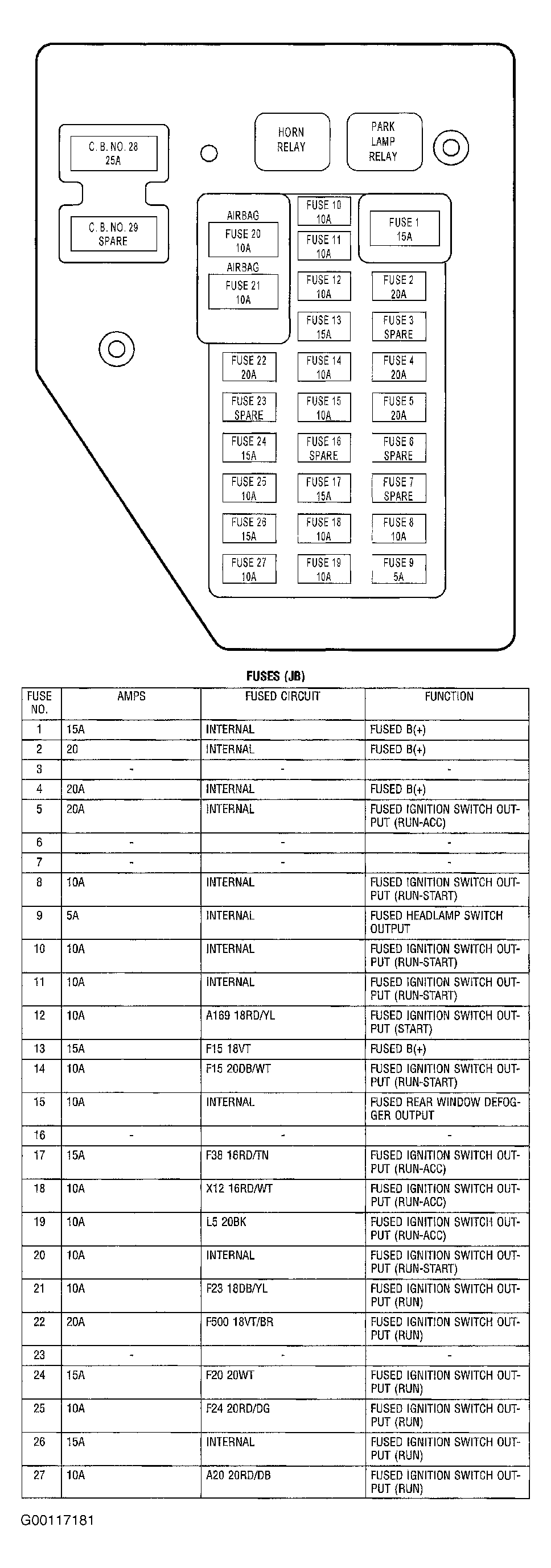

Fig 36: Identifying Junction Block Components & Circuits (Front View)

G00117181

Courtesy of DAIMLERCHRYSLER CORP.

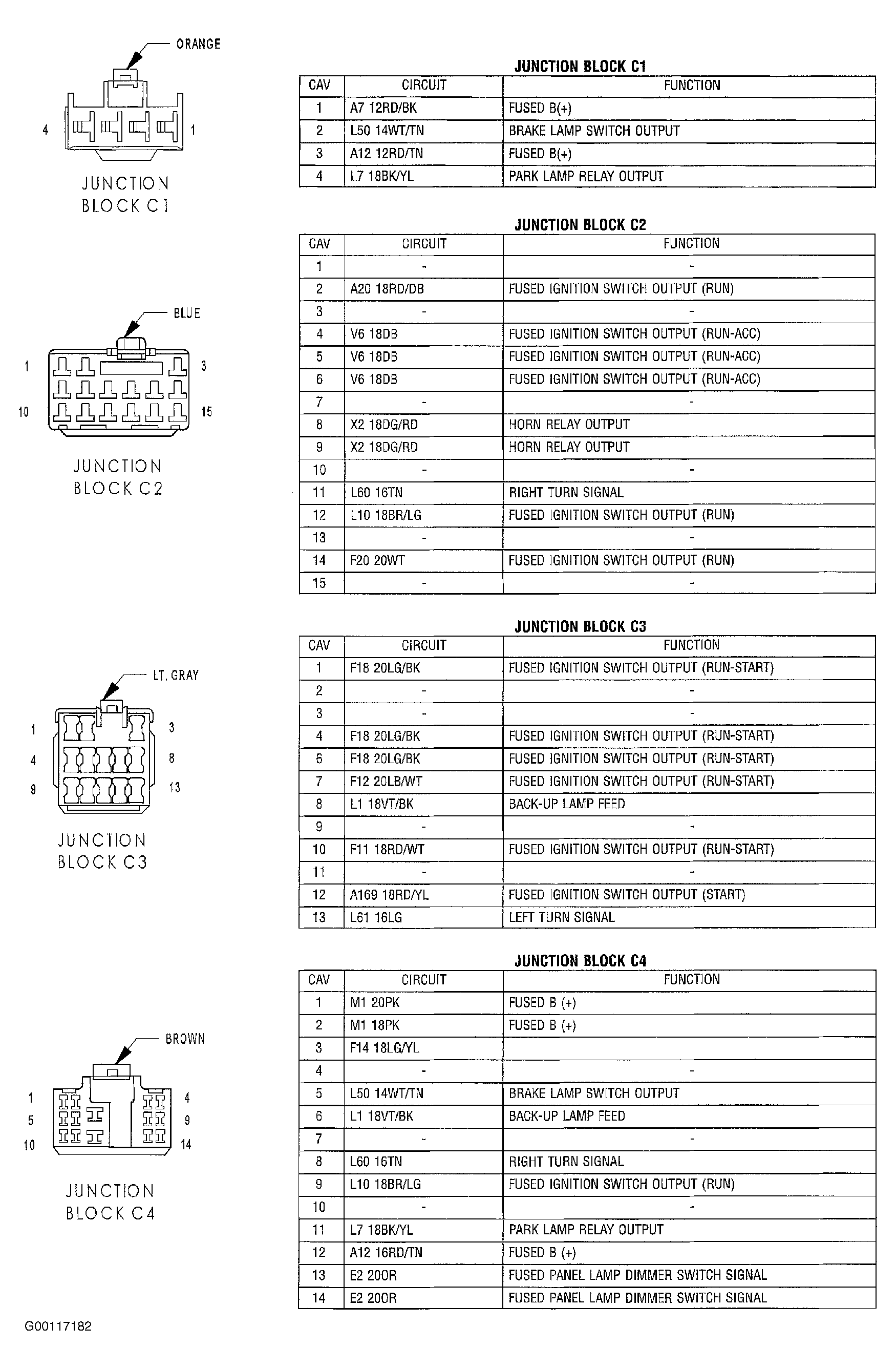

Fig 37: Identifying Junction Block Harness Connector Terminals (Rear View - 1 Of 4)

G00117182

Courtesy of DAIMLERCHRYSLER CORP.

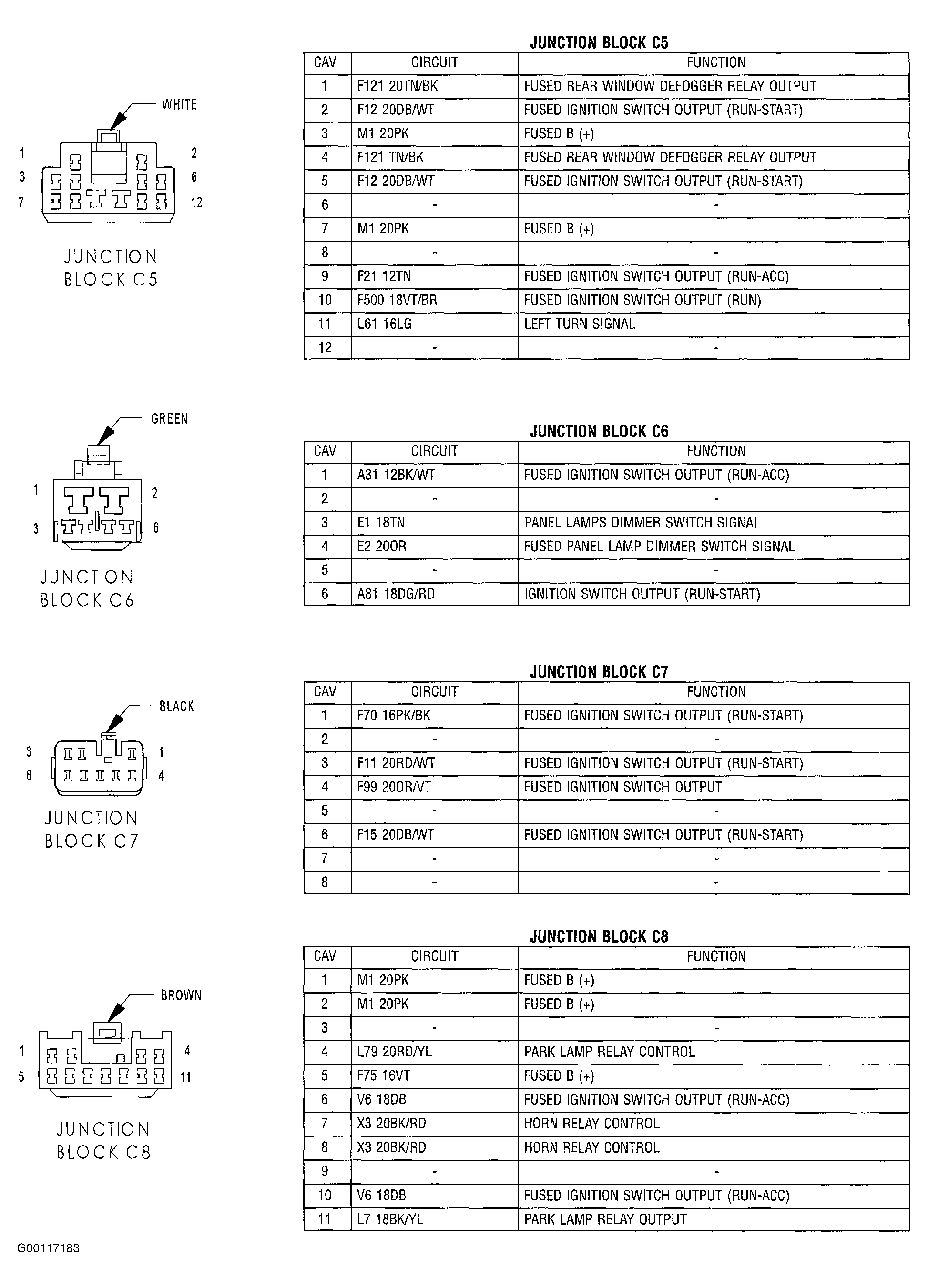

Fig 38: Identifying Junction Block Harness Connector Terminals (Rear View - 2 Of 4)

G00117183

Courtesy of DAIMLERCHRYSLER CORP.

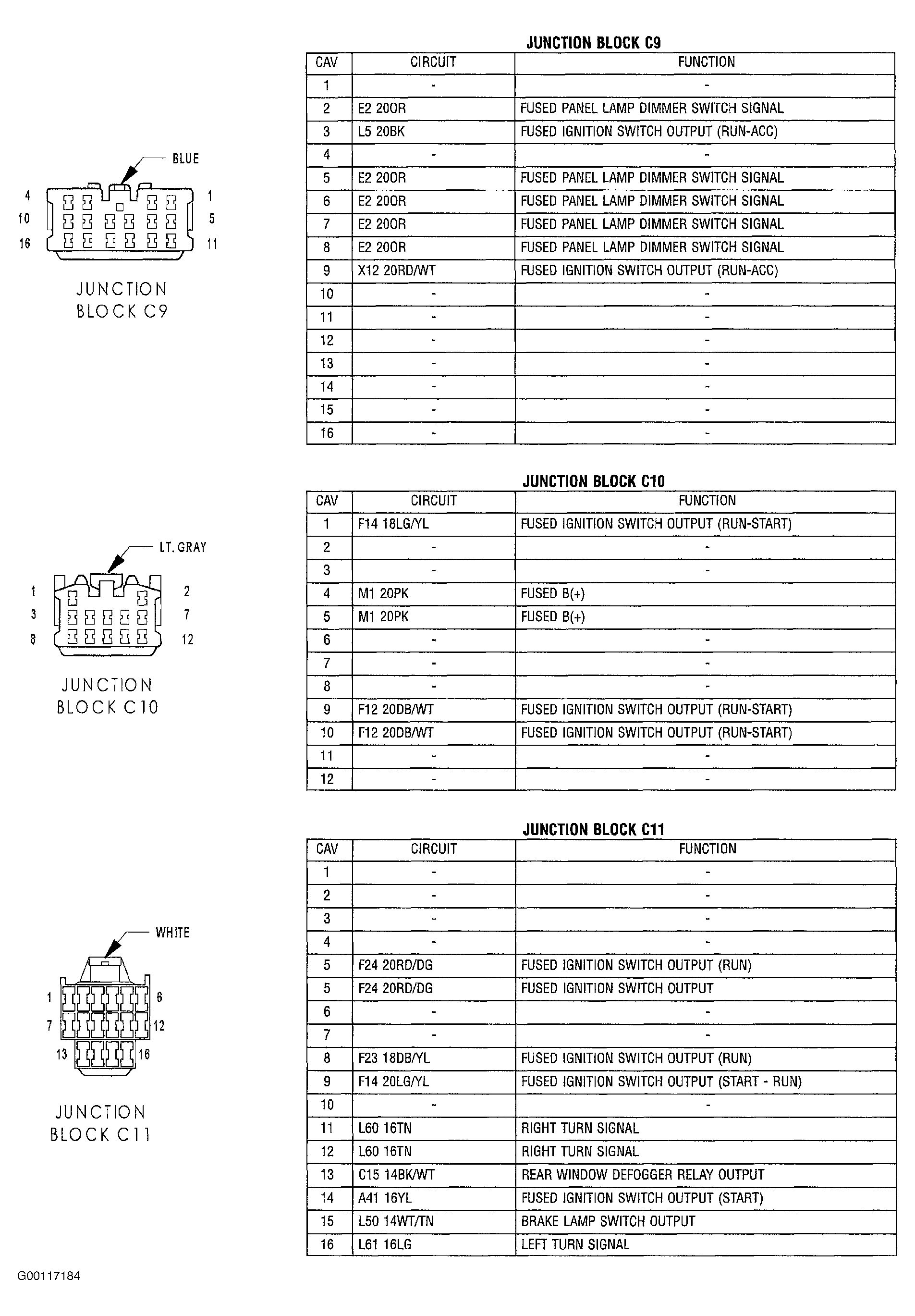

Fig 39: Identifying Junction Block Harness Connector Terminals (Rear View - 3 Of 4)

G00117184

Courtesy of DAIMLERCHRYSLER CORP.

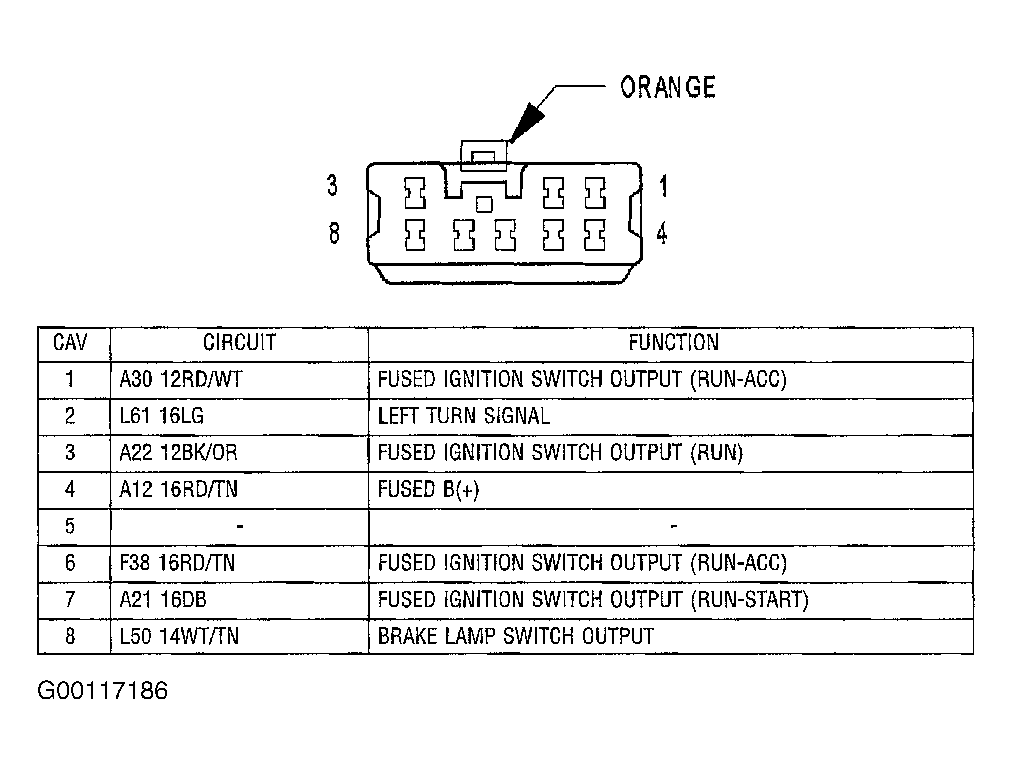

Fig 40: Identifying Junction Block Harness Connector Terminals (Rear View - 4 Of 4)

G00117186

Courtesy of DAIMLERCHRYSLER CORP.

Fig 41: Identifying Left Speed Control Switch Harness Connector Terminals

G00117187

Courtesy of DAIMLERCHRYSLER CORP.

Fig 42: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals

G00117188

Courtesy of DAIMLERCHRYSLER CORP.

Fig 43: Identifying Natural Vacuum Leak Detection Pump Harness Connector Terminals

G00117185

Courtesy of DAIMLERCHRYSLER CORP.

Fig 44: Identifying Power Distribution Center Components

G00117189

Courtesy of DAIMLERCHRYSLER CORP.

Fig 45: Identifying Power Distribution Center Fused Circuits

G00117190

Courtesy of DAIMLERCHRYSLER CORP.

Fig 46: Identifying Power Distribution Center Relay Circuits

G00117191

Courtesy of DAIMLERCHRYSLER CORP.

Fig 47: Identifying Power Steering Pressure Switch Harness Connector Terminals

G00117192

Courtesy of DAIMLERCHRYSLER CORP.

Fig 48: Identifying Powertrain Control Module Harness Connector C1 Terminals

G00117193

Courtesy of DAIMLERCHRYSLER CORP.

Fig 49: Identifying Powertrain Control Module Harness Connector C2 Terminals

G00117194

Courtesy of DAIMLERCHRYSLER CORP.

Fig 50: Identifying Powertrain Control Module Harness Connector C3 Terminals

G00117195

Courtesy of DAIMLERCHRYSLER CORP.

Fig 51: Identifying Powertrain Control Module Harness Connector C4 Terminals

G00117196

Courtesy of DAIMLERCHRYSLER CORP.

Fig 52: Identifying Proportional Purge Solenoid Harness Connector Terminals

G00117197

Courtesy of DAIMLERCHRYSLER CORP.

Fig 53: Identifying Radiator Fan Motor Harness Connector Terminals

G00117198

Courtesy of DAIMLERCHRYSLER CORP.

Fig 54: Identifying Right Speed Control Switch Harness Connector Terminals

G00117199

Courtesy of DAIMLERCHRYSLER CORP.

Fig 55: Identifying Sentry Key Immobilizer Module Harness Connector Terminals

G00117202

Courtesy of DAIMLERCHRYSLER CORP.

Fig 56: Identifying Speed Control Servo Harness Connector Terminals

G00117200

Courtesy of DAIMLERCHRYSLER CORP.

Fig 57: Identifying Throttle Position Sensor Harness Connector Terminals

G00117201

Courtesy of DAIMLERCHRYSLER CORP.

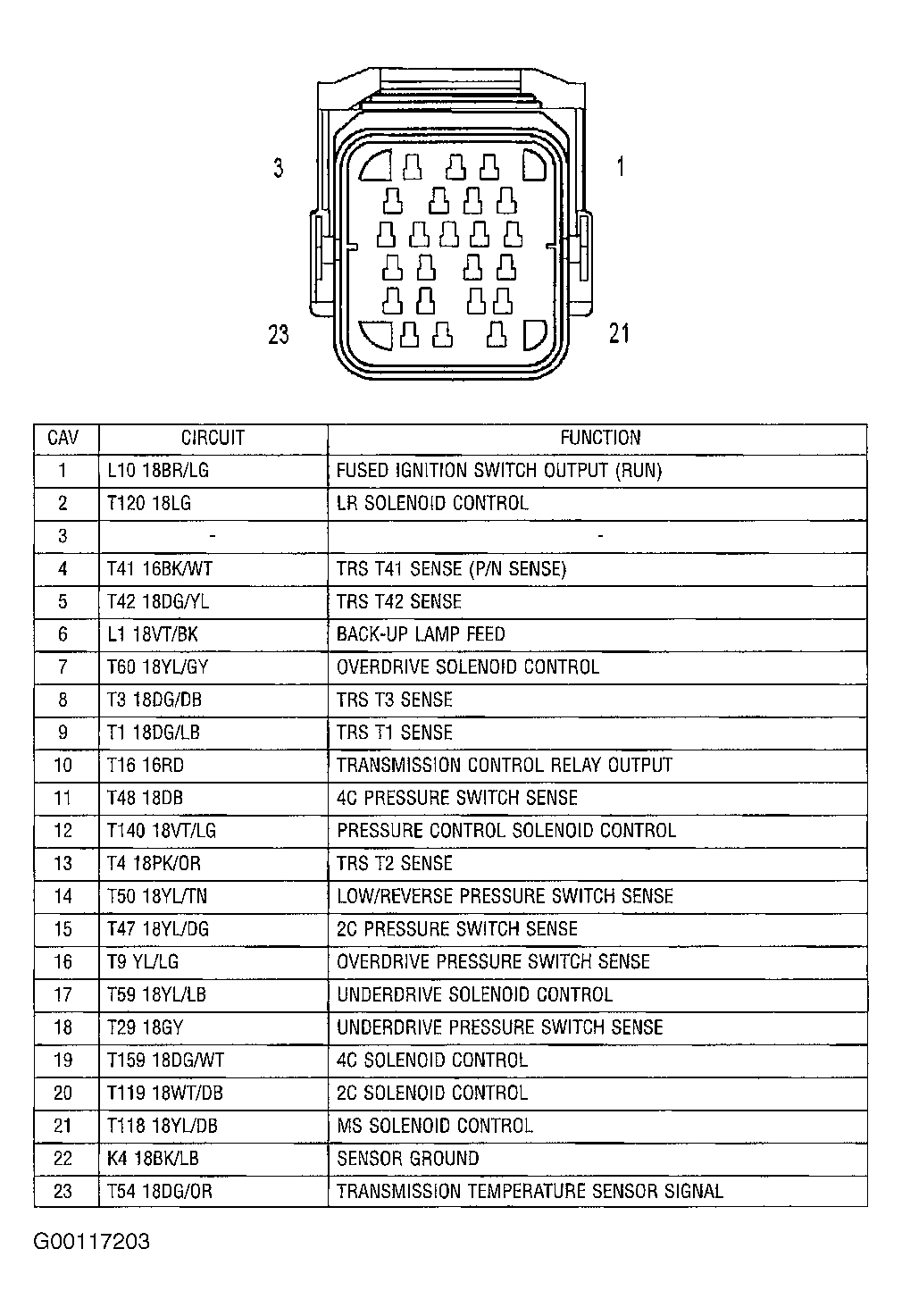

Fig 58: Identifying Transmission Range Sensor/Transmission Solenoid Harness Connector Terminals

G00117203

Courtesy of DAIMLERCHRYSLER CORP.

Fig 59: Identifying 1/1 (Upstream) Oxygen Sensor Harness Connector Terminals (California)

G00117204

Courtesy of DAIMLERCHRYSLER CORP.

Fig 60: Identifying 1/1 (Upstream) Oxygen Sensor Harness Connector Terminals (Except California)

G00117205

Courtesy of DAIMLERCHRYSLER CORP.

Fig 61: Identifying 1/2 (Downstream) Oxygen Sensor Harness Connector Terminals (California)

G00117206

Courtesy of DAIMLERCHRYSLER CORP.

Fig 62: Identifying 1/2 (Downstream) Oxygen Sensor Harness Connector Terminals (Except California)

G00117207

Courtesy of DAIMLERCHRYSLER CORP.

Fig 63: Identifying 2/1 (Upstream) Oxygen Sensor Harness Connector Terminals (California)

G00117208

Courtesy of DAIMLERCHRYSLER CORP.

Fig 64: Identifying 2/2 (Downstream) Oxygen Sensor Harness Connector Terminals (California)

G00117209

Courtesy of DAIMLERCHRYSLER CORP.
