Component Locations

NOTE: See Fig 1-Fig 27 for component locations.

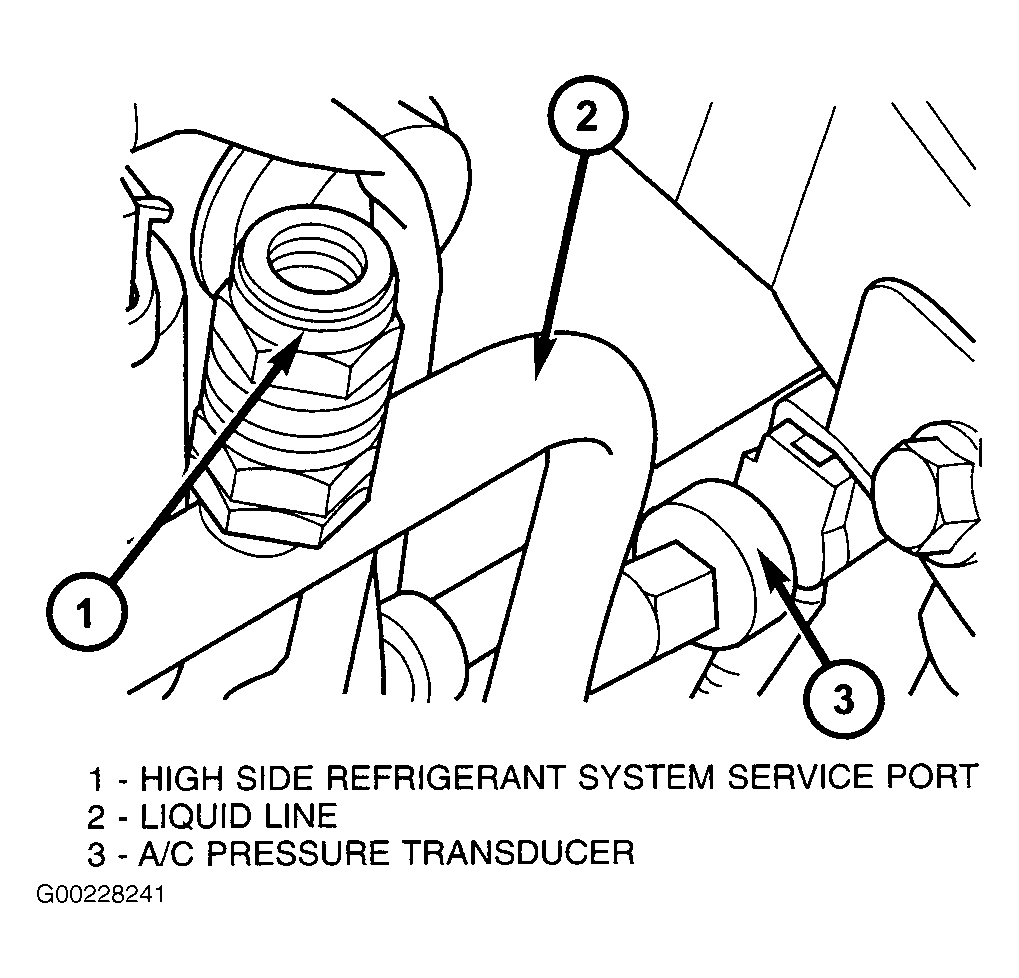

Fig 1: Locating A/C Pressure Transducer

G00228241

Courtesy of CHRYSLER CORP.

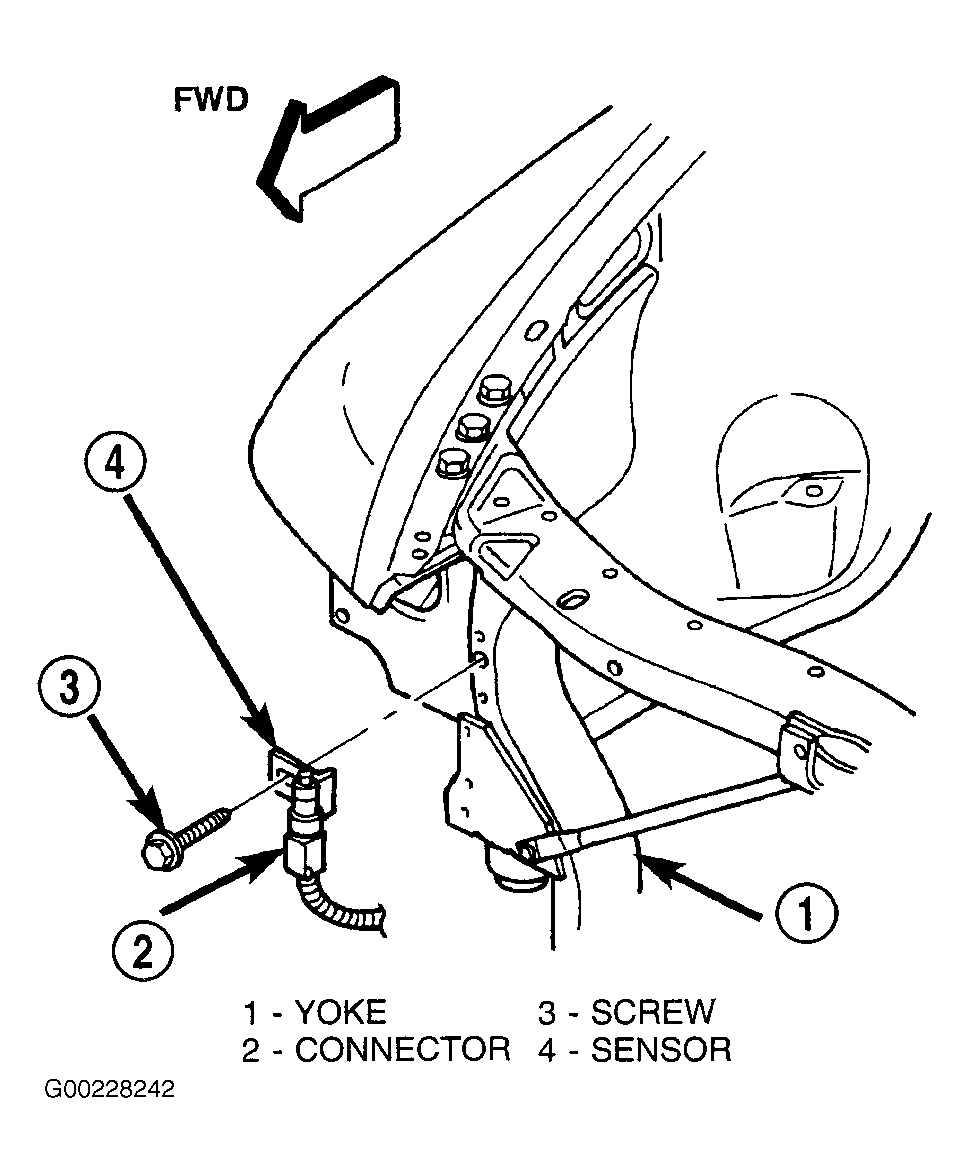

Fig 2: Locating Ambient Temperature Sensor

G00228242

Courtesy of CHRYSLER CORP.

Fig 3: Locating Battery Temperature Sensor

G00088594

Courtesy of DAIMLERCHRYSLER

Fig 4: Locating Camshaft Position Sensor

G00015603

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Locating Crankshaft Position Sensor

G00015607

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 6: Locating Data Link Connector

G00235024

Courtesy of CHRYSLER CORP.

Fig 7: Locating Engine Coolant Temperature Sensor & Manifold Absolute Pressure Sensor

G99D02388

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 8: Locating Evaporative Emissions Canister

G00088608

Courtesy of DAIMLERCHRYSLER

Fig 9: Locating Evaporative Emissions Purge Solenoid

G00015599

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 10: Locating Fuel Injectors

G00088611

Courtesy of DAIMLERCHRYSLER

Fig 11: Locating Fuel Pump Module

G00088606

Courtesy of DAIMLERCHRYSLER

Fig 12: Locating Fuel Pump Module Components

G00088607

Courtesy of DAIMLERCHRYSLER

Fig 13: Locating Idle Air Control Motor, Intake Air Temperature Sensor & Throttle Position Sensor

G99C03090

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 14: Locating Ignition Coil On Plug

G00088597

Courtesy of DAIMLERCHRYSLER

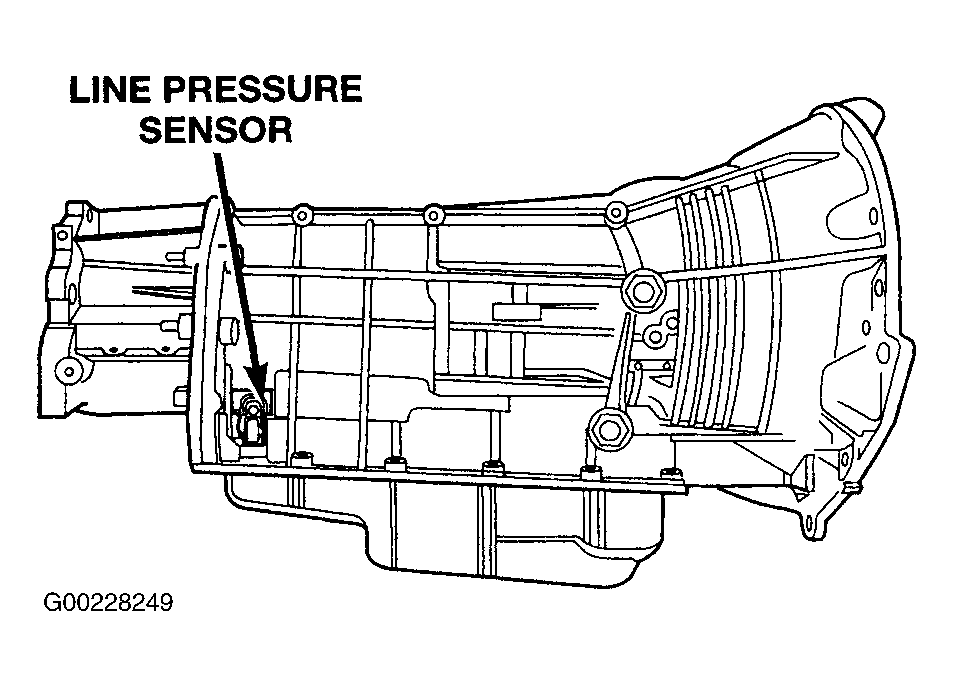

Fig 15: Locating Line Pressure Sensor

G00228249

Courtesy of CHRYSLER CORP.

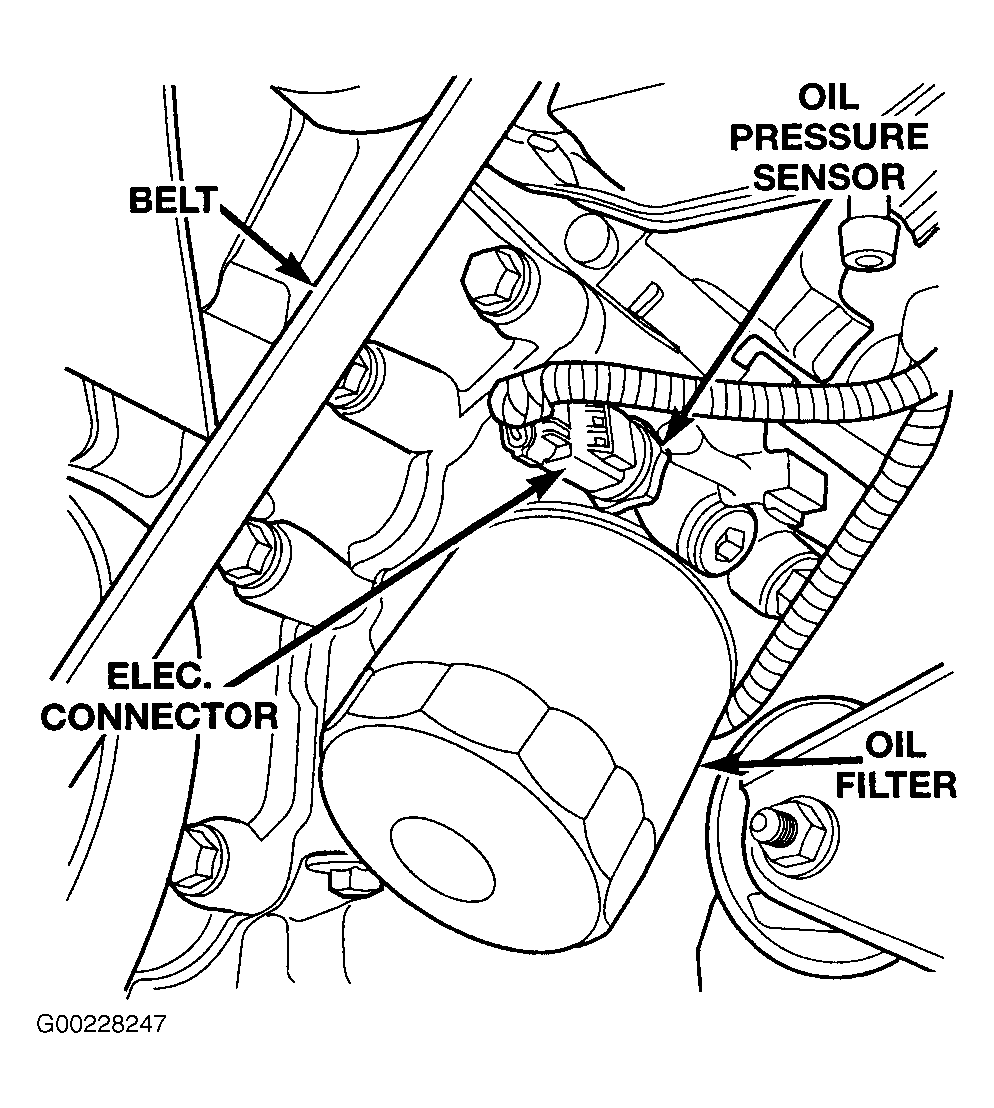

Fig 16: Locating Oil Pressure Sensor

G00228247

Courtesy of CHRYSLER CORP.

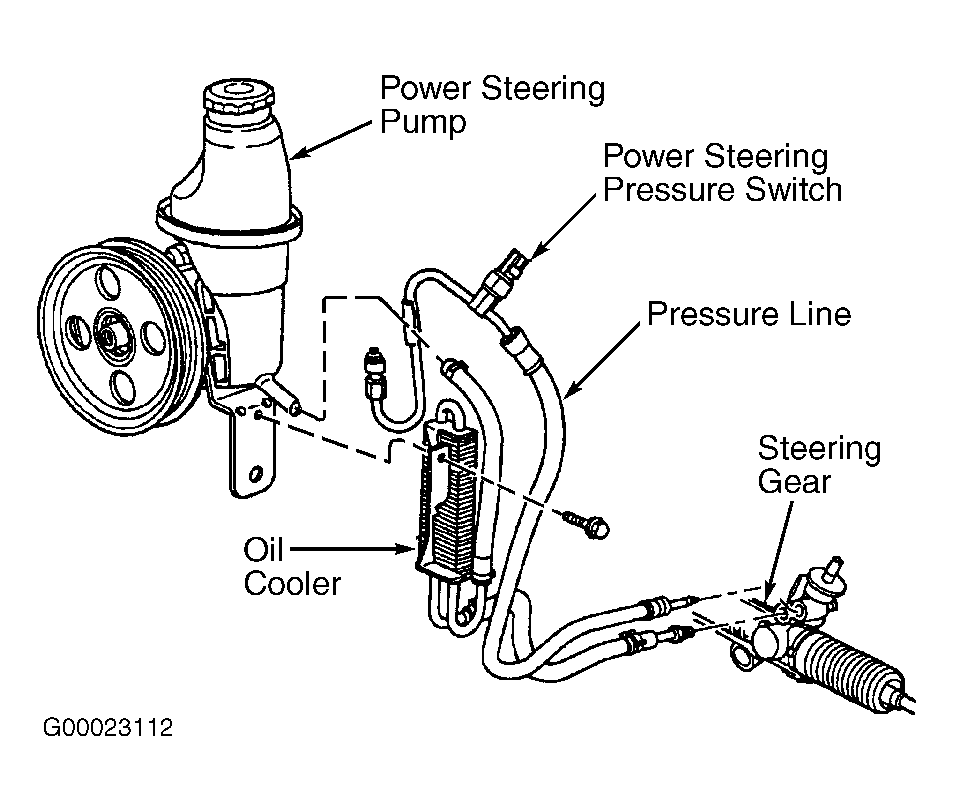

Fig 17: Locating Power Steering Pressure Switch

G00023112

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 18: Locating Power Distribution Center

G00228243

Courtesy of CHRYSLER CORP.

Fig 19: Locating Powertrain Control Module

G00228244

Courtesy of CHRYSLER CORP.

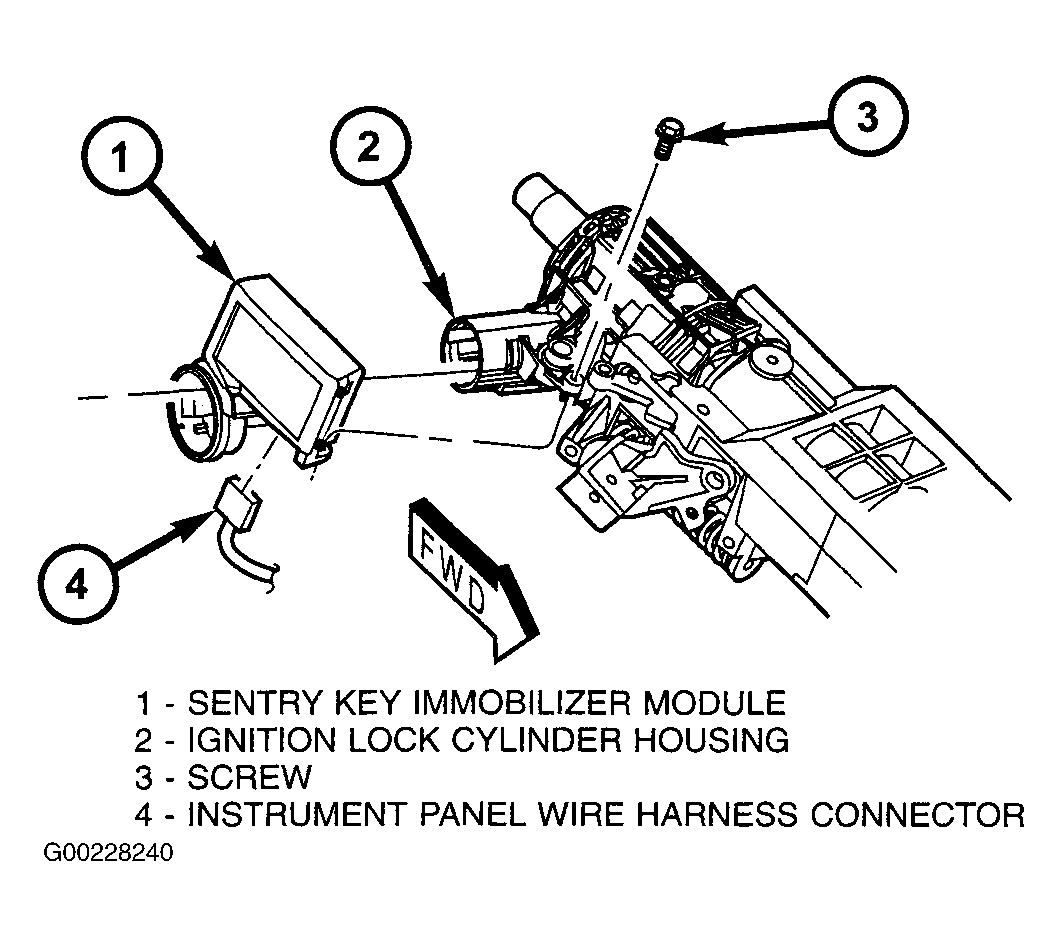

Fig 20: Locating Sentry Key Immobilizer Module

G00228240

Courtesy of CHRYSLER CORP.

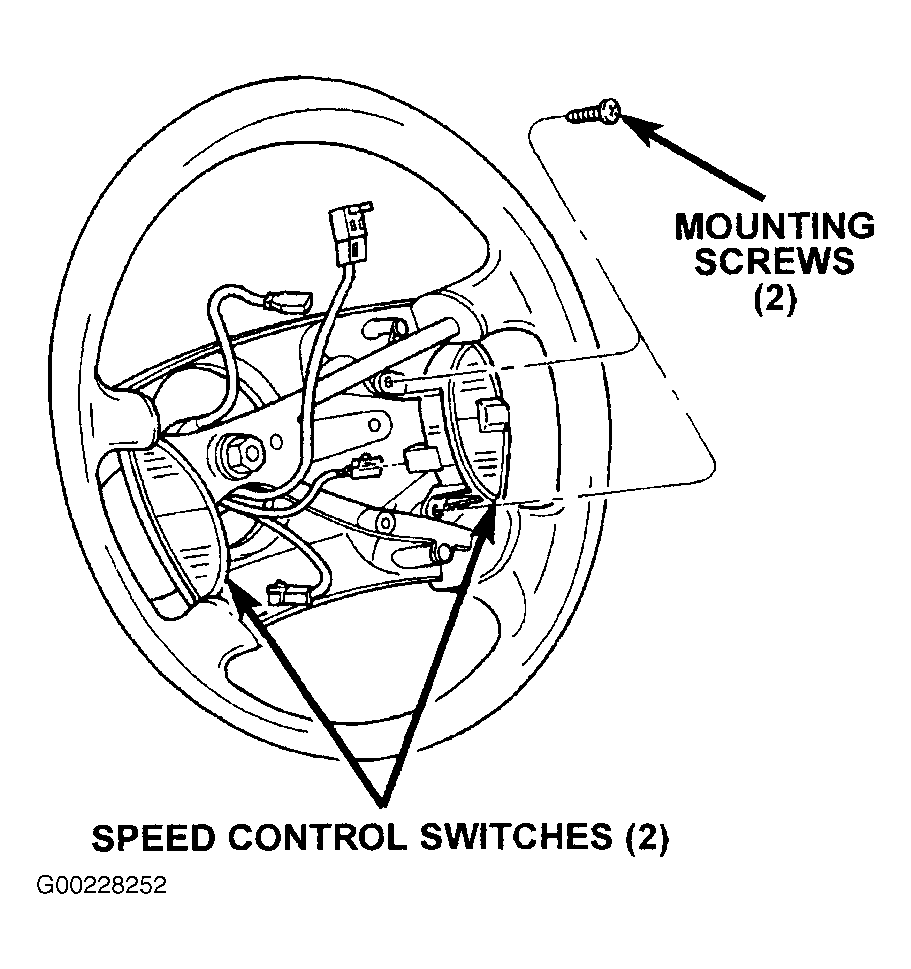

Fig 21: Locating Speed Control Switches

G00228252

Courtesy of CHRYSLER CORP.

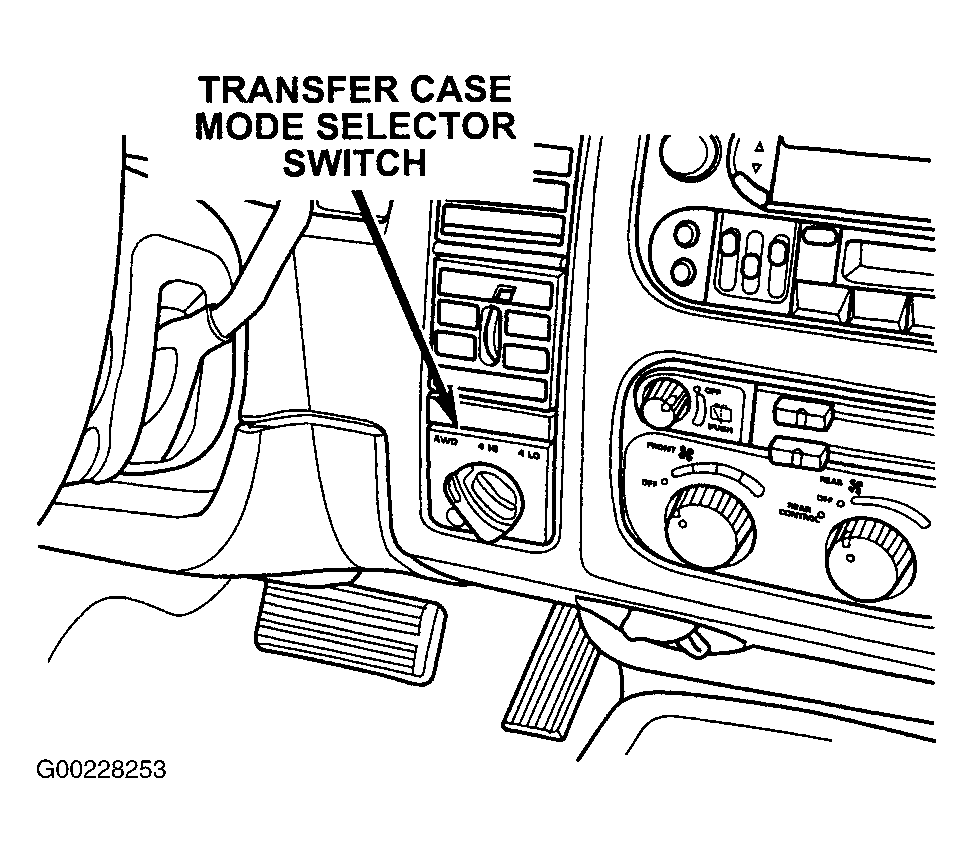

Fig 22: Locating Transfer Case Mode Selector Switch

G00228253

Courtesy of CHRYSLER CORP.

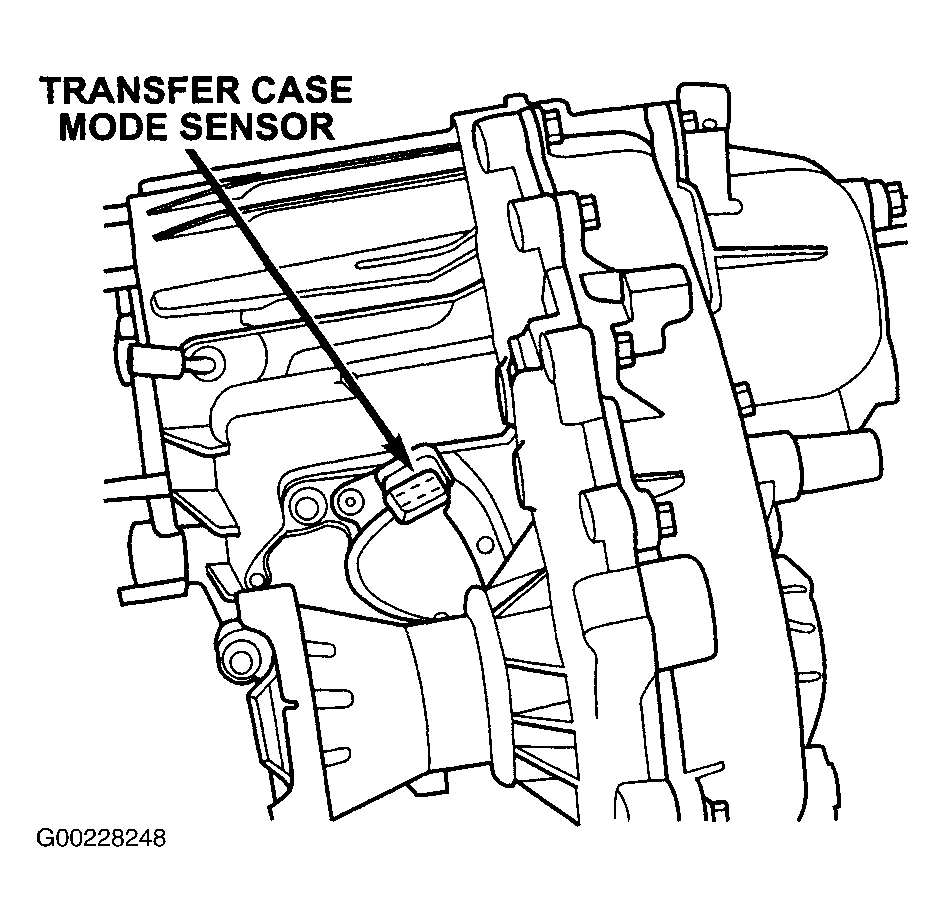

Fig 23: Locating Transfer Case Mode Sensor

G00228248

Courtesy of CHRYSLER CORP.

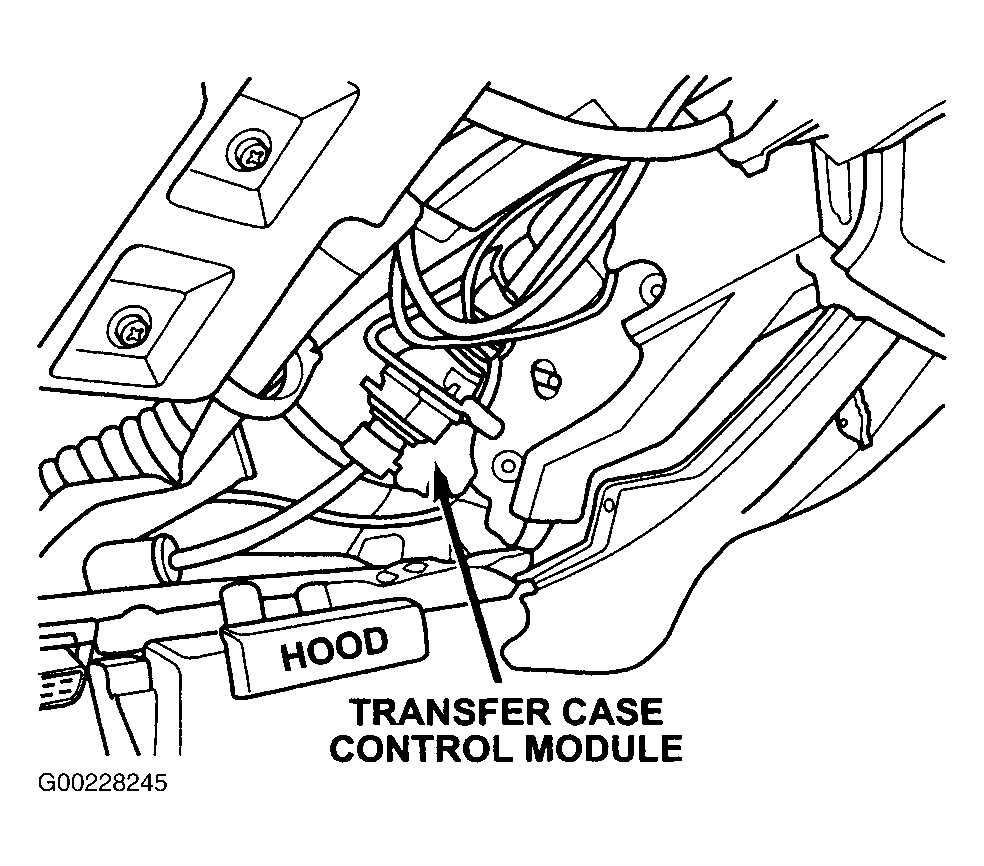

Fig 24: Locating Transfer Case Control Module

G00228245

Courtesy of CHRYSLER CORP.

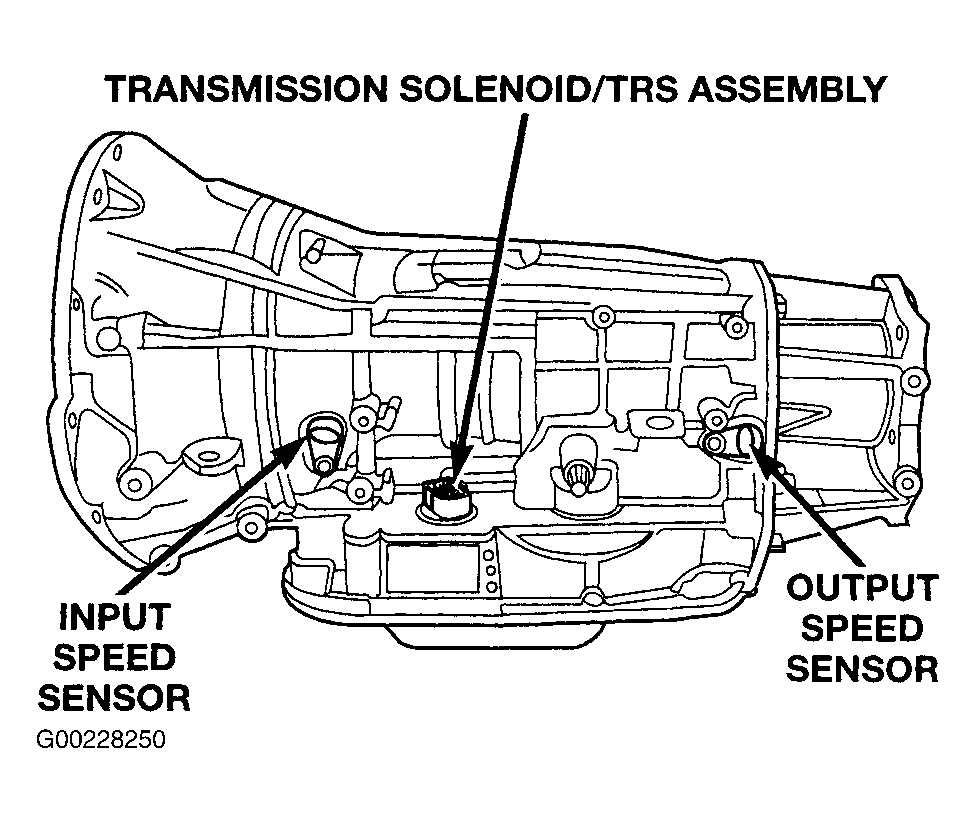

Fig 25: Locating Transmission Solenoid/TRS Assembly, Input Speed Sensor & Output Speed Sensor

G00228250

Courtesy of CHRYSLER CORP.

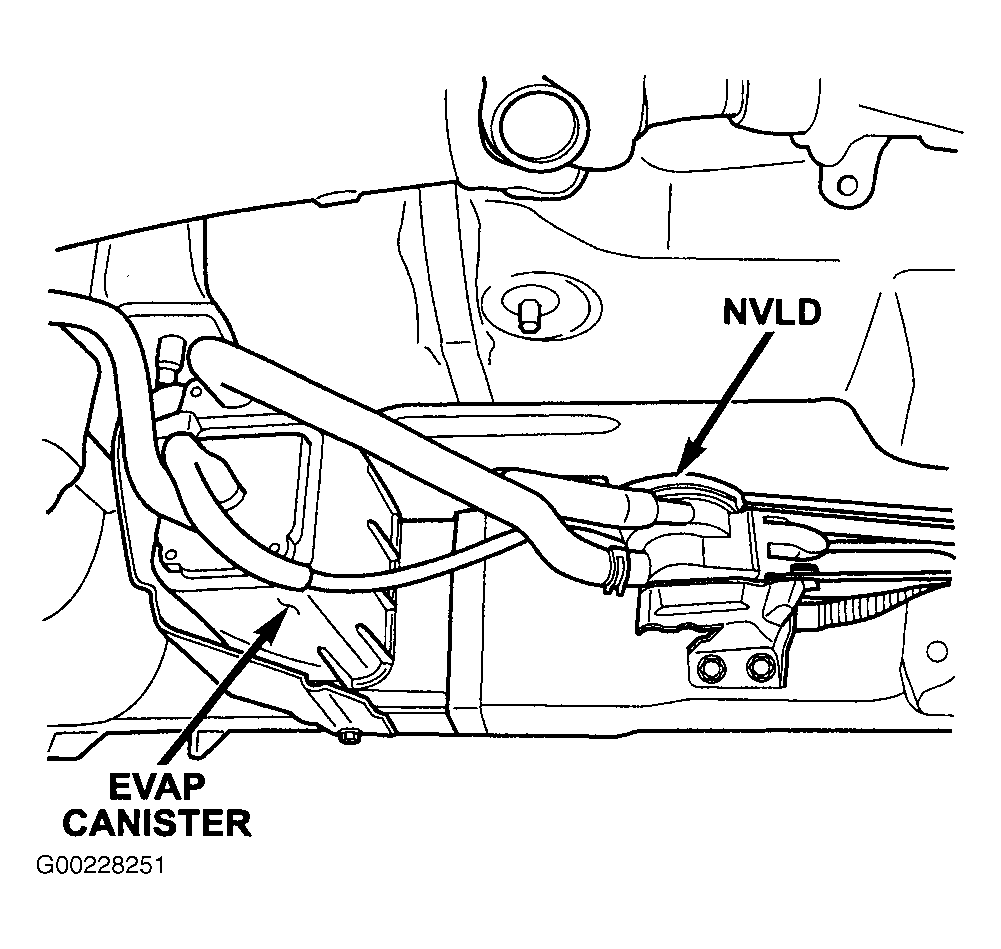

Fig 26: Locating NVLD Assembly & EVAP Canister

G00228251

Courtesy of CHRYSLER CORP.

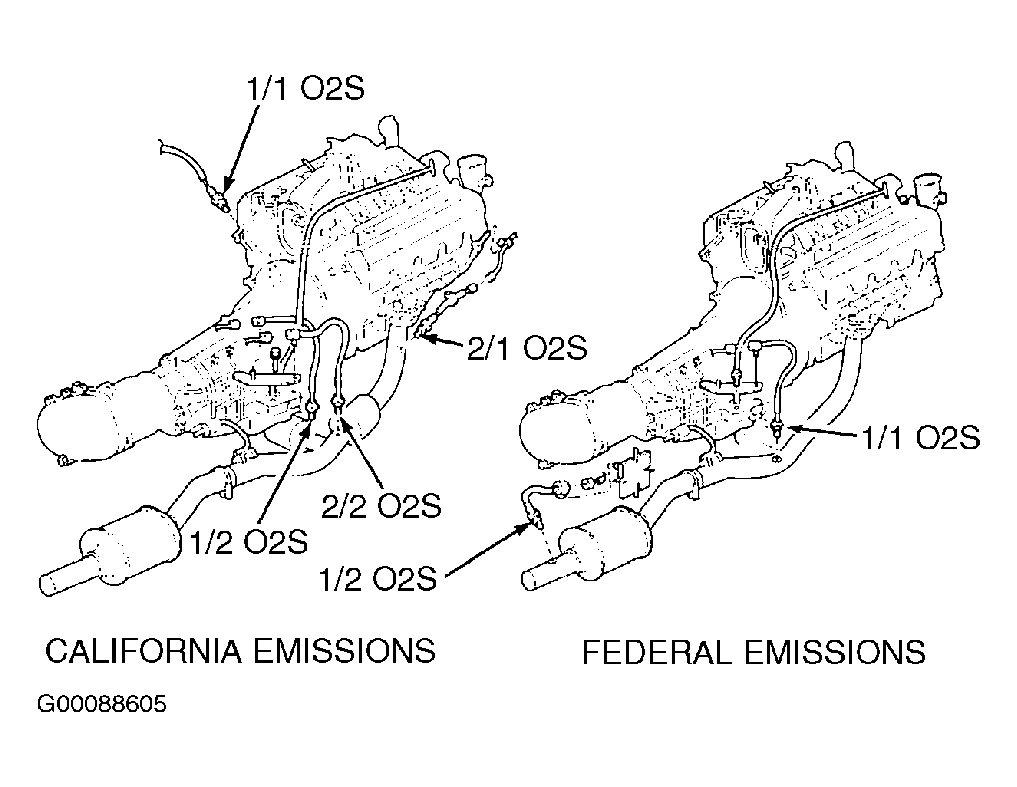

Fig 27: Locating 1/1 & 2/1 (Upstream), & 1/2 & 2/2 (Downstream) Oxygen Sensors

G00088605

Courtesy of DAIMLERCHRYSLER
