Connector Identification

NOTE: See Fig 1-Fig 70 for connector identification.

Fig 1: Identifying A/C Compressor Clutch Harness Connector Terminals

G00228254

Courtesy of CHRYSLER CORP.

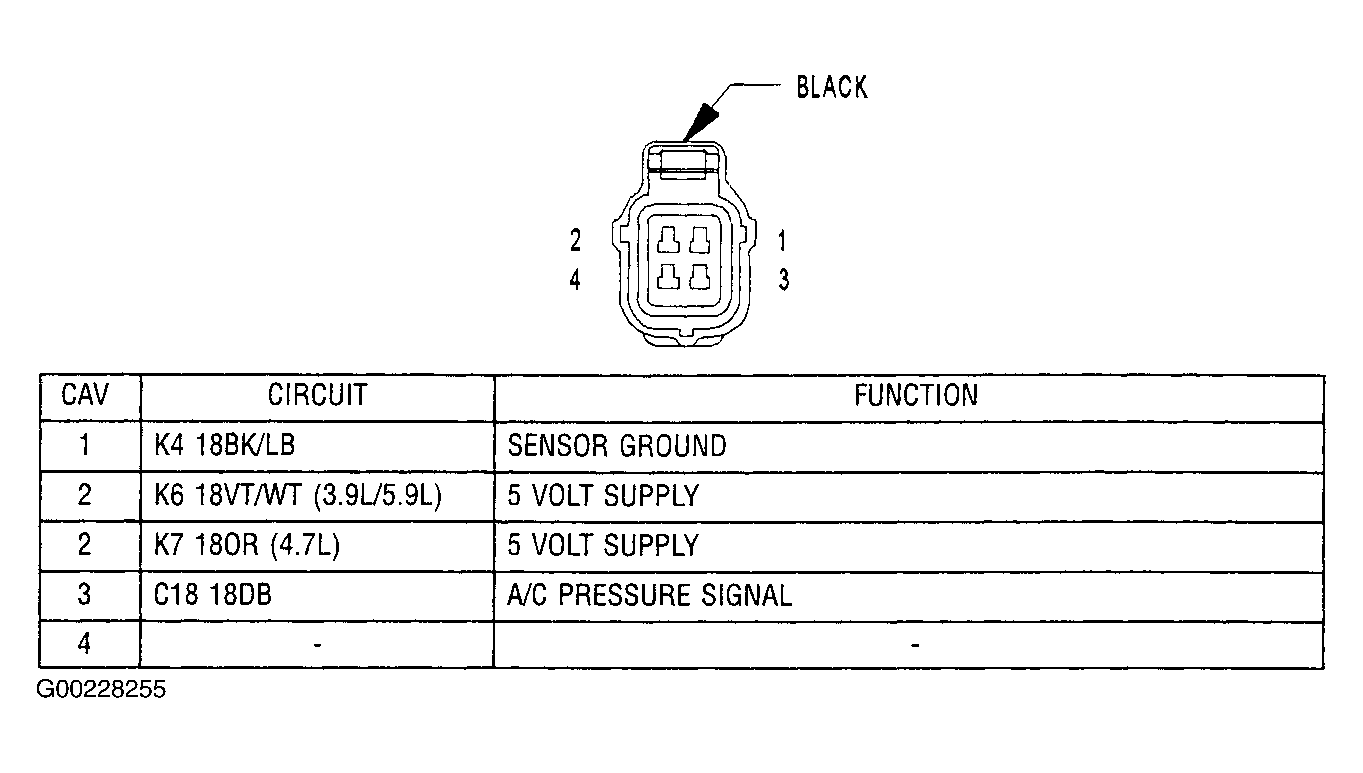

Fig 2: Identifying A/C Pressure Transducer Harness Connector Terminals

G00228255

Courtesy of CHRYSLER CORP.

Fig 3: Identifying Ambient Temperature Sensor Harness Connector Terminals

G00228256

Courtesy of CHRYSLER CORP.

Fig 4: Identifying Battery Temperature Sensor Harness Connector Terminals

G00228257

Courtesy of CHRYSLER CORP.

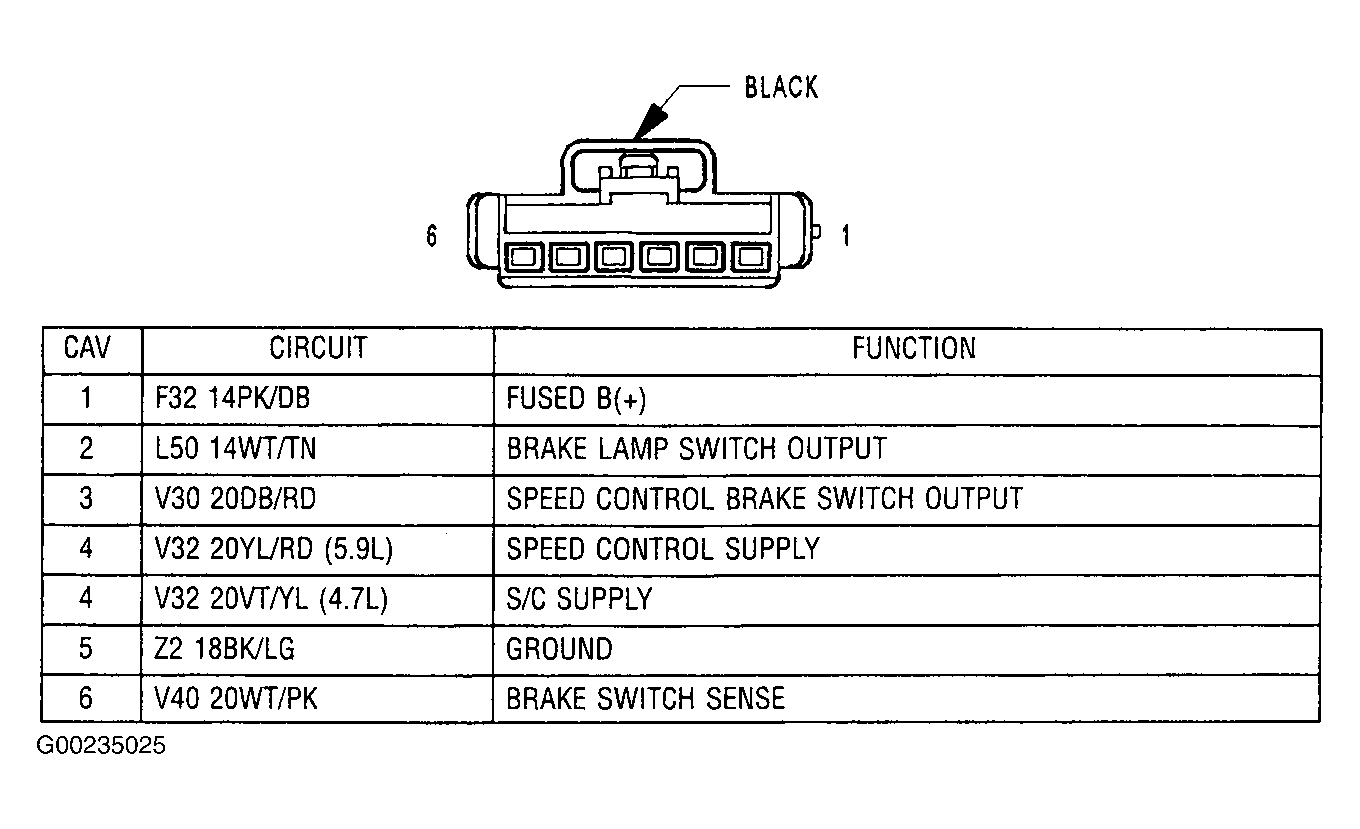

Fig 5: Identifying Brake Lamp Switch Harness Connector Terminals

G00235025

Courtesy of CHRYSLER CORP.

Fig 6: Identifying Brake Transmission Shift Interlock Solenoid Harness Connector Terminals

G00235026

Courtesy of CHRYSLER CORP.

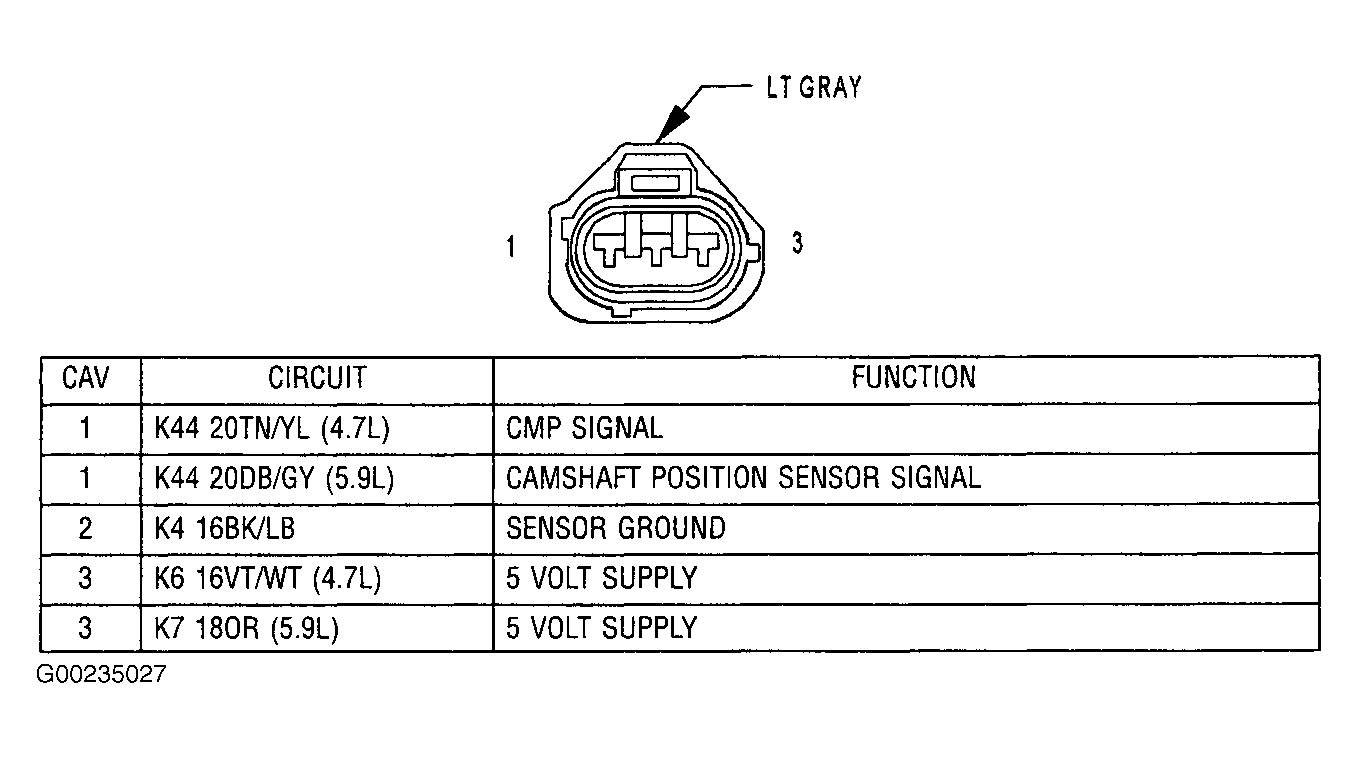

Fig 7: Identifying Camshaft Position Sensor Harness Connector Terminals

G00235027

Courtesy of CHRYSLER CORP.

Fig 8: Identifying Capacitor Harness Connector Terminals

G00228260

Courtesy of CHRYSLER CORP.

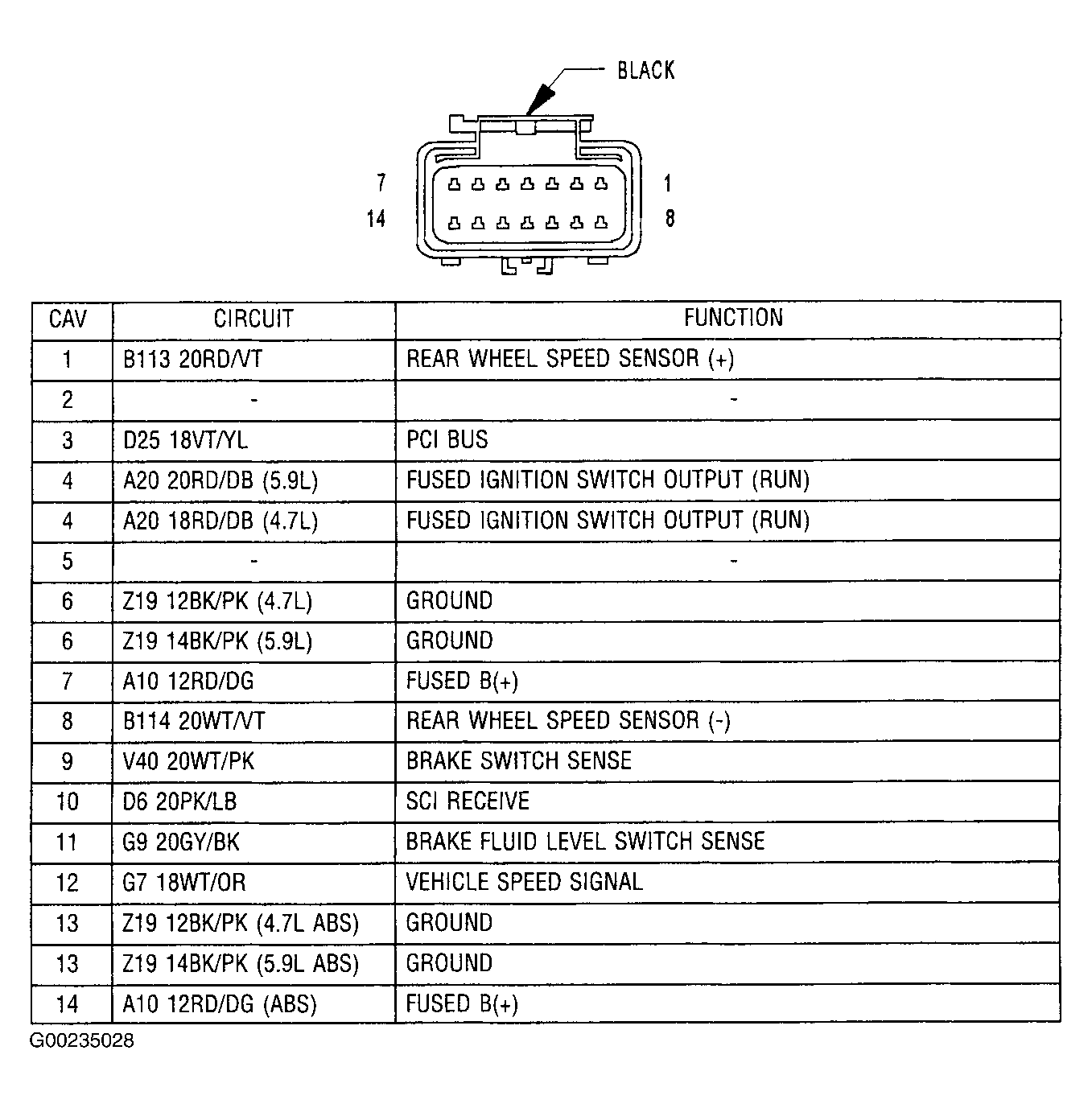

Fig 9: Identifying Controller Anti-lock Brake C1 Harness Connector Terminals

G00235028

Courtesy of CHRYSLER CORP.

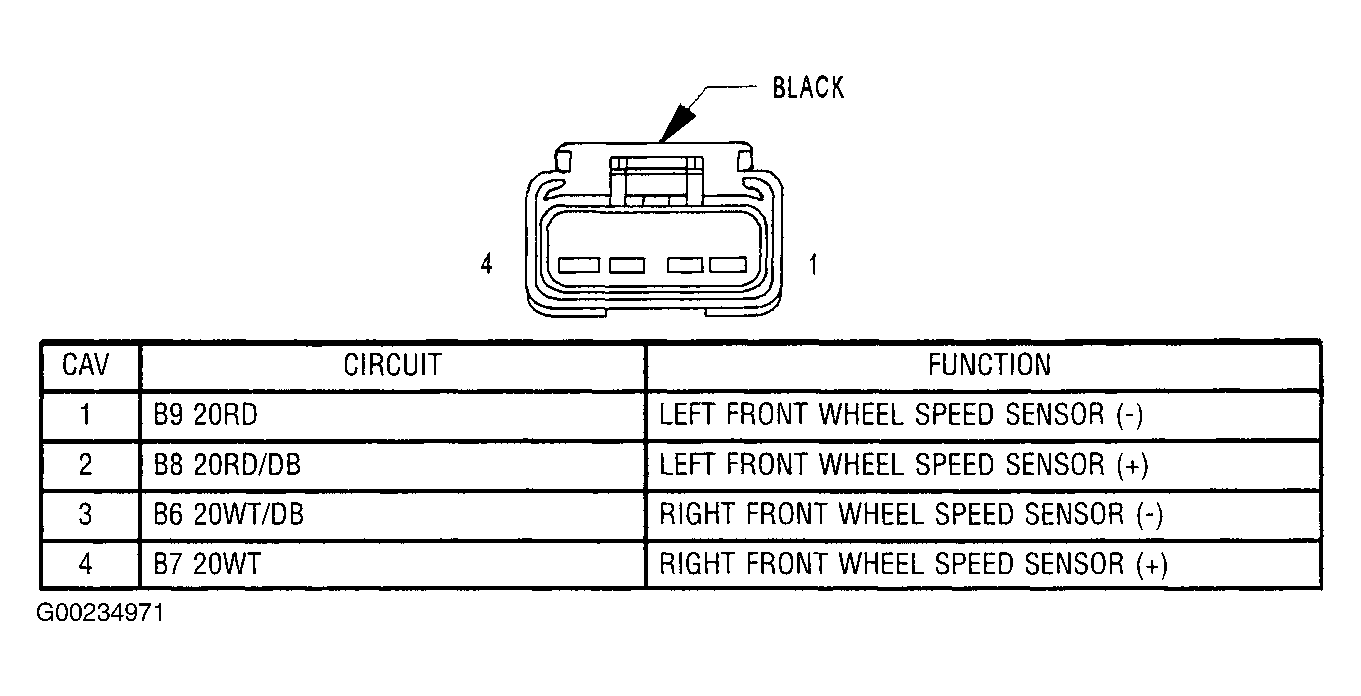

Fig 10: Identifying Controller Anti-lock Brake C2 Harness Connector Terminals

G00234971

Courtesy of CHRYSLER CORP.

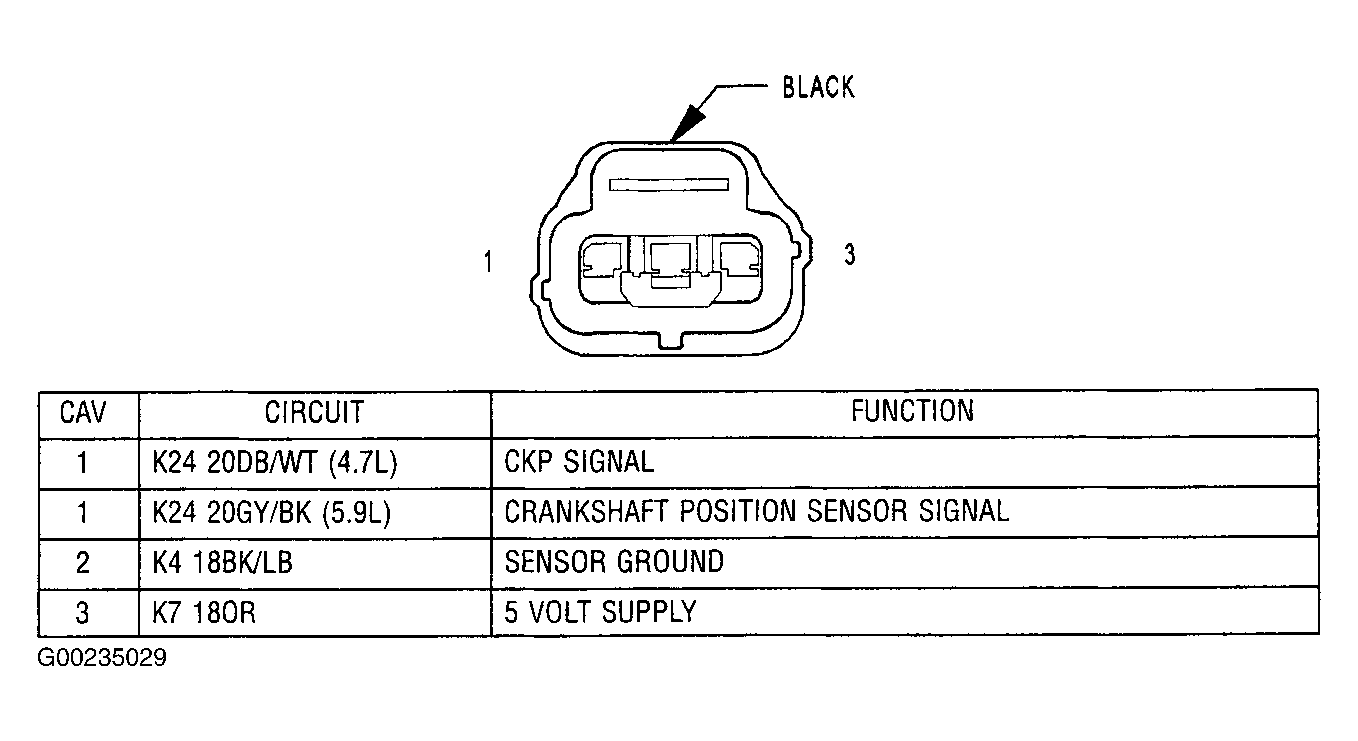

Fig 11: Identifying Crankshaft Position Sensor Harness Connector Terminals

G00235029

Courtesy of CHRYSLER CORP.

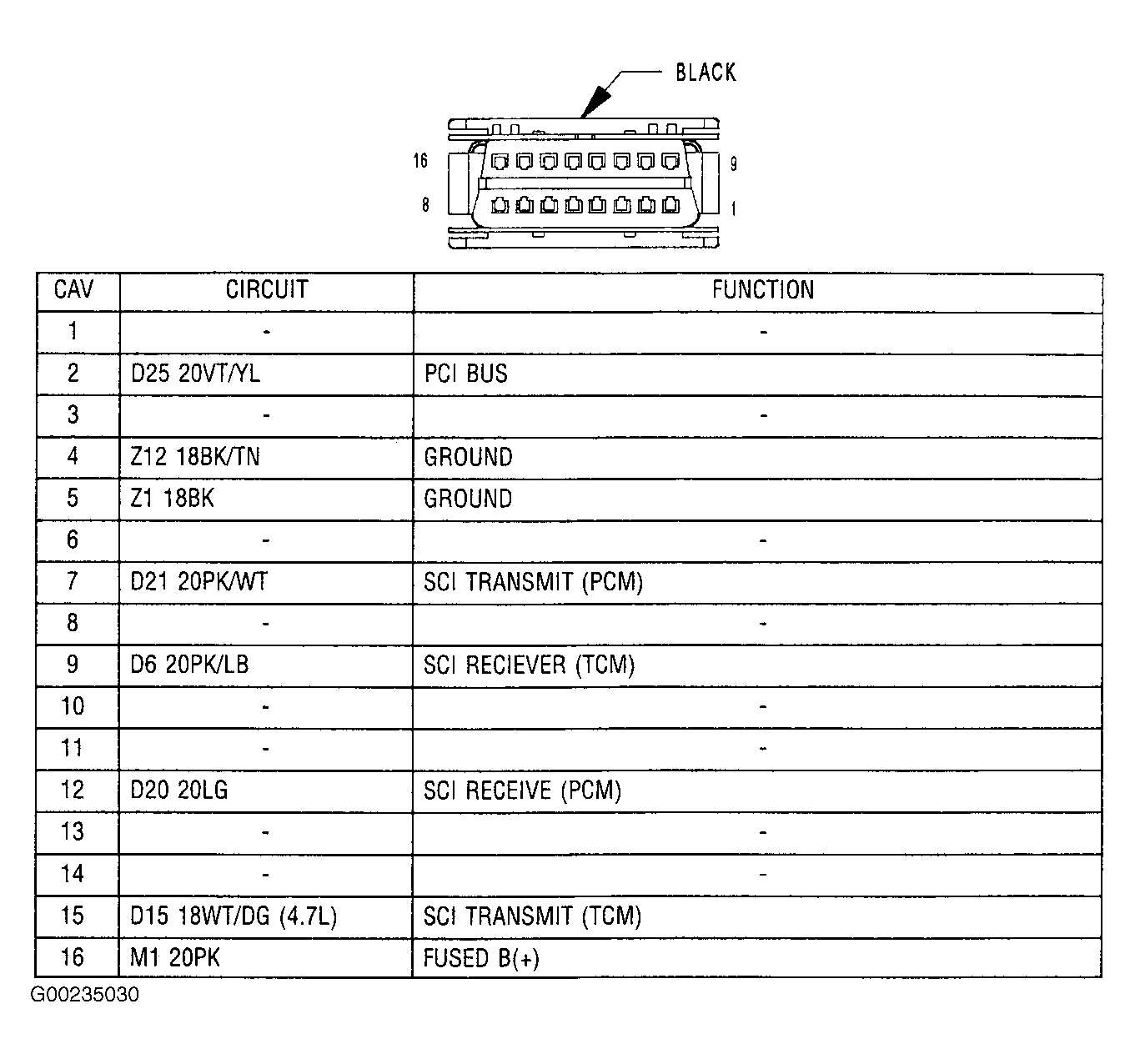

Fig 12: Identifying Data Link Connector Harness Connector Terminals

G00235030

Courtesy of CHRYSLER CORP.

Fig 13: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals

G00235031

Courtesy of CHRYSLER CORP.

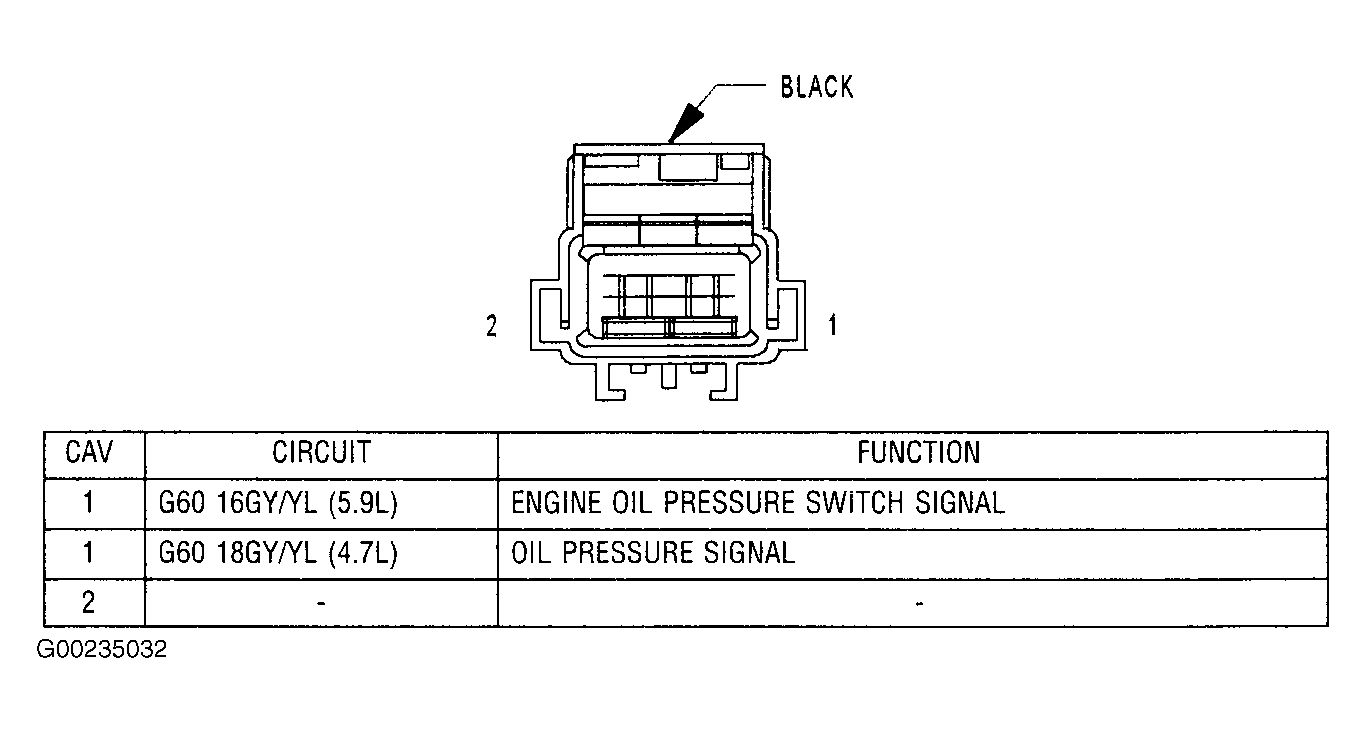

Fig 14: Identifying Engine Oil Pressure Switch Harness Connector Terminals

G00235032

Courtesy of CHRYSLER CORP.

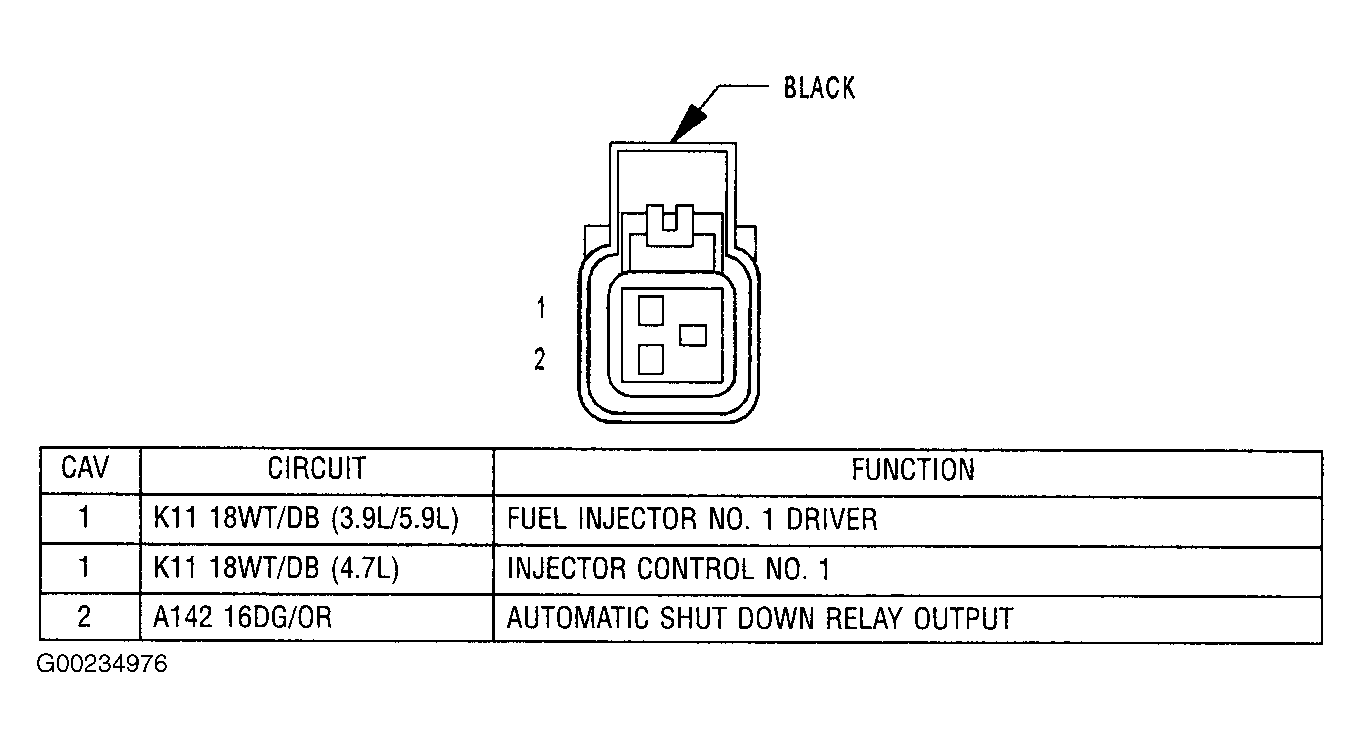

Fig 15: Identifying Fuel Injector No. 1 Harness Connector Terminals

G00234976

Courtesy of CHRYSLER CORP.

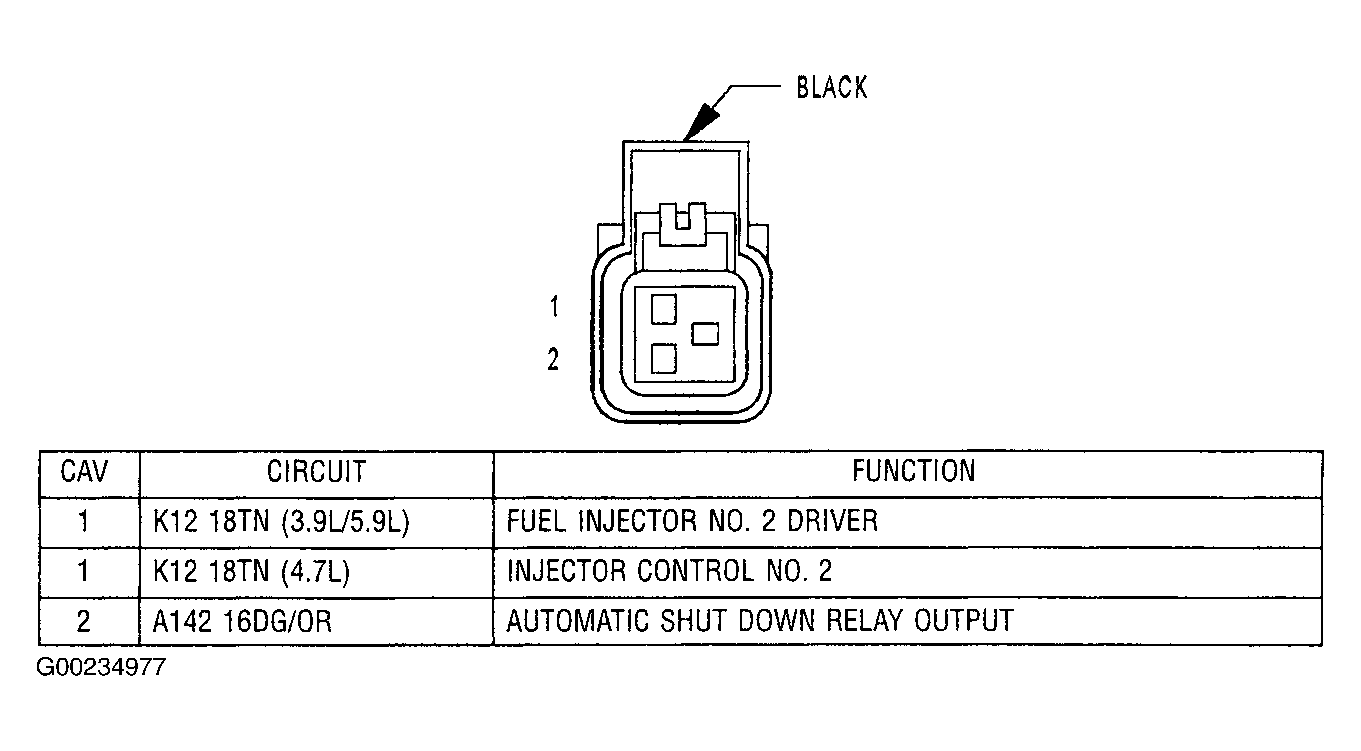

Fig 16: Identifying Fuel Injector No. 2 Harness Connector Terminals

G00234977

Courtesy of CHRYSLER CORP.

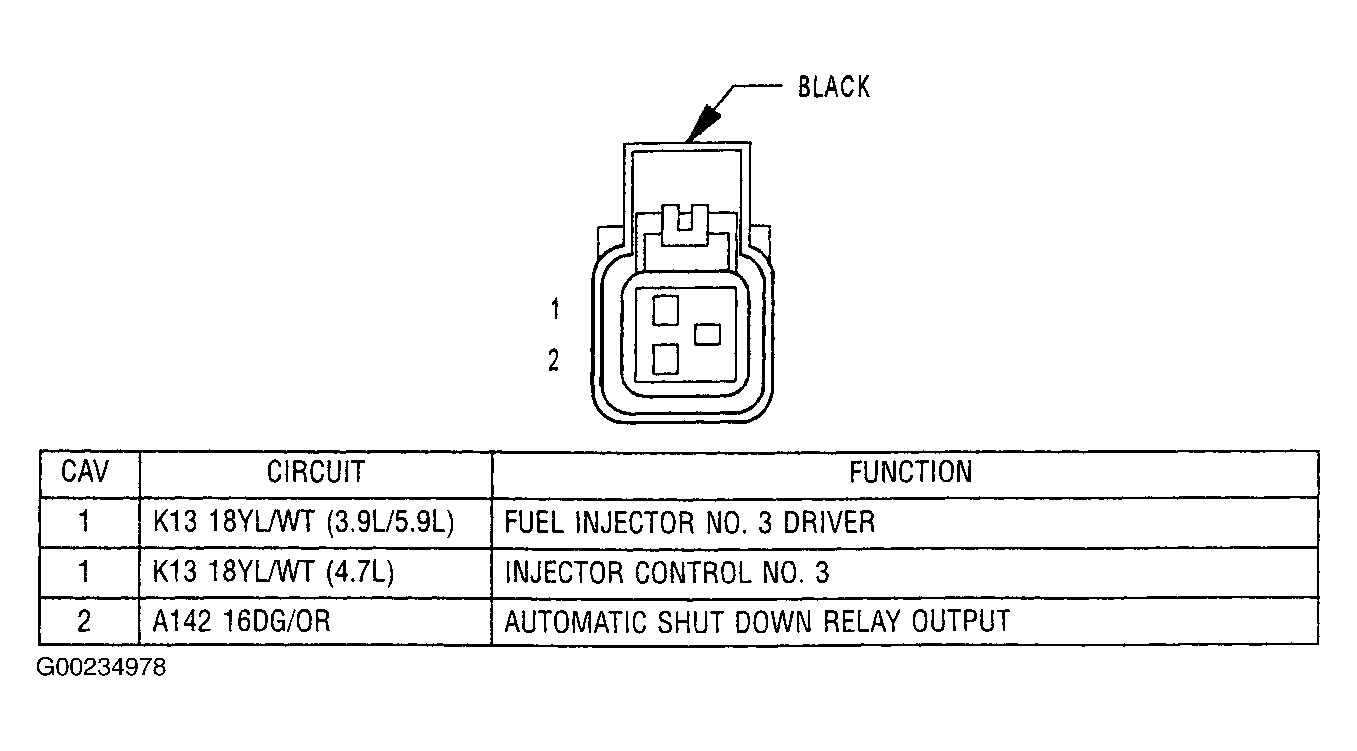

Fig 17: Identifying Fuel Injector No. 3 Harness Connector Terminals

G00234978

Courtesy of CHRYSLER CORP.

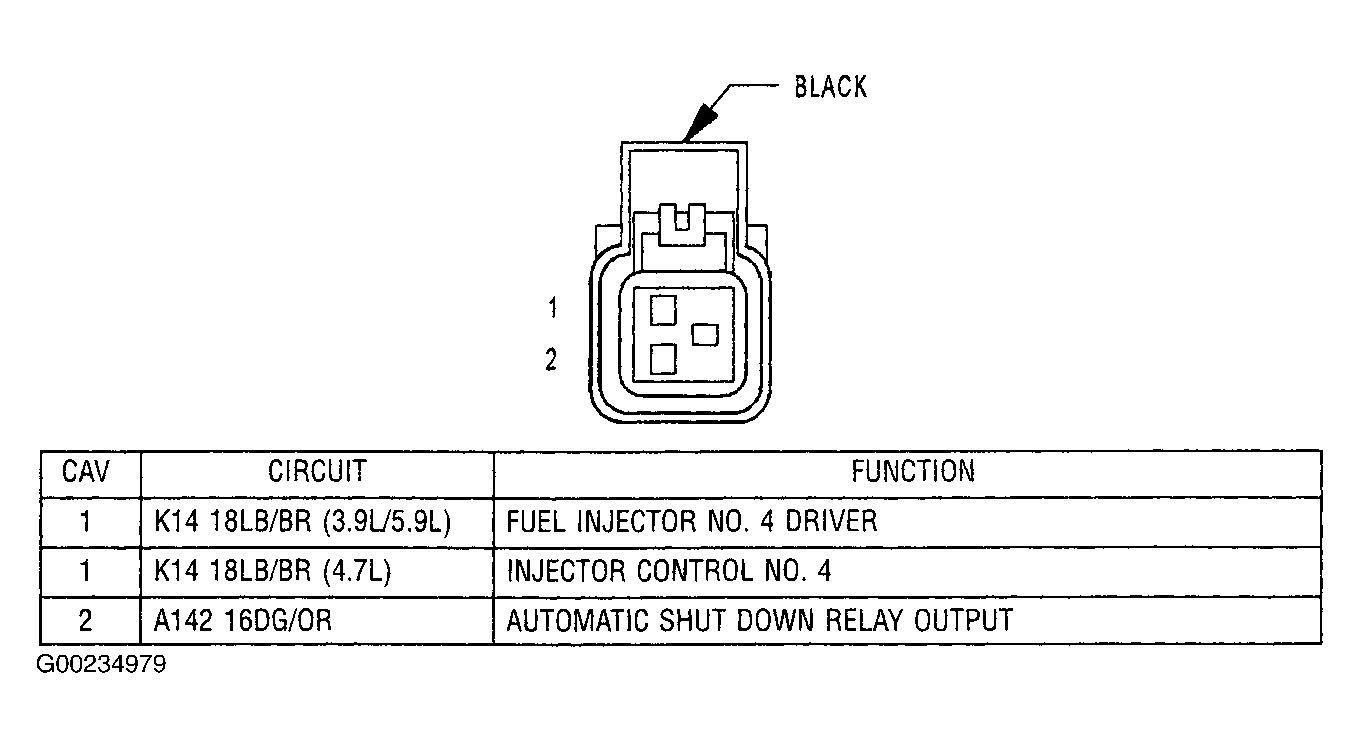

Fig 18: Identifying Fuel Injector No. 4 Harness Connector Terminals

G00234979

Courtesy of CHRYSLER CORP.

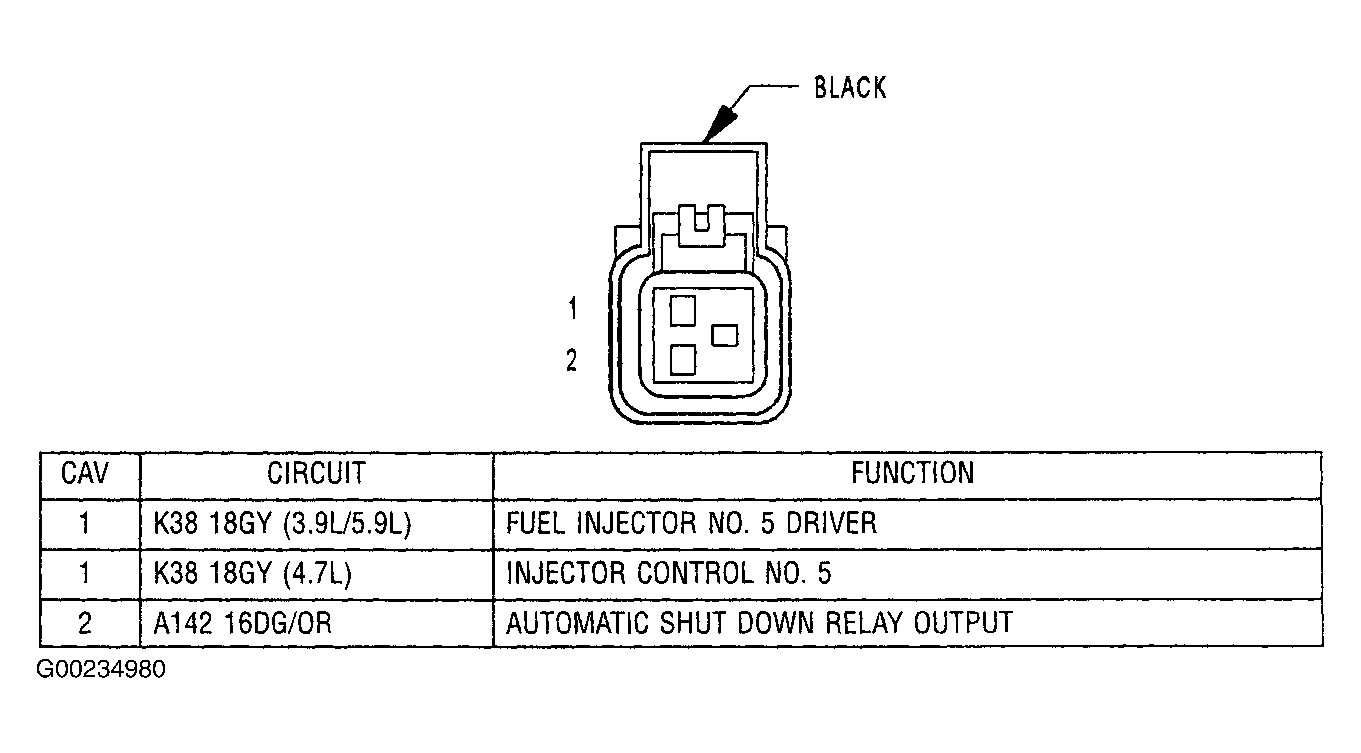

Fig 19: Identifying Fuel Injector No. 5 Harness Connector Terminals

G00234980

Courtesy of CHRYSLER CORP.

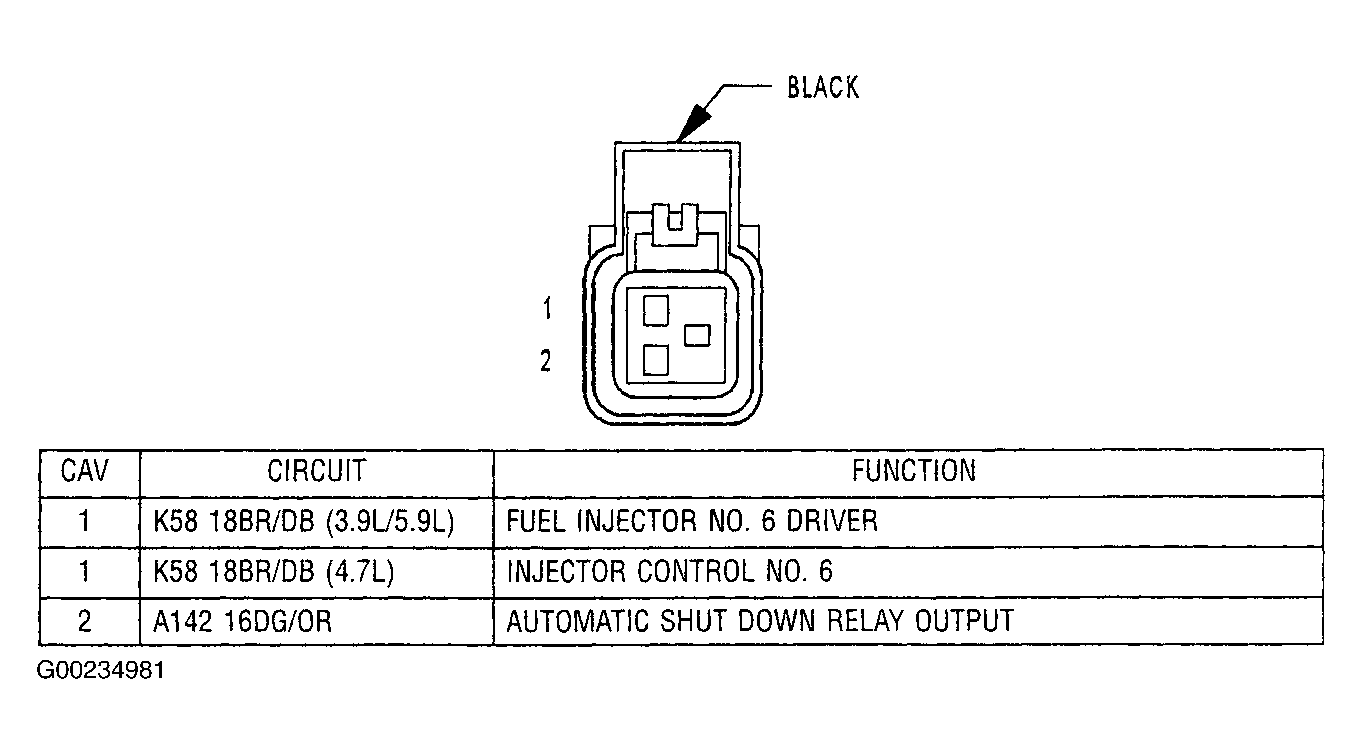

Fig 20: Identifying Fuel Injector No. 6 Harness Connector Terminals

G00234981

Courtesy of CHRYSLER CORP.

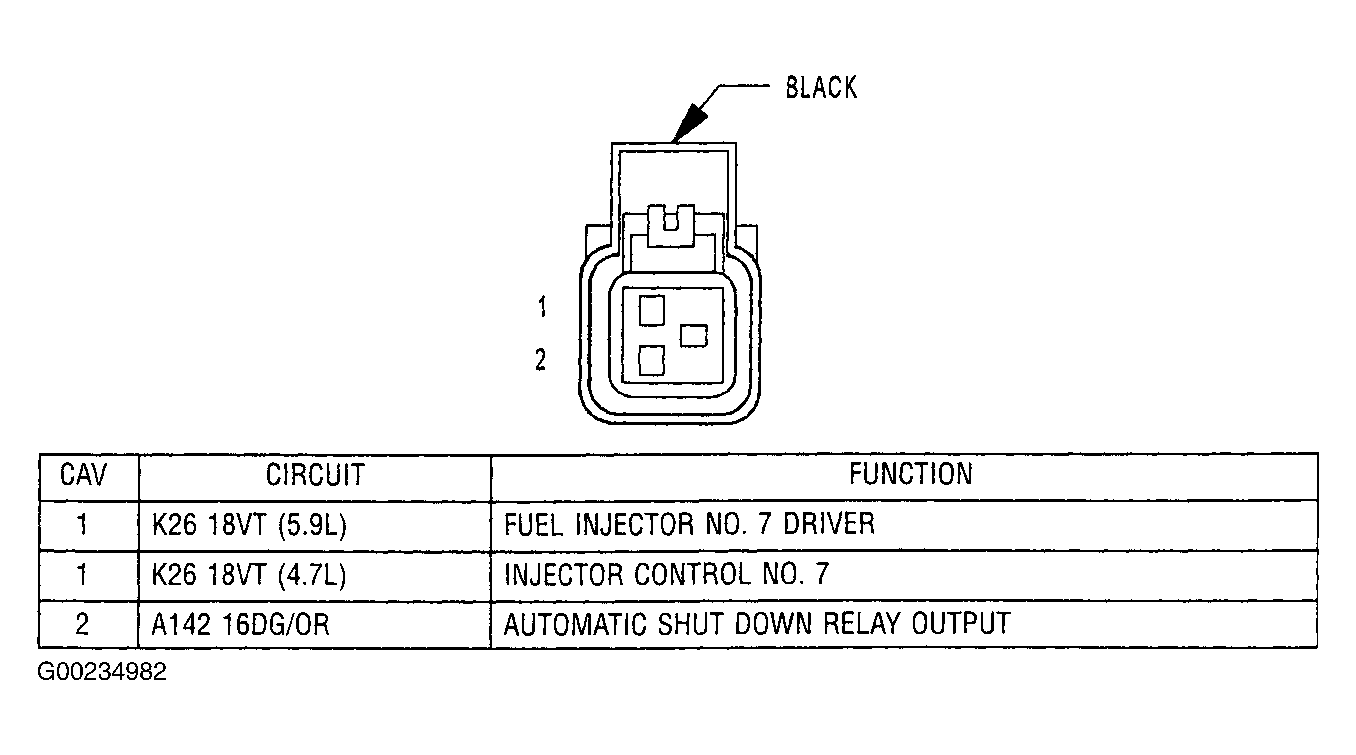

Fig 21: Identifying Fuel Injector No. 7 Harness Connector Terminals

G00234982

Courtesy of CHRYSLER CORP.

Fig 22: Identifying Fuel Injector No. 8 Harness Connector Terminals

G00234984

Courtesy of CHRYSLER CORP.

Fig 23: Identifying Fuel Pump Module Harness Connector Terminals

G00235033

Courtesy of CHRYSLER CORP.

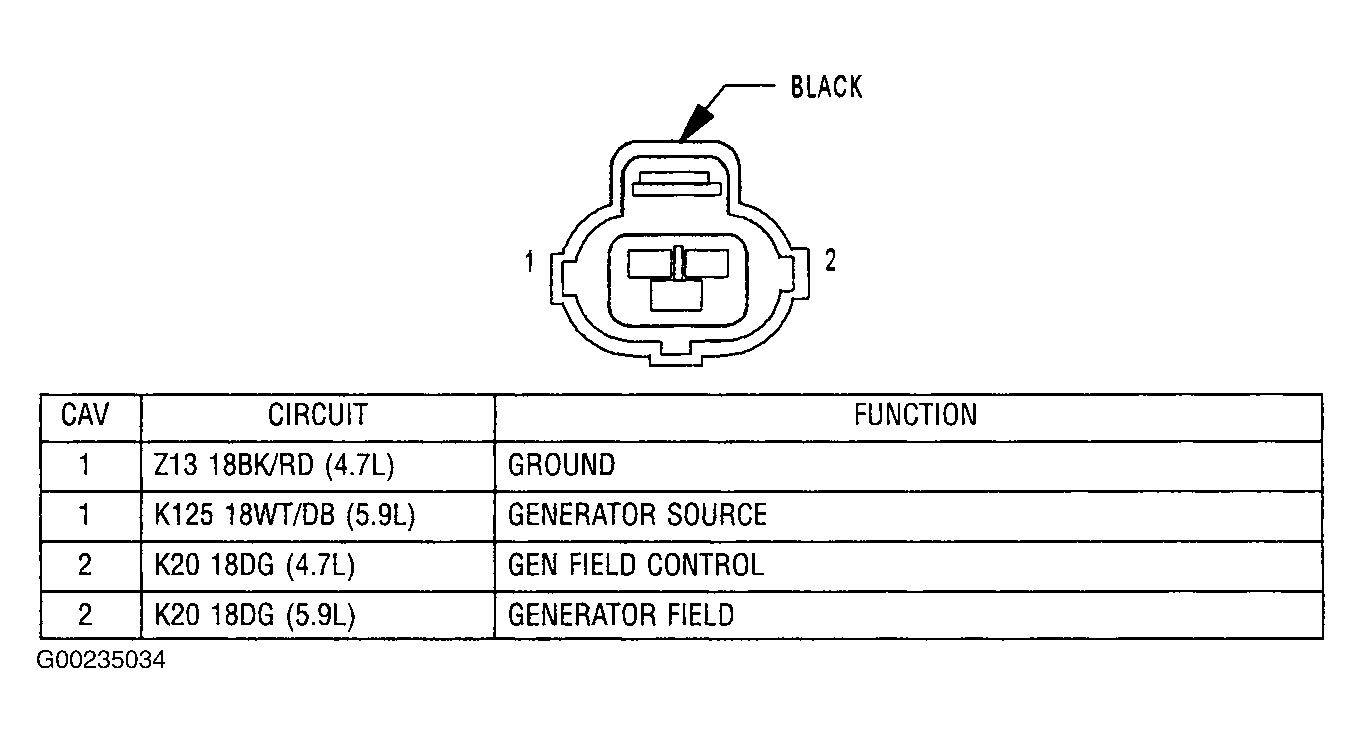

Fig 24: Identifying Generator Harness Connector Terminals

G00235034

Courtesy of CHRYSLER CORP.

Fig 25: Identifying Idle Air Control Motor Harness Connector Terminals

G00235035

Courtesy of CHRYSLER CORP.

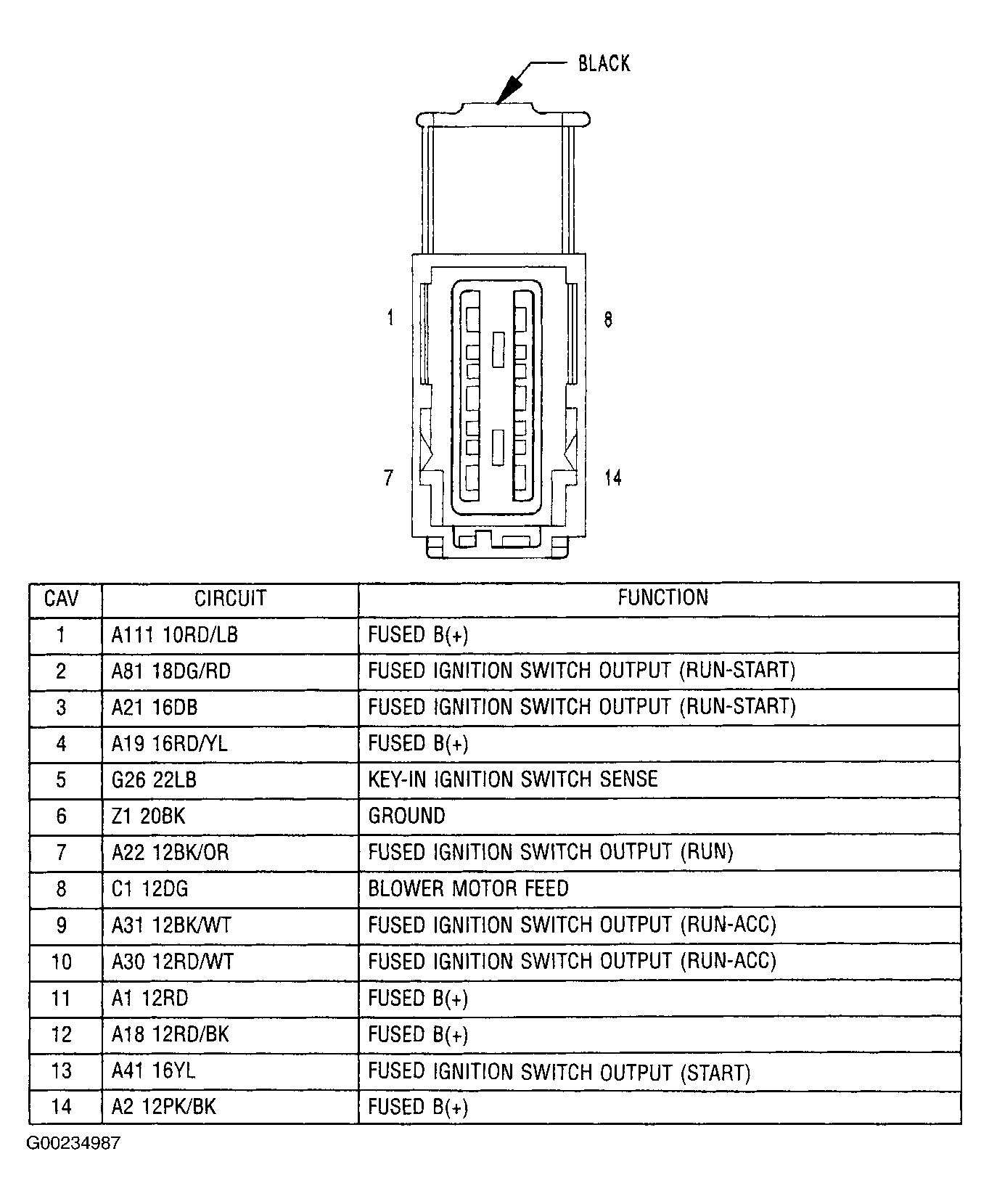

Fig 26: Identifying Ignition Switch Harness Connector Terminals

G00234987

Courtesy of CHRYSLER CORP.

Fig 27: Identifying Injector Coil On Plug No. 1 Harness Connector Terminals

G00234962

Courtesy of CHRYSLER CORP.

Fig 28: Identifying Injector Coil On Plug No. 2 Harness Connector Terminals

G00234964

Courtesy of CHRYSLER CORP.

Fig 29: Identifying Injector Coil On Plug No. 3 Harness Connector Terminals

G00234965

Courtesy of CHRYSLER CORP.

Fig 30: Identifying Injector Coil On Plug No. 4 Harness Connector Terminals

G00234966

Courtesy of CHRYSLER CORP.

Fig 31: Identifying Injector Coil On Plug No. 5 Harness Connector Terminals

G00234963

Courtesy of CHRYSLER CORP.

Fig 32: Identifying Injector Coil On Plug No. 6 Harness Connector Terminals

G00234967

Courtesy of CHRYSLER CORP.

Fig 33: Identifying Injector Coil On Plug No. 7 Harness Connector Terminals

G00234968

Courtesy of CHRYSLER CORP.

Fig 34: Identifying Injector Coil On Plug No. 8 Harness Connector Terminals

G00234969

Courtesy of CHRYSLER CORP.

Fig 35: Identifying Input Speed Sensor Harness Connector Terminals

G00235036

Courtesy of CHRYSLER CORP.

Fig 36: Identifying Intake Air Temperature Sensor Harness Connector Terminals

G00235037

Courtesy of CHRYSLER CORP.

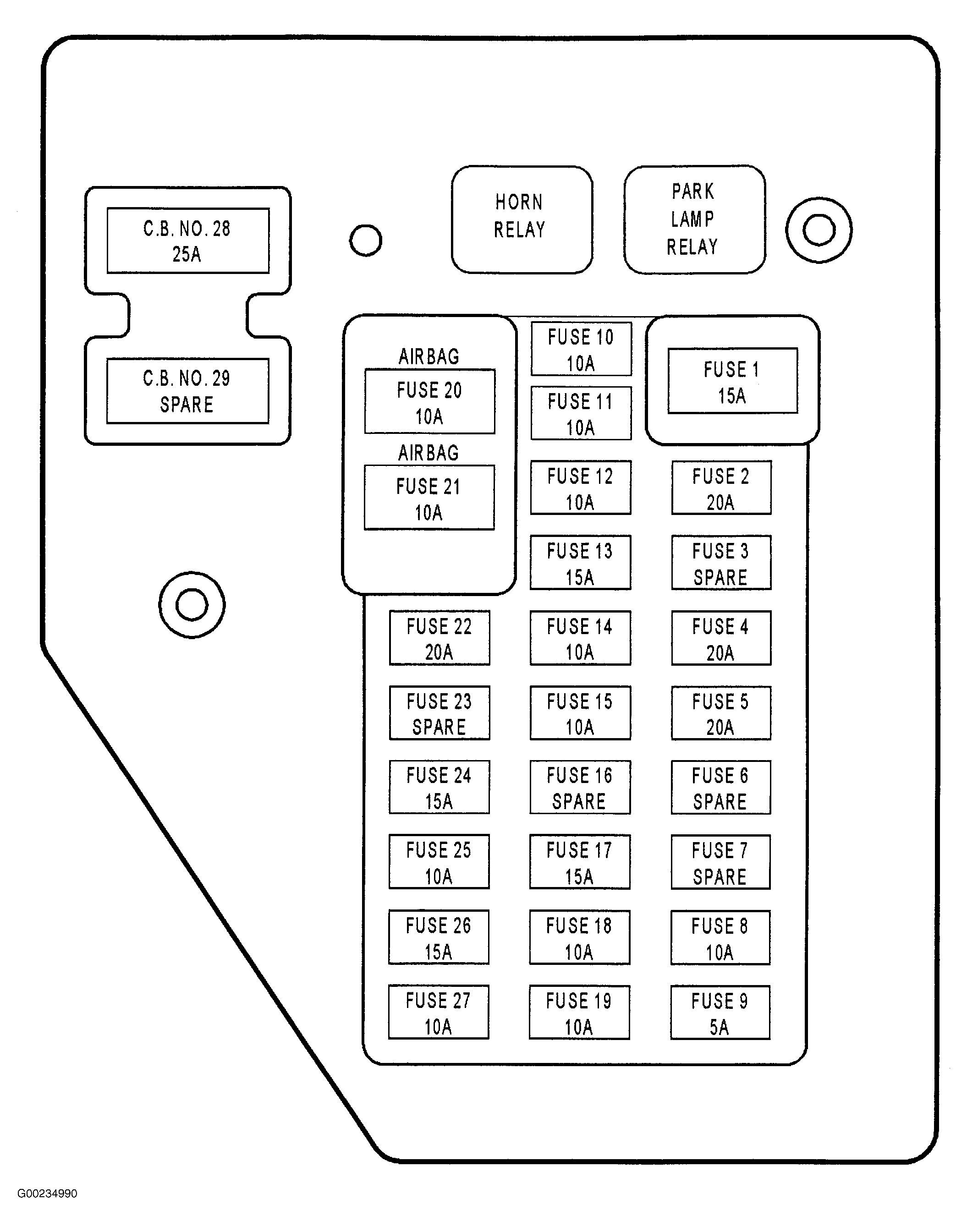

Fig 37: Identifying Junction Block Fuse View (1 Of 2)

G00234990

Courtesy of CHRYSLER CORP.

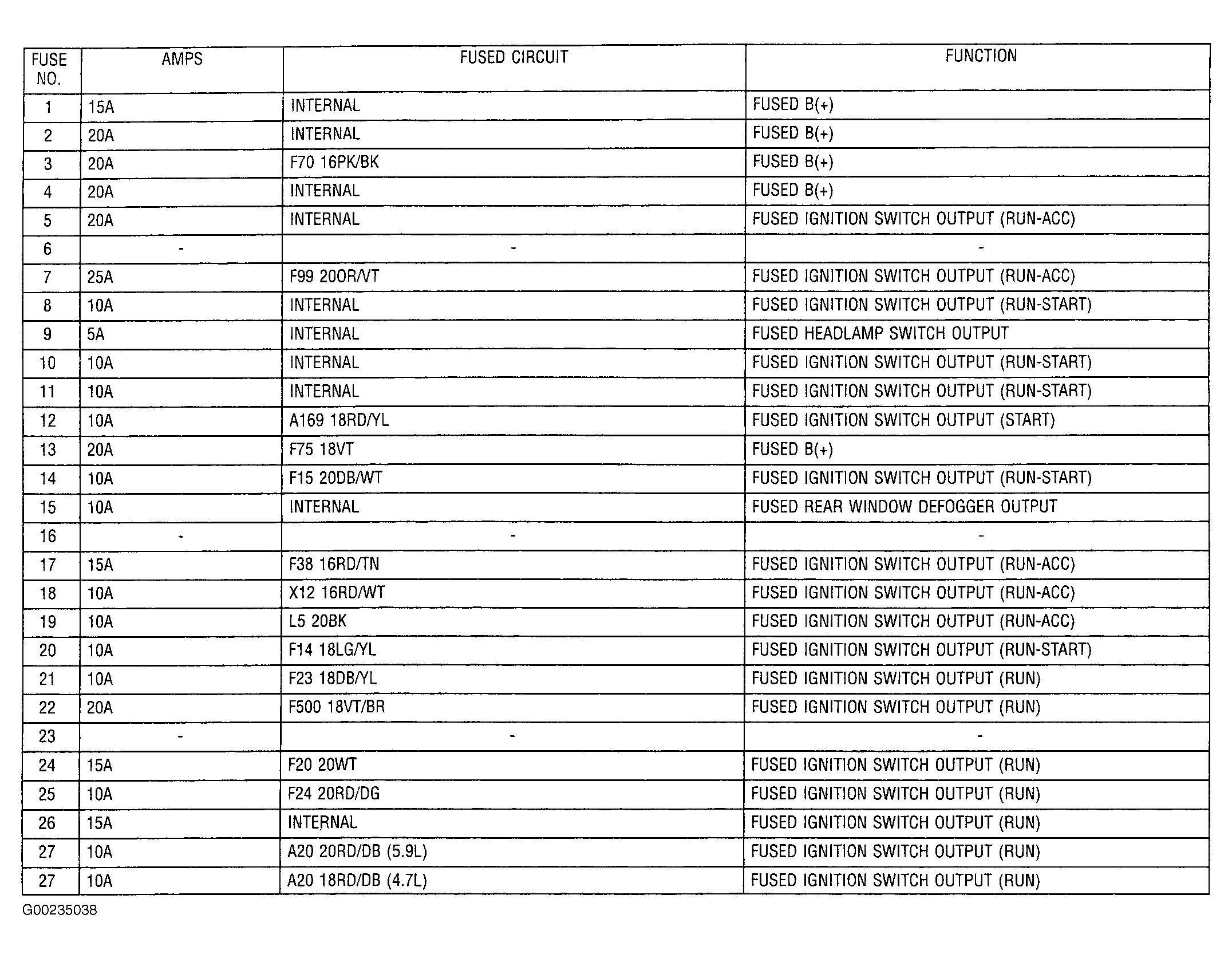

Fig 38: Identifying Junction Block Circuits (2 Of 2)

G00235038

Courtesy of CHRYSLER CORP.

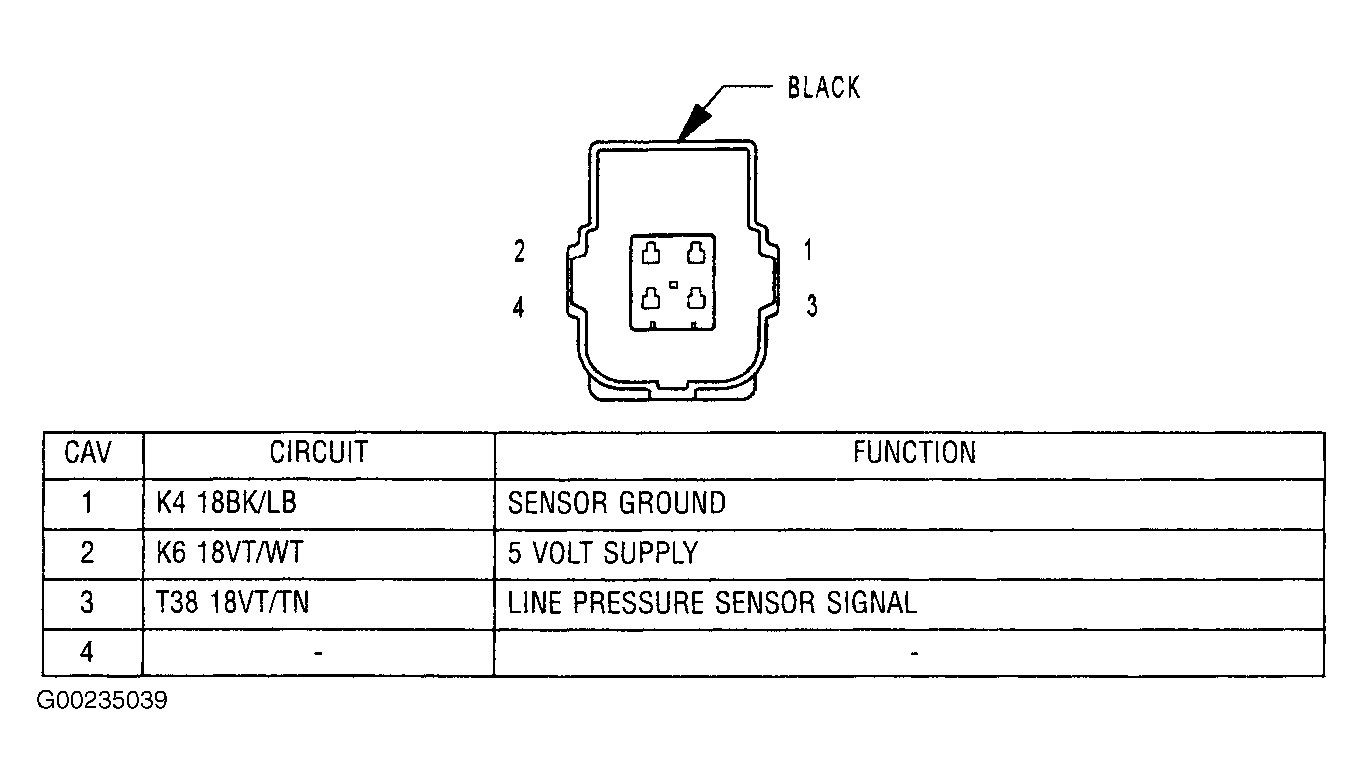

Fig 39: Identifying Line Pressure Sensor Harness Connector Terminals

G00235039

Courtesy of CHRYSLER CORP.

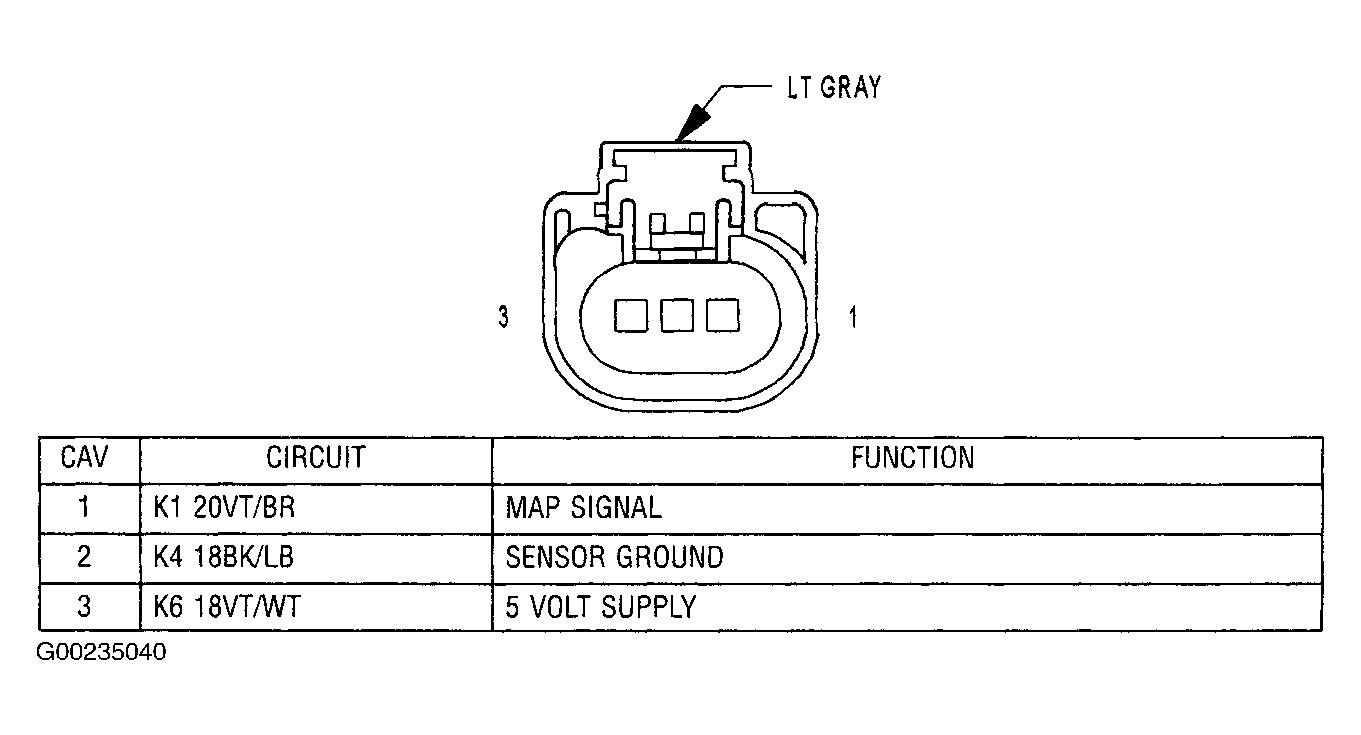

Fig 40: Identifying Manifold Absolute Pressure Sensor Harness Connector Terminals

G00235040

Courtesy of CHRYSLER CORP.

Fig 41: Identifying Natural Vacuum Leak Detection Assembly Harness Connector Terminals

G00234995

Courtesy of CHRYSLER CORP.

Fig 42: Identifying Output Speed Sensor Harness Connector Terminals

G00234996

Courtesy of CHRYSLER CORP.

Fig 43: Identifying Overdrive Switch Harness Connector Terminals

G00235041

Courtesy of CHRYSLER CORP.

Fig 44: Identifying Power Distribution Center Components & Circuits (1 Of 3)

G00235045

Courtesy of CHRYSLER CORP.

Fig 45: Identifying Power Distribution Center Components & Circuits (2 Of 3)

G00235046

Courtesy of CHRYSLER CORP.

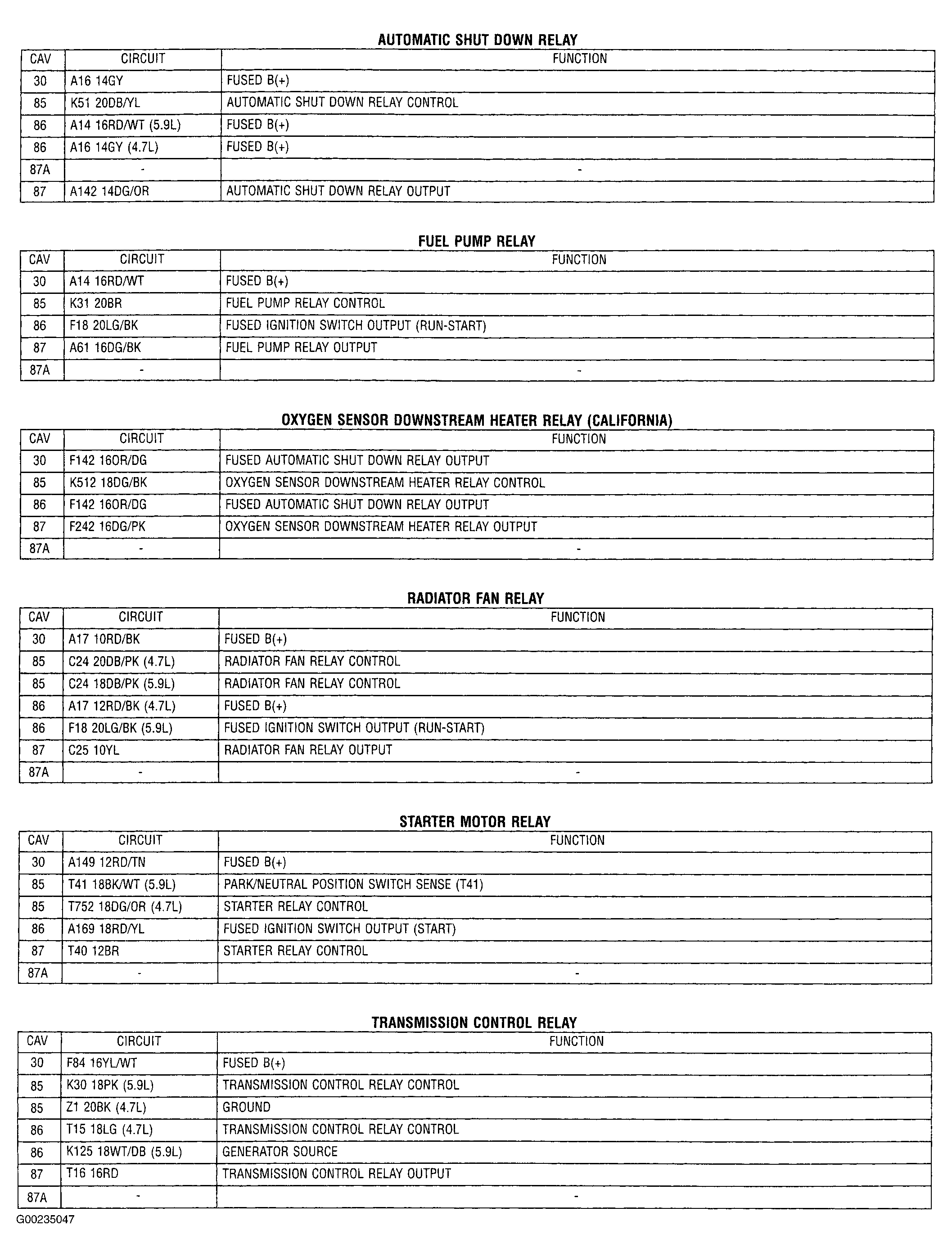

Fig 46: Identifying Power Distribution Center Components & Circuits (3 Of 3)

G00235047

Courtesy of CHRYSLER CORP.

Fig 47: Identifying Power Steering Pressure Switch Harness Connector Terminals

G00235006

Courtesy of CHRYSLER CORP.

Fig 48: Identifying Powertrain Control Module C1 Harness Connector Terminals

G00235048

Courtesy of CHRYSLER CORP.

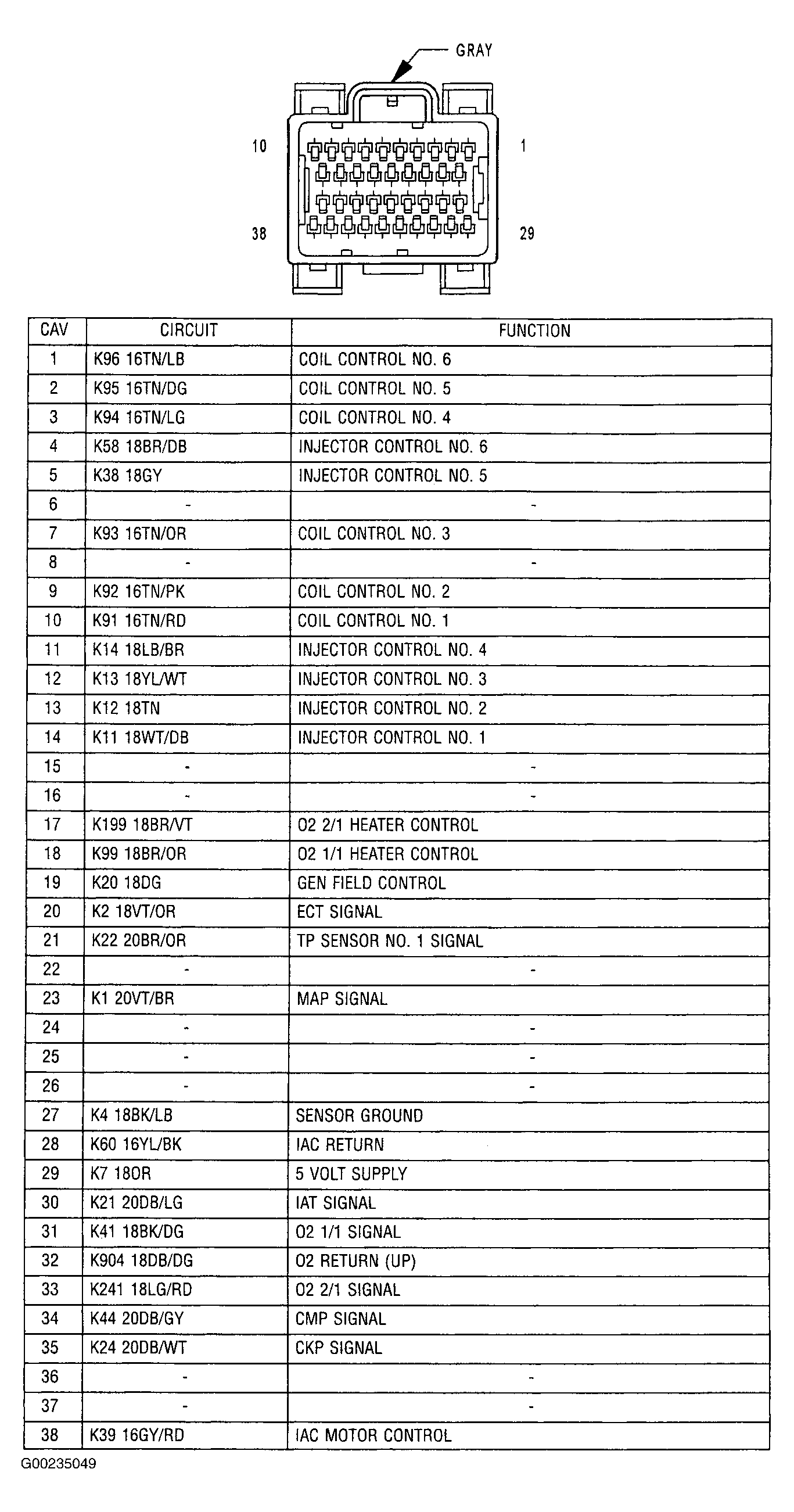

Fig 49: Identifying Powertrain Control Module C2 Harness Connector Terminals

G00235049

Courtesy of CHRYSLER CORP.

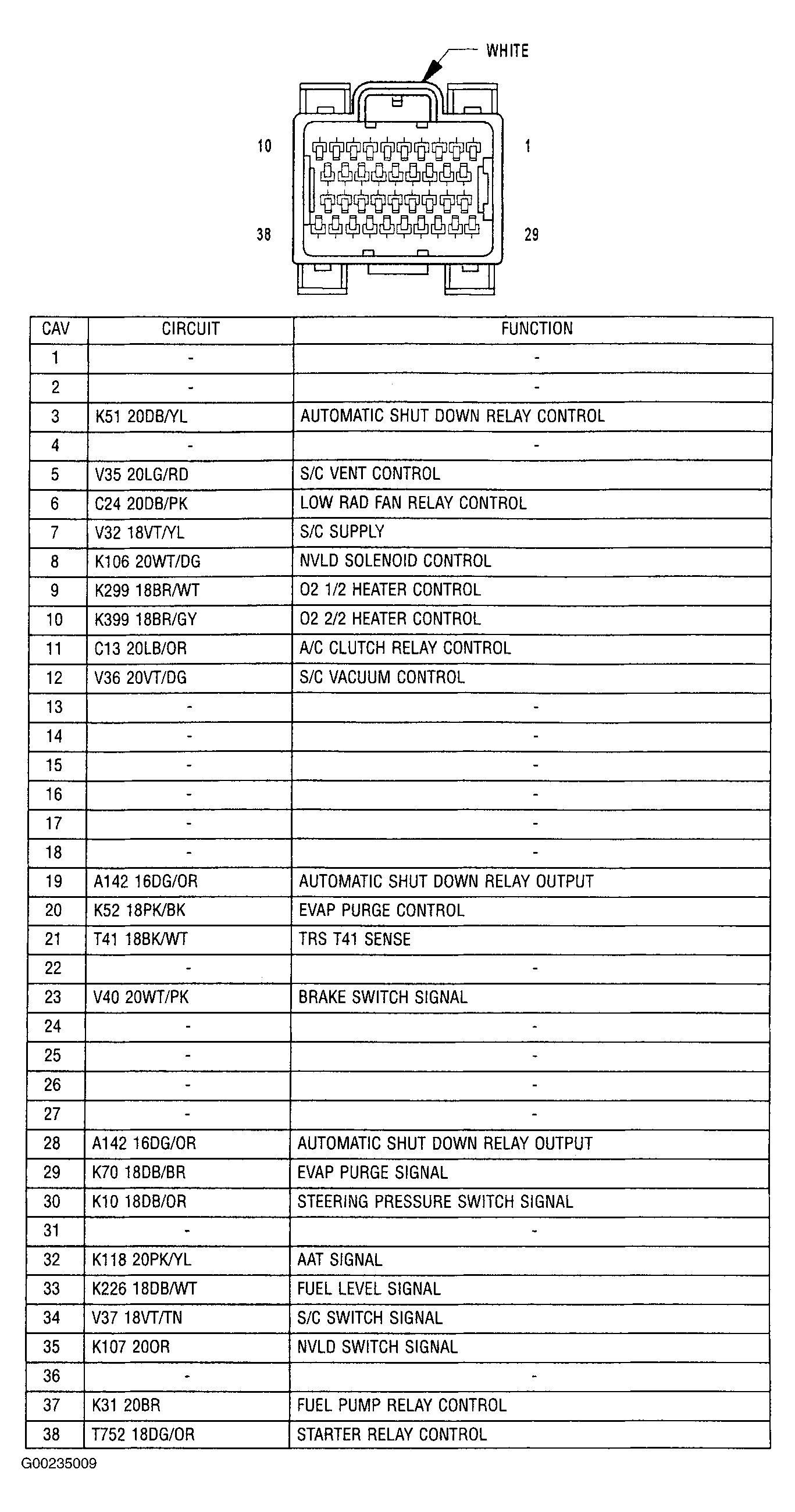

Fig 50: Identifying Powertrain Control Module C3 Harness Connector Terminals

G00235009

Courtesy of CHRYSLER CORP.

Fig 51: Identifying Powertrain Control Module C4 Harness Connector Terminals

G00235050

Courtesy of CHRYSLER CORP.

Fig 52: Identifying Radiator Fan Motor Harness Connector Terminals

G00235012

Courtesy of CHRYSLER CORP.

Fig 53: Identifying Sentry Key Immobilizer Module Harness Connector Terminals

G00096055

Courtesy of DAIMLERCHRYSLER

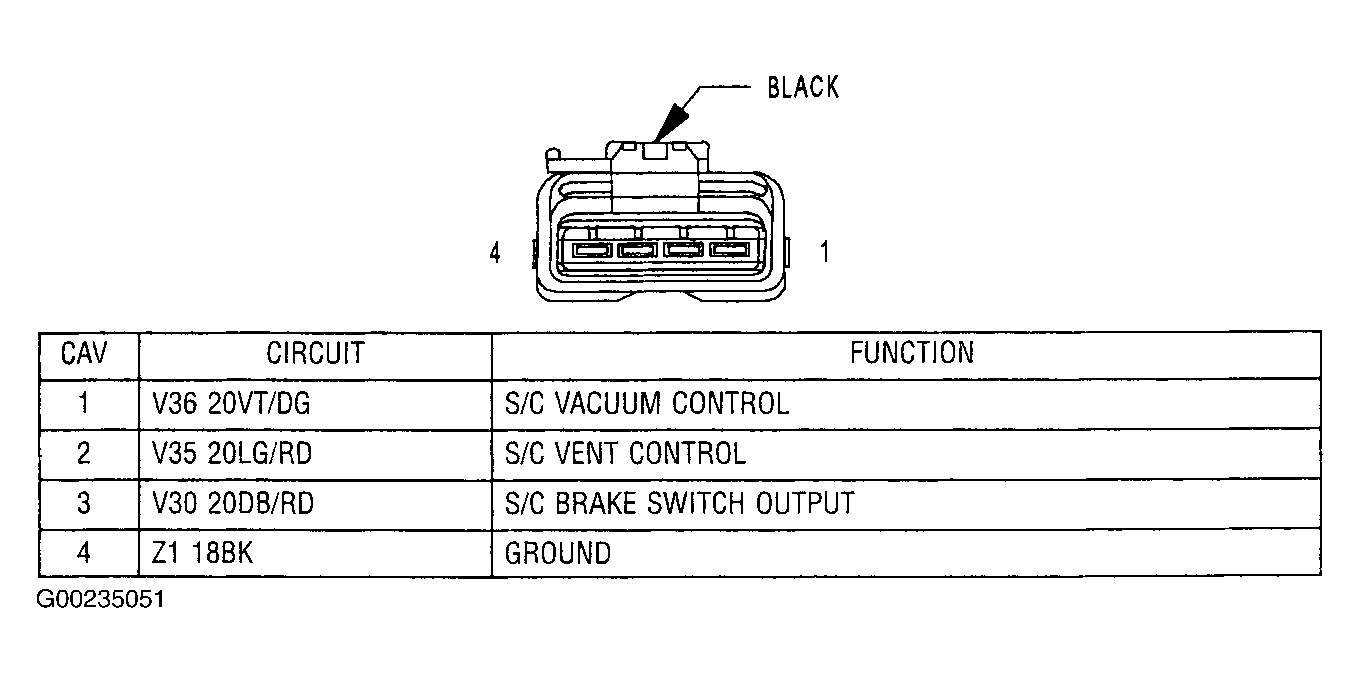

Fig 54: Identifying Speed Control Servo Harness Connector Terminals

G00235051

Courtesy of CHRYSLER CORP.

Fig 55: Identifying Speed Control Switch (Left) Harness Connector Terminals

G00234992

Courtesy of CHRYSLER CORP.

Fig 56: Identifying Speed Control Switch (Right) Harness Connector Terminals

G00235014

Courtesy of CHRYSLER CORP.

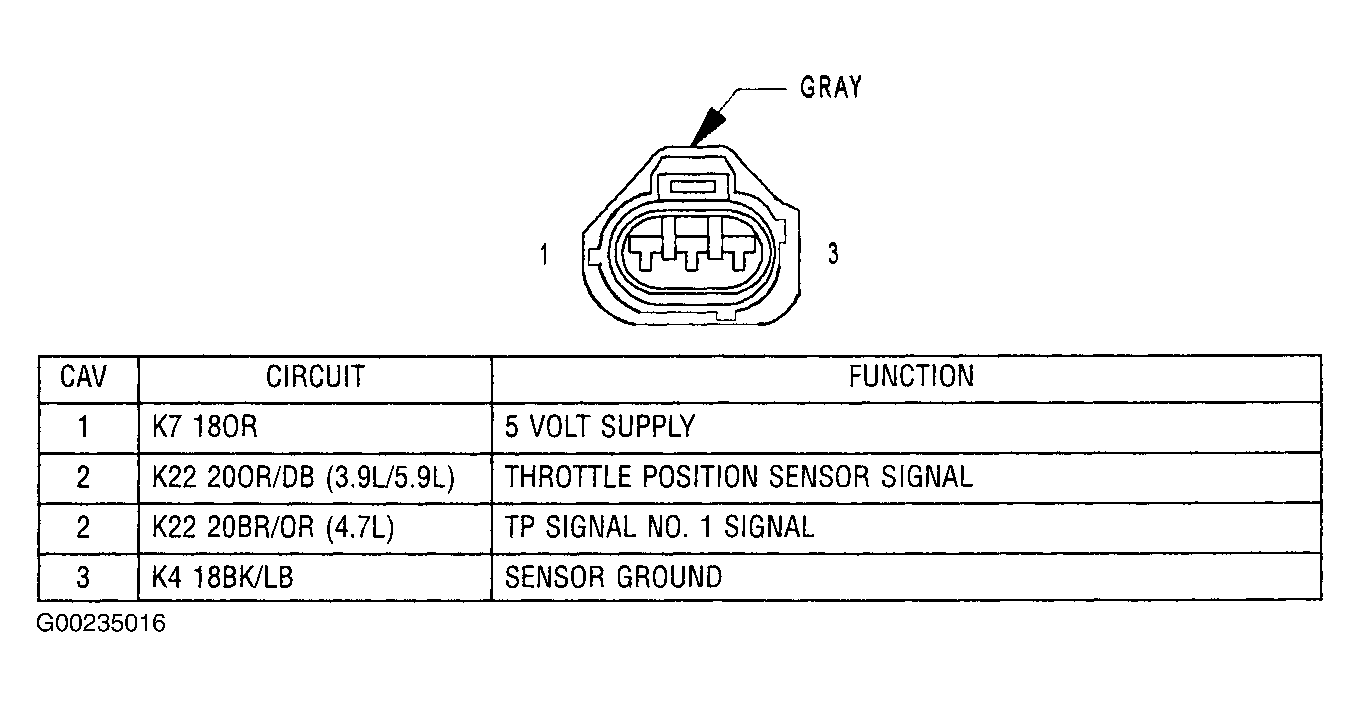

Fig 57: Identifying Throttle Position Sensor Harness Connector Terminals

G00235016

Courtesy of CHRYSLER CORP.

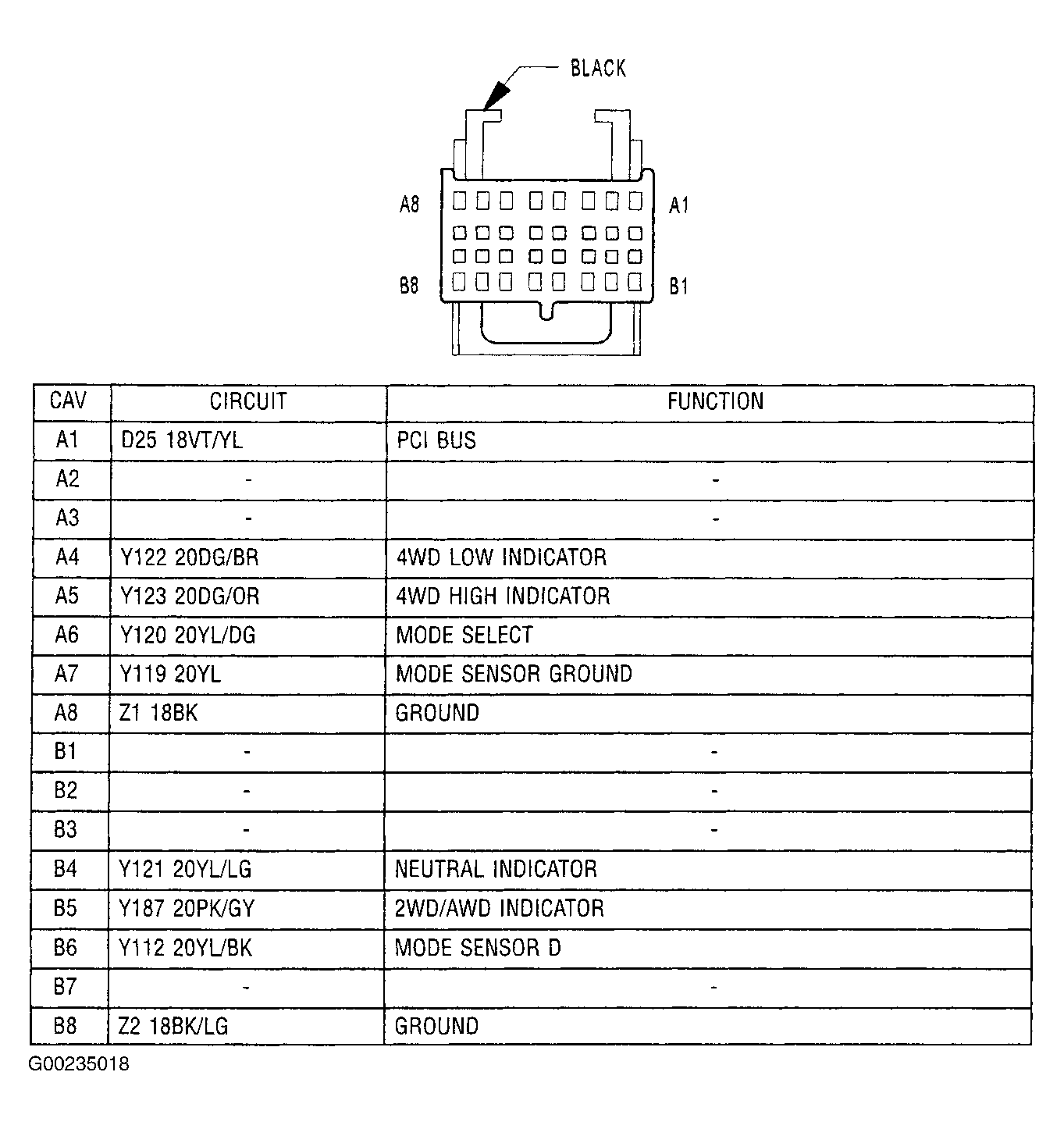

Fig 58: Identifying Transfer Case Control Module C1 Harness Connector Terminals

G00235018

Courtesy of CHRYSLER CORP.

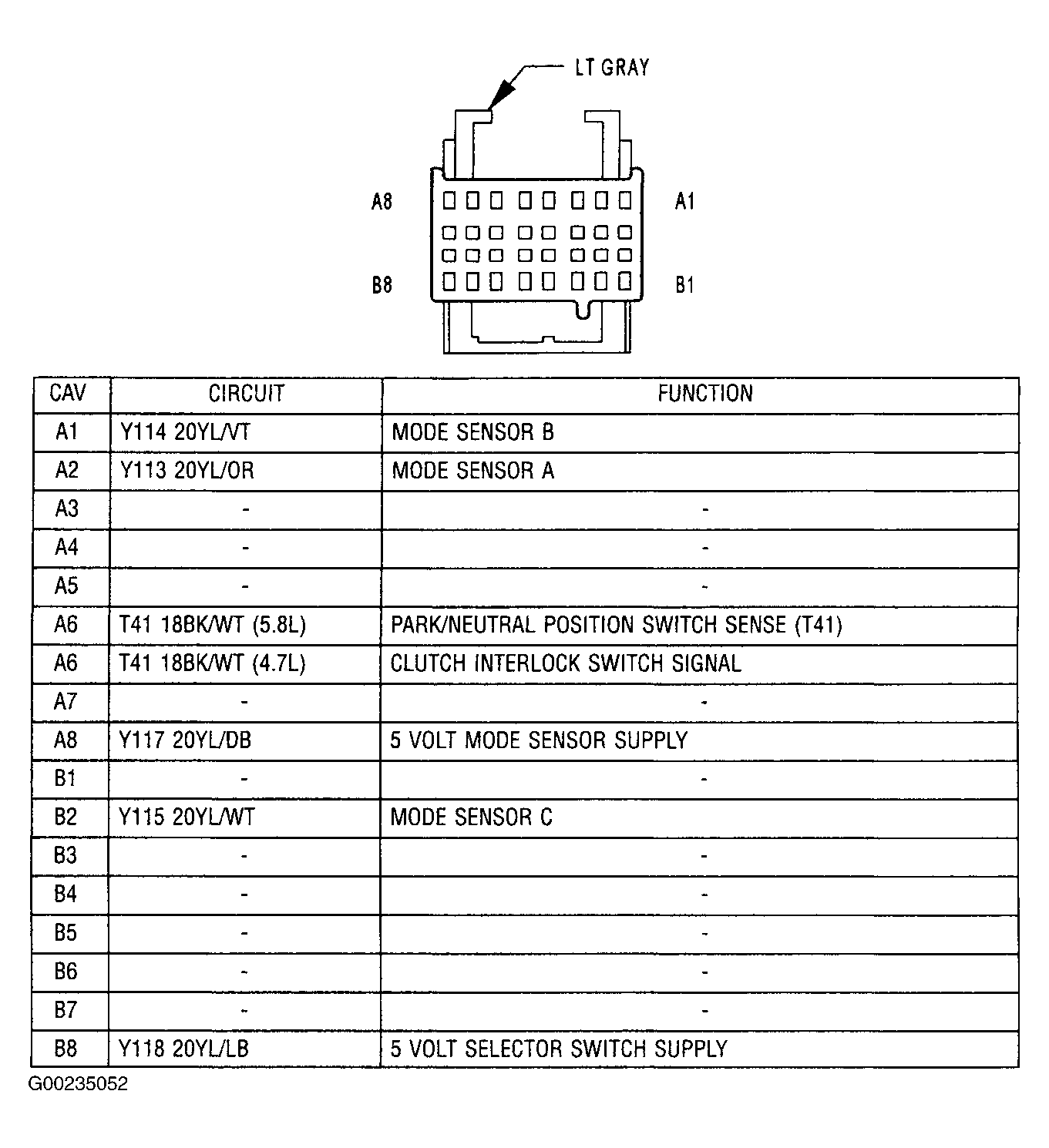

Fig 59: Identifying Transfer Case Control Module C2 Harness Connector Terminals

G00235052

Courtesy of CHRYSLER CORP.

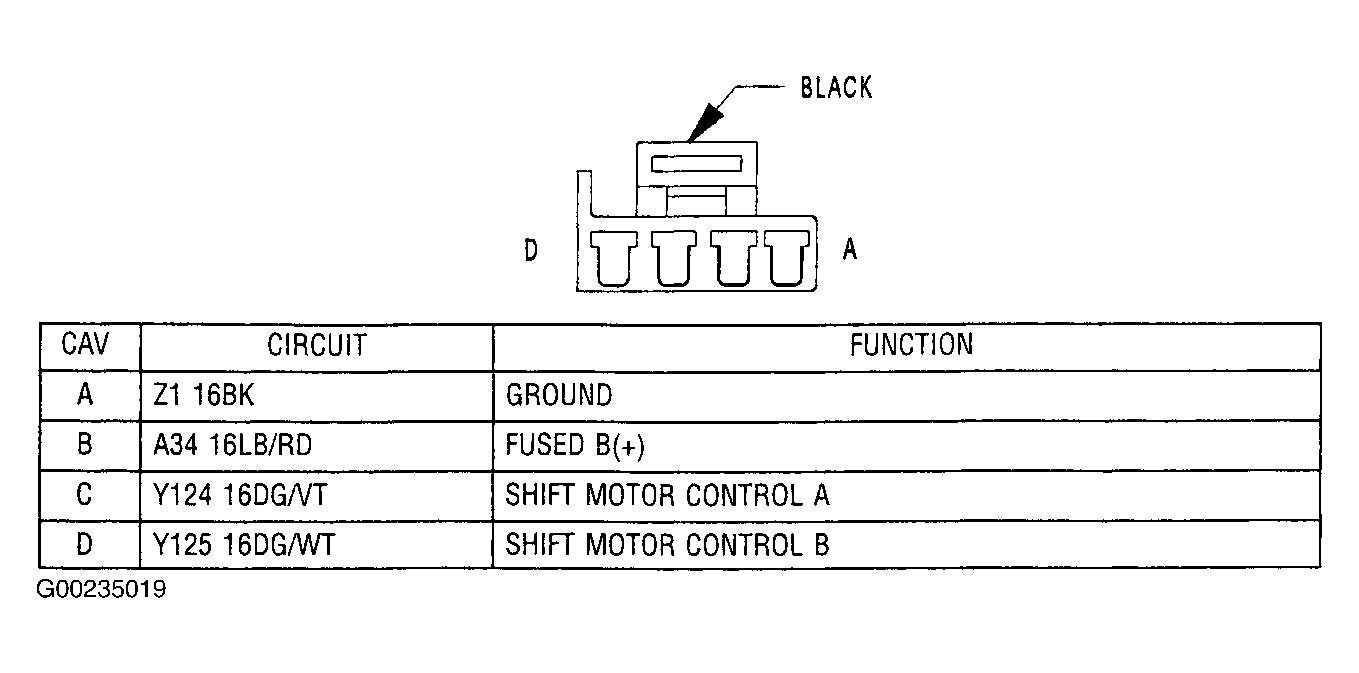

Fig 60: Identifying Transfer Case Control Module C3 Harness Connector Terminals

G00235019

Courtesy of CHRYSLER CORP.

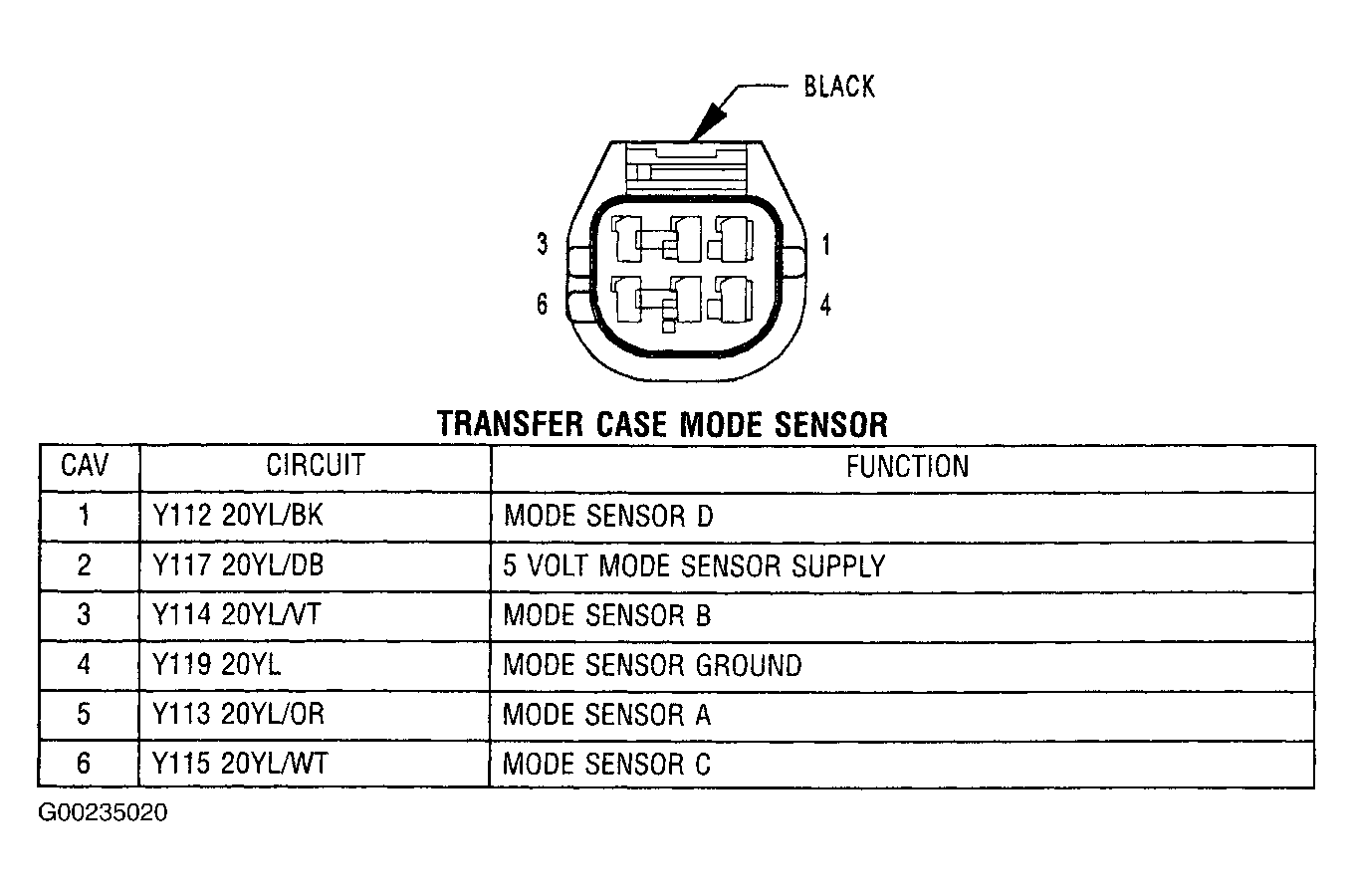

Fig 61: Identifying Transfer Case Mode Sensor Harness Connector Terminals

G00235020

Courtesy of CHRYSLER CORP.

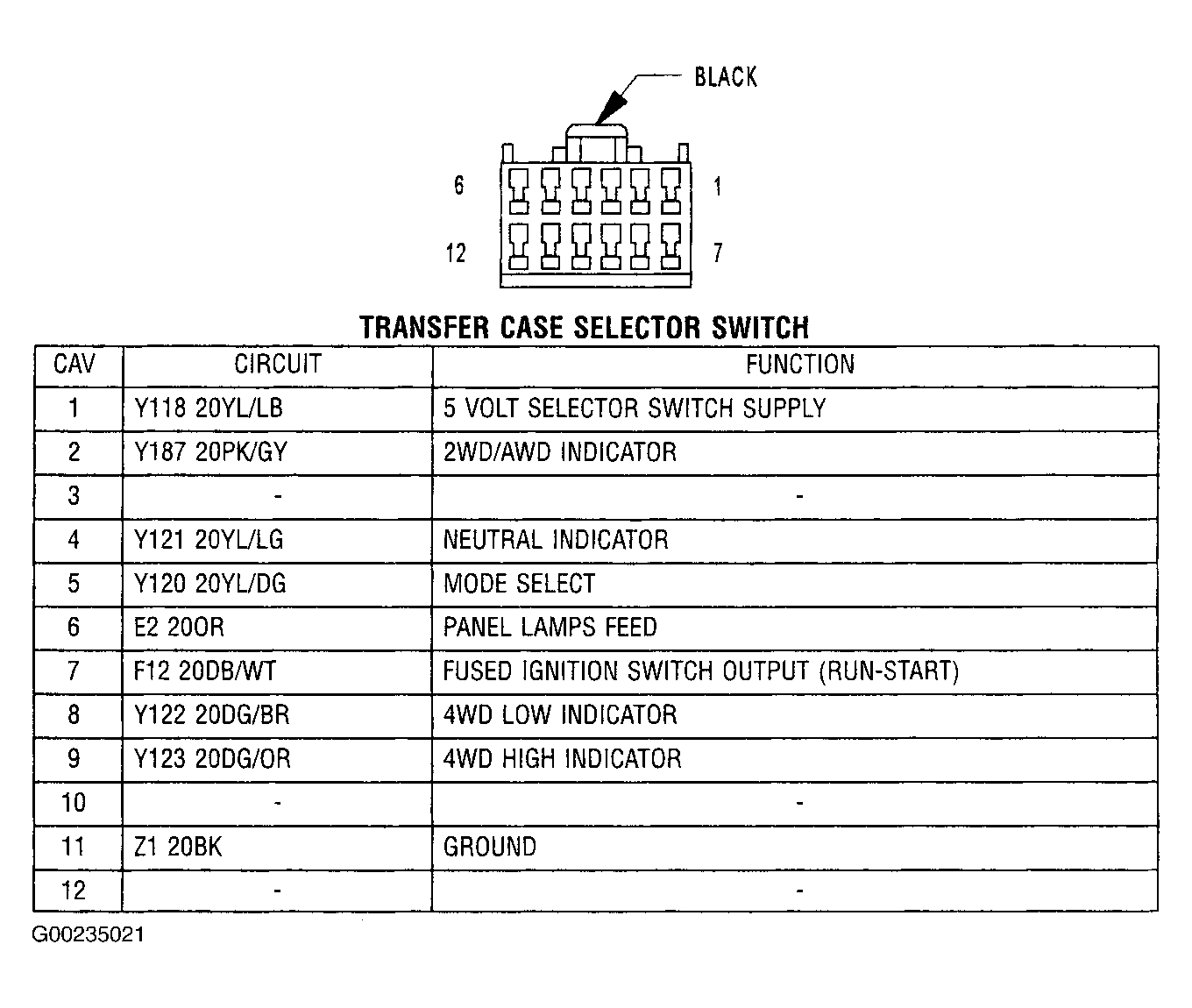

Fig 62: Identifying Transfer Case Selector Switch Harness Connector Terminals

G00235021

Courtesy of CHRYSLER CORP.

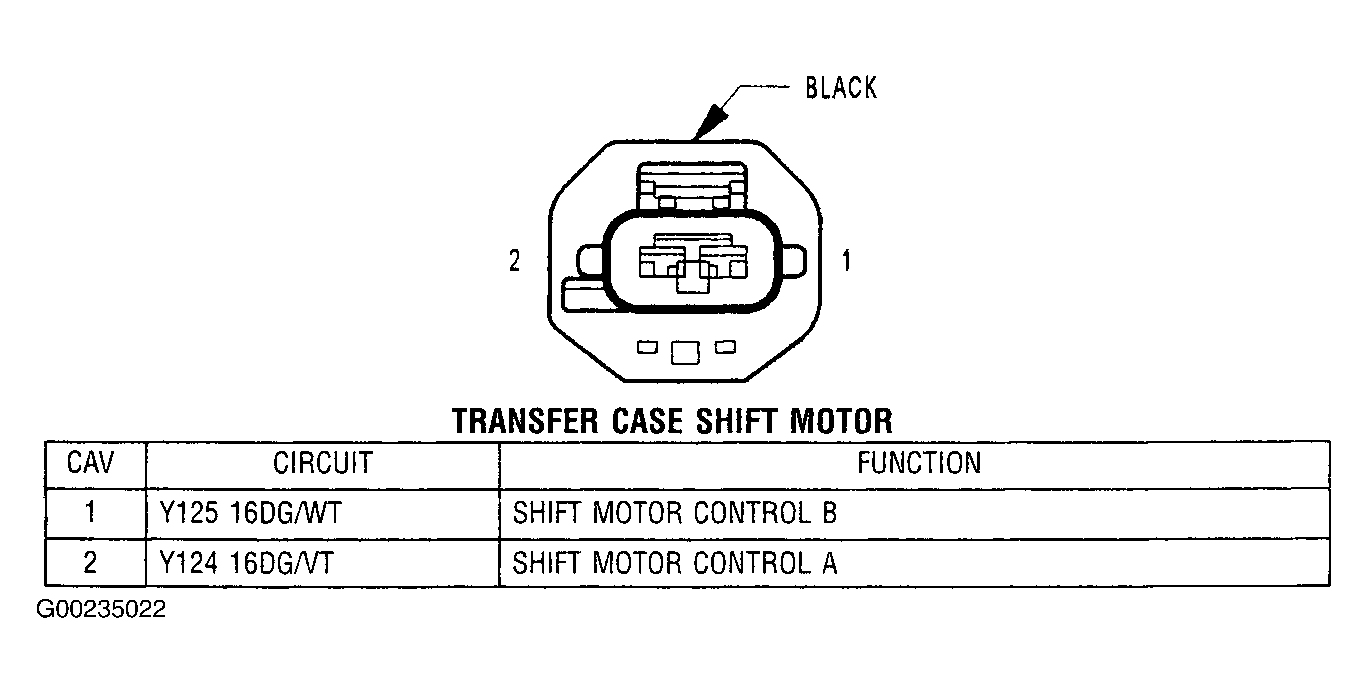

Fig 63: Identifying Transfer Case Shift Motor Harness Connector Terminals

G00235022

Courtesy of CHRYSLER CORP.

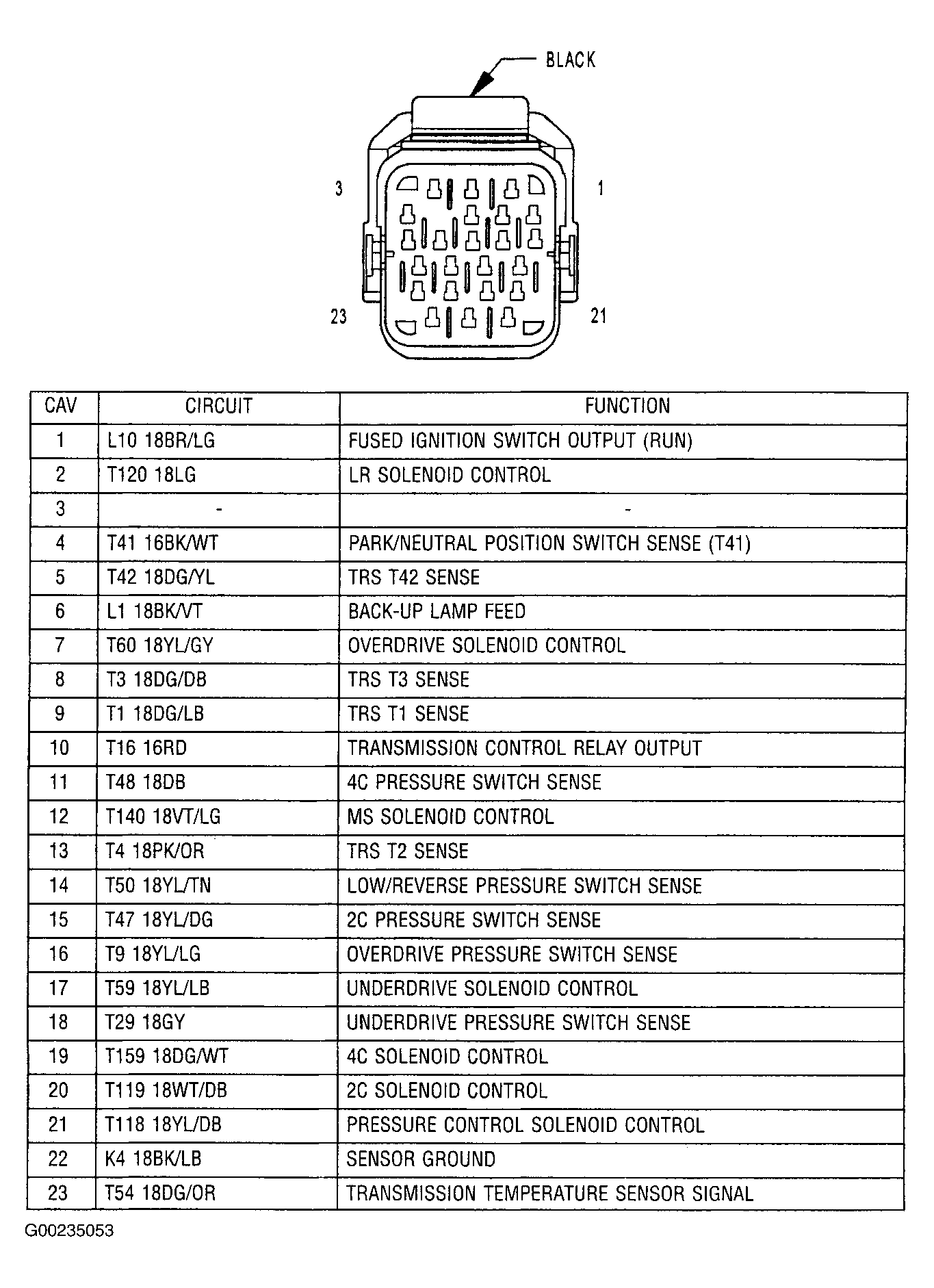

Fig 64: Identifying Transmission Solenoid/TRS Assembly Harness Connector Terminals

G00235053

Courtesy of CHRYSLER CORP.

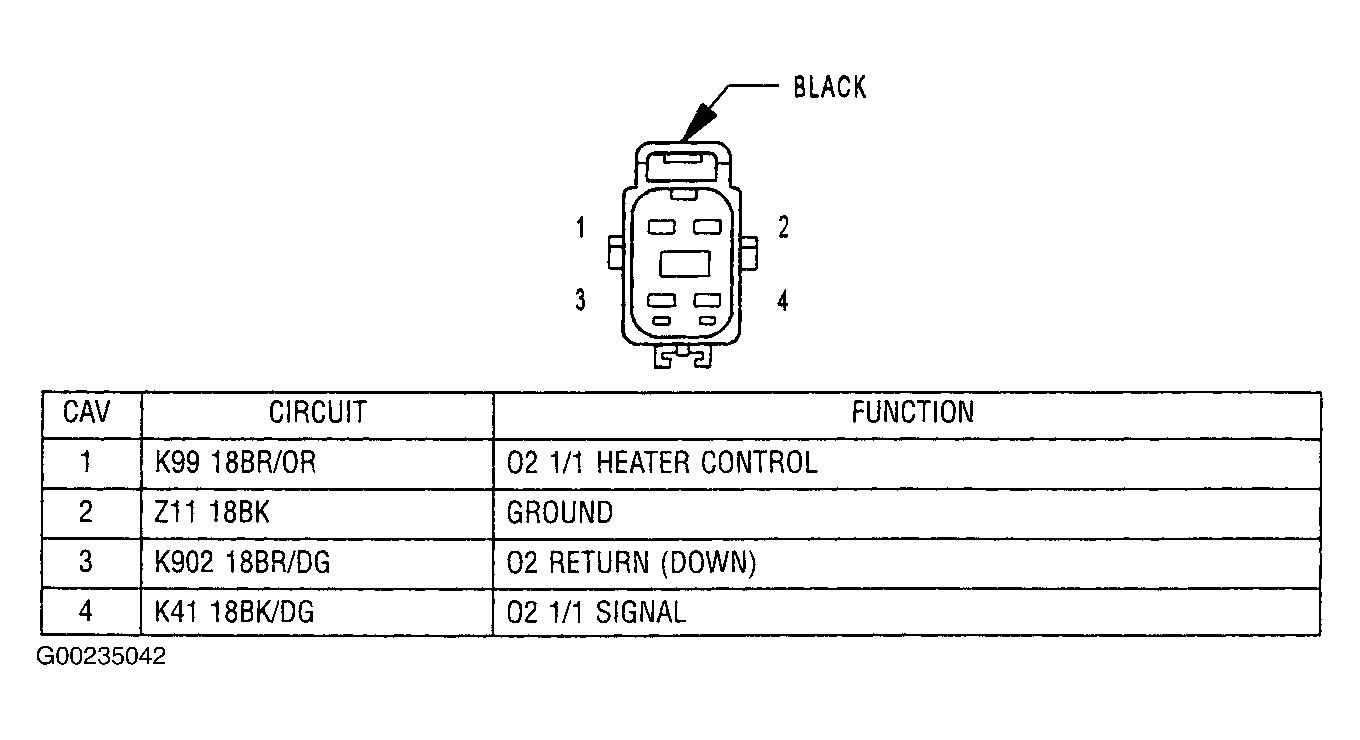

Fig 65: Identifying 1/1 Oxygen Sensor (California) Harness Connector Terminals

G00235042

Courtesy of CHRYSLER CORP.

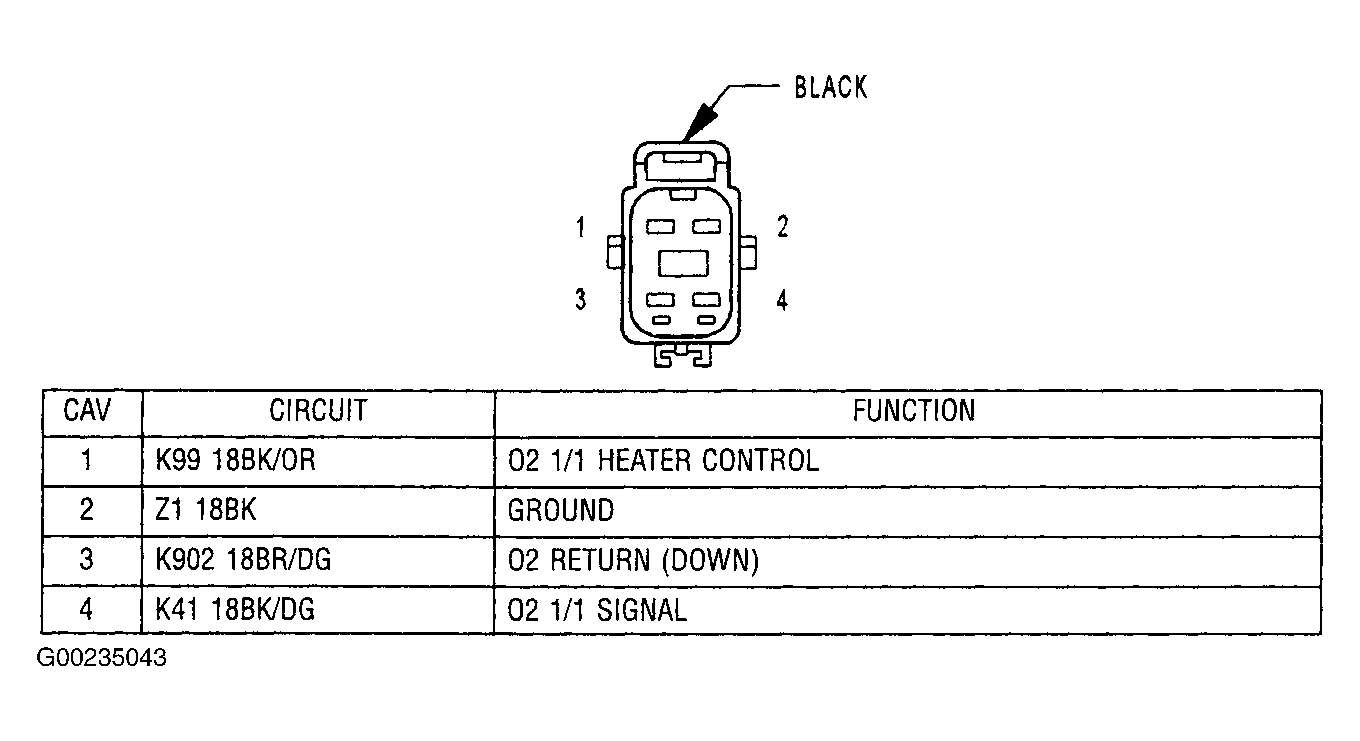

Fig 66: Identifying 1/1 Oxygen Sensor (Except California) Harness Connector Terminals

G00235043

Courtesy of CHRYSLER CORP.

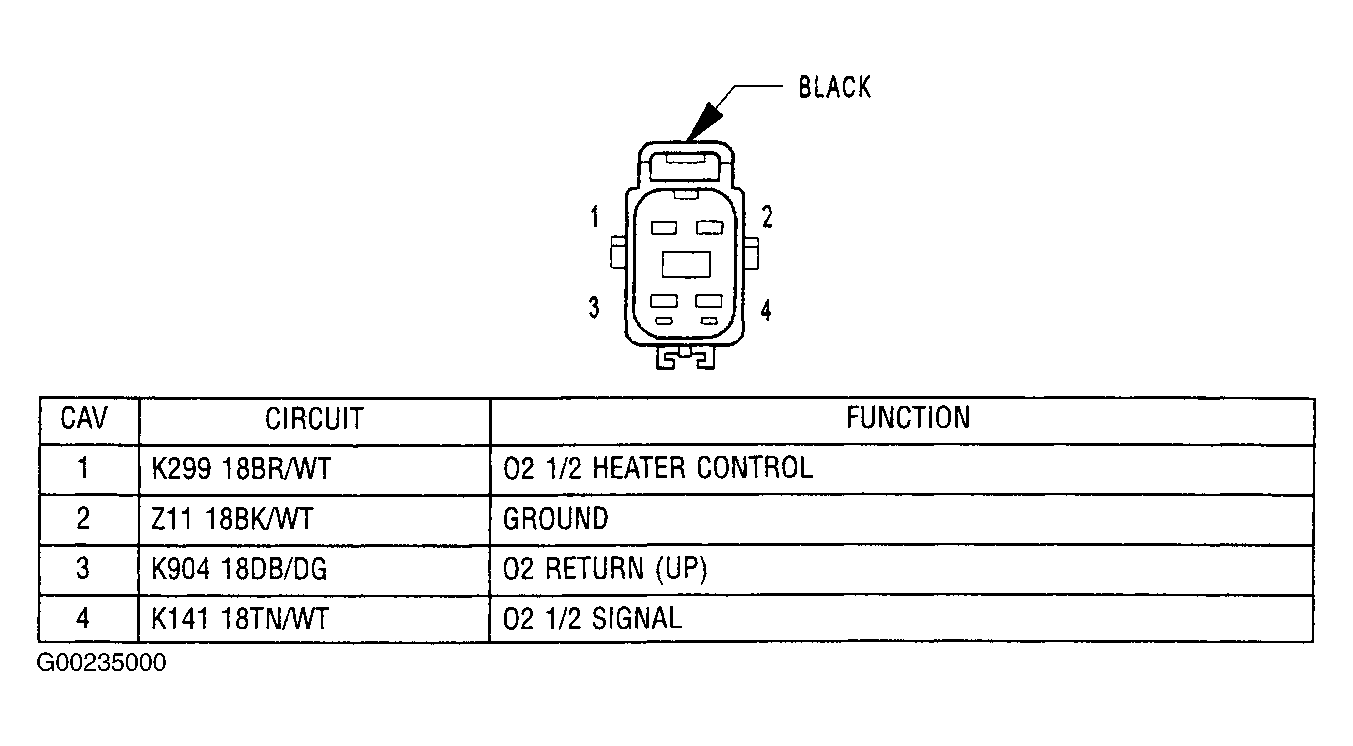

Fig 67: Identifying 1/2 Oxygen Sensor (California) Harness Connector Terminals

G00235000

Courtesy of CHRYSLER CORP.

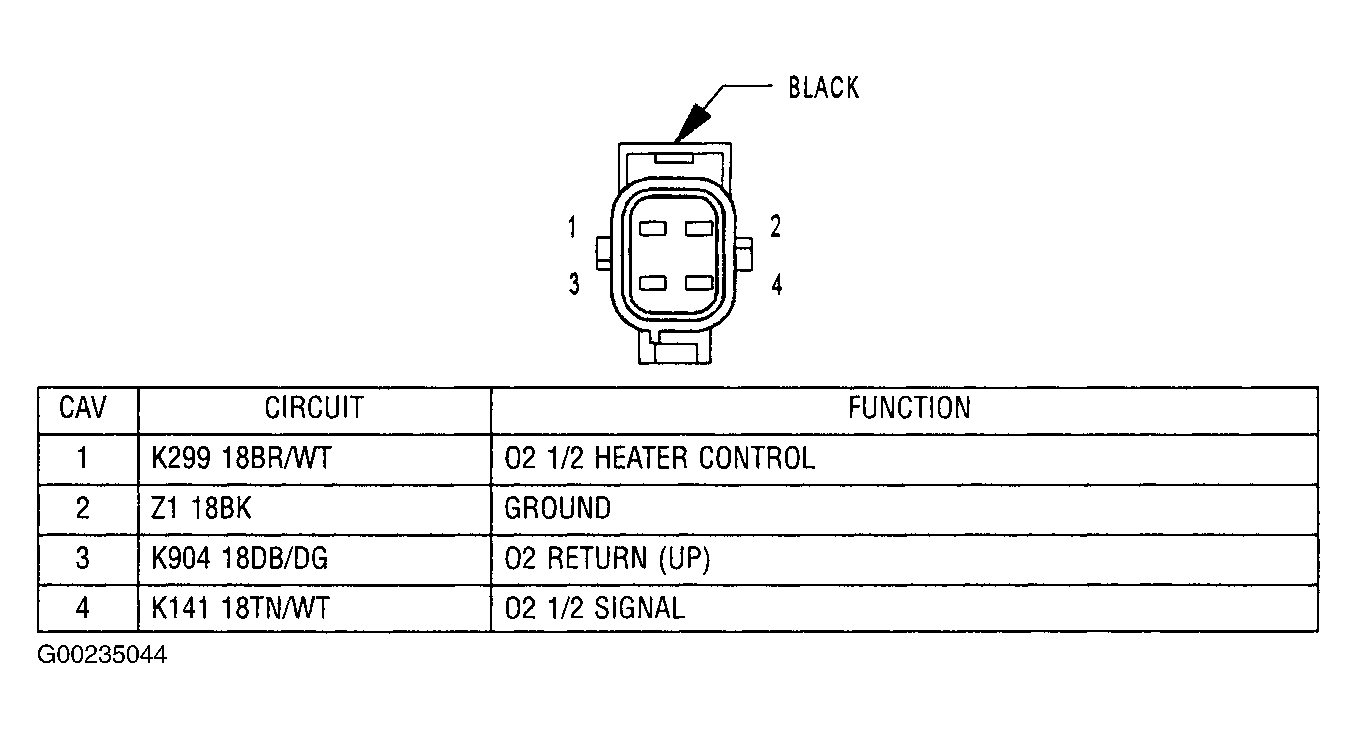

Fig 68: Identifying 1/2 Oxygen Sensor (Except California) Harness Connector Terminals

G00235044

Courtesy of CHRYSLER CORP.

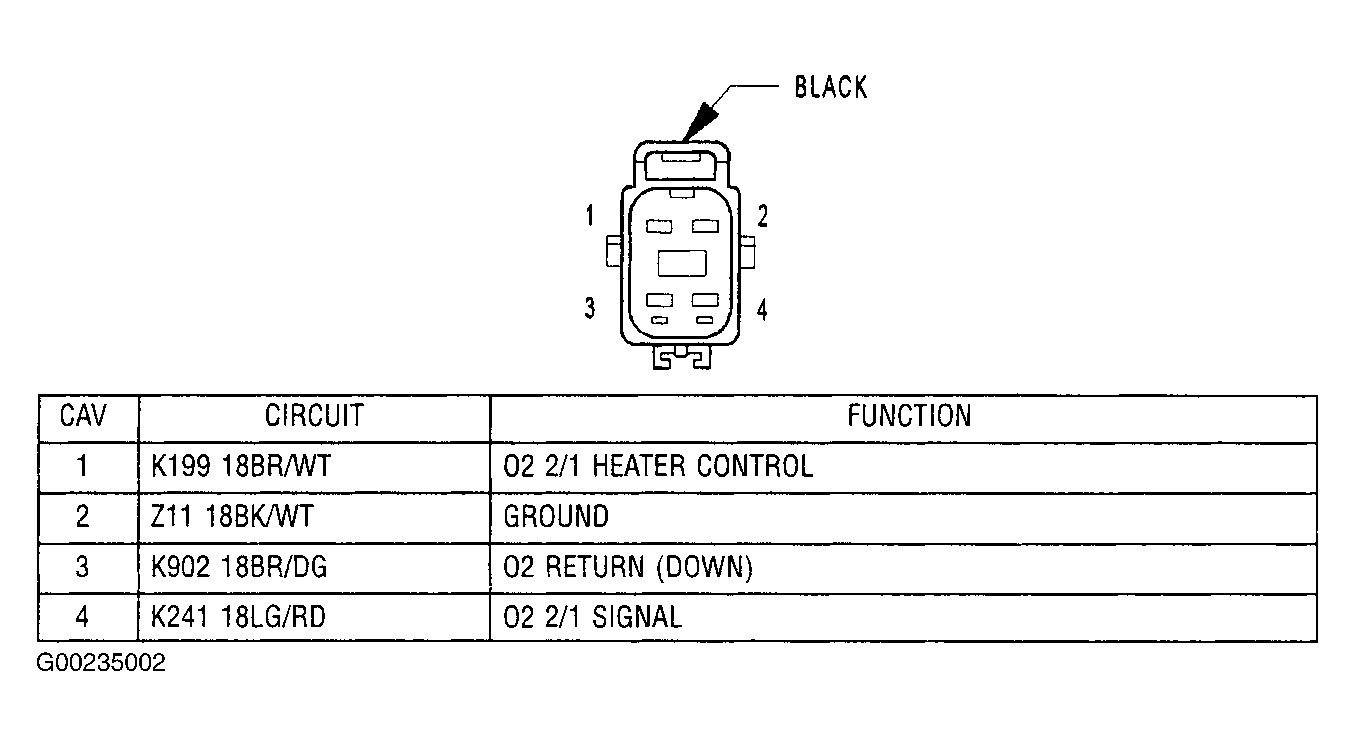

Fig 69: Identifying 2/1 Oxygen Sensor (California) Harness Connector Terminals

G00235002

Courtesy of CHRYSLER CORP.

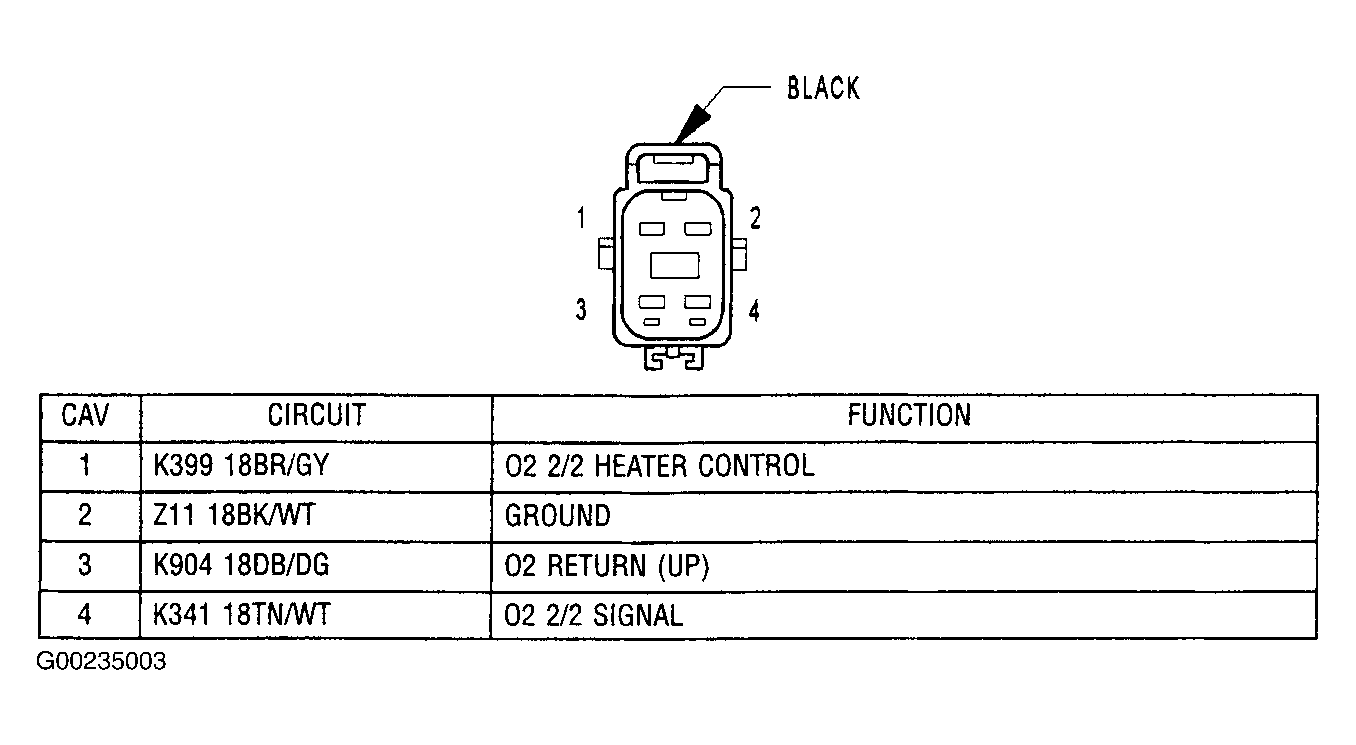

Fig 70: Identifying 2/2 Oxygen Sensor (Except California) Harness Connector Terminals

G00235003

Courtesy of CHRYSLER CORP.
