Caravan SXT
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Powertrain Diagnostic Procedures
>>
Connector PINOUTS
>>
Integrated Power Module C3 - 20 Way
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Integrated Power Module C3 - 20 Way

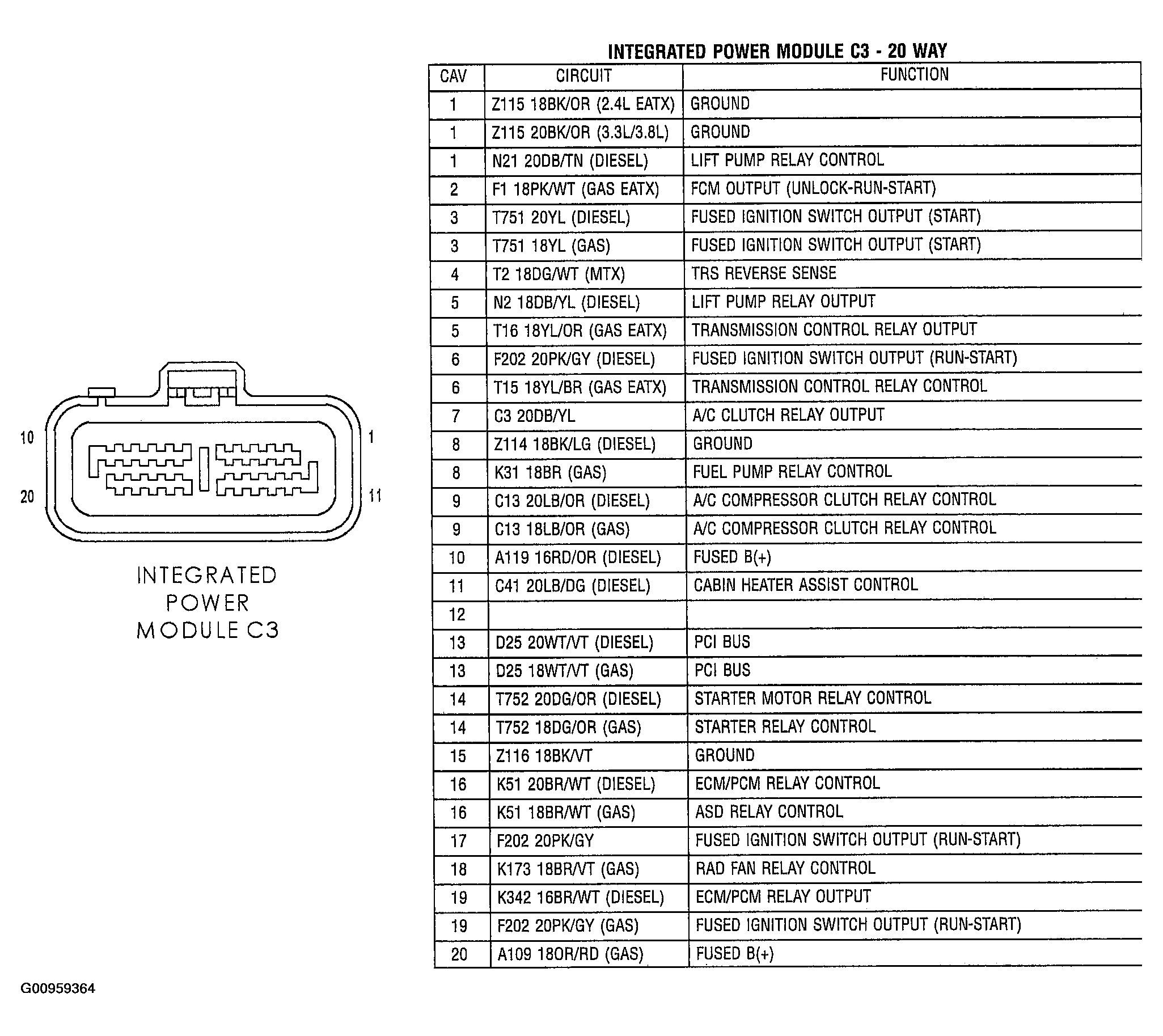

Fig 1: Identifying Integrated Power Module C3 - 20 Way Connector Pinouts And Functional Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
