Powertrain Control Module

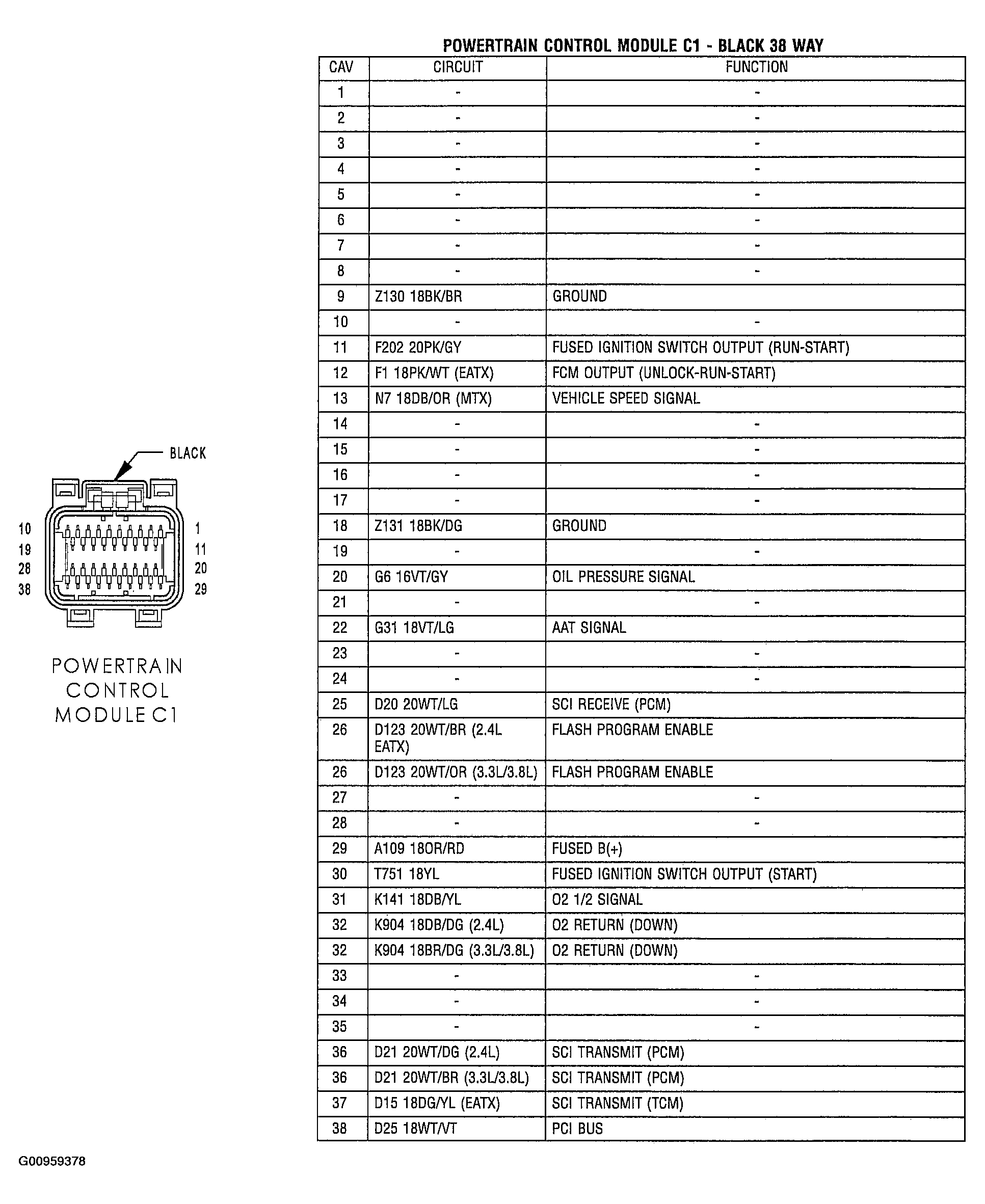

Fig 1: Identifying Powertrain Control Module C1 - Black 38 Way Connector Pinouts And Functional Chart

Courtesy of DAIMLERCHRYSLER CORP.

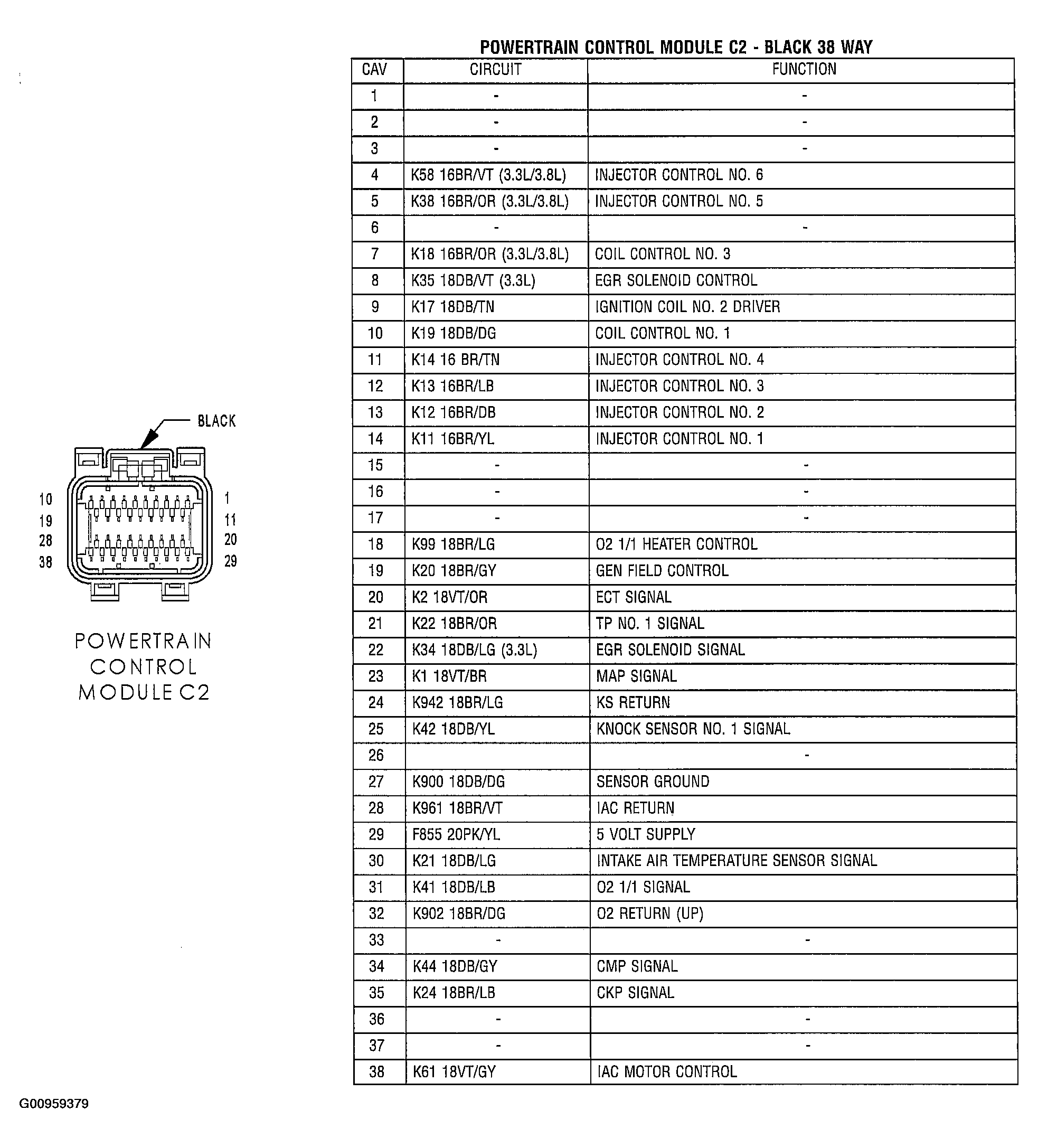

Fig 2: Identifying Powertrain Control Module C2 - Black 38 Way Connector Pinouts And Functional Chart

Courtesy of DAIMLERCHRYSLER CORP.

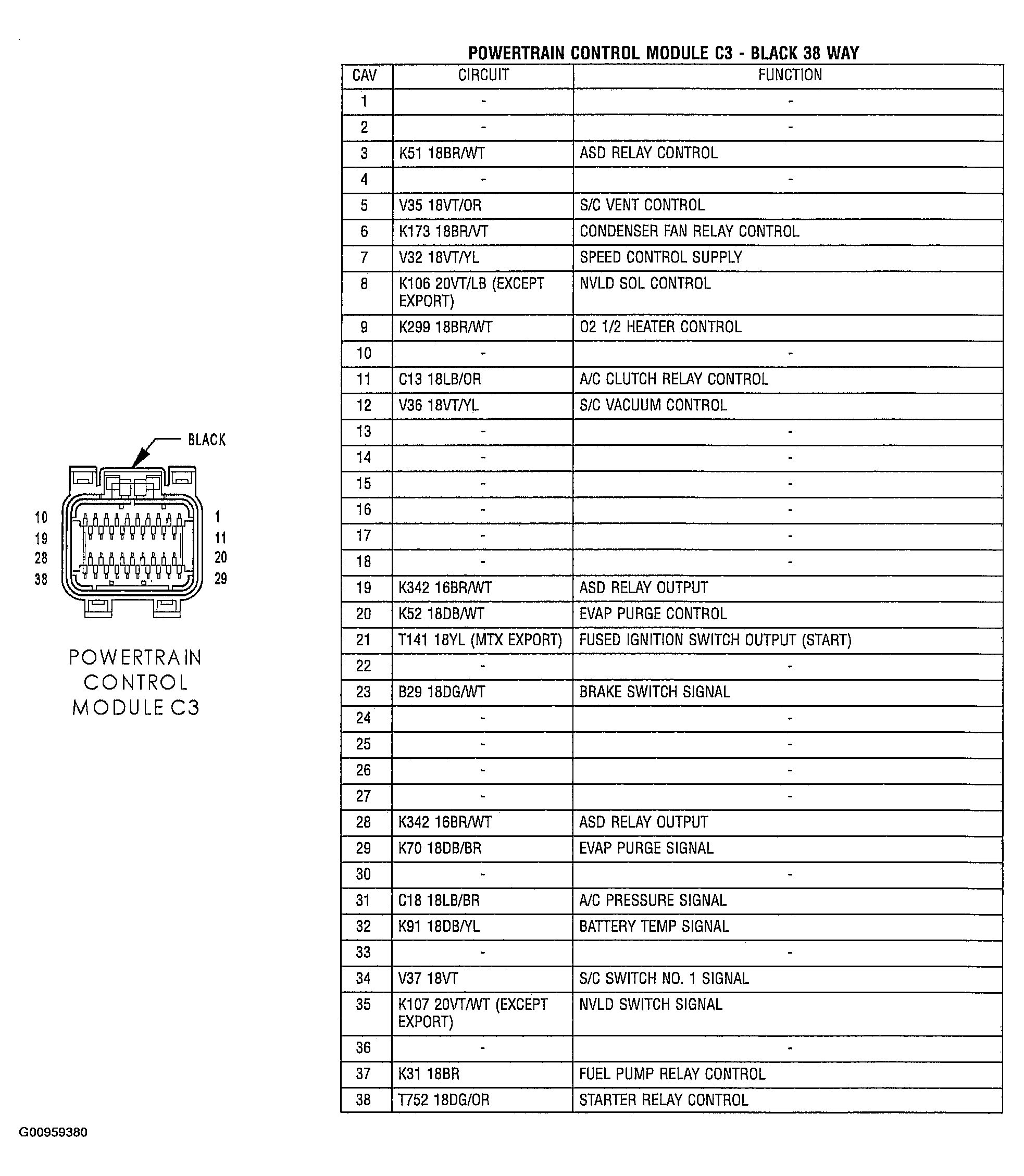

Fig 3: Identifying Powertrain Control Module C3 - Black 38 Way Connector Pinouts And Functional Chart

Courtesy of DAIMLERCHRYSLER CORP.

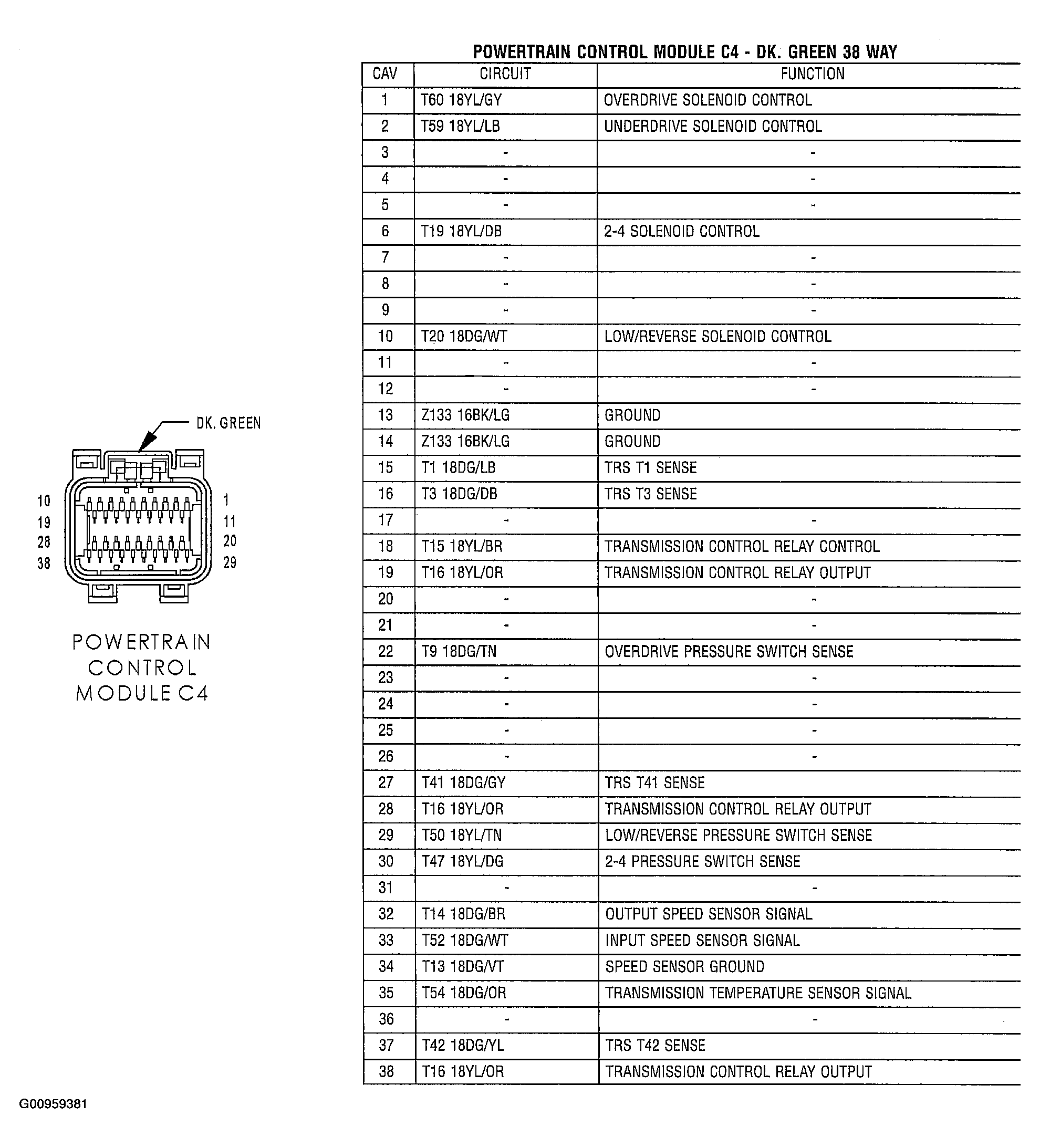

Fig 4: Identifying Powertrain Control Module C4 - DK Green 38 Way Connector Pinouts And Functional Chart

Courtesy of DAIMLERCHRYSLER CORP.
